The CDC's 2023 point-prevalence survey found that 2.6% of hospitalized patients, roughly 1 in 38, had at least one healthcare-associated infection on any given day, totaling an estimated 518,000 HAIs in U.S. acute-care hospitals that year. The response has been fast and well-funded. The antimicrobial medical-device coatings market is projected to grow from $3.48 billion in 2026 to $6.47 billion by 2030, a 16.8% annual growth rate.
Here's the problem: plenty of device manufacturers know coatings exist without understanding how they actually kill microbes. That gap leads to picking leaching technology when non-leaching would work better, or vice versa. This guide breaks down the mechanism stage by stage, not the marketing version.
Key Takeaways
- Coatings work via contact-kill (non-leaching) or ion-release (leaching) mechanisms
- Every coating follows one sequence: initiation, kill action, control, then output
- Leaching coatings deplete over time; surface-bonded coatings fail only from wear or fouling
- Coatings are applied post-machining, pre-sterilization, on catheters, implants, and instruments
What Are Antimicrobial Coatings for Medical Devices?
Antimicrobial coatings are engineered surface treatments designed to inhibit microbial adhesion, growth, or colonization directly on a device surface. They exist because device surfaces are prime real estate for bacterial colonization, and traditional infection control alone hasn't closed that gap.
Catheter-associated urinary tract infections remain one of the most persistent device-related complications tracked by hospital infection surveillance programs, which is part of why urinary catheter coatings became an early focus area for this technology.
What antimicrobial coatings are not:
- A substitute for sterilization: a sterile device is free of viable microorganisms; a coating that reduces microbial survival doesn't establish sterility on its own
- Identical to antibiotic coatings: antibiotics are one antimicrobial approach among several, not a synonym for the whole category
- A replacement for hospital infection-control protocols like hand hygiene and catheter care bundles
Despite rising antimicrobial resistance concerns and tighter FDA and ISO scrutiny, surface coatings remain a frontline defense simply because device surfaces are persistent colonization sites that antibiotics can't reach effectively once a biofilm forms.

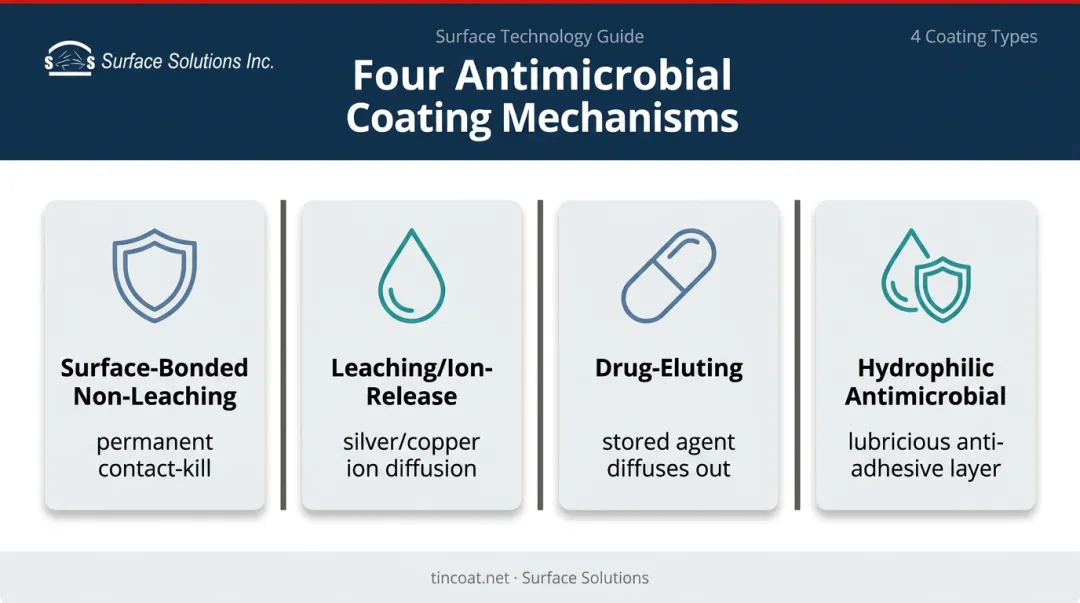

Main Coating Categories
- Surface-bonded non-leaching (contact-kill polymers): permanently bonded, act on physical contact
- Leaching (silver or copper ion-release): release active ions into surrounding tissue or fluid
- Drug-eluting: a stored antimicrobial agent diffuses out over time
- Hydrophilic antimicrobial: combines a lubricious, anti-adhesive layer with an incorporated active ingredient
Not every coating relevant to medical manufacturing fits these four categories, though. Dense, corrosion-resistant PVD coatings, like the CrN and AlTiN finishes Surface Solutions applies to tooling and instrument components, aren't antimicrobial coatings in the ion-release or contact-kill sense. But they contribute smooth, low-friction, corrosion-resistant surface characteristics that matter in medical manufacturing environments where hygiene and precision go hand in hand.
How Do Antimicrobial Coatings Work?
Regardless of coating type, the mechanism follows a defined sequence: initiation, core kill action, regulated control, and a measurable output. Understanding each stage clarifies why one coating type suits a short-term catheter while another fits a permanent implant.
Initiation
The antimicrobial action engages the moment the coated surface contacts moisture, blood, tissue, or airborne microbes. What happens next depends on the coating type.
- Non-leaching coatings act continuously and passively on contact — no trigger event required
- Leaching coatings are often accelerated by hydration or shifts in surrounding pH, which allows ions or agents to begin diffusing outward
Here's a bottleneck manufacturers frequently overlook: if coating adhesion fails during repeated sterilization cycles, such as autoclave, ethylene oxide, or gamma, the initiation stage can break down before the device ever reaches a patient. A coating that looks fine on the bench can delaminate after two or three sterilization runs if adhesion wasn't validated against the actual cycle the device will undergo.

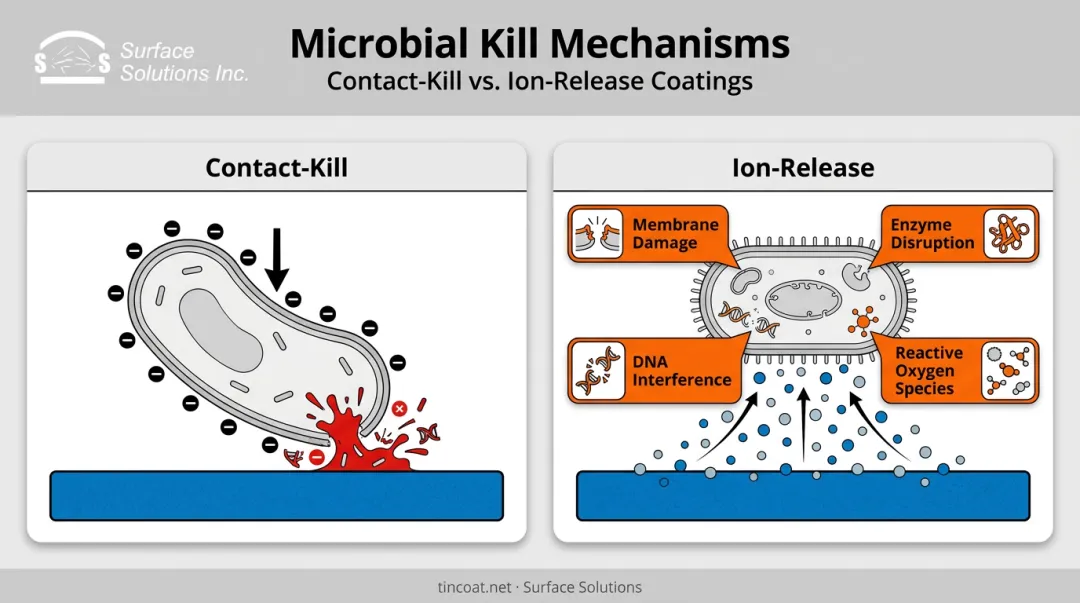

Core Operation
This is where the two mechanisms diverge sharply.
Contact-kill coatings rely on immobilized cationic polymers, commonly quaternary ammonium compounds. Electrostatic attraction pulls the negatively charged microbial cell envelope toward the coating, where the active groups physically pierce or disrupt the membrane.
Ion-release coatings diffuse metal ions, most often silver, into the surrounding environment. These ions interact with membrane and protein structures, interfere with enzyme function and DNA replication, and generate reactive oxygen species that damage the cell from multiple directions at once.
Either way, membrane disruption halts replication and metabolic activity before a biofilm can form. That timing matters because biofilms, not isolated bacteria, typically precede clinical infection.
| Factor | Contact-kill (non-leaching) | Ion-release (leaching) |
|---|---|---|
| Trigger | Physical contact | Hydration or fluid exposure |
| Depletion risk | None (but can foul or wear) | Finite reservoir, depletes over time |
| Reach | Surface only | Can act slightly beyond the surface |
| Spectrum | Formulation-specific | Often broad, but organism-dependent |
Two performance variables matter most here: speed of kill and spectrum of activity. Note that ISO 22196, the standard workhorse test, only measures antibacterial activity. Antiviral claims require separate testing under ISO 21702, and results for one virus don't automatically transfer to another.
Regulation / Control
Leaching coatings walk a tightrope. Release the ions too slowly and efficacy drops off before the device's expected service life ends. Release them too fast and you risk cytotoxicity to surrounding tissue along with rapid depletion.
Standardized testing acts as the calibration mechanism confirming a coating performs as intended:
- ISO 22196 measures antibacterial activity on treated plastics and nonporous surfaces
- ASTM E2149 evaluates antimicrobial activity under dynamic contact conditions
- ISO 10993-1 governs the broader biological evaluation, including cytotoxicity testing under ISO 10993-5
This stage matters because it prevents premature coating failure, keeps cytotoxicity risk in check, and helps avoid contributing to antimicrobial resistance through under-dosed, prolonged ion exposure.
Output / Result
The end goal is a measurable reduction in microbial colonization and prevented biofilm formation. Fewer device-associated infections, safer long-term implantation or catheter use, and less need for device replacement or re-intervention all follow from that single output.
A multicenter cohort study across seven acute-care hospitals compared 32 months of standard urinary catheters against 32 months of silver-alloy hydrogel catheters. CAUTI cases dropped from 111 to 46, a 58% relative reduction, with results reaching strong statistical significance.
That result doesn't generalize to every silver coating, though. A separate lab study testing a different silver-coated catheter found only a modest, non-significant reduction in bacterial viability under its specific assay conditions. Chemistry and test method both shape real-world performance, which is exactly why the regulation stage above exists.
Where Antimicrobial Coatings Are Used in Medical Device Manufacturing
Manufacturers typically apply coatings after final machining and surface preparation, and before sterilization and packaging. That sequencing isn't arbitrary. Apply a coating too early, and later handling compromises it. Apply it too late, and it interferes with sterilization validation.
Once applied, the coating has to survive:
- Repeated sterilization cycles across the device's shelf life
- Prolonged exposure to blood, tissue, or bodily fluids
- Mechanical wear from insertion, removal, or routine handling

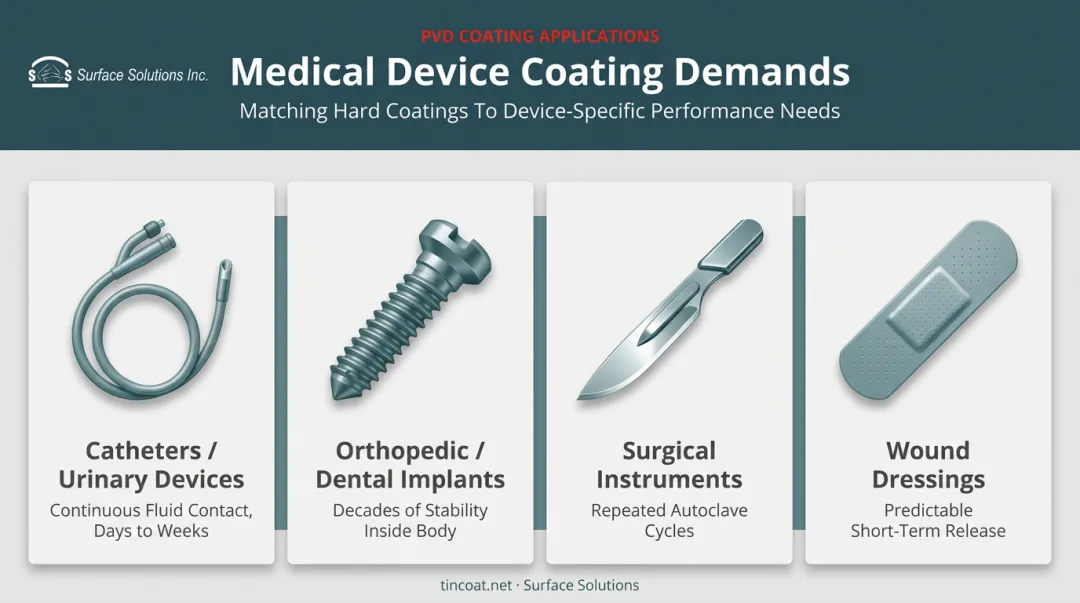

Performance requirements shift by device category:
- Catheters and urinary devices need coatings that hold up under continuous fluid contact for days or weeks
- Orthopedic and dental implants need decades of stability inside the body
- Surgical instruments face repeated autoclave cycles rather than sustained fluid exposure
- Wound dressings need active ingredients that release predictably over a shorter treatment window
The tooling and components used to manufacture these devices carry their own surface demands, separate from the antimicrobial coating on the finished product. Injection molds, cutting tools, and precision fixtures used in medical device production benefit from wear- and corrosion-resistant PVD coatings.
Surface Solutions applies CrN and AlTiN finishes to this kind of tooling, along with biocompatible PVD coatings directly onto surgical instruments themselves. These coatings support the corrosion resistance and dimensional precision that medical manufacturing environments demand.
Conclusion
Antimicrobial coatings function through two core pathways: contact-kill and ion-release. Each suits different device types, exposure durations, and regulatory expectations, and neither one is universally "better."
Matching the mechanism to the actual use case is what separates a coating that performs from one that fails quietly in the field. A short-term catheter has different demands than a permanent implant, and high fluid exposure calls for different protection than repeated sterilization cycles.
For components that also need corrosion resistance and precision alongside hygiene-supportive surfaces, working with a PVD coating specialist like Surface Solutions adds practical value beyond the antimicrobial layer itself.
Frequently Asked Questions
What antimicrobial coatings are available for medical devices?
The main categories are non-leaching/surface-bonded contact-kill polymers, silver or copper ion-release (leaching) coatings, drug-eluting coatings, and hydrophilic antimicrobial composites. Each suits different exposure durations and device types.
How do antimicrobial coatings kill bacteria on medical devices?
Contact-kill coatings physically disrupt the bacterial cell membrane on direct contact. Ion-release coatings diffuse metal ions, usually silver, that damage cell walls and interfere with enzyme and DNA function.
What's the difference between leaching and non-leaching antimicrobial coatings?
Leaching coatings continuously release ions or agents and have a finite lifespan tied to reservoir depletion. Non-leaching coatings act through permanent surface bonding and don't deplete, though they can lose effectiveness from fouling or wear.
Are antimicrobial coatings safe and biocompatible for patient use?
Yes, when properly tested under ISO 10993-1 biological evaluation and ISO 10993-5 cytotoxicity standards. Non-leaching coatings generally carry lower systemic toxicity risk since they don't release material into tissue.
How long do antimicrobial coatings remain effective on a device?
Leaching coatings deplete over time as their ion reservoir empties. Surface-bonded coatings can remain effective for the device's full functional lifespan, provided they survive sterilization and handling intact.
Do antimicrobial coatings require FDA approval or regulatory clearance?
Coatings aren't cleared as standalone products. They're evaluated as part of the finished device's overall regulatory submission, whether a 510(k) or PMA, and must meet biocompatibility and antimicrobial efficacy standards.
