Coatings are the most practical answer to this problem. According to Sandvik Coromant, coated cemented carbide now accounts for 80–90% of all cutting tool inserts — and for good reason. The right coating extends tool life, enables higher cutting speeds, and reduces the operational drag of frequent tool changes.
This guide covers how different coatings work, what each one does best, and how to choose the right one for your specific application.
Key Takeaways
- Coatings protect carbide inserts from heat, abrasion, and chip adhesion — the three main causes of premature wear
- PVD coatings are thinner and tougher; CVD coatings run thicker and handle high-heat continuous turning better
- AlTiN excels in dry, high-speed cutting; CrN is the go-to for heat-sensitive and adhesion-prone applications
- Uncoated inserts are the right call for soft non-ferrous materials like aluminum
- Re-coating resharpened inserts is a proven way to restore tool life at a fraction of replacement cost
Why Carbide Cutting Tool Inserts Need Coatings
During machining, the tool-workpiece interface is a genuinely hostile environment. Localized friction, temperatures that can reach several hundred degrees Celsius, and adhesive pressure that causes chips to weld themselves to the rake face will degrade even the hardest carbide substrate over time.

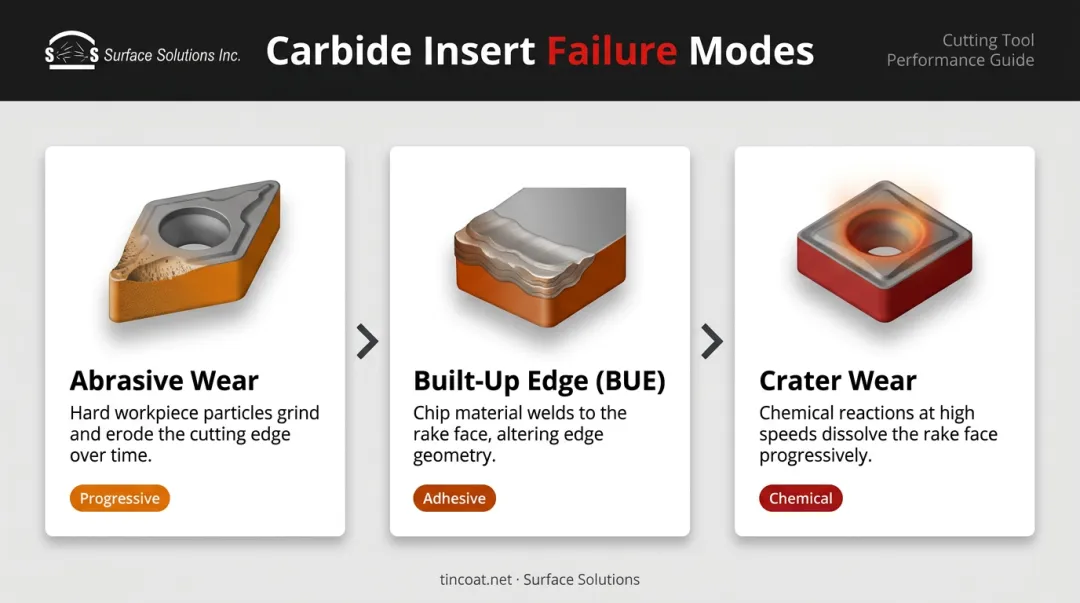

Three failure modes dominate:
- Abrasive wear — hard particles in the workpiece grind away the cutting edge over time
- Built-up edge (BUE) — chip material pressure-welds to the insert, distorting geometry and surface finish
- Crater wear — chemical reactions between the workpiece and insert rake face accelerate at higher cutting speeds, eventually fracturing the edge
Sandvik Coromant documents all three mechanisms in detail, noting that plastic deformation begins once cutting temperature exceeds the insert material's thermal threshold — a failure mode that coatings directly counteract.
What Coatings Actually Do
A coating acts as a barrier between the carbide substrate and the workpiece. Depending on the chemistry, it can:
- Reduce direct metal-to-metal friction at the cutting zone
- Insulate the substrate from heat that would otherwise soften the carbide
- Resist chemical bonding with the workpiece material to prevent BUE
- Add surface hardness beyond what the substrate alone can provide
Uncoated inserts mean more frequent tool changes, higher coolant consumption, and inconsistent surface finishes. A well-matched coating extends tool life, raises allowable cutting speeds, and reduces the cost per part produced — improvements that compound quickly across a production run.
Common Coating Types for Carbide Inserts
Choosing the wrong coating for your application is almost as costly as using no coating at all. Here's what each major chemistry actually does.

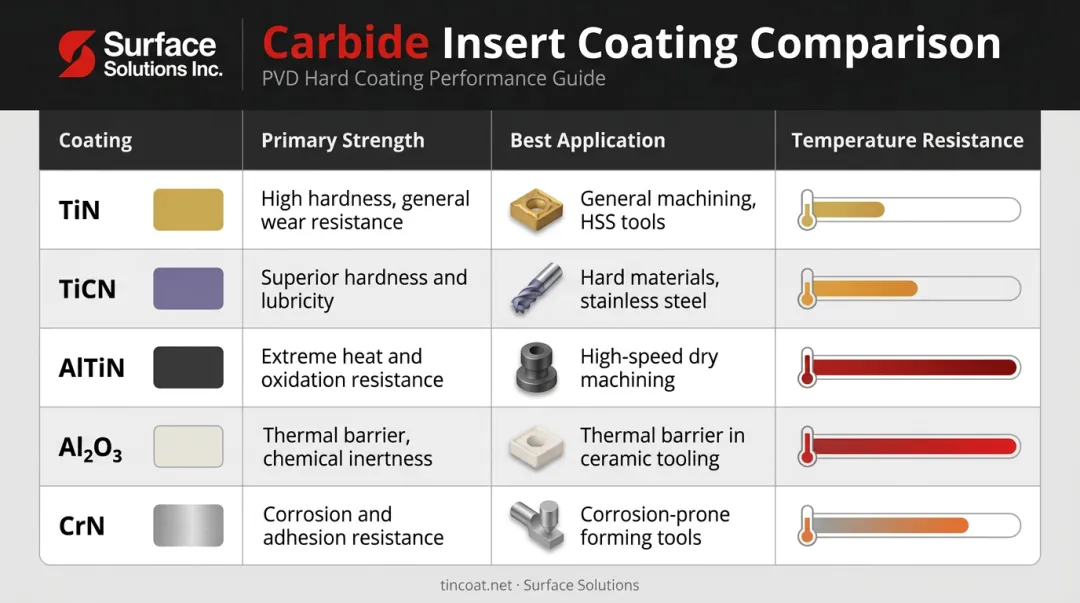

Here's a quick reference before diving into the details:
| Coating | Primary Strength | Best For | Temp Resistance |
|---|---|---|---|
| TiN | Wear resistance | General-purpose steel/cast iron | Low–moderate |
| TiCN | Hardness + low friction | Abrasive materials, BUE-prone | Moderate |
| AlTiN | Thermal barrier | High-speed, dry, hard material cutting | High |
| Al₂O₃ | Chemical inertness | High-speed steel/cast iron turning | Very high |
| CrN | Adhesion resistance | Stainless, drawing, chip-adhesion problems | Moderate–high |
Titanium Nitride (TiN)
TiN is the most recognizable cutting tool coating — that familiar gold color on drill bits and inserts. It improves surface hardness and wear resistance over uncoated carbide, making it a general-purpose option for lower-speed cutting of steel and cast iron.
Its limitation is temperature. TiN loses effectiveness at elevated cutting speeds, where more thermally stable coatings pull ahead. Kennametal uses TiN as an identification layer in multilayer CVD stacks — a signal that its primary role is often wear identification and friction management rather than heavy thermal protection.
In Surface Solutions' own carbide insert testing on 304 stainless steel, TiN served as the baseline — the starting point that more advanced coatings were measured against.
Titanium Carbonitride (TiCN)
TiCN adds carbon to the TiN structure, producing a harder, darker coating with a lower friction coefficient. It handles abrasive materials better than TiN and reduces adhesion tendency, which matters when machining materials prone to built-up edge.
Its color — typically a gray-violet — also helps with wear identification, making it easier to spot when an edge has reached end of life.
When abrasion is the limiting factor, TiCN holds up well. When heat becomes the dominant failure mode, a different chemistry takes over.
Aluminum Titanium Nitride (AlTiN)
AlTiN is the coating of choice when heat is the primary concern. At elevated temperatures, it forms an aluminum oxide layer at the cutting surface — a thermal barrier that regenerates in use and protects the substrate during dry machining or hard material cutting.
In Surface Solutions' documented case study on 3-corner carbide inserts machining 304 stainless steel, AlTiN delivered 6x the tool life of TiN-coated inserts with no changes to speeds or feeds — and produced a better surface finish. Coating cost: $2.50–$4.00 per insert. The performance gain is hard to argue with at that price.
Surface Solutions applies AlTiN at a thickness of 0.0001″–0.0002″ (2–5 microns), thin enough to preserve insert geometry and toolholder fit while delivering a hardness of 4,000–4,200 Hv.
Aluminum Oxide (Al₂O₃)
Al₂O₃ is a ceramic coating with exceptional oxidation resistance and thermal stability. It is chemically inert at the cutting zone, which makes it ideal for high-speed steel and cast iron turning where crater wear from chemical reactions is the dominant failure mode.
It's most commonly found as a middle layer in multilayer CVD stacks — sandwiched between TiCN and an outer identification layer — where it provides the thermal barrier while other layers handle wear resistance and adhesion.
Chromium Nitride (CrN)
CrN's distinguishing quality is low friction combined with excellent resistance to chip adhesion. Where AlTiN generates heat resistance through a chemical reaction, CrN manages heat through inherently low thermal conductivity — making it a different tool for a different problem.
Surface Solutions has documented a striking real-world example from a stainless steel drawing operation: with a different coating, the customer produced 15 parts and the workpieces were too hot to touch. After switching to CrN, the same tooling produced over 500 parts, with parts only warm to the touch — a 33x improvement in production output from coating chemistry alone.
If AlTiN is the right answer for heat-driven wear, CrN is the right answer when the workpiece material itself is the source of adhesion and friction problems.

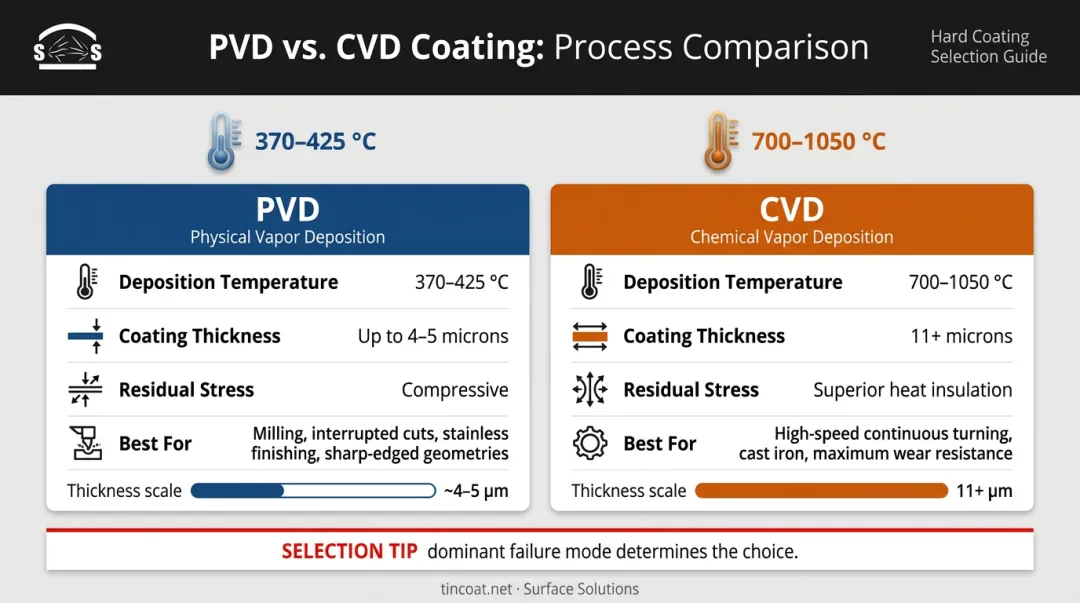

PVD vs. CVD: The Two Primary Coating Technologies
The chemistry matters, but so does the deposition process. PVD and CVD produce fundamentally different coating structures with different performance characteristics.
PVD (Physical Vapor Deposition)
In PVD, coating material is vaporized and deposited onto the insert surface at 400–600°C. The result is a thin coating — up to 4–5 microns per Seco Tools' specifications — that introduces compressive residual stress into the surface layer.
Compressive residual stress resists edge chipping and fracture — a direct benefit in interrupted cuts and milling, where the edge cycles in and out of contact with the workpiece. Surface Solutions' PVD process runs at 700°–800°F (approximately 370–425°C), the lower end of the PVD window, which carbide substrates handle without phase changes or dimensional distortion.
CVD (Chemical Vapor Deposition)
CVD uses chemical reactions at 700–1,050°C to form coatings that bond chemically with the substrate. The process produces thicker layers — CVD Al₂O₃ multilayer stacks commonly exceed 11 microns — with excellent adhesion and superior heat insulation.
Thickness is the key reason CVD dominates in high-speed continuous turning: the cumulative heat load demands a thermal barrier that PVD coatings simply can't match at 4–5 microns.
When to Choose Which
| Scenario | Recommended Process |
|---|---|
| Milling, interrupted cuts | PVD |
| Stainless steel finishing | PVD |
| Sharp-edged insert geometries | PVD |
| High-speed steel turning (continuous) | CVD |
| Cast iron turning at elevated speeds | CVD |
| Maximum wear resistance priority | CVD |
The PVD-for-milling / CVD-for-turning split is a useful starting point, not a fixed rule. Current CVD grades handle interrupted cuts well. The deciding factor is your dominant failure mode — thermal cracking points toward CVD; edge chipping points toward PVD.
Surface Solutions specializes in PVD coatings — TiN, AlTiN, CrN, TiCN, and their proprietary Alpha™ — applied to cutting tools, forming dies, and wear components for manufacturers running batch coating programs.
How Coatings Directly Impact Machining Performance
Tool Life Extension
Coated inserts outlast uncoated inserts in the vast majority of steel and stainless steel applications. The reduced friction and thermal protection keep the carbide substrate below the temperature threshold where softening and plastic deformation begin.
The gains vary by application and coating type. A 2023 study found that an experimental kappa-Al₂O₃ multilayer lasted approximately 650 seconds and outperformed its commercial CVD comparator by 2x in steel turning. Surface Solutions' documented results show AlTiN delivering 2–7x the tool life of uncoated tools across cutting applications, with stainless steel cases landing at the top of that range.
Resharpening Frequency and Labor Savings
Fewer sharpenings mean less machine downtime and lower tooling cost per part. Most shops underestimate this until they track it deliberately.
Surface Solutions customer Don Richardson quantified it directly after switching to Alpha™ coating: he ran a full order of 60,000 parts without resharpening, compared to his previous interval of 10,000 parts — a 6x improvement. His reasoning was simple: "It takes 8 hours to remove tools from the press and resharpen them. Saving 6 sharpenings saves 48 hours of labor."
That's 48 hours of recovered production time from a single coating change.
Chip Flow, Heat Management, and Surface Finish
Coatings like TiCN and AlTiN reduce friction at the cutting zone. The practical effects compound across a run:
- Improved chip evacuation reduces built-up edge (BUE) formation at the rake face
- Consistent surface finish run-to-run with less material adhesion
- Cooler workpieces from better thermal management, reducing distortion
- Tighter dimensional consistency across batches in close-tolerance turning
Matching the Right Coating to Your Application

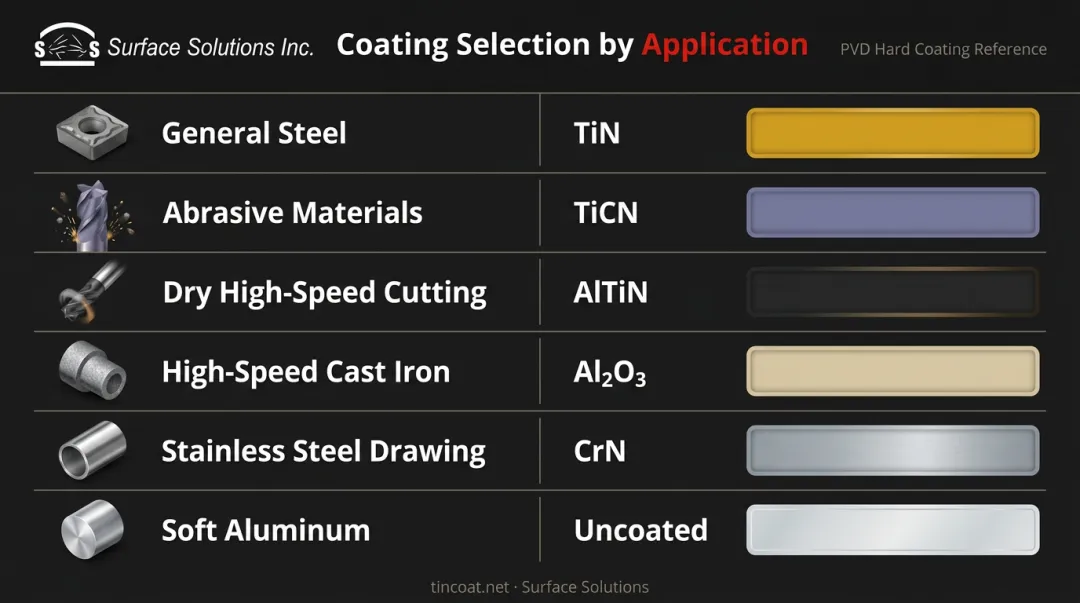

Coating selection depends on three variables: the workpiece material, the machining operation, and the cutting parameters (speed, feed, coolant availability). Use this as a starting framework:
| Workpiece / Condition | Recommended Coating |
|---|---|
| General steel, lower speeds | TiN |
| Abrasive materials | TiCN |
| Dry, high-speed cutting; hard materials | AlTiN |
| High-speed cast iron turning | Al₂O₃ (CVD multilayer) |
| Stainless steel drawing / adhesion-prone | CrN |
| Soft aluminum, pure non-ferrous | Uncoated |
When Uncoated Is the Right Answer
Not every application benefits from a coating. A 2024 study on dry turning of EN AW 2007 aluminum found that uncoated carbide outlasted both TiCN and TiAlN+TiN coated inserts — with tool lives of 36, 24, and 16 minutes respectively. The coatings caused adhesion and built-up edge that actually shortened tool life.
For soft aluminum and similar non-ferrous metals, certain coating chemistries create affinity with the workpiece material rather than repelling it. Uncoated carbide preserves maximum sharpness and avoids the adhesion problem entirely.
Getting the Selection Right
Choosing the wrong coating doesn't just underperform — it can actively shorten tool life and increase costs. Getting it right means evaluating your tooling, workpiece material, and production goals together, which is exactly what a coating specialist can do.
Surface Solutions provides that consultation and can re-coat resharpened inserts to restore performance. As cutting tool resharpening business owner Tony Deschenes of Special Tools, Inc. put it: one customer who switched from uncoated to coated found the tools "working better than new — like night and day."
For application-specific guidance, contact Surface Solutions at 763-785-9436 or info@tincoat.net.
Frequently Asked Questions
How long does a carbide insert last?
Lifespan varies significantly by material, operation, and coating. Research examples range from 16 minutes to over 600 seconds of cutting time depending on conditions, so there is no universal figure. Coating selection and wear monitoring are the most reliable ways to extend insert life in your specific application.
Are carbide inserts worth anything?
Used carbide inserts retain scrap value because of their tungsten carbide content. Sandvik, Seco, and Kennametal all accept worn inserts for recycling, with payment determined by weight and current market rates. Carbide recycling is a practical way to offset tooling costs in high-volume shops.
What is the coating on carbide inserts?
Most carbide inserts are coated with thin layers (typically 3–20 microns) of compounds such as TiN, TiCN, AlTiN, Al₂O₃, or CrN, applied via PVD or CVD. The coating adds surface hardness, reduces friction, and insulates the carbide substrate from heat generated during cutting.
What is the difference between PVD and CVD coatings on carbide inserts?
PVD coatings are thinner (up to 4–5 microns), applied at lower temperatures, and produce compressive stress that improves edge toughness — making them preferred for milling and interrupted cuts. CVD coatings are thicker (can exceed 11 microns), provide superior heat insulation, and are generally preferred for high-speed continuous turning.
Which coating is best for high-temperature machining applications?
AlTiN is the most widely supported choice for dry, high-speed, or hard-material cutting. It forms a protective aluminum oxide layer under heat, which continuously reinforces the thermal barrier as temperatures rise. CrN is the better option when both heat resistance and chip adhesion are concerns, particularly with stainless steel and other adhesion-prone materials.
