This article breaks down the operating temperature ranges, key thermal properties, influencing factors, and practical considerations for specifying tungsten carbide coatings.
Key Takeaways
- Standard WC-Co coatings maintain performance up to 500°C, with oxidation accelerating above this threshold
- Binder choice and deposition method set the practical temperature ceiling
- Chromium-modified systems can extend oxidation resistance to 700-800°C
- Continuous service needs a lower temperature limit than thermal cycling
- Understanding your actual duty cycle matters more than relying solely on published ratings
What Temperature Limits Represent in Tungsten Carbide Coatings
A temperature limit is the threshold beyond which a coating experiences irreversible chemical, physical, or mechanical degradation that affects its protective function. In practice, that limit is a set of thresholds: an optimal performance range, an acceptable degradation range, and a failure point.
These limits function both as design constraints (maximum service temperature) and operating boundaries (beyond which performance degrades). For example, HVOF WC-12Co coatings show measurable oxidation above 450°C (842°F) after 2 hours in air. Complete conversion to tungsten trioxide (WO₃) occurs only at 600°C (1112°F).
Factors That Influence Temperature Limits in Real-World Operation
Lab ratings rarely match field results. Atmosphere, cycling, process route, and substrate all shift when degradation starts:
Coating composition and microstructure:
- Binder metal type (cobalt, nickel, chromium) directly affects high-temperature strength retention
- Grain size, carbide-to-binder ratio, and presence of secondary carbides influence oxidation resistance
- Higher binder content improves ductility and impact resistance; lower content favors hardness and abrasion resistance
Deposition process effects:
- PVD coatings typically show different thermal behavior than HVOF or D-Gun thermal spray coatings
- Density, porosity, and residual stress differences alter oxidation kinetics and thermal fatigue resistance
- HVOF particle temperatures (2000-3000 K) can decarburize WC to harder but more brittle W₂C
Operating atmosphere:
- Oxygen-rich environments accelerate oxidation
- Inert or reducing atmospheres extend temperature capability
- Argon atmospheres can suppress beneficial tribo-oxide formation, sometimes increasing wear compared to air
Thermal cycling vs. continuous exposure:
- Repeated heating and cooling creates thermal fatigue and stress-related degradation
- Steady-state high temperature exposure follows different oxidation kinetics
- Interface stresses intensify with each thermal cycle
Substrate material and thermal expansion mismatch:

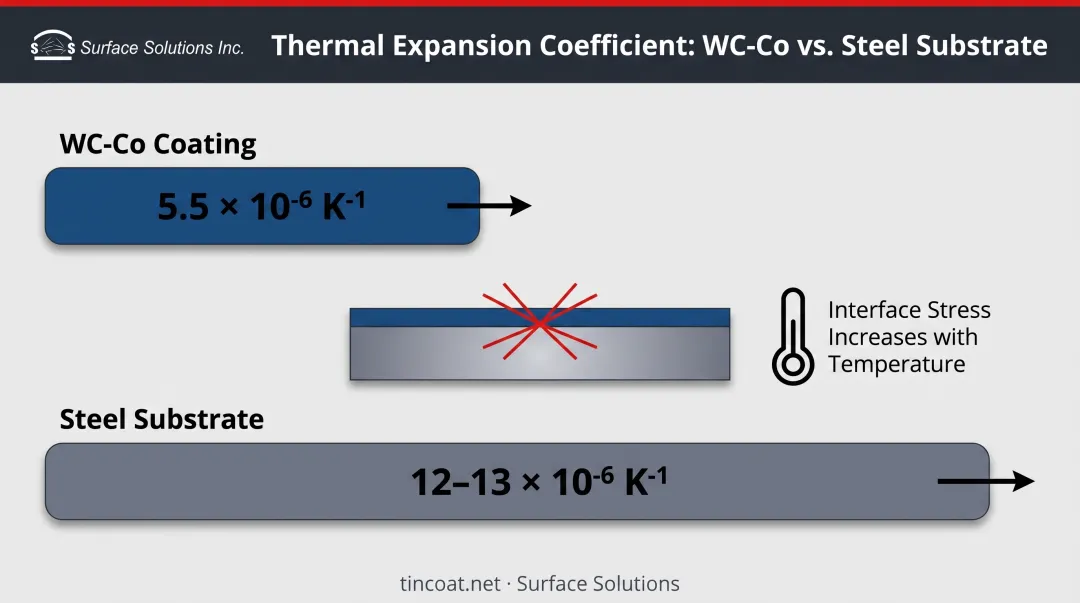

- WC-Co thermal expansion coefficient (~5.5 × 10⁻⁶ K⁻¹) is less than half that of steel substrates (~12-13 × 10⁻⁶ K⁻¹)
- Differential expansion creates interface stresses that intensify at higher temperatures
- Coating thickness and substrate design must account for these effects
Range of Temperature Limits for Tungsten Carbide Coatings
Temperature limits vary significantly based on coating composition, deposition method, and operational conditions rather than having a single universal value.
Nominal Operating Range for Standard WC-Co Coatings
The typical safe operating range for standard cobalt-bonded tungsten carbide coatings applied via HVOF or similar thermal spray methods is room temperature to 500°C (932°F). Within this range, coatings maintain:
- Hardness above 1000 HV
- Wear resistance and structural integrity
- Minimal oxidation in air
These assumptions hold for normal oxygen content and moderate thermal cycling conditions. Manufacturer specifications confirm this baseline: Oerlikon rates WC-10Ni and WC-10Co-4Cr at a maximum of 500°C (932°F) for continuous service.

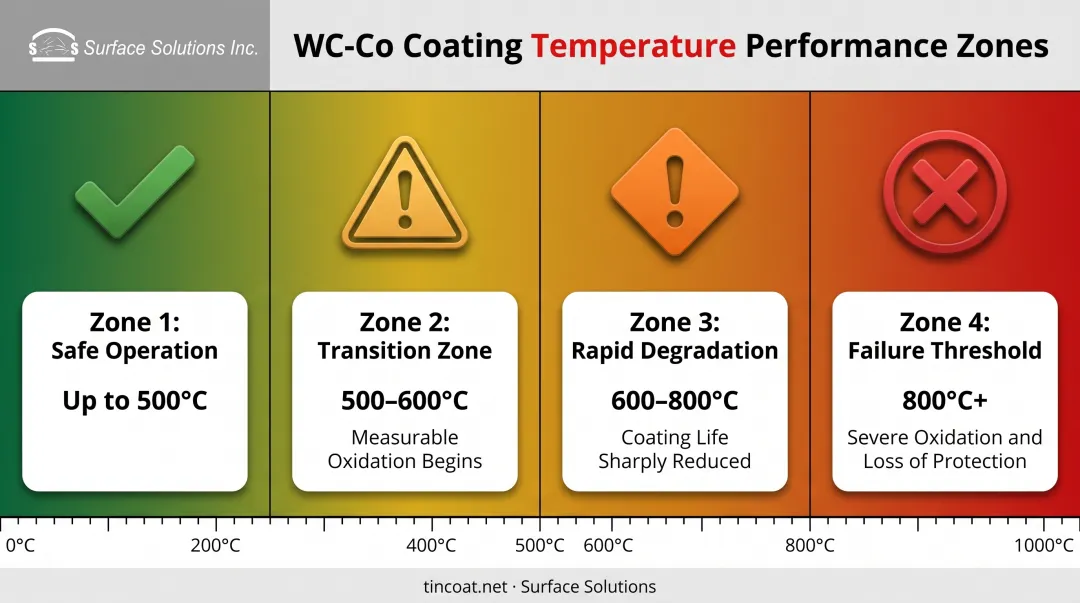

Critical Temperature Boundaries and Degradation Zones
500-600°C (932-1112°F) transition zone:
- Oxidation becomes measurable and accelerates
- Coatings may still function with reduced performance
- For HVOF WC-12Co, WO₃ formation begins above 450°C after 2 hours in air
- CoWO₄ appears at 550°C
600-800°C (1112-1472°F) rapid degradation zone:
- Oxidation, binder softening, and carbide decomposition cut coating life sharply
- Complete WC conversion to WO₃ and CoWO₄ occurs by 600°C
- Wear rates can double or triple compared to room temperature
- At 650°C, severe wear develops as vigorous oxidation degrades the coating
800°C+ (1472°F+) failure threshold:
- Standard WC-Co coatings experience severe oxidation
- Decarburization and loss of protective capability occur rapidly
- Only specially modified compositions maintain function
Temperature Extensions Through Composition Modifications
Chromium-modified tungsten carbide:
- (W,Cr)C coatings form protective Cr₂O₃ layers that extend oxidation resistance
- WC-10Co-4Cr shows improved oxidation behavior at 700-800°C compared to standard WC-12Co

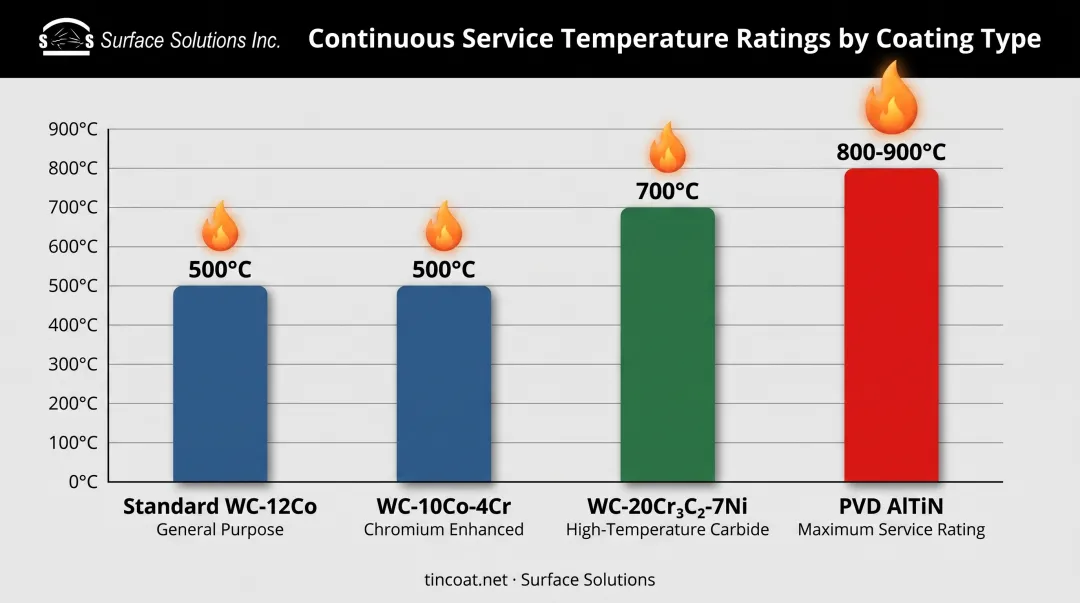

- WC-20Cr₃C₂-7Ni systems are rated to 700°C (1290°F) for continuous service
Alternative binder systems:
- Nickel-based binders offer improved corrosion resistance
- Co-Cr alloys provide better high-temperature strength retention than pure cobalt
- Iron aluminide binders support higher service temperatures in specialty applications
PVD and high-temperature alternatives:
- PVD produces a denser, lower-porosity structure than typical thermal spray WC-Co
- That structure changes oxidation and wear behavior versus HVOF baselines
- When continuous temps exceed WC ratings, Surface Solutions' AlTiN PVD coatings resist oxidation up to 800-900°C
Safe Operating Margins and Engineering Practice
Engineers typically design for 20-30% safety margin below published temperature limits to account for:
- Localized hot spots that exceed bulk temperature measurements
- Temperature measurement uncertainties
- Process variations and environmental factors
Peak transient vs. sustained temperatures:
- Brief excursions during startup or process upsets may exceed continuous ratings
- Sustained operating temperatures should target 50-100°C below maximum ratings
- Long service life and performance stability require conservative design margins
Match the coating to your duty cycle and real temperature profile. Published maximums often describe short exposure (minutes to hours), not continuous service limits.
Key Thermal Properties of Tungsten Carbide Coatings
Practical temperature limits depend on oxidation onset, hardness retention, thermal expansion mismatch, conductivity, and phase stability as heat rises.
Thermal Stability and Oxidation Resistance
Oxidation onset temperature for standard WC-Co coatings is 500-600°C, where tungsten carbide reacts with atmospheric oxygen to form WO₃. Unlike protective oxide scales, WO₃ is volatile and non-protective, leading to progressive coating degradation.
Oxidation kinetics:
- Accelerate exponentially above onset threshold
- Weight gain and surface degradation rates double with each 50-100°C increase
- Complete phase transformation occurs by 600°C in standard air exposure
Chromium additions:
- Form stable Cr₂O₃ protective layers
- Reduce oxidation rates by 60-75% in the 700-800°C range
- WC-20Cr₃C₂-7Ni systems maintain function to 700°C
Mechanical Property Retention at Elevated Temperature

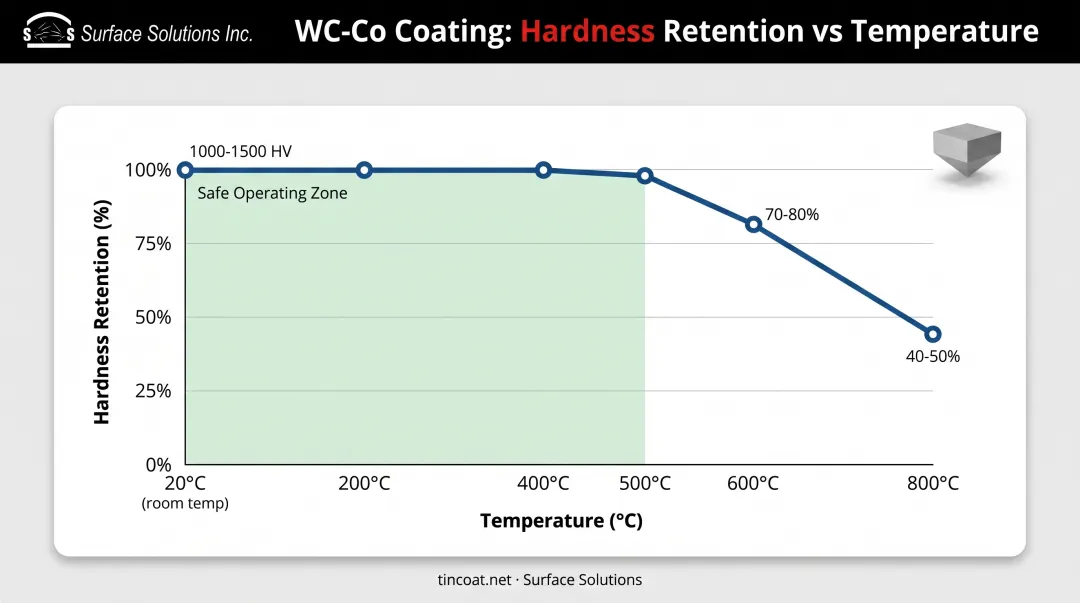

Hardness retention:
- Room temperature: 1000-1500 HV typical for WC-Co coatings
- 600°C: maintains 70-80% of room temperature hardness
- 800°C: declines to 40-50% of room temperature values
The cobalt binder phase softens above 500°C, reducing the coating's ability to support hard carbide particles and maintain wear resistance. This softening translates directly to reduced cutting efficiency, increased friction, and accelerated component wear in metal forming and machining applications.
Alternative binders improve performance:
- Nickel-based systems provide better corrosion resistance
- Co-Cr alloys improve high-temperature strength retention by 40-50% compared to pure cobalt
Thermal Expansion and Interface Stress
Tungsten carbide's coefficient of thermal expansion (5.2-5.5 × 10⁻⁶ K⁻¹) creates significant mismatch with common substrates:
- Steel substrates: ~12-13 × 10⁻⁶ K⁻¹
- Expansion difference generates interface stresses during heating
- Thermal cycling amplifies these stresses with each temperature change
When temperature differentials exceed design limits, this mismatch can lead to:
- Coating delamination at the interface
- Through-thickness cracking
- Spallation and loss of protective function
Specify coating thickness and substrate pairing for both peak temperature and expected thermal cycle count so interface stress stays within design limits.
Thermal Conductivity and Heat Management
Measured thermal conductivity for HVOF WC-12Co + 10% Cr coating systems ranges from 31.33 W/m·K at 100°C to 21.94 W/m·K at 700°C, showing approximately 30% reduction over this temperature range.
Standard WC thermal conductivity is typically 80-120 W/m·K, but WC-Co composites vary depending on:
- Binder content and composition
- Coating microstructure (porosity in thermal spray vs. density in PVD)
- Temperature
High thermal conductivity can be advantageous for heat dissipation in cutting tools but may require adjustment in applications needing thermal insulation. Microstructure drives heat transfer: dense PVD coatings behave differently than porous thermal spray coatings.
Phase Stability and Binder Interaction
At elevated temperatures, undesirable eta-phase carbides (W,Co)₆C can form at the carbide-binder interface, creating brittle zones that compromise coating integrity. Carbon control during deposition and in service sets phase stability and usable temperature range.
Carbon balance considerations:
- HVOF particle temperatures can decarburize WC to W₂C (harder but more brittle)
- Decarburization weakens the carbide structure at elevated temperatures
- Proper carbon balance prevents degradation and maintains mechanical properties
Keep carbon balance in check and you retain toughness and wear resistance under sustained high-temperature service.
How Temperature Limits Are Specified, Measured, and Validated
Temperature limits show up on every datasheet. How those numbers were measured and validated decides whether they hold up on your tools—or fail in service.
Specification Standards and Documentation
Industry standards used to specify and test thermal performance include:
- ASTM D2485-22: Evaluates heat-resistant coatings on steel but does not define universal temperature terms
- ISO 14923:2003: Covers thermally sprayed coating characterization and testing procedures
- ISO 21608:2012: Addresses isothermal high-temperature corrosion exposure testing
Manufacturer specifications should clarify:
- Maximum operating temperature: Brief exposure capability (minutes to hours)
- Continuous service temperature: Long-term exposure rating
- Oxidation onset temperature: Where degradation begins
- Testing conditions: Atmosphere, duration, thermal cycling vs. isothermal exposure
Skip any of these details and you cannot map a published rating to your real duty cycle.
Temperature Measurement and Monitoring in Applications
Contact methods such as thermocouples (ASTM E220-19) are widely used, but they have limits:
- Thermal gradients often hide the true coating surface temperature
- Attachment method and tip placement can skew readings
Non-contact methods include infrared pyrometry and thermal imaging (emissivity guidance in ASTM E1933-14):
- Require correct emissivity compensation for useful data
- Lose accuracy as oxidation and surface roughness change coating emissivity
Tool or component bulk temperature often differs from coating surface temperature by 50–200°C (about 90–360°F) during operation. Localized heating effects, particularly in cutting and metal forming, create hot spots that exceed bulk measurements. Engineers should design for worst-case surface temperatures, not average component temperatures.
Accelerated Testing and Service Life Prediction
Isothermal oxidation testing:
- Elevated temperature exposure with periodic weight measurement
- Validates oxidation resistance and kinetics
Thermal cycling tests:
- Simulate real-world service by repeatedly heating and cooling
- Assess interface stability and crack resistance
- Reveal failure modes that never show up in steady-state holds
- Example protocol: 50 cycles at 900°C, 1-hour heat / 20-minute cool
Accelerated testing using higher-than-service temperatures can predict long-term performance but requires careful correlation to actual operating conditions. Results depend heavily on:

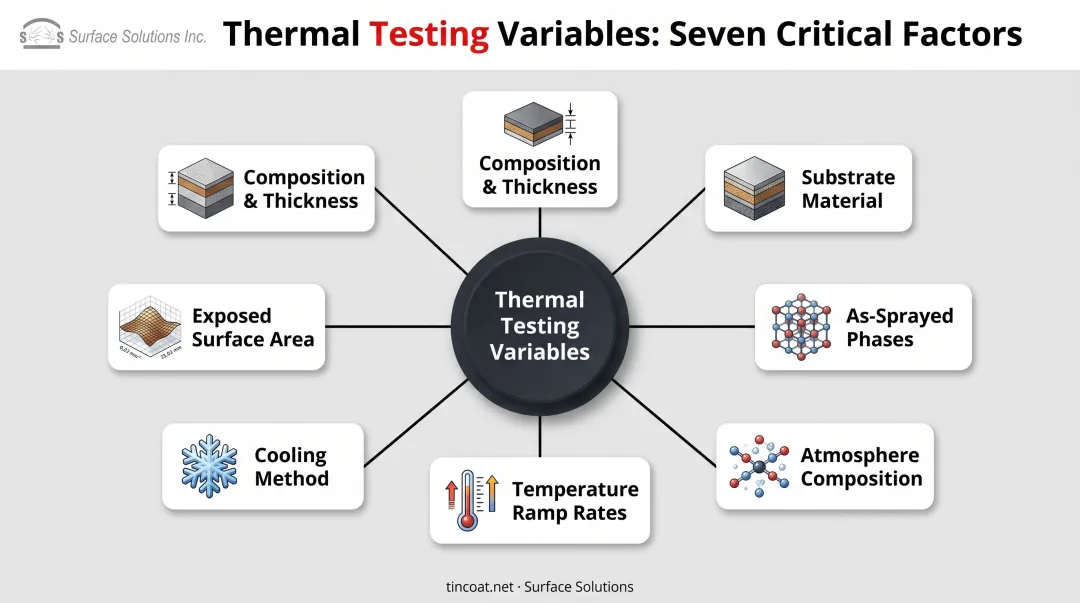

- Composition and thickness
- Substrate material
- As-sprayed phases and porosity
- Atmosphere composition and flow
- Temperature ramp rates and dwell times
- Cooling method
- Exposed surface area
Implications of Operating Outside Recommended Temperature Limits
Exceeding temperature limits triggers specific degradation mechanisms with predictable consequences for coating performance and component life.
Oxidation and Surface Degradation Mechanisms
Above 600°C, oxidation converts tungsten carbide to tungsten trioxide (WO₃):
- Forms a porous, non-protective WO₃ layer
- Spalls away and leaves underlying material exposed
- Penetrates deeper as time and temperature increase
- Consumes the full coating thickness with continued exposure
For HVOF WC-10Co-4Cr on AISI 316L stainless steel tested at 900°C, oxidation across 50 thermal cycles produced a maximum mass gain of 0.36 mg/cm² and a cumulative mass gain of 12.07 mg/cm². Those results show how fast oxidation damage builds once temperatures exceed recommended limits.
Mechanical Property Degradation and Wear Acceleration
Binder softening above 500-600°C reduces the coating's ability to resist abrasive wear:
- Wear rates can double or triple versus room-temperature operation
- Hardness loss reduces cutting efficiency
- Higher friction speeds component wear in metal forming
HVOF WC-12Co/WC-17Co wear testing showed:
- Mild air wear through 450°C
- Slight increase at 500°C
- Severe wear at 650°C as vigorous oxidation degraded the coating
When tungsten carbide coatings hit these thermal limits in metal forming, coating chemistry becomes a practical lever. Surface Solutions' CrN PVD coatings produced over 500 parts that stayed "just warm to the touch," versus 15 parts with alternative coatings that ran too hot to handle.
Coating Delamination, Cracking, and Catastrophic Failure
Thermal expansion mismatch intensifies with temperature, creating shear stresses at the coating-substrate interface:
- Progressive delamination at the coating-substrate bond
- Fatigue cracks from cycling through temperature limits
- Crack growth with each cycle until the coating spalls
Safety and liability implications:
- Coating failure in aerospace or medical use can cascade into full component failure
- Equipment damage and safety incidents become more likely
- Specify operating limits and monitor process temperature as standard risk controls
Common Misinterpretations of Temperature Limits in Practice
Misunderstanding temperature specifications leads to coating failures and premature replacement.
Treating Maximum Ratings as Continuous Operating Limits
"Maximum temperature" often refers to brief excursion capability (minutes to hours), not continuous operating temperature. A 500°C maximum rating may cover short-duration startup or process upsets, not sustained 8-hour shifts at that temperature.
Continuous operation should target 50-100°C below maximum ratings for long service life and stable performance. Oerlikon's datasheets distinguish product ceilings from qualified continuous-duty ratings, yet many users treat them as interchangeable.
Ignoring Atmosphere and Environmental Effects
Published temperature limits typically assume air atmosphere. Real conditions change the picture:
- Oxygen-rich environments may cut effective capability by 100-200°C
- Corrosive or chemically reactive atmospheres accelerate degradation
- Inert atmospheres (nitrogen, argon) can push capability beyond air-rated limits
Argon has a catch: it can suppress beneficial tribo-oxide formation and sometimes increase wear. Testing showed HVOF WC-12Co/WC-17Co had greater wear loss in argon than air through 600°C because protective oxides never formed. Don't assume inert atmosphere is automatically better for tribological applications.
Assuming All Tungsten Carbide Coatings Have Identical Temperature Performance
WC-Co, WC-Ni, WC-Cr₃C₂-Ni, (W,Cr)C, and other composition variants have widely different temperature limits:
- Standard WC-12Co: 500°C continuous service
- WC-10Co-4Cr: 500°C (improved oxidation behavior but same rating)
- WC-20Cr₃C₂-7Ni: 700°C continuous service
Specify exact coating composition and deposition method rather than generic "tungsten carbide coating." Process matters too: HVOF, D-Gun, and PVD produce different microstructures with different thermal capabilities. Outside the WC family, PVD coatings such as AlTiN—available from Surface Solutions—reach 800-900°C oxidation resistance when the job needs more temperature headroom.
Frequently Asked Questions
What is the melting point of tungsten carbide?
Tungsten carbide decomposes rather than melts, at about 2785–2830°C. Practical coating limits are much lower (500–800°C) because oxidation and binder degradation fail the coating long before decomposition.
Is tungsten carbide brittle?
Pure tungsten carbide is brittle; cemented coatings with metal binders (Co, Ni) add toughness. Above about 600°C, eta-phase formation and oxidation can embrittle the coating, cutting impact resistance and raising crack risk.
What is tungsten carbide coating?
Tungsten carbide coating is a hard, wear-resistant layer applied by HVOF, PVD, or similar processes to extend tool and component life. Standard WC-Co is typically rated near 500°C; chromium-modified WC grades reach about 700°C, while high-temperature PVD alternatives (such as AlTiN) can handle 800–900°C.
How do I choose the right temperature rating for my application?
Identify peak surface temperature, duty cycle, atmosphere, and thermal cycling, then design continuous use 50–100°C below published maximums. Above 600°C, favor chromium-modified WC or advanced PVD coatings. Call Surface Solutions at 763-785-9436 for application-specific recommendations.
Can PVD tungsten carbide coatings handle higher temperatures than thermal spray coatings?
Dense high-temp PVD films (for example AlTiN) can resist oxidation to about 800–900°C, while standard thermal spray WC-Co is limited to roughly 500°C. Chromium-modified spray systems such as WC-20Cr₃C₂-7Ni extend that to about 700°C—choose based on substrate, thickness, and duty cycle.
What happens if I briefly exceed the temperature limit during startup?
Brief, infrequent spikes may be tolerable if they stay within the coating’s maximum rating. Repeated excursions still cause cumulative thermal-cycling damage, so document peak transients and validate the full duty cycle with your coating supplier before specifying.
