The catch is that these two properties usually fight each other. Roughening a surface to repel water often means adding textures or chemistries that haven't been cleared for biological contact. Getting both right takes precise engineering.
This guide breaks down the science, the material options, and how to choose a coating that actually delivers on both fronts.
Key Takeaways
- Superhydrophobic surfaces require water contact angles above 150° and sliding angles under 10°.
- Biocompatibility depends on contact type, duration, and ISO 10993 testing—not a single certificate.
- Laser-textured stainless steel cuts bacterial adhesion by up to 99% versus untreated surfaces.
- Material options include PTFE, silicone, fluoropolymer nanocoatings, nanoparticle composites, and PVD-based films.
- Coating lifespan depends on wear, sterilization cycles, and substrate adhesion, not a fixed timeline.
What Are Biocompatible Superhydrophobic Coatings?
These coatings are engineered to repel water and biological fluids almost completely while triggering no adverse reaction where they touch skin, tissue, or bloodstream. That combination sounds simple. In practice, it requires two separate engineering problems to be solved at once, using materials that satisfy both sets of rules simultaneously.
Understanding Superhydrophobicity
A surface earns the "superhydrophobic" label only when it hits two specific numbers: a water contact angle above 150° and a sliding angle below 10°. That's a much higher bar than ordinary hydrophobic materials meet. Smooth PTFE, for example, tops out around 109-114°, well short of the superhydrophobic threshold on its own.

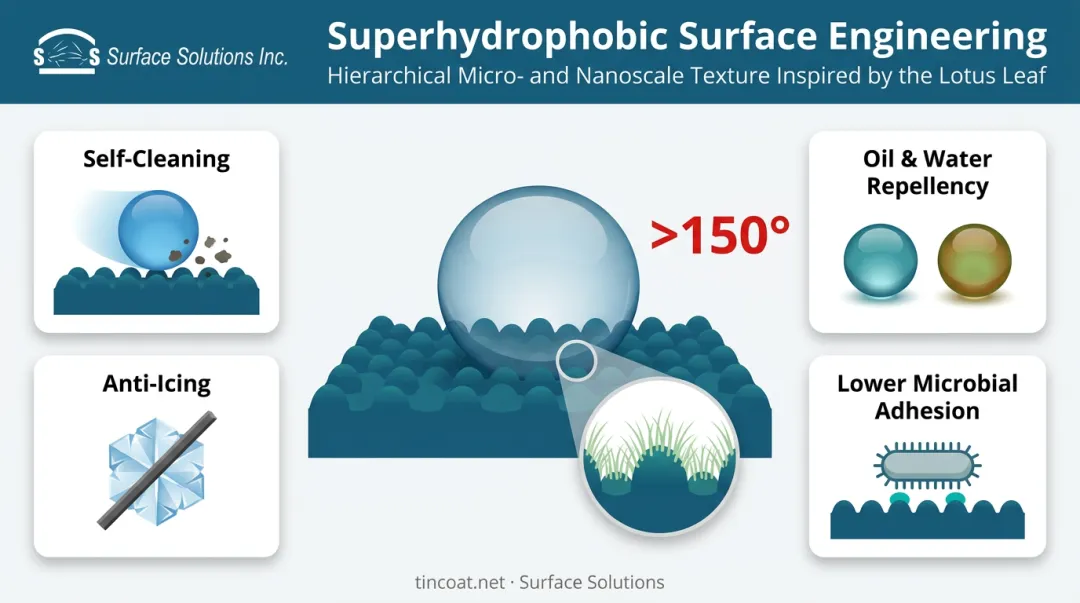

The benchmark comes from nature. Lotus leaves achieve contact angles above 160° and sliding angles under 5°, thanks to a layered structure of micro- and nanoscale bumps covered in a waxy, low-energy coating. Water droplets barely touch the surface, so they roll off and take dirt and microbes with them.
That mechanism produces several practical benefits:
- Self-cleaning behavior as rolling droplets lift away debris
- Oil and water repellency in a single surface
- Anti-icing performance from reduced ice adhesion
- Lower microbial adhesion, since bacteria have less surface area to grip
Understanding Biocompatibility
Biocompatibility means a material won't harm the body it contacts, but the standard that defines it, ISO 10993, isn't a single pass/fail stamp. It's a family of tests tied to how a device touches the body and for how long.
Key requirements include:
- Non-toxic response in cultured cell exposure (ISO 10993-5)
- No skin sensitization or delayed hypersensitivity (ISO 10993-10)
- Minimal irritation potential (ISO 10993-23)
- Stable performance without harmful degradation over the device's intended use
A material certificate from a resin supplier doesn't automatically clear the finished, coated device. Each coating-substrate combination needs its own evaluation.
The Science Behind Biocompatible Superhydrophobic Coatings
The central problem: you need nanoscale roughness for water repellency, but you can only build that roughness from chemistries already proven safe in biological environments. You can't just borrow any rough, low-energy material off the shelf.
Hierarchical texturing is how engineers solve this. Common methods include:
- Laser etching, which burns precise micro- and nanoscale patterns directly into metal or ceramic surfaces
- Plasma treatment, which alters surface chemistry and topology in a single controlled step
- Electrospinning, which produces fibrous mats with built-in micro-roughness, often used in biodegradable scaffolds
Once the texture exists, low-surface-energy chemistries such as fluorosilanes, polydimethylsiloxane (PDMS), or biocompatible waxes get applied on top. These lower surface tension without introducing toxic breakdown products, locking in the air-trapping effect that makes water bead up and roll away.
Reduced Fouling, Backed by Data
This combination pays off directly in reduced biological fouling. Picosecond laser-textured stainless steel resisted 99% of E. coli and 93% of S. aureus adhesion under oscillation testing, a meaningful result for tools and implants exposed to bacterial contamination.
Blood-contacting applications show similar gains. Micro- and nanostructured titanium treated with fluorosilane chemistry reduced platelet and white blood cell adhesion by more than 90% compared to untreated titanium. That's a strong signal for stent and catheter development, even though it stops short of a clinical trial result.
The Durability Trade-Off
Nanostructures are fragile by nature. Mechanical wear, repeated sterilization cycles, and prolonged fluid exposure can flatten the texture that makes superhydrophobicity work in the first place.
Some fluorine-free coatings can be thermally "healed" after abrasion by redistributing surface material, but that's a repair strategy, not proof of unlimited service life. Every application needs its own wear and sterilization testing.

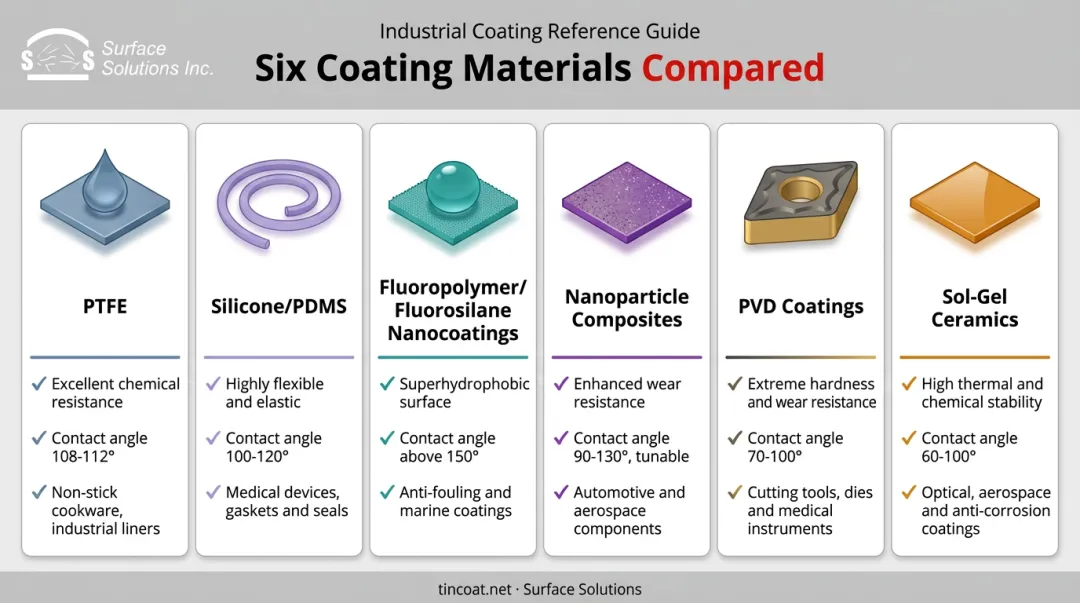

Types of Biocompatible Superhydrophobic Coatings
No single material family wins across every application. Each comes with distinct trade-offs in flexibility, durability, and regulatory history.
- PTFE (polytetrafluoroethylene): Chemically inert and low-friction, with a long track record in FDA-cleared devices. On its own it's hydrophobic, not superhydrophobic, unless combined with surface texturing.
- Silicone/PDMS: Flexible and tunable, common on catheters and soft implantable devices. Medical-grade silicones can meet select ISO 10993 and USP Class VI criteria, but standard PDMS surfaces sit around 110° contact angle without added roughness.
- Fluoropolymer/fluorosilane nanocoatings: Ultra-thin films that reach very high contact angles when paired with the right substrate texture. Used on lens surfaces and sensor housings where thickness has to stay minimal.
- Nanoparticle composite coatings: Silica or titanium dioxide particles embedded in a biocompatible polymer matrix create the hierarchical roughness that superhydrophobicity requires, with some formulations adding antimicrobial properties.
- PVD (Physical Vapor Deposition) coatings: Thin, durable, low-surface-energy metallic or ceramic layers that need added surface texturing to reach true superhydrophobic contact angles. Surface Solutions applies AlTiN, CrN, TiN, TiCN, and Alpha™ coatings at 2-5 microns thick to tooling and instrument surfaces, including medical device production.
- Sol-gel ceramic coatings: Offer chemical stability with tunable hydrophobic finishes, useful where implant surfaces need long-term structural resistance.
Applications Across Industries
The overlap of water repellency and biological safety shows up in more places than most people expect.
- Medical implants and devices: Catheters, stents, and surgical instruments benefit from reduced infection risk and lower clot formation, since anti-fouling surfaces give bacteria and proteins fewer places to attach.
- Eyewear and optical lenses: Biocompatible superhydrophobic layers reduce smudging, fogging, and residue while remaining safe for skin and eye contact. Some anti-fog designs rely on superhydrophilic chemistry instead, depending on transparency and condensation needs.
- Wearable and implantable biosensors: Coatings shield sensitive electronics from sweat, blood, and other bodily fluids without distorting sensor readings.

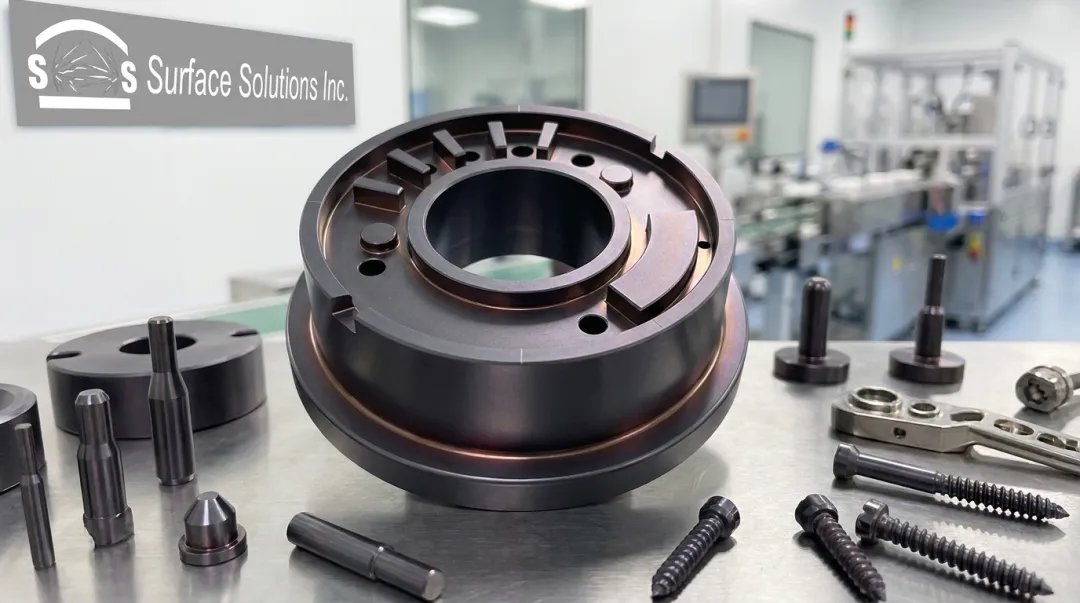

- Manufacturing tooling for medical component production: Precision dies, punches, and molds used to fabricate medical parts need surfaces that resist buildup and wear over long production runs. Surface Solutions coats this tooling, not the finished device, with durable, low-friction PVD layers such as TiN and CrN to extend its service life.
Choosing & Maintaining the Right Coating
Picking the right coating starts with matching the chemistry to the application, not just chasing the highest contact angle on a spec sheet.
Key selection factors:
- Substrate compatibility (metal, polymer, ceramic)
- Durability requirements under mechanical load or repeated contact
- Sterilization method (autoclave, ethylene oxide, gamma radiation)
- Applicable regulatory standards (FDA clearance, ISO 10993 testing scope)
There's a real trade-off between coating longevity and how often you'll need to reapply. No single lifespan number applies across the board.
Reported testing includes strain cycling to 3,000 cycles for wearable sensor coatings and abrasion-recovery testing for self-healing sol-gel systems, but these are lab endpoints, not calendar-year guarantees. Actual service life depends on wear load, immersion conditions, and sterilization frequency.
Maintenance practices that preserve the nanostructure:
- Avoid abrasive cleaning agents or scrubbing, which flatten the microtexture responsible for water repellency
- Follow validated rinse and detergent sequences specific to the coating chemistry
- Re-verify contact angle and sliding angle after sterilization cycles, not just at initial installation
- Track particulate shedding, especially for nanoparticle composite systems
Superhydrophobic coatings aren't the only durability concern in medical device production. The molds and cutting tools used to manufacture these parts face their own wear problems, separate from the surface treatment on the finished component.
Surface Solutions applies AlTiN PVD coatings to that production tooling, extending tool life 2 to 7 times over uncoated tools. For manufacturers running high volumes, that means fewer resharpening cycles and less mold-maintenance downtime.
Frequently Asked Questions
How long does a biocompatible hydrophobic coating last?
Lifespan depends heavily on substrate material, mechanical wear, and how often the part gets sterilized. Ranges vary widely by application, so testing the specific coating-substrate combination is the only reliable way to know.
Are biocompatible hydrophobic coatings toxic?
Properly formulated coatings tested against ISO 10993 standards are designed to be non-toxic and non-reactive. That said, testing applies to the finished coated device, not just the raw material, so certification scope matters.
Is it worth getting a biocompatible hydrophobic coating on glasses?
It depends on your priorities. Reduced smudging and fogging are real benefits, but added cost and eventual coating wear are worth weighing against how often you'd otherwise clean or replace standard lenses.
What are the different types of biocompatible hydrophobic coatings?
The main families are PTFE, silicone/PDMS, fluoropolymer or fluorosilane nanocoatings, nanoparticle composites, PVD-based films, and sol-gel ceramics. Each suits different substrates and durability needs.
What's the difference between hydrophobic and superhydrophobic coatings?
Hydrophobic surfaces have a contact angle above 90°. Superhydrophobic surfaces exceed 150°, with a sliding angle under 10°, a much stricter benchmark that usually requires added surface texture.
Can biocompatible superhydrophobic coatings withstand medical sterilization processes?
The coating chemistry determines the answer. Some formulations are built specifically to endure autoclave or ethylene oxide cycles, while others need validation testing before they're cleared for repeated sterilization.
