Here's the catch: two identically coated tools can perform very differently. Substrate preparation, coating material choice, deposition parameters, and coating architecture all drive the outcome. Getting one variable right while ignoring the others consistently produces underwhelming results.
This article walks through the actionable steps to enhance abrasion resistance in PVD coatings, the process variables that control outcomes, and the mistakes that cause premature failure.
Key Takeaways
- Abrasion resistance is a system result — substrate hardness, surface prep, coating selection, and deposition parameters all contribute
- TiCN, TiAlN, and AlCrN generally outperform TiN in abrasive conditions; the right choice depends on operating temperature
- Substrate preparation is the highest-leverage pre-deposition step — inadequate cleaning causes most premature failures
- Multi-layer and nanocomposite architectures offer measurably better abrasion resistance than single-layer designs for high-demand applications
- Coating thickness has an optimal range; exceeding it can reduce performance rather than improve it
How to Enhance Abrasion Resistance in PVD Coatings
Step 1: Evaluate and Harden the Substrate
A hard coating on a soft substrate is a recipe for failure. Under localized abrasive stress, the substrate yields beneath the coating, bending it past its fracture point. The result looks like coating failure — the failure starts in the substrate. Uddeholm describes this as the "glass-on-snow" effect: the hard film deflects into the softer base, generating tensile interface stress and intercolumnar cracking (cracks that form between columnar grains in the coating).
Recommended substrate hardness targets:
- Hot-work applications: >48 HRC
- Cold-work applications (D2, Caldie): 58–61 HRC
- High-performance cold-work steels (Vanadis, Sleipner): 60–64 HRC
These are application-specific bands, not a universal minimum. Confirm substrate hardness before specifying a coating, not after.
Surface Solutions accepts hardened tool steels including M2, A2, D2, H-13, and carbide substrates. Parts must also withstand their 700°–800°F deposition temperature without losing temper — a consideration for any substrate tempered at or near that range.
Step 2: Prepare the Surface Thoroughly
Surface preparation is where most premature PVD failures originate. Oils, oxides, machining residues, and micro-burrs create weak adhesion zones that become delamination initiation sites the moment abrasive loading begins.

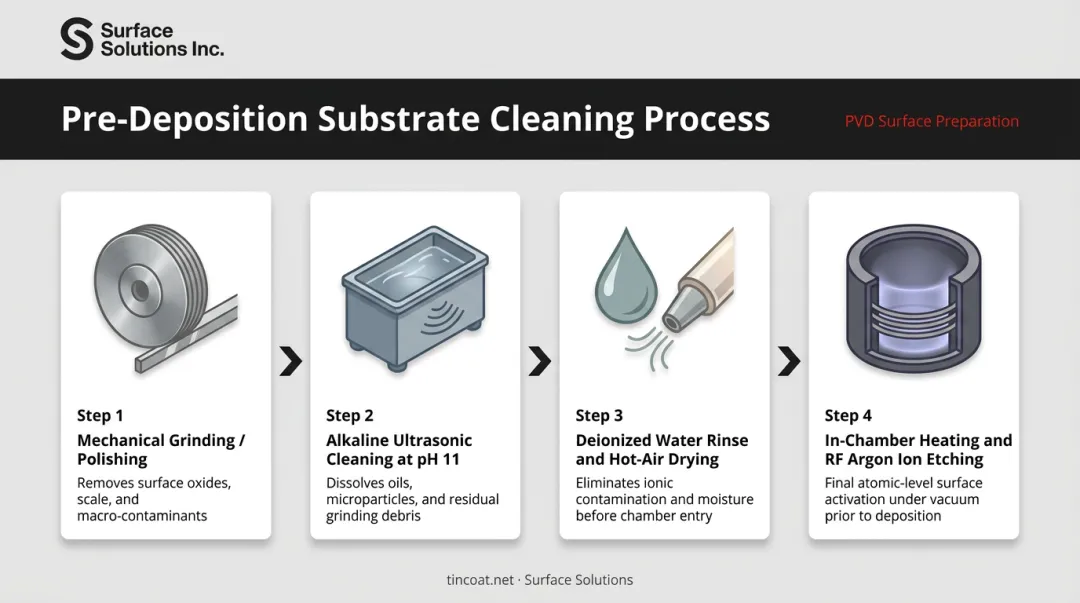

Standard pre-deposition cleaning sequence:
- Mechanical grinding or polishing to target surface finish
- Alkaline ultrasonic cleaning (~pH 11)
- Deionized water rinse and hot-air drying
- In-chamber heating followed by RF argon ion etching before deposition
Research has shown that optimized ion etching before deposition can improve coating adhesion by nearly 53% compared to standard preparation — underscoring how much the interface quality matters.
Surface roughness targets matter too. Industry guidance specifies:
- Active forming areas: Ra below 0.2 μm
- Critical service areas: Ra below 0.05 μm
A surface that's too rough creates stress concentration points; too smooth and mechanical interlocking suffers. PVD coatings faithfully replicate whatever surface they're deposited on — they don't fill in or smooth out defects.
Handling protocols: Once cleaned, avoid re-contamination. Even brief contact with oils or fingerprints can compromise the interface. Fixturing must ensure coating access on all wear surfaces.
Step 3: Select the Right Coating Material for the Abrasion Environment
Start with the dominant failure mode. Cost, color, and availability come after.
| Coating | Hardness (HV) | Max Service Temp | Best For |
|---|---|---|---|
| TiN | 2,800 | 500°C | General cutting, standard stamping |
| CrN | 2,300 | 700°C | Corrosion + abrasion, stainless forming |
| TiCN | 2,800 | 300°C | Aggressive abrasive machining, lower temps |
| AlTiN | 2,800–3,000 | 850°C | High-speed cutting, die casting |
| AlCrN | 3,000 | 1,050°C | Extreme heat and wear |
The hardness-toughness tradeoff is real. Harder coatings resist surface scratching but can be more brittle under cyclic abrasive loading. TiCN offers a better balance of hardness and toughness than TiN alone, which is why it performs well in abrasive cutting environments where impact loads accompany friction.
Aluminum content in multi-element coatings like TiAlN and AlCrN forms a protective Al-rich oxide layer at elevated temperatures, slowing oxygen transport and preserving the coating's protective function. One study measured roughly 0.20 μm of oxide after 60 minutes at 800°C — a measurable advantage over TiN in high-temperature cutting.

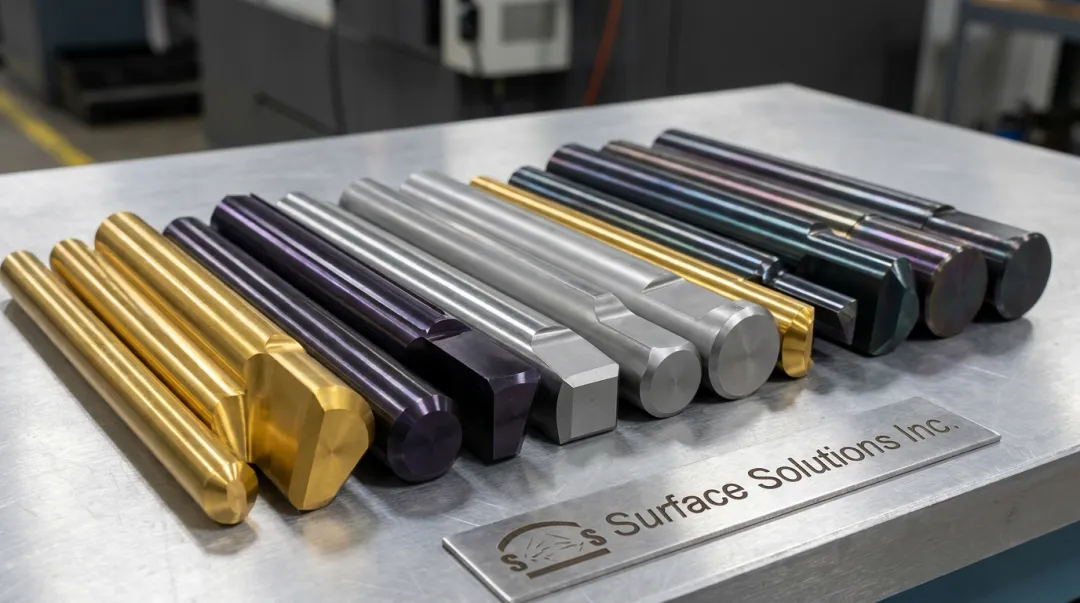

The same principle plays out at the application level. Surface Solutions' Alpha™ coating has documented near-elimination of galvanized material build-up on punches compared to TiN, reduced chipping, and dramatically extended sharpening intervals — one customer ran 15 million parts over 15+ months without resharpening. In a stainless steel drawing application, CrN outperformed Alpha™ significantly: CrN produced over 500 parts with parts only warm to the touch, versus just 15 parts before Alpha™-coated tooling became too hot to handle. The right coating depends entirely on what the tool is doing and what it's cutting.
Step 4: Optimize Deposition Process Parameters
Three process variables directly control coating microstructure and, by extension, abrasion resistance.
| Variable | Effect on Coating | Key Data Point |
|---|---|---|
| Bias voltage | Higher voltage increases density, hardness, and compressive stress — but excess ion energy raises defect density and brittleness | CrAlN reached ~35 GPa above -90V bias |
| Substrate temperature | Promotes denser, more ordered crystalline growth | TiNbN hardness rose from 29 to 32 GPa as temperature increased from 200°C to 600°C |
| Reactive gas flow rate | Controls stoichiometry; deviating from target produces under- or over-nitrided phases with degraded hardness | CrAlN hardness rose from 11.5 to 21.7 GPa as N₂/Ar ratio increased from 20% to 80% |
Each variable interacts with the others. Every bias voltage setting must be validated for the specific coating chemistry and deposition equipment — and substrate temperature must always stay below the part's tempering point to avoid softening the base material.

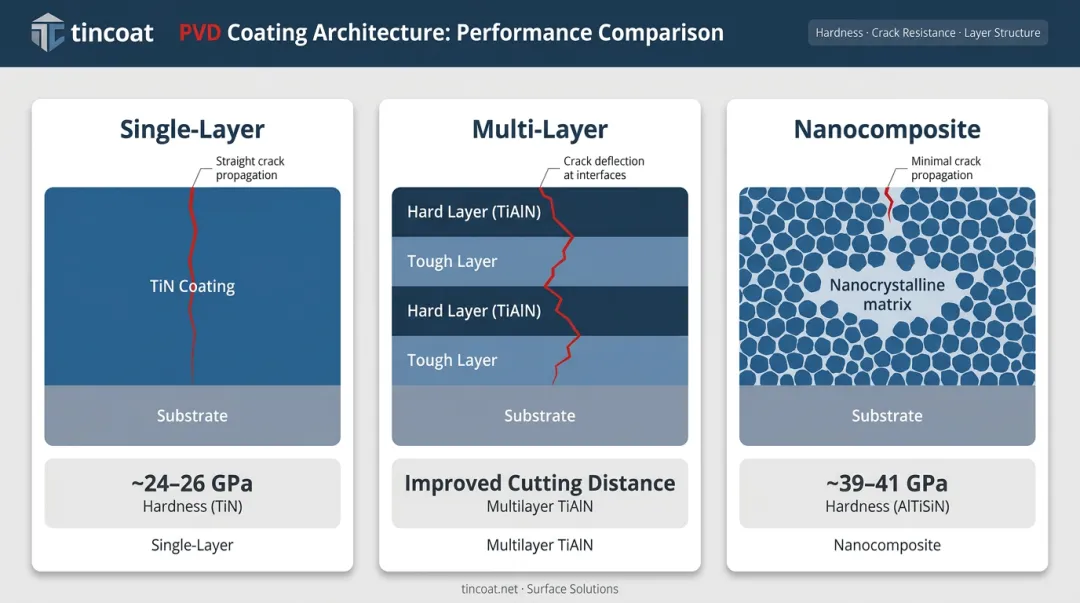

Step 5: Apply Multi-Layer or Nanocomposite Architecture Where Needed
With single-layer hard coatings under cyclic abrasive loading, a crack that initiates at the surface has a direct path to the interface. Nothing arrests it. The result is catastrophic delamination.
Multi-layer designs solve this by alternating hard and relatively tougher layers (for example, TiAlN/TiN nanolayers). Cracks branch and deflect at each interface, consuming energy and requiring crack re-initiation at every boundary. A cutting tool study found TiAlN multilayers performed best in dry milling conditions, achieving 7,083 m cutting distance versus 5,825 m for monolayer TiN in the same test.
Nanocomposite coatings take this further. Nanocrystalline hard phases embedded in an amorphous matrix (such as Si₃N₄) restrict grain growth, reduce crack initiation sites, and maintain very high hardness values. AlTiSiN nanocomposites have achieved 39–41 GPa nanohardness — significantly above the 24–26 GPa typical of conventional TiN — while maintaining thermal stability. In 316L stainless milling tests, nanocomposite-coated end mills reached only 0.2 mm flank wear after 150 minutes of cutting.

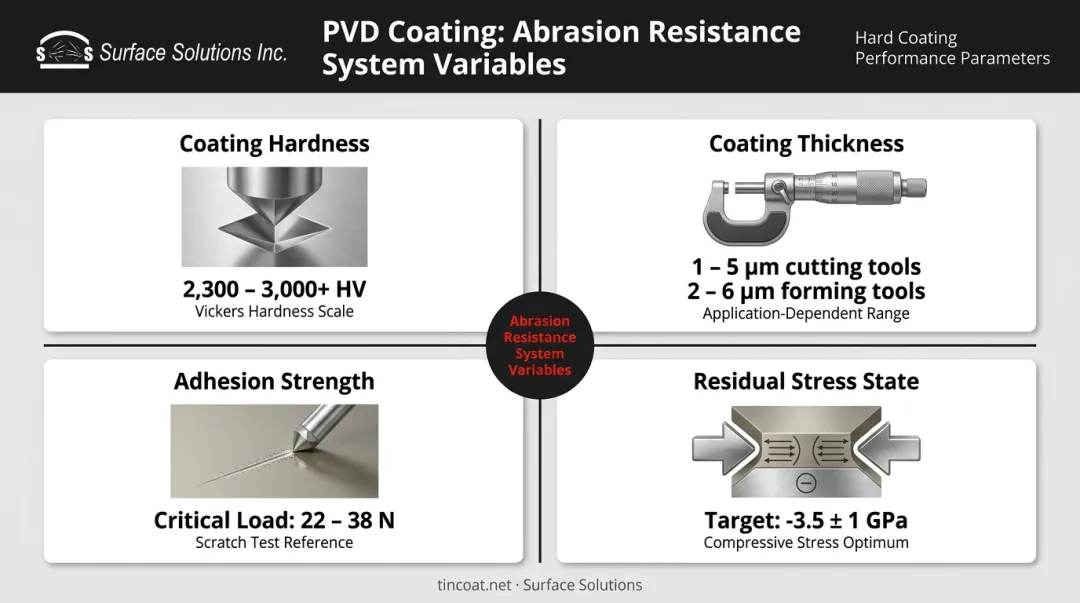

Key Parameters That Affect PVD Coating Abrasion Resistance
Abrasion resistance is a product of interacting variables. Controlling any one in isolation is insufficient. Four parameters drive most of the variation in real-world abrasion performance: hardness, thickness, adhesion strength, and residual stress state.
Coating Hardness (HV or GPa)
Higher Vickers hardness correlates directly with slower wear rates under identical abrasive conditions. Commercial PVD coatings span 2,300–3,000+ HV, with nanocomposites exceeding this range. Material selection sets the performance ceiling; deposition parameters determine whether you reach it.
Coating Thickness
Recommended ranges for abrasive applications:
- Cutting tools: 1–5 μm (typically 2–4 μm)
- Forming and stamping tools: 2–6 μm
Beyond the system-specific critical thickness, stored residual strain energy increases until it initiates cracking or delamination. Thicker is not always better — it's a tradeoff. Surface Solutions applies coatings at 2–5 μm (0.0001″–0.0002″) across their portfolio.
Adhesion Strength
Adhesion is measured via progressive-load scratch testing (ISO 20502 is the applicable method for ceramic coatings). Critical load values are substrate- and system-specific — on nitrided X45CrMoV5-3-1, first-failure loads ranged from 22.57 N (CrN) to 37.91 N (CrN/AlTiN multilayer). Adhesion benchmarks must be established per system, not borrowed from other substrate-coating combinations.
Residual Stress State
Compressive residual stress resists crack opening and improves fatigue resistance under abrasive contact. Tensile stress does the opposite. The goal is moderate compression — excessive compressive stress increases stored energy and can trigger spontaneous buckling or delamination.
Oerlikon's AlCrN product specifies -3.5 ± 1 GPa as a design target. Engineers measure residual stress via X-ray diffraction (sin²ψ method) in PVD hard coating applications.
Common Mistakes That Undermine PVD Abrasion Resistance
Residual oils, oxide layers, and rough edges prevent adhesion and create delamination sites under wear loading — skipping surface prep is the most common reason PVD coatings fail prematurely in abrasive service.
TiN is widely available, but its lower hardness ceiling and reduced performance at elevated temperatures make it a poor fit for aggressive abrasion. Start with the dominant failure mechanism, not the coating's price or appearance.
When the substrate yields under contact pressure, the coating deflects past its fracture point, producing cracking and spalling that looks like coating failure. It's actually a substrate specification problem — confirm substrate hardness before specifying any coating.
Over-thick coatings accumulate higher residual stresses, reduce edge sharpness on cutting tools, and can delaminate internally under cyclic loading. An optimally thin, well-adhered coating outperforms an over-thick one in abrasive applications.
Alternatives to PVD When Abrasion Demands Are Extreme
Some operating conditions — extreme pressures, temperatures, or impact loads — may call for complementary or alternative surface treatments.
Thermal Diffusion (TD) / Vanadium Carbide
TD coatings form a metallurgically bonded carbide layer rather than depositing a film on top of the substrate. Processing temperatures run approximately 982–1,038°C (1,800–1,900°F), with carbon from the tool reacting with vanadium to grow a hard VC layer. This offers exceptional abrasion resistance at very high contact pressures where thin PVD films may fracture.
Trade-offs to consider:
- High process temperatures can distort some substrates
- Not suitable for HSS or temperature-sensitive components
Diamond-Like Carbon (DLC)
DLC provides extremely low friction alongside high hardness — ideal when adhesive wear or galling accompanies abrasion, especially in non-lubricated or minimally lubricated sliding contact.
Trade-offs to consider:
- Hydrogenated DLC degrades beginning around 350–400°C, ruling it out for high-temperature cutting
- Adhesion to some substrates requires careful interlayer design
Nitriding as a Pre-Treatment (Duplex Processing)
Nitriding the substrate before PVD coating creates a hardened diffusion zone with 900–1,300 HV2 that significantly increases load-bearing capacity beneath the hard film. This combination is increasingly used for stamping dies and cutting tools under heavy abrasive and impact loads. The nitrided layer prevents the glass-on-snow deflection failure mode while the PVD coating handles surface wear.
Trade-offs to consider:
- Adds a processing step with dimensional tolerance coordination requirements
- Not all substrate materials respond equally to nitriding
Conclusion
Enhancing abrasion resistance in PVD coatings is a system-level challenge. Substrate hardness, surface preparation, coating material selection, deposition parameters, and coating architecture must all be aligned — and gaps in any one of them will show up in service.
Most premature PVD failures in abrasive service trace back to inadequate substrate preparation or mismatched coating selection. Address those two variables first — everything else builds on them.
For manufacturers in metal forming, punching, or stamping, Surface Solutions applies Alpha™ and CrN coatings with documented production results — CrN has delivered 500+ parts per run compared to 15 with uncoated tooling, and Alpha™ significantly reduces galvanized buildup and punch chipping. Contact Surface Solutions at 763-785-9436 or info@tincoat.net to discuss coating options for your application.
Frequently Asked Questions
What is abrasion resistant coating?
An abrasion resistant coating is a thin surface layer engineered to protect a component from material loss caused by friction, sliding contact, or particle erosion. PVD nitride coatings such as TiN, TiCN, TiAlN, and AlCrN are among the most widely used in industrial tooling, with hardness values spanning 2,300–3,000+ HV.
How long will PVD coating last?
Lifespan depends on coating material, thickness, substrate hardness, adhesion quality, and operating conditions. Real-world data shows significant variation : one customer ran 15 million parts on Alpha™-coated punches over 15+ months, while another extended sharpening intervals from 10,000 to 60,000 parts, a 6x improvement.
Does PVD coating scratch easily?
Properly applied PVD coatings are significantly harder than the base materials they protect , with many commercial coatings exceeding 2,300–3,000 HV. Under normal operating conditions, they are highly scratch resistant. Coatings that are too thin, poorly adhered, or applied over soft substrates can chip or delaminate under concentrated abrasive stress.
Which PVD coating has the best abrasion resistance?
TiCN, TiAlN, and AlCrN generally offer the highest abrasion resistance among common PVD coatings. TiCN suits lower-temperature aggressive abrasion; TiAlN and AlCrN are preferred for high-heat cutting environments where oxidation resistance also matters.
Does substrate hardness affect PVD coating abrasion resistance?
Substrate hardness is critical. A hard coating over a soft substrate deflects and cracks — it can't bear loads the underlying material yields under. A harder substrate provides the foundation that keeps the coating intact.
Can PVD-coated tools be re-coated after wear?
Yes. Tools are resharpened, cleaned to remove worn coating, and re-coated — re-coated tools can perform comparably to new when the substrate remains in good condition. Contact Surface Solutions to discuss re-coating eligibility for your specific tooling.
