But even the toughest coatings degrade. Friction, heat cycling, abrasive contact, and operational overload all take their toll. When that happens, manufacturers face a straightforward question: can the coating be fixed, or is the tool done?
This guide answers that directly — covering what PVD coating degradation actually looks like, what "repair" really means in an industrial context, the correct restoration process step by step, and when recoating makes more sense than replacement.
Key Takeaways
- PVD coatings cannot be patched — true repair means stripping and professionally reapplying the coating
- Most damaged tools can be resharpened and recoated multiple times, restoring performance to like-new or better condition
- Damage type determines the right response — surface wear, peeling, and substrate damage each call for a different action
- Early detection of coating failure prevents irreversible substrate damage and costly downtime
- Most tools remain recoatable several times over, making recoating far more cost-effective than replacement
What Is PVD Coating and How Does It Degrade?
PVD (Physical Vapor Deposition) is a vacuum-based process that deposits an thin but very hard material layer — typically 2–5 microns — directly onto a tool's surface at the atomic level. Common formulations include:
| Coating | Hardness | Key Strength |
|---|---|---|
| TiN (Titanium Nitride) | 2,300 HV | Wear resistance, broad applicability |
| CrN (Chromium Nitride) | 1,750 HV | Corrosion resistance, low friction |
| AlTiN (Aluminum Titanium Nitride) | 2,800–3,000 HV | Extreme hardness, oxidation resistance to 850°C |
That molecular-level bond — formed through mechanical interlocking, chemical interactions, and atomic adhesion forces — is precisely why PVD coating cannot be spot-repaired when it degrades. Degradation occurs through several documented mechanisms:
- Abrasive wear — flank and crater wear from contact with workpiece material
- Thermal cycling — coating/substrate thermal expansion mismatch creates residual stress, promoting cracking and delamination
- Chemical attack — oxidation and dissolution at high temperatures, especially problematic for TiN in high-temperature cutting applications
- Mechanical overload — cyclic impact loading, documented in fine-blanking studies, accelerates spalling and chipping
PVD coating is a consumable performance layer — it dramatically extends tool life, but it will eventually wear out. Understanding how it fails determines whether recoating, resharpening, or replacement is the right next step.

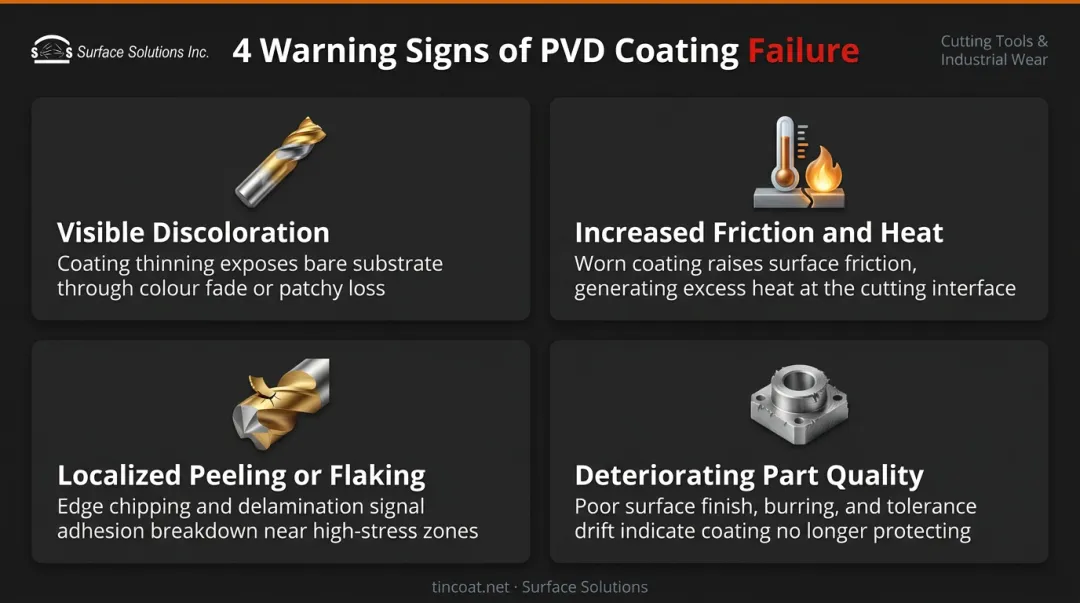

Common Signs of PVD Coating Failure
Catching failure early is the difference between a recoatable tool and a scrapped one. Watch for these four indicators:
- Visible discoloration or color change — where the coating has thinned, the underlying substrate shows through (a gold TiN coating fading to bare steel, for example)
- Increased friction, heat, or surface galling: the coating's lubricity is gone, generating more heat per cycle and increasing adhesion between tool and workpiece
- Localized peeling or flaking near cutting edges, radii, and high-contact zones where stress concentrates
- Deteriorating part quality: burrs, rough finishes, or dimensional inconsistency are often the first production-floor signal that tool coating has failed
These signs rarely appear without cause. Understanding what drives them helps prevent recurrence.
Why Coating Failure Happens
Root causes behind these patterns include:
- Operating beyond rated speed, feed, or load parameters
- Inadequate lubrication (PVD reduces lubrication needs — it doesn't eliminate them)
- Surface contamination on the substrate at the time of original coating application
- Coating thickness insufficient for the specific application's wear demands
- Abrasive or corrosive operating environments that exceed the coating's design range
Ignoring early warning signs accelerates substrate damage. Once the coating breaks through, quality defects mount quickly — and if the substrate is damaged badly enough, the tool can no longer be recoated at all.
Can PVD Coating Be Repaired? The Honest Answer
No — not in the field, and not with a spot repair.
PVD deposition requires a controlled vacuum environment and temperatures of 150–500°C. There is no practical way to restore a damaged area without professional equipment. Polishing can remove very superficial scratches and restore surface appearance, but it does not restore the coating's hardness, thickness, or protective properties. It's a cosmetic measure only.
When polishing isn't enough, two realistic responses exist:
- Professional recoating: The worn coating is stripped, the substrate is prepared, and a fresh PVD layer is deposited at a professional facility. For most tools in sound structural condition, this is the right call.
- Tool replacement: When the substrate is cracked, deformed, or dimensionally compromised beyond correction, replacement is the only viable path.
The Resharpening Misconception
A common misconception is that resharpening a tool disqualifies it from recoating. The opposite is true. For cutting tools and punches, resharpening before recoating is standard practice. The tool geometry is restored first — material removed during sharpening resets the cutting edge — and then a fresh PVD layer is applied.
The result is a tool that outperforms the original. Tony Deschenes, owner of Special Tools, Inc. (a cutting tool resharpening company in St. Francis, MN), summarizes the outcome directly: tools sent to Surface Solutions after resharpening come back "working better than new."

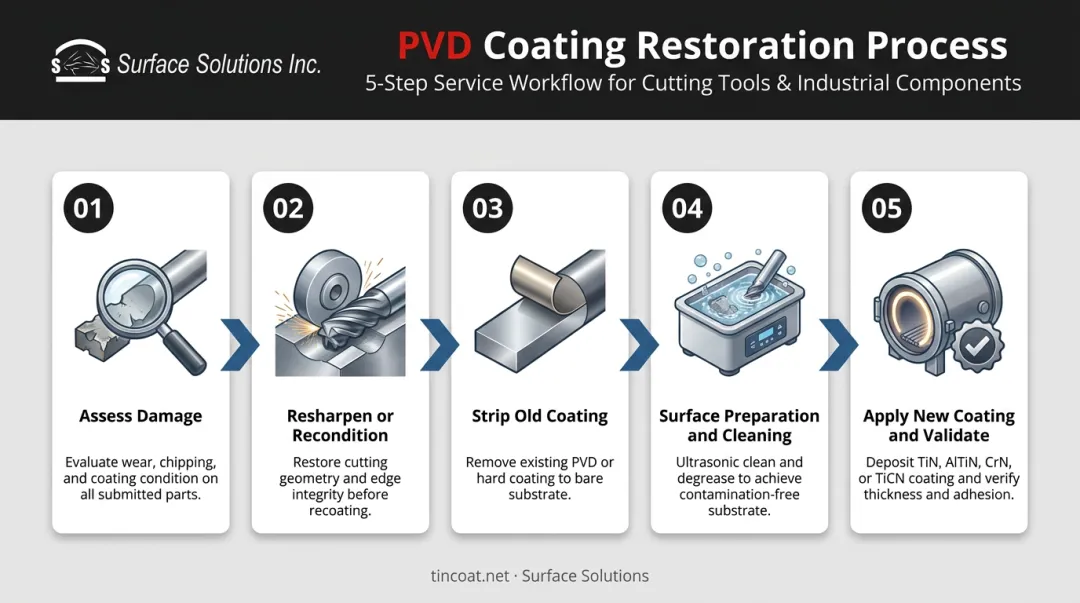

How to Restore PVD Coating: Step by Step
Restoration must begin with an honest damage assessment. Recoating without addressing substrate damage, or skipping the strip step, guarantees premature failure of the new coating.
Step 1: Assess the Damage
Inspect for three things:
- Extent of coating loss — surface discoloration vs. full delamination
- Substrate condition — no cracks, chips, or deformation
- Dimensional integrity — tool geometry still within functional tolerances
Use both visual inspection and performance data (part quality, heat generation, cycle counts) to make this assessment. A tool producing burrs and running hot has likely worn past the coating and into the substrate.
Step 2: Resharpen or Recondition the Tool
For cutting tools, punches, and dies, resharpening happens before recoating — not after. A dull or out-of-tolerance tool recoated without resharpening will fail quickly. Material removed during resharpening resets the edge geometry so the new coating is applied to a properly prepared surface.
Surface Solutions handles PVD coating application only. Resharpening is the customer's responsibility — either done in-house or through a third-party reconditioning service before submitting tools for recoating.
Step 3: Strip the Old Coating
All existing PVD coating must be removed before recoating. Applying a new layer over a worn or failing old coating creates adhesion problems and non-uniform thickness — both of which cause premature failure.
Professional coating facilities use substrate-specific decoating procedures that remove the old layer without attacking the base material or altering tool geometry.
Step 4: Surface Preparation and Cleaning
The substrate must be free of oils, oxidation, EDM recast layers, and other contaminants before deposition. Professional PVD facilities use multi-stage ultrasonic cleaning in alkaline baths, followed by plasma etching to remove residual impurities and increase surface reactivity.
PVD coatings will not adhere to oxides, EDM recast, or existing treatments like bluing. Contaminants must be removed — either by the customer before shipping or as part of the facility's preparation process.
Step 5: Apply the New Coating and Validate
The tool is loaded into a vacuum chamber, heated, plasma-etched, and coated by arc evaporation or sputtering under controlled conditions. After deposition, the tool undergoes inspection for adhesion, uniformity, and thickness before return.
Once back in service, run the tool under monitored conditions first. Track part quality, heat generation, and cycle counts to confirm the coating is performing before returning to full production volumes.

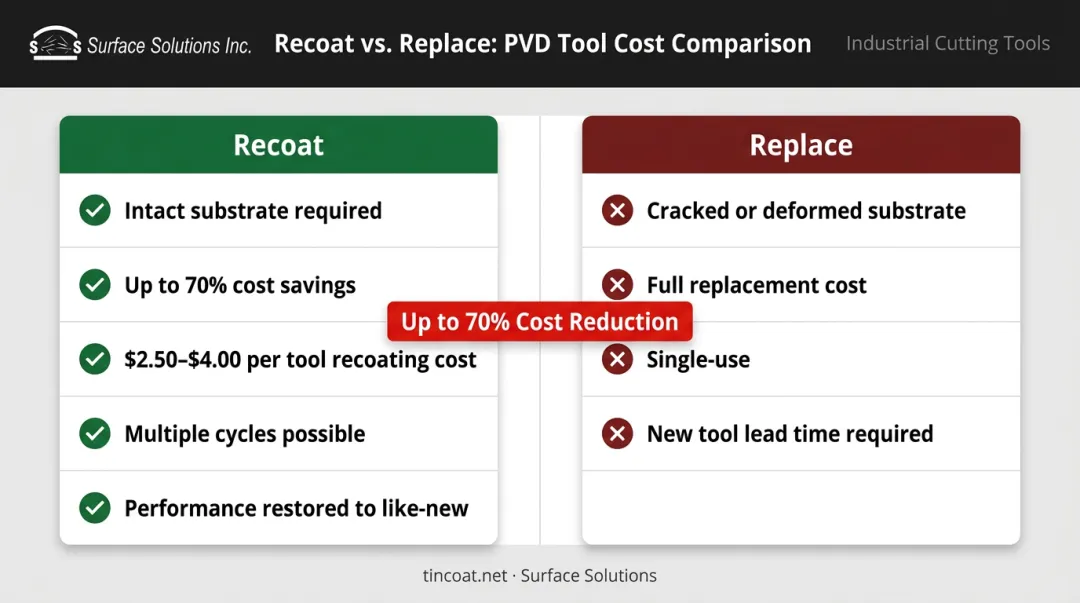

When to Recoat vs. Replace Your Tool
The recoat-vs.-replace decision is a cost and performance trade-off. Recoating is almost always the more economical choice when the substrate is in sound condition.
Recoat When:
- The substrate is structurally intact, within dimensional tolerances, and shows no cracking or deformation
- Coating wear has been even, from normal use rather than catastrophic failure
- The tool can be resharpened to restore geometry
- Application requirements haven't changed — or you're upgrading coating type for better performance
Walter, a major cutting tool manufacturer, documents tooling cost reductions of up to 70% or more through reconditioning, with up to 85% savings in individual cases across at least three reconditioning cycles.
At Surface Solutions, AlTiN recoating costs just $2.50–$4.00 per tool — a fraction of replacement cost, particularly at production scale.
Replace When:
- The substrate has chipped edges, a cracked body, or a bent shank that cannot be corrected
- The tool is dimensionally out of tolerance beyond what resharpening can fix
- Recoating cost approaches or exceeds the cost of a new tool
- The tool design itself needs to be upgraded for new production requirements
How Many Times Can a Tool Be Recoated?
Most industrial tools can be resharpened and recoated multiple times throughout their service life. Kennametal documents up to five reconditioning cycles for solid-carbide drills, and up to three for solid-carbide end mills. The practical limit is determined by how much substrate material is removed with each resharpen cycle — not by the recoating process itself.
A recoating cycle also creates a practical opportunity to upgrade coating type. Switching from TiN to Surface Solutions' CrN for a stainless steel drawing application, for instance, increased output from 15 parts to over 500 parts per tool cycle — a 33x improvement with no additional tooling cost.
Preventive Measures to Extend PVD Coating Life
Every unnecessary recoating cycle represents avoidable cost. The goal is to maximize production output before recoating becomes necessary.
Key preventive actions:
- Operate within rated parameters — in a 2024 milling study on AISI D2 steel, the most aggressive speed/feed combination yielded just 3.7 minutes of tool life versus 21–23 minutes under more appropriate conditions
- Maintain proper lubrication — PVD coatings reduce lubrication requirements, but eliminating lubrication entirely without specific guidance accelerates coating wear
- Inspect on a defined schedule — don't wait for part quality to degrade; catch coating wear early through regular visual inspection
- Store tools correctly — dry conditions, protective sleeves or compartments, and separation between tools to prevent contact damage
Choosing the right coating from the outset is the most impactful preventive measure. Surface Solutions' Alpha™ coating, for instance, delivered over 60,000 parts before resharpening was needed — versus 10,000 parts for the same tools without coating. That's 48 hours of labor saved per production cycle, and a lower recoating frequency over the tool's service life.
For high-heat forming applications, CrN's superior thermal management means tools run longer between maintenance cycles. For high-speed cutting, AlTiN's oxidation resistance to 800–900°C sustains performance where other coatings would fail. Getting coating selection right from day one is where long-term tooling cost savings start — before any repair or recoating question ever comes up.
Surface Solutions works with manufacturers across the US, Canada, and Mexico from their Fridley, Minnesota facility. If you're unsure which coating fits your application, contact them at 763-785-9436 or info@tincoat.net — most Midwest customers receive tools back within one to two business days via UPS Ground.
Frequently Asked Questions
Can PVD coating be repaired?
PVD coating cannot be patched or spot-repaired in the field because the deposition process requires a controlled vacuum environment that isn't replicable on the shop floor. For industrial tools, the correct approach is to resharpen the tool first, then send it to a professional PVD coating service for stripping and fresh application.
How long does a PVD coating last?
Lifespan depends heavily on coating type, substrate material, and operating conditions. A 2024 study on D2 steel milling found tool life ranging from 3.7 to 23 minutes with the same PVD insert under different speed/feed settings. In well-matched high-volume stamping applications, tools have run tens of millions of parts before recoating was needed.
Can you recoat a PVD-coated tool without stripping the old coating first?
No. Depositing over a worn or failing old coating produces poor adhesion and non-uniform thickness, causing the new layer to fail prematurely. Professional coating facilities use substrate-specific decoating procedures to fully remove the old coating before redeposition, and skipping this step consistently produces early coating failure.
How many times can a tool be recoated with PVD?
Most tools can be resharpened and recoated multiple times throughout their service life. Some OEMs document three to five reconditioning cycles for solid-carbide tooling. The practical limit is set by substrate material removed during each resharpen, not by the recoating process itself.
What are the signs that a PVD-coated tool needs to be recoated?
Key warning signs include:
- Declining part quality: burrs, rough finishes, or dimensional inconsistency
- Increased heat or friction during operation
- Visible color change or coating loss on the cutting surface
- More frequent sharpening intervals than usual
Any single sign warrants inspection; multiple signs together mean it's time to recoat.
