Tungsten carbide coating thickness determines how long your tools last, how often you sharpen them, and whether your coating investment delivers measurable ROI. On cutting tools and wear parts, PVD layers often run only 2–5 microns—about 0.0001" to 0.0002"—so small thickness choices have outsized effects.
For manufacturers running cutting tools, dies, and punches, thickness is a precision parameter. It must match your substrate material, operating load, coating method, and whether you plan to resharpen.
Too thin, and the coating wears through before delivering value. Too thick, and internal stress can cause delamination or cracking under impact. This article explains what coating thickness means, typical ranges for PVD and thermal spray, what drives the right thickness for your application, and how to avoid specification errors that waste time and money.
Key Takeaways
- Thickness ranges from 0.5-4 microns for PVD to 76-350 microns for thermal spray, matched to wear and precision needs
- Thicker coatings raise residual stress and brittleness; optimal builds balance wear life with adhesion
- Method (PVD, HVOF, CVD) sets achievable thickness, porosity, and finish—not deposit volume alone
- Document specs and measure carefully; magnetic induction and eddy current carry ±10% or ±2.5 µm uncertainty
What Tungsten Carbide Coating Thickness Represents in Industrial Applications
Coating thickness is the perpendicular distance from the substrate surface to the outer coating surface, measured in microns (μm) or mils. 1 mil equals 25.4 microns; a 0.0001-inch coating is 2.54 microns.
Thickness serves two roles: it's a design specification (predetermined based on application requirements) and a quality control parameter (verified after deposition). The specified thickness determines the volume of protective material available to absorb wear, shield against corrosion, and maintain tool geometry throughout the service life.
Thickness interacts with other coating properties:
- Hardness: A 4,000 Hv coating at 3 microns behaves differently than the same coating at 15 microns
- Adhesion strength: Thicker coatings generate higher interface stress that can overcome adhesion bonds and trigger delamination or cracking under load
- Residual stress: Measured coating stress rose from -437 MPa at 6.12 microns to -1,025 MPa at 16.71 microns
Coating Thickness vs. Coating Weight
Thickness and coating weight are related but distinct. Thickness is a geometric measurement (microns or mils); weight depends on coating density and varies with binder content, porosity, and matrix composition. Areal mass (g/m²) = effective density (g/cm³) × thickness (microns).
Use thickness specifications for dimensional precision and tolerance management. Weight specifications fit material cost estimation and inventory control. A WC-Co coating and a WC-CoCr coating at the same thickness will have different weights due to different densities.

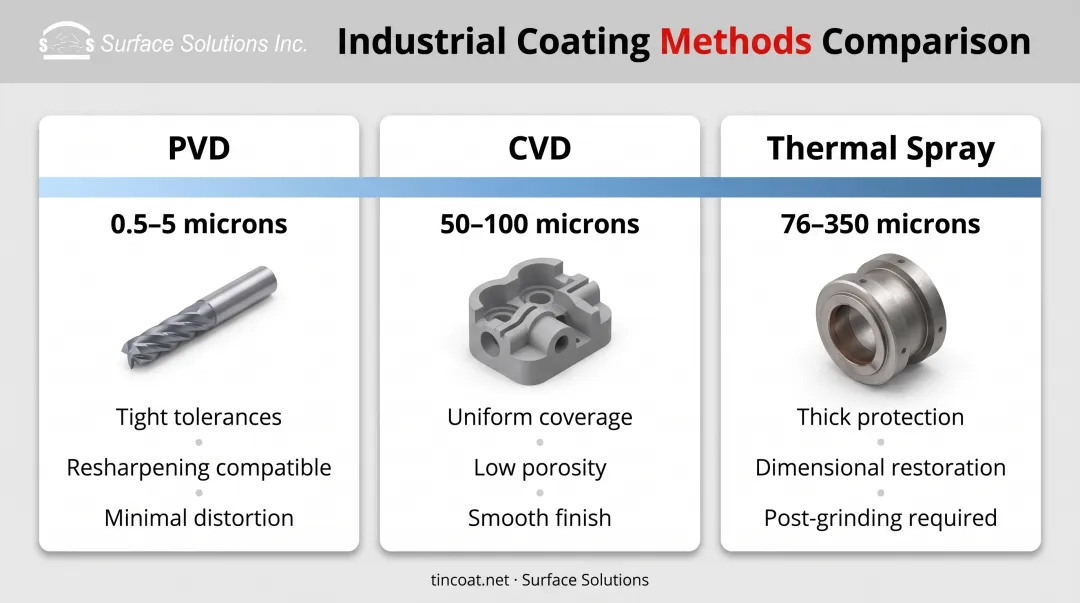

Typical Thickness Ranges by Coating Application Method
Coating thickness depends on the deposition method—how the material is applied and how much heat the process puts into the part.
PVD Coating Thickness Range (0.5-5 Microns)
Physical Vapor Deposition methods (including sputtering and arc evaporation) produce ultra-thin, dense coatings typically in the 0.5-4 micron range. Surface Solutions applies PVD coatings at 2-5 microns (0.0001-0.0002 inches), a thickness that provides excellent wear protection without affecting how precision parts fit together.
PVD tungsten carbide coatings excel when you need:
- Dimensional precision and tight tolerances
- Sharp cutting edges that can't accept thicker build-up
- Tools that undergo periodic resharpening
- Minimal substrate thermal distortion (deposition at 700-800°F)
PVD coatings are ideal for cutting tools, punches, dies, and medical instruments where surface finish and geometry matter as much as wear resistance.
Thermal Spray Coating Thickness Range (76-350 Microns)
High-Velocity Oxygen Fuel (HVOF) and other thermal spray methods apply much thicker tungsten carbide coatings. Verified case studies document 76-350 micron coatings, though some sources cite up to 500 microns for specific applications.
Thermal spray coatings suit:
- Heavy wear applications like industrial rollers and large dies
- Dimensional restoration of worn components
- Applications where substrate load support is critical
- Parts that won't be resharpened
Trade-offs: Thermal spray coatings provide more wear material but have higher porosity (typically 0.9-4.1%) and rougher as-sprayed surface finish (Ra 1.9-5.4 microns) than PVD. Most thermal spray coatings require post-coating grinding to achieve functional surface finish.
CVD and Other Specialized Methods
Chemical Vapor Deposition (CVD) produces coatings in the 50-100 micron range with excellent uniformity on complex geometries, including internal channels, threads, and blind holes. CVD tungsten carbide coatings achieve <0.5% porosity and Ra 0.4-0.6 microns as-coated, combining thermal spray thickness with PVD-like density.
Electroplating and hybrid methods offer intermediate thickness ranges with specific performance characteristics, but verified tungsten carbide data for these methods is limited.

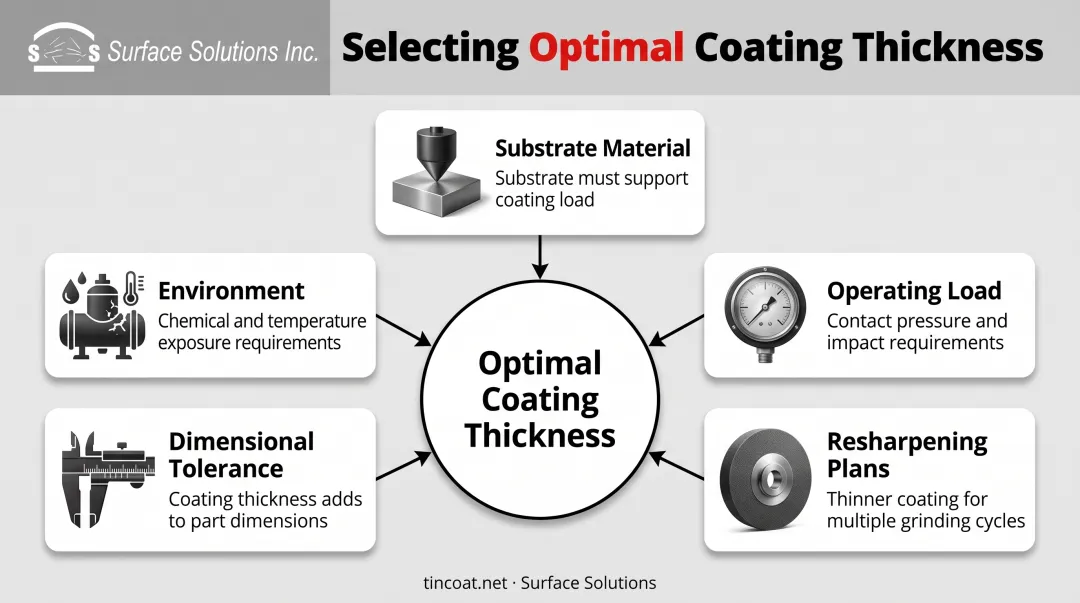

Factors That Determine Optimal Coating Thickness Selection
Choose coating thickness by weighing substrate support, contact loads, resharpening plans, dimensional tolerances, and the service environment together—not as isolated specs.
Substrate Material and Hardness
Softer substrates require thinner coatings to prevent excessive stress concentration at the interface. When coating hardness far exceeds substrate hardness, the substrate can't support the coating under load, leading to deformation and delamination.
Critical principle: The substrate must be hard enough to support the coating. If indentation or contact pressure penetrates beyond about one-tenth of coating thickness, substrate deformation becomes a failure mode.
Operating Load and Contact Conditions
High contact pressures and impact loads require sufficient coating thickness to distribute stress without penetrating to the substrate. A 2023 study of HVAF WC-10Co4Cr coatings found:
- At 10 N or less, 30 micron and 240 micron coatings performed similarly
- At 20 N (approximately 220 MPa contact pressure), wear increased significantly below 150 microns
Load-dependent thickness thresholds are real, but they are application-specific. Use them as starting points for testing, not universal minimums.
Tool Resharpening Requirements
Tools built for multiple resharpening cycles need thinner coatings. Surface Solutions applies 2-5 micron PVD coatings specifically to preserve coating after material removal during sharpening.
Thicker coatings may be completely removed during the first resharpening, eliminating coating benefits for subsequent tool life. If you sharpen tools regularly, specify PVD thickness in the 2-5 micron range.
Surface Finish and Dimensional Tolerance Requirements
Coating thickness adds to component dimensions. A 100 micron thermal spray coating increases diameter by 200 microns (0.008 inches) on a cylindrical part. For precision fits:
- Account for coating thickness in your pre-coating dimensions
- Specify post-coating grinding if needed
- Verify that as-coated surface roughness meets functional requirements
Typical as-coated surface roughness:
- PVD: Ra 0.05-0.2 microns (essentially replicates substrate finish)
- CVD tungsten carbide: Ra 0.4-0.6 microns
- HVOF thermal spray: Ra 2-5 microns as-sprayed (grinding required for most applications)
Environmental and Chemical Exposure
Corrosive environments may require thicker coatings to provide adequate barrier protection as surface layers degrade. High-temperature applications must account for thermal expansion mismatch between coating and substrate, which generates additional stress during temperature cycling.
Size thickness so a sacrificial layer still protects through the full service interval as erosion or corrosion wears the surface.
How Coating Thickness Impacts Performance and Tool Life
Coating thickness improves wear life only up to a point—then stress, brittleness, and failure risk start to climb.
Wear Resistance and Service Life
Wear life generally rises with thickness up to an optimum. Past that range, extra thickness brings diminishing returns and can raise brittleness or failure risk.
Surface Solutions documents these results at 2-5 micron PVD thickness:
- 60,000 parts before resharpening versus 10,000 uncoated — a 6× improvement
- 15 million parts over 15 months with Alpha-coated M4 punches on 0.057-inch galvanized steel
- 3–6× tool life is typical for properly applied PVD coatings
A 2023 HVAF study found that 30 micron and 240 micron coatings showed nearly identical wear under low-pressure abrasion (0.3 MPa). Thickness alone did not drive the result—contact conditions and coating quality mattered more.
Coating Adhesion and Failure Mechanisms
Excessive thickness increases internal tensile stress that can lead to coating delamination, cracking, or spalling. One study documented a 200 micron HVOF WC-Co coating experiencing larger cracks and interface delamination at 25 N scratch load.
Critical thickness thresholds sit beyond the point where failure risk rises sharply. Those limits depend on:
- Substrate material and hardness
- Deposition method and residual stress
- Load type (sliding, impact, abrasion)
- Environmental conditions
One electro-spark deposition study measured compressive stress rising from -437 MPa at 6.12 microns to -1,025 MPa at 16.71 microns. Higher stress doesn't always mean worse performance, but it changes the failure mode and threshold.
Friction, Heat Generation, and Lubrication Requirements
Thickness also affects surface texture and friction, which influences cutting forces, heat, and how much lubricant you need.

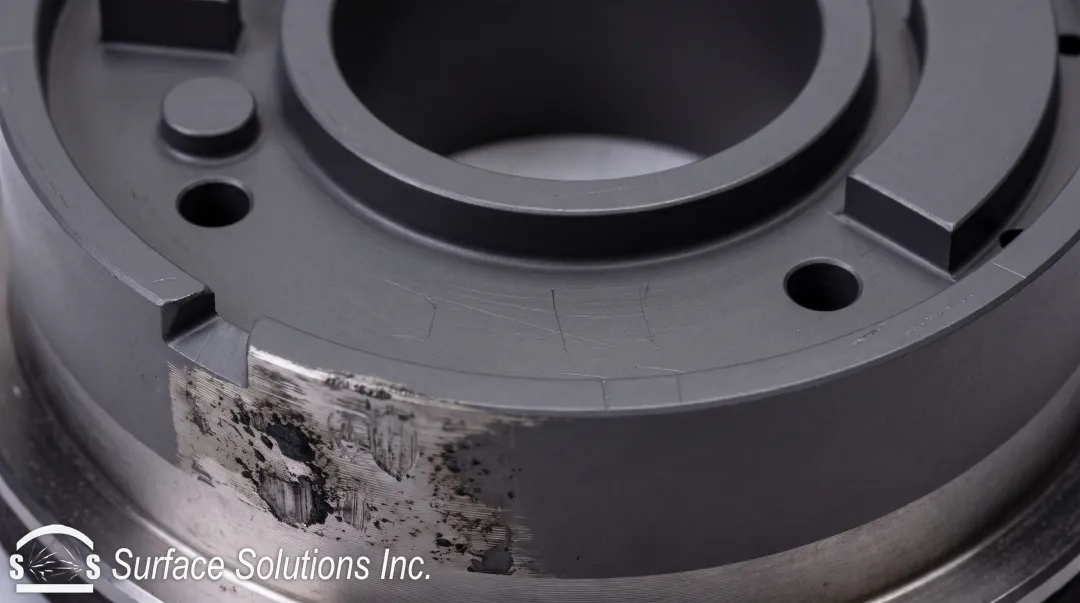

In one application, Surface Solutions' Alpha coating ran with minimal lubricant and almost no galvanized build-up, while TiN showed significant build-up under the same conditions. Friction and heat still depend on coating type, finish, and contact conditions—not thickness by itself.
Measurement, Specification, and Quality Control of Coating Thickness
Thickness measurement confirms the coating meets the specified range before parts are accepted.

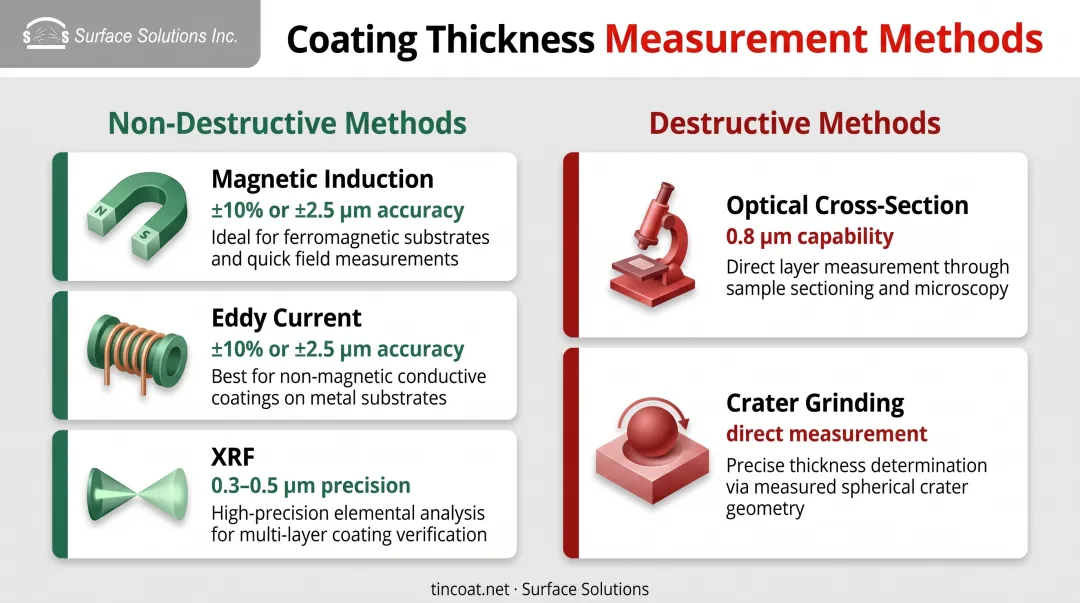

Industry Standard Measurement Techniques
Non-destructive methods:
| Method | Best For | Accuracy (ASTM E376) | Limitations |
|---|---|---|---|
| Magnetic induction | Nonmagnetic coating on magnetic substrate | ±10% or ±2.5 microns, whichever is greater | Requires calibration for WC-Co/WC-CoCr magnetic response |
| Eddy current | Conductive coating on non-conductive substrate, or vice versa | ±10% or ±2.5 microns, whichever is greater | May not work for conductive WC cermet on metal substrate |
| Ultrasonic | Thick coatings with distinct acoustic interface | Not specified for WC in available standards | Requires correction for stress-induced waveform shifts |
Destructive methods:
- Optical cross-section (ASTM B487): About 0.8 micron capability; most accurate check, but destroys the sample and needs careful prep to limit edge artifacts
- Crater grinding: Creates a shallow taper for direct depth measurement on coated samples
For thin PVD layers, X-ray fluorescence (XRF) is a non-destructive option with roughly 0.3–0.5 micron precision (DIN EN ISO 26423 for ceramic coatings).
Specification Standards and Documentation
Reference these standards when specifying coating thickness:
- ASTM E376: Magnetic and eddy current thickness measurement methods
- ASTM B487: Cross-sectional optical measurement
- ASTM E2109: Area-percent porosity measurement for thermal spray coatings
- ISO 14923: Characterization tests for thermally sprayed coatings
- ISO 14922: Quality requirements for thermal spray manufacturers
- SAE ARP5935: HVOF design and use guidance for hard chrome replacement
- SAE AMS2448: WC-HVOF application to ultra-high-strength steels (≥220 ksi)
Document coating thickness on technical drawings with:
- Coating identity (WC/C, WC-Co, WC-CoCr, CVD W/WC)
- Process and governing specification
- Substrate grade and hardness
- Target thickness range and measurement method
- Acceptance criteria (minimum, maximum, uniformity)
- Surface finish requirement (Ra before and after coating)
- Porosity requirement and measurement method
Quality Control and Acceptance Criteria
Coating providers typically verify thickness with a documented QC protocol:
- Representative sampling (percentage of parts or witness coupons)
- Multiple measurement locations per part
- Documented calibration traceability
- Individual readings recorded with acceptance/rejection decision
- Lot/part traceability maintained
Uniformity limits depend on process and part geometry. PVD usually holds tighter thickness control than thermal spray, which is more exposed to spray-pattern and line-of-sight variation.
Common Misconceptions About Coating Thickness Selection
"Thicker Is Always Better" Fallacy
Excessive thickness actually reduces performance in many applications. Under low-pressure abrasion, 30 micron and 240 micron coatings have shown nearly identical wear, so the extra 210 microns can add cost without a measurable gain.
Why thicker can be worse:
- Increased brittleness from higher residual stress
- Greater susceptibility to cracking under impact
- Higher risk of delamination at the coating-substrate interface
- Wasted material cost with no performance gain
- Coating may exceed substrate load-support capacity
For tools that need resharpening, a thicker coating is often ground away in the first sharpening cycle, so later tool life runs without that coating protection.
Ignoring Coating-Substrate System Behavior
Coating performance depends on the coating-substrate system as a whole, not just coating properties in isolation. A 10 micron coating on soft steel performs very differently than the same coating on hardened steel or carbide.
System factors that matter as much as thickness:
- Substrate preparation and cleanliness (oxides, EDM recast, and bluing must be removed)
- Coating adhesion strength at the interface
- Residual stress state and stress distribution
- Substrate hardness and load-support capability
- Operating conditions (load, temperature, environment)
Specify thickness as one input in that system. Adhesion, substrate support, residual stress, and real operating loads should drive the final call—not thickness alone.
Conclusion
Tungsten carbide coating thickness is an engineered specification. Optimal thickness depends on your substrate properties, application conditions, coating method, and performance requirements.
PVD coatings at 2-5 microns deliver 3-6× tool life for precision applications that need resharpening. Thermal spray coatings at 76-350 microns suit heavy wear jobs where dimensional build-up is acceptable.
Select thickness through engineering analysis, not rules of thumb. Account for substrate hardness, operating load, environmental conditions, and whether you'll resharpen tools. Specify measurement methods, acceptance criteria, and quality control protocols as rigorously as the thickness number itself.
Surface Solutions applies PVD coatings at 2-5 microns for cutting tools, punches, dies, and medical instruments, with documented 6× tool life improvements and lower lubricant use. Pair the right thickness with clear measurement methods and acceptance criteria so the coating performs as specified on your parts.
Frequently Asked Questions
What is tungsten carbide coating?
Tungsten carbide coating is a hard, wear-resistant surface treatment that deposits a layer of tungsten carbide (WC) compound onto metal tools and components. It extends service life by reducing friction, protecting against abrasive wear, and keeping edges sharp longer than uncoated tools.
How long does tungsten carbide coating last?
Lifespan depends on thickness, application conditions, and substrate. Properly applied 2–5 micron PVD coatings typically extend tool life 3–6× versus uncoated tools—for example, 60,000 parts before resharpening instead of about 10,000.
What is the typical thickness of PVD tungsten carbide coatings used in metal forming?
PVD tungsten carbide coatings for punches, dies, and forming tools typically range from 2-5 microns (0.0001-0.0002 inches). That range delivers strong wear protection and still allows multiple resharpening cycles without stripping the coating on the first grind.
Can coating thickness be measured without damaging the coated part?
Yes. Non-destructive methods such as magnetic induction and eddy current can measure thickness within about ±10% or ±2.5 microns under ideal conditions. Calibration must account for substrate and WC cermet properties.
Does thicker coating always provide better wear resistance?
No. Wear resistance improves up to an optimal thickness; beyond that, brittleness and internal stress can hurt performance. One study found 30-micron and 240-micron coatings performed the same under low-pressure abrasion—no gain from the extra 210 microns.
How does coating thickness affect tool resharpening?
Thinner coatings (2-5 microns) allow more resharpening cycles before coating removal. Thicker coatings may be completely removed during the first resharpening, eliminating coating benefits for subsequent tool life. For tools requiring multiple resharpenings, PVD coatings in the 2-5 micron range are preferred.
