Introduction
Search any firearms manufacturing forum or spec sheet, and black nitride coating comes up constantly for barrel production. Manufacturers favor it for corrosion resistance and surface hardness without the added bulk of chrome lining.
The appeal makes sense. Barrel corrosion, throat erosion, and premature replacement costs add up fast, especially for high-volume manufacturers. Add in the alphabet soup of finish options, nitride, Cerakote, chrome, and it's easy to see why many OEMs default to whatever coating their supplier already offers.
This guide breaks down what black nitride coating actually is, how manufacturers apply it, what benefits you can realistically expect, and how it compares to chrome and Cerakote. We'll also cover cost factors and safety questions that come up constantly among manufacturers evaluating coating options.
Key Takeaways
- Black nitride (Melonite, Tenifer, QPQ) diffuses nitrogen and carbon into the barrel's surface, not onto it
- Increases surface hardness and corrosion resistance while adding minimal buildup to the bore
- Modern salt-bath processes use non-cyanide chemistry, unlike many older formulations
- Pricing typically falls between basic bluing and premium chrome lining, based on barrel length
What Is Black Nitride Barrel Coating?
Black nitride, also known as ferritic nitrocarburizing (FNC), is a thermochemical diffusion process. Instead of applying a layer on top of the steel, it drives nitrogen and carbon atoms directly into the barrel's surface, where they bond with the iron to form a hardened iron-nitride case.
That's the key distinction gun owners often miss: nitride isn't a coating in the paint-on sense. It's a chemical transformation of the steel itself, which is why the finish doesn't chip, flake, or peel the way an applied layer eventually can.
Two Zones, One Process
Metallurgists split the treated surface into two layers:
- Compound zone: the visible black, outer layer made up of iron-carbonitride phases
- Diffusion zone: the region beneath it where nitrogen dissolves into the steel matrix, delivering most of the hardness gain and compressive strength
Faxon Firearms reports its salt-bath-nitrided 4150 CMV barrels exceed 60 HRC on the Rockwell hardness scale, a meaningful jump over untreated barrel steel. That number is specific to their process and steel type, so treat it as a benchmark rather than a universal figure for every barrel. Numbers like that explain the durability nitride delivers, but they don't explain why the market sells the same process under three different names.
Why Are There So Many Names?
If you've seen "Melonite," "Tenifer," or "QPQ" (quench-polish-quench) and wondered whether they're different processes, they're not. These are proprietary trade names for the same core nitrocarburizing treatment, marketed differently by different manufacturers and coating houses.
QPQ technically refers to the post-treatment quench-polish-quench sequence rather than the base nitriding step itself. In casual use, though, shooters treat all three names as interchangeable.
How Is Black Nitride Coating Applied to Barrels?
Salt-bath (liquid) nitrocarburizing is the industry standard for firearm barrels, and for good reason: it penetrates evenly into the bore and chamber, geometries that are tough to treat consistently with other methods.

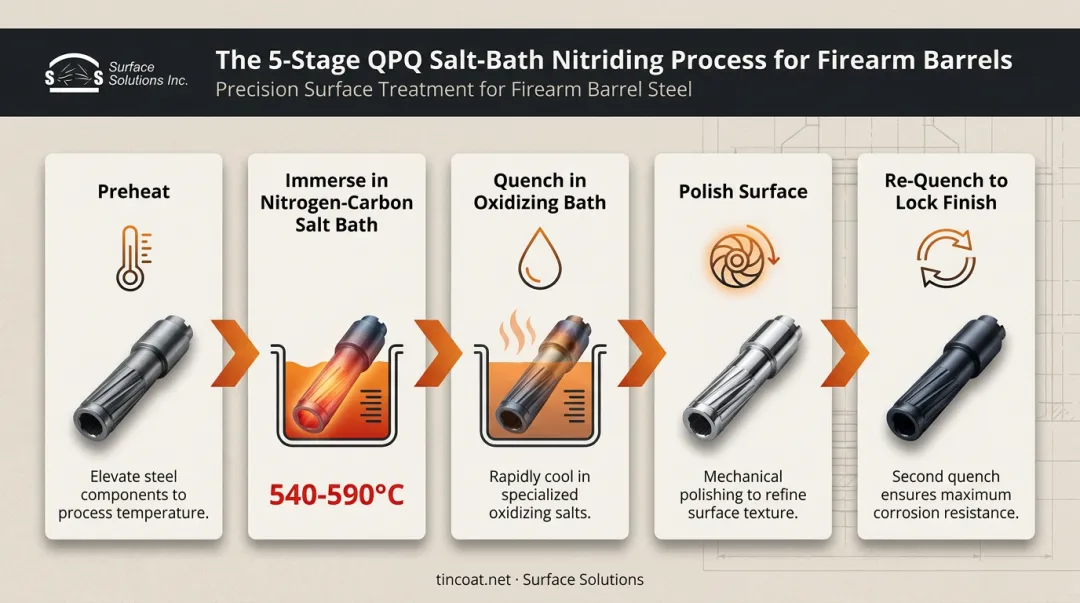

The QPQ Sequence
The process generally runs like this:
- Preheat the barrel to prepare the steel for treatment
- Immerse it in a molten nitrogen-and-carbon-rich salt bath, typically in the range HEF documents as 540°C to 590°C for liquid nitriding
- Quench in an oxidizing salt bath to build the black compound zone
- Polish the surface for smoothness and corrosion resistance
- Re-quench in the oxidizing bath a second time to lock in the finish
This sequence, quench-polish-quench, is where "QPQ" gets its name. Reputable barrel makers also lap the bore before treatment and re-polish the rifling afterward, which is what keeps match-grade barrels match-grade after nitriding.
Salt Bath vs. Gas and Plasma
Gas nitriding uses an ammonia atmosphere, while plasma (ion) nitriding relies on glow-discharge technology. Both work fine for flat or exterior surfaces. Salt bath remains preferred for barrels specifically because it delivers uniform nitrogen penetration into a long, narrow bore, something gas and plasma methods struggle to guarantee consistently.
Temperature control matters enormously here. Even small furnace fluctuations can cause warping or dimensional shift in a precision-machined barrel, so quality providers monitor bath temperature and immersion time closely throughout the cycle.
Salt-bath nitriding is chemically distinct from PVD (physical vapor deposition) coatings like titanium nitride, which deposit a separate thin film rather than diffusing into the base metal.
Surface Solutions specializes in that PVD side of the business, applying TiN, AlTiN, and CrN coatings to firearm components and industrial tooling at 700°-800°F in a vacuum chamber. The distinction matters when you're comparing barrel coating options, since PVD builds a surface layer rather than transforming the steel itself (more on that below).

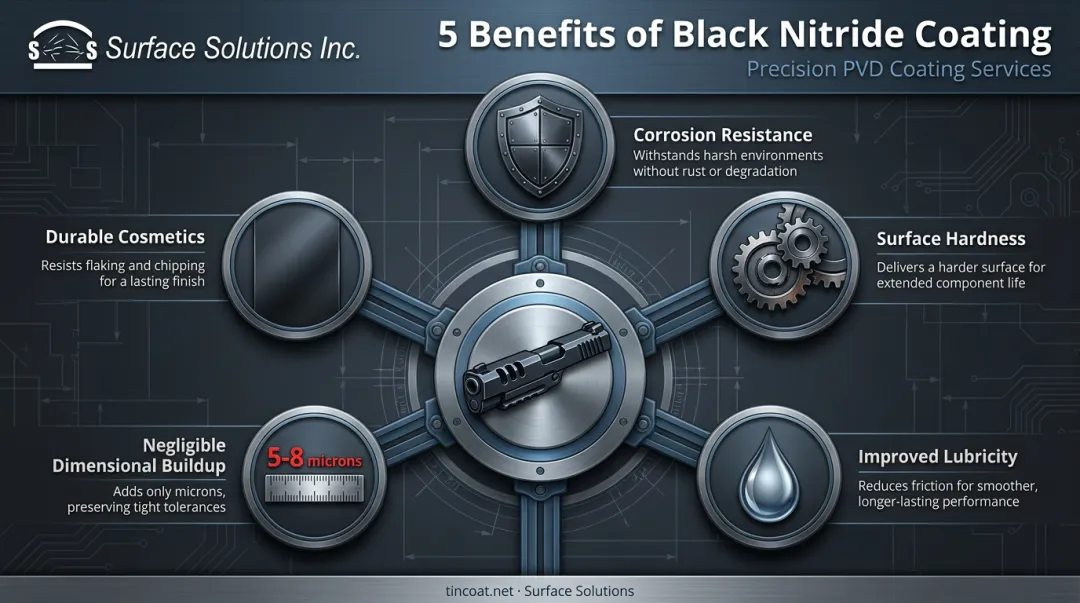

Benefits of Black Nitride Coating for Barrels
Once the process is done, what does it actually get you? A few things stand out.
- Corrosion resistance: Nitrided surfaces resist rust far better than bare or blued steel, especially with post-treatment sealing. Salt-spray corrosion testing shows liquid-nitrided parts far outlasting basic black oxide finishes.
- Surface hardness: A harder bore surface resists erosion from repeated firing cycles, which can extend usable barrel life under normal use.
- Improved lubricity: The finish reduces friction between the bullet and bore. In practice, that means less fouling buildup and an easier cleaning routine.
- Negligible dimensional buildup: HEF reports typical diameter growth of just 5 to 8 microns from liquid nitriding, a fraction of what chrome lining adds. That helps preserve factory bore tolerances and accuracy specs.
- Durable cosmetics: Because the black finish is diffused into the steel rather than sprayed or plated on, it won't flake or peel with normal handling and holster wear.
One caveat worth flagging: while nitride handles moisture and everyday corrosion well, Criterion Barrels notes that chrome lining still outperforms nitride under prolonged, severe moisture exposure. Nitride offers a strong first line of defense against rust, but it doesn't replace basic maintenance in harsh, wet conditions.
Black Nitride vs Other Barrel Finishes
Shooters usually narrow their choice down to three options: nitride, Cerakote, and chrome lining. Each solves a different problem.
| Finish | What it actually does | Best for |
|---|---|---|
| Black nitride | Hardens the steel itself through diffusion; minimal dimensional change | Corrosion resistance and durability at a reasonable price |
| Cerakote | Ceramic-polymer topcoat applied over an existing finish | Color, customization, mild abrasion resistance |
| Chrome lining | Electroplated layer inside the bore | Extremely high-volume shooting, sustained heat exposure |
Nitride vs Cerakote
Cerakote is purely a topcoat. It sits on top of whatever base finish the barrel already has, whether that's bare steel, nitride, or bluing. It's excellent for color and light abrasion resistance, but it doesn't structurally harden the metal underneath.
If your priority is looks and customization, Cerakote wins. If your priority is durability and corrosion resistance built into the steel itself, nitride is the better call.
Nitride vs Chrome Lining
Chrome lining has a long track record for extreme, sustained fire, and Criterion attributes meaningful throat-erosion resistance to chrome specifically, not to nitride. Chrome is thicker, though, and inconsistent plating can occasionally affect accuracy in lower-quality applications.
Nitride is thinner, generally more affordable, and comparably corrosion-resistant for the average shooter who isn't running thousands of rounds through a barrel in rapid succession.
Nitriding also works on stainless steel barrels, not just chrome-moly, adding hardness without the dimensional buildup chrome introduces. That's a different mechanism from PVD coatings like TiN used in industrial tooling, where Surface Solutions has documented TiN, AlTiN, and CrN applications on cutting tools, injection molding dies, and stamping punches.
In one internal comparison, AlTiN delivered six times the tool life of standard TiN on a carbide insert machining 304 stainless. It's a reminder that "coating" covers a wide range of technologies with very different jobs to do.

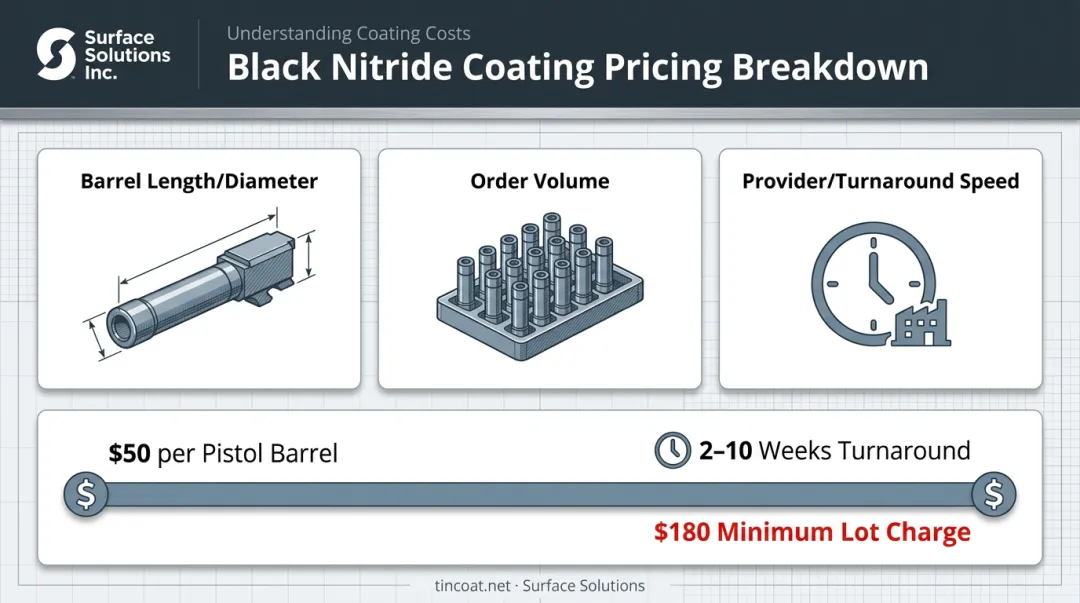

Cost, Safety & Maintenance of Black Nitride Coating
What Drives the Price
Nitride coating costs vary based on a few factors:
- Barrel length and diameter — longer or heavier barrels take more bath time and material
- Order volume — batch processing is typically cheaper per unit than one-off jobs
- Provider and turnaround — faster service usually costs more
Published shop pricing gives a rough sense of the range: some providers list around $50 per pistol barrel, while others set a $180 minimum lot charge covering a barrel plus additional parts like a slide.
Turnaround among these providers runs anywhere from two to ten weeks depending on backlog, so get a direct quote rather than assuming a flat national price.
Is It Toxic?
Older nitriding processes historically used cyanide-based salts, which raises valid safety concerns. Today, industry specifications like SAE AMS2753D govern non-cyanide salt-bath formulations.
That said, some technical sources note that cyanide compounds can transiently form during the reaction and are neutralized by the oxidizing quench step. In practice, reputable modern providers follow controlled, non-cyanide processes, but "modern nitriding" isn't a single universally certified standard, so ask your provider about their specific chemistry if it's a concern.
Maintenance
Nitride's natural lubricity means you'll need less oil than with a bare steel bore, though you still shouldn't skip cleaning. Criterion has documented a nitrided barrel that rusted after improper maintenance, proof that "corrosion-resistant" doesn't mean "maintenance-free." If you're refinishing an older barrel or comparing alternatives like PVD coatings for firearm components, providers such as Surface Solutions can help you weigh which process fits your application.
Frequently Asked Questions
What is a nitride coating?
It's a diffusion-based surface hardening process, not an external coating. Nitrogen and carbon atoms bond directly with the steel to increase hardness and corrosion resistance without adding a separate layer.
How much does nitride coating cost?
Pricing depends on barrel size, batch quantity, and provider, with published rates ranging roughly from $50 per barrel to higher minimum lot charges. Request quotes from a few providers for current, accurate pricing.
Which is better: nitride coating or Cerakote?
Nitride hardens the steel itself and improves corrosion resistance, while Cerakote is a cosmetic topcoat for color and light abrasion protection. The "better" choice depends on whether you prioritize durability or customization.
Is nitride coating toxic?
Modern nitriding largely follows non-cyanide salt-bath specifications, and finished parts are generally considered safe for regular handling. Ask your specific provider about their chemistry if you want full assurance.
Does black nitride coating affect barrel accuracy?
Nitriding adds only a few microns of dimensional buildup, far less than chrome lining, so it typically preserves factory bore tolerances. Well-executed nitride barrels can match the accuracy of untreated match-grade barrels.
How long does black nitride coating last on a barrel?
Because the hardening diffuses into the steel rather than sitting as a surface layer, it resists flaking. With proper cleaning and care, it typically lasts the functional life of the barrel.
