Introduction
PVD coatings are unforgiving. At just 2–5 microns thick, they leave almost no margin for error. A contaminated substrate, a drifting process parameter, or a missed wear indicator can compromise an entire batch of tooling before you realize anything went wrong.
The consequences show up quickly in manufacturing: premature tool failure, scrapped parts, and unplanned downtime. For high-volume punching or forming operations, even a single preventable coating failure can wipe out hours of production — along with the labor cost of additional resharpening cycles.
This guide covers the full QC picture: substrate prep requirements, in-process checks, post-coat inspection criteria, and how operators can spot early signs of degradation in the field. You'll also find a practical inspection and maintenance schedule you can adapt to your operation's volume and tooling type.
Key Takeaways
- Quality control spans four stages: substrate inspection, in-process monitoring, post-coating testing, and field monitoring
- Substrate cleanliness drives adhesion — surface contamination causes failure regardless of how well the coating is applied
- Watch for performance drops, increased heat, and visible surface wear; these signal coating degradation early
- Scheduled inspections and proactive recoating cost far less than emergency downtime or part replacement
- Matching coating type to your specific material, speed, lubrication, and wear mode matters as much as the process itself
Why PVD Coating Quality Control Matters
PVD coatings deliver measurable results only when applied and maintained correctly. The research behind these performance gains makes that dependency clear.
The Performance Gap Between Coated and Uncoated Tools
A 2024 peer-reviewed milling study reported 4–5x tool life for AlZrTiN-coated carbide tools in TA15 titanium alloy machining, with surface roughness of Ra 0.089 µm. That result is application-specific; different coatings, substrates, and operating conditions will produce different multipliers. Still, it illustrates the scale of improvement that proper coating makes possible.

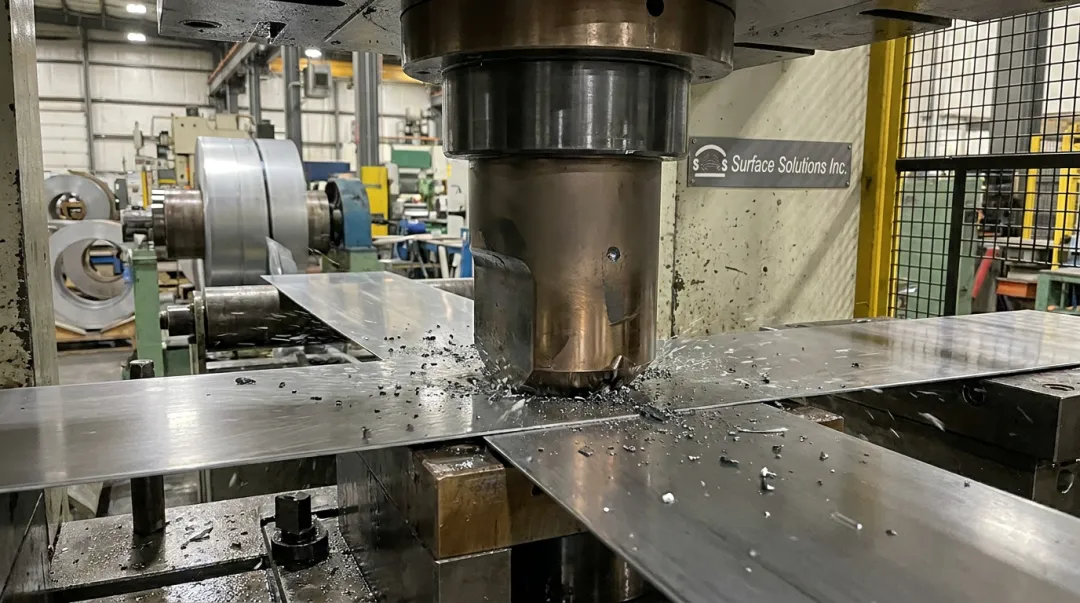

Surface Solutions' clients in punching and forming applications report similar gains. One customer running Alpha™-coated tools through galvanized steel reached 60,000 parts before resharpening, compared to a normal interval of 10,000 — a 6x improvement that eliminated 48 hours of labor per production cycle. Another customer switching from Alpha™ to CrN on a stainless steel drawing application went from 15 parts (too hot to touch) to over 500 parts (just warm to the touch).
Results at that scale require coating selection, substrate prep, and ongoing field monitoring to work together. When any one of those elements breaks down, so does performance — and the costs compound quickly.
What Poor QC Actually Costs
Reactive tool management compounds costs at every level:
- Increased resharpening frequency — tools that fail early require more frequent removal from the press, adding 8+ labor hours per cycle
- Scrap and part quality failures — degraded coatings on forming tools cause burring, dimensional inconsistency, and surface finish problems
- Unplanned downtime — an unexpected tool failure mid-run halts production without a ready replacement
- Replacement instead of recoating — Seco's reconditioning data shows reconditioned tools recover 85–95% of original performance at one-third to one-half the cost of new tooling; tools that fail early may not qualify for recoating at all
For manufacturers in sheet metal forming and punching — where die sticking, burring, and lubrication consumption are direct indicators of coating health — quality control isn't an abstract concept. It's what separates a production run that goes to plan from one that doesn't.
Key Quality Control Checkpoints in the PVD Coating Process
Coating quality builds at every stage. A missed checkpoint early on creates a defect that later steps can't correct — no amount of process control downstream compensates for a contaminated surface or an out-of-tolerance substrate.
Substrate Inspection Before Coating Begins
The first checkpoint is a go/no-go decision: is this tool ready to coat?
A proper substrate inspection covers:
- Material verification — confirming the substrate is compatible with the coating process (aluminum and zinc alloys, for example, cannot be PVD coated)
- Surface condition assessment — checking for cracks, EDM recast layers, surface oxides, bluing, or prior coatings that must be stripped
- Geometric checks — identifying burrs, sharp transitions, or cooling holes that affect coating uniformity
- Temperature tolerance — confirming the tool can withstand the 700–800°F deposition temperature without adverse dimensional or metallurgical effects
Surface Solutions requires that incoming parts be free of oxides, EDM recast layers, and prior surface treatments such as bluing before coating proceeds. As Oerlikon's substrate guidance confirms, even a ~5 nm Fe-Cr-W contamination layer at the coating interface — invisible to casual inspection — can compromise adhesion. Skip this step, and every subsequent stage is built on a flawed surface.
Pre-Treatment and Cleaning
Once a tool passes inspection, surface preparation brings it to the correct condition for coating adhesion.
Pre-treatment typically involves:
- Surface blasting — glass bead or emery blasting to achieve the appropriate roughness profile for the intended coating
- Ultrasonic or chemical cleaning — removing oils, particles, blasting residue, and any remaining contamination
- Final verification — confirming the surface is metallically clean and oxide-free before loading into the chamber
A contaminated or improperly blasted surface will produce a defective coating, regardless of how well the deposition process is controlled — the coating structure mirrors whatever surface it's applied to. Surface Solutions advises against customer-applied sandblasting for this reason — uncontrolled blasting can contaminate the surface or leave it too rough.
In-Process Monitoring During Coating

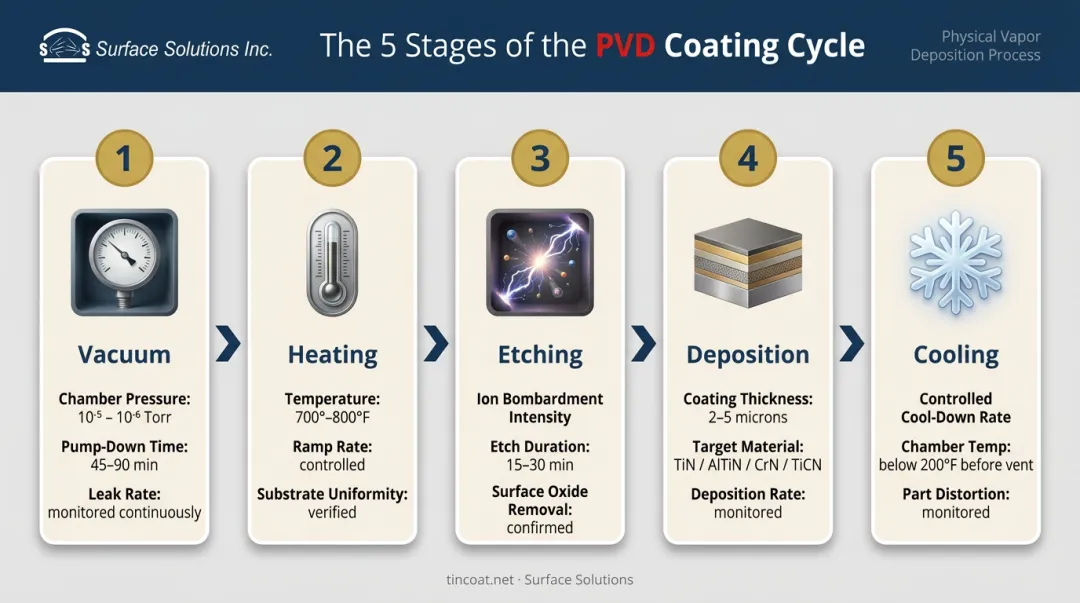

The coating cycle moves through five distinct stages, each with parameters that must stay within recipe tolerances:
| Stage | Critical Parameters to Monitor |
|---|---|
| Vacuum | Chamber pressure and leak rate; base pressure record |
| Heating | Substrate temperature, soak uniformity across the load |
| Etching | Ion-cleaning time, gas composition, substrate bias |
| Deposition | Bias voltage, target power, gas flow, pressure, temperature, deposition rate, part rotation |
| Cooling | Controlled cool-down rate; unload temperature |
Parameter drift has documented consequences. Research on TiAlN coatings shows that changing substrate bias from -35V to -60V produced measurable compressive stress (-1.5 ± 0.2 GPa) and improved damage resistance. In a separate study, raising N₂ flow from 12 to 24 sccm changed the coating's columnar structure into a coarse form with holes and microcracks. Every lot should be compared against its approved recipe, with alerts on any deviation.
Chamber preparation between runs carries the same weight. Residual contamination, dirty fixtures, and worn electrical components can introduce defects that no amount of process control will catch after the fact.
Post-Coating Inspection and Testing
Completed batches should go through structured verification before release:
- Visual inspection — check for uniformity, pitting, droplets, flaking, or color variation across the batch
- Adhesion testing — scratch testing (ISO 20502) or Rockwell indentation (ISO 26443) on representative samples; Oerlikon uses a six-class adhesion rating system for Rockwell results
- Thickness verification — crater grinding (ISO 26423) or XRF (ASTM B568) to confirm coating thickness is within specification
- Color consistency — batch-to-batch color variation can indicate process drift; some coatings, like Surface Solutions' Alpha™, provide a visual wear indicator in service — the coating's distinctive appearance makes it immediately obvious when it wears away in high-stress zones
Post-coating inspection confirms the batch meets specification — and the records it generates create a traceable data trail if performance questions arise in the field.
How to Tell If a PVD Coating Is Failing in the Field
Machine operators and tool room managers need to recognize degradation before it causes part quality problems or substrate damage. These are the signals to watch.

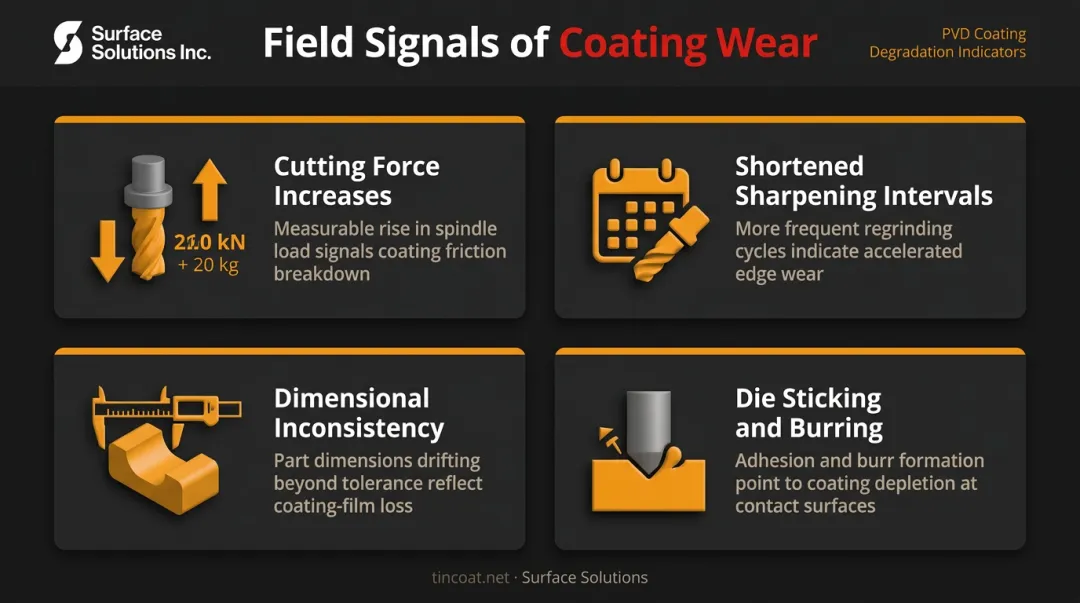

Changes in Tool or Part Performance
Performance shifts are often the earliest detectable sign of coating wear:
- Cutting force increases: A 2025 milling study recorded cutting force growth from ~700N to 885N as coating wear progressed under fixed conditions; similar trends appear in forming operations as friction rises
- Shorter intervals between sharpening: A tool that normally runs 60,000 parts requiring attention at 40,000 is a direct sign the coating is degrading faster than expected
- Dimensional inconsistency: Forming tools that lose their friction-reduction properties produce parts with tighter tolerances early in the run and looser tolerances as it progresses
- More die sticking and burring: In punching applications, early coating degradation shows up as increasing burr height on blanked parts. Research on AlCrN-coated punches directly links abrasive wear progression to rising burr height
Visual Signs of Coating Wear or Damage
Look for these during any inspection:
- Thinning or absent coating on high-contact zones — cutting edges, punch tips, die radii
- Color change or loss of original coating color in wear zones
- Pitting, flaking, or spallation at the coating surface
- Delamination at coating boundaries, particularly at edges
That color-change signal matters more than it might seem. Surface Solutions' Alpha™ coating is designed so that when it wears through, the contrast between coated and uncoated areas is immediately visible — giving operators a clear, in-hand indicator that intervention is needed without any measurement.
Increased Heat, Friction, or Resource Consumption
Once friction-reduction properties degrade, these operational signals appear:
- Parts are hotter than normal after forming or cutting
- Lubricant consumption increases to maintain the same output quality
- Scrap rate climbs without any change in material or process settings
- More frequent manual interventions or resets during a production run
Heat is a supporting indicator, not a standalone diagnosis. Temperature responds to cutting speed, lubrication conditions, and coating chemistry independently — treat it as one signal among several, alongside force increases, burr height, and visual condition.

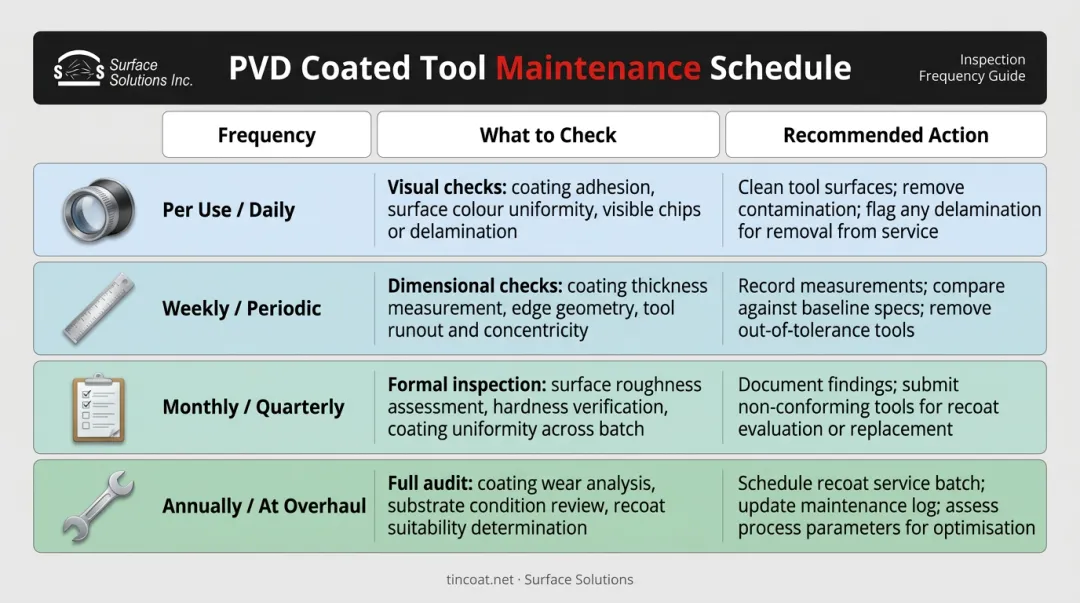

PVD Coating Quality Control and Maintenance Schedule
Inspection frequency depends on application intensity, tool type, coating used, and production volume. High-cycle automated punching lines need more frequent checks than low-volume precision tooling. The table below provides a general framework:
| Frequency | What to Check | Action |
|---|---|---|
| Per use / Daily | Visual check of cutting edges and contact surfaces; monitor part output quality and lubrication usage | Flag any visible wear, color change, or performance shift immediately |
| Weekly / Periodic | Dimensional check of high-wear coated surfaces; review production data trends (parts per sharpening, scrap rate) | Investigate any trend deviation from baseline; don't wait for a sharp drop |
| Monthly / Quarterly | Formal tool inspection against baseline; assess recoating need; review coating lot records if parts are being recoated | Remove tools approaching end of coating life before substrate damage occurs |
| Annually / At overhaul | Full tool audit; recoat, resharpen, or replace decision; evaluate whether coating type is still optimal for the application | Ideal point to work with Surface Solutions to review performance data and select the right coating for the next cycle |
For continuous high-volume environments, condition-based monitoring (tracking parts per cycle against a defined threshold) is more reliable than calendar intervals alone. The threshold should be established from your first approved production run baseline, then treated as the trigger for inspection rather than a fixed date.
Once that inspection trigger fires, the path forward is straightforward. Tony Deschenes of Special Tools, Inc., a resharpening service provider, notes that nearly everything they resharpen goes back to Surface Solutions for recoating. That cycle — sharpen, recoat, return to service — is the model that makes PVD coatings cost-effective at scale.
Conclusion
PVD coating quality is built at every stage of the process, from substrate inspection through field monitoring. Substrate inspection prevents buried interface defects. Logged process parameters control coating stress and microstructure. Standardized adhesion and thickness tests verify the lot before it ships. And field monitoring of force, burr height, visual wear, and heat governs when to remove a tool before the substrate is damaged.
A structured QC approach protects the investment in coated tooling. It keeps tools running longer, cuts labor and operating costs, and delivers consistent part quality across production runs. The gains customers report — 6x tool life, eliminated polishing steps, 500+ parts with minimal heat in stainless steel drawing — don't happen by accident. They follow directly from catching problems early, controlling the deposition environment, and knowing when to pull a tool before damage compounds.
Frequently Asked Questions
How do you maintain PVD coatings?
Maintain PVD coatings through regular visual inspection for wear at contact zones, tracking performance metrics like parts per sharpening cycle and lubricant consumption, and scheduling recoating before the base substrate is exposed. Clean tools with non-abrasive methods and avoid impact conditions that cause chipping or spallation.
How durable are PVD coatings?
PVD coatings are extremely hard — hardness values range from roughly 2,200 HV for CrN to 3,500 HV for some TiCN formulations. In documented applications, AlZrTiN-coated carbide achieved 4–5x tool life compared to uncoated equivalents in titanium alloy milling.
What are the most common causes of PVD coating failure?
The leading causes are inadequate substrate preparation or cleaning before coating, process parameter drift during deposition, running tools past their coating service life, and applying the wrong coating chemistry for the application's wear and thermal demands. Most field failures trace back to one of the first two.
Can PVD coated tools be recoated after they wear out?
Yes. Most PVD coated tools can be stripped and recoated multiple times, but the existing coating must be fully removed before recoating to ensure adhesion. Seco's reconditioning data shows reconditioned tools recover 85–95% of original performance at one-third to one-half the cost of new.
What pre-treatment steps are most critical for PVD coating quality?
Thorough cleaning — removal of oils, particles, oxides, EDM recast layers, and prior coatings — and appropriate surface blasting to achieve the correct roughness profile are the most critical steps. The coating will replicate whatever surface it lands on, so contamination or improper roughness at the substrate becomes a permanent defect in the finished coating.
How do I know which PVD coating is right for my application?
Coating selection depends on the material being processed, operating temperatures, lubrication conditions, and the dominant wear mechanism. CrN suits high-heat, low-lubrication forming like stainless steel drawing; Alpha™ outperforms TiN in galvanized steel punching where galling is the main concern. Contact Surface Solutions at 763-785-9436 or info@tincoat.net for application-specific guidance.
