Introduction
A part can hit every dimensional tolerance on the print and still fail in service if the surface finish is wrong. Poor finish accelerates wear, breaks seals, and shortens fatigue life long before anyone notices a dimension out of spec.
Yet many engineers treat surface finish as an afterthought, something to tighten "just in case" or leave blank and hope for the best. Both approaches cause problems: over-specifying drives up cost and lead time, while under-specifying invites premature failure.
This article breaks down what surface finish actually measures, what values are realistically achievable on a CNC machine, how shops verify it, and what happens when the spec doesn't match the application.
Key Takeaways
- Surface finish combines roughness, waviness, and lay, not one single smoothness number
- Ra and Rz are the most common parameters, with Rz always higher for the same surface
- Standard as-machined CNC finish runs around 3.2 µm Ra (125 µin) without secondary processing
- Tool wear and cutting parameters affect finish just as much as the machine itself
- Over-specifying finish is one of the costliest, most avoidable design mistakes
What Surface Finish Represents in CNC Machining
Surface finish describes the texture of a machined surface. Under ASME Y14.36 and ASME B46.1, that texture breaks into three distinct characteristics: roughness, waviness, and lay. These standards define how texture is measured and symbolized on drawings, though they don't dictate how a surface must be produced.
Here's the part designers often miss: surface finish isn't something you dial in directly like a hole diameter. It's an output of the machining process, a byproduct of tool geometry, feed rate, spindle speed, and how the material responds to cutting.
You control the inputs; the finish is what falls out the other end.
Treating "surface finish" as a single number on a drawing oversimplifies a multi-variable characteristic. A part can hit a target Ra and still have unacceptable waviness or the wrong lay direction for its application.

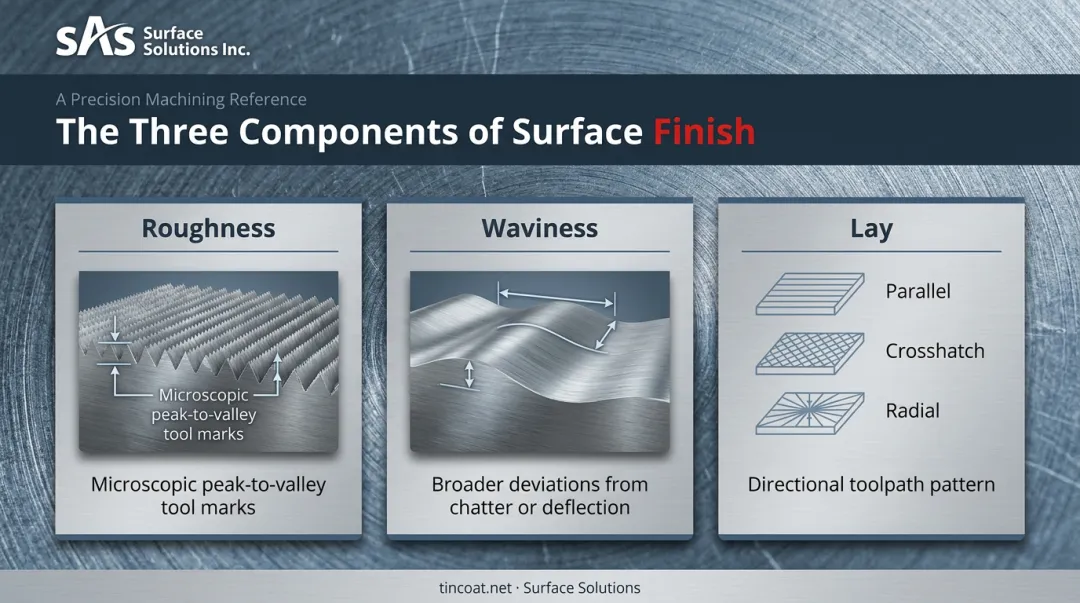

Roughness, Waviness, and Lay Explained
Each of the three components plays a different functional role:
- Roughness: the microscopic peak-to-valley irregularities left by the cutting edge, measured by most gauges and specified on most drawings.
- Waviness: broader surface deviations caused by chatter, tool deflection, or thermal expansion, distinct from flatness or form error, which describe part geometry rather than texture.
- Lay: the dominant pattern direction (parallel, perpendicular, radial, crosshatch, or isotropic) created by the toolpath, affecting how a surface seals and behaves under sliding contact.
A ground shaft with excellent Ra but the wrong lay orientation can still leak past a seal. Finish specification has to account for all three factors, not just the roughness number.
Factors That Influence Surface Finish During CNC Machining
Textbook roughness formulas rarely match what comes off the machine. Real-world finish depends on process variability, tooling condition, and machine health, not just the theoretical feed-per-tooth calculation.
Cutting parameters set the baseline. Feed rate, cutting speed, and depth of cut directly control the peak-to-valley height left behind:
- Slower feed rates generally produce smoother finishes, since scallop height between passes shrinks
- Excessive cutting speed can generate heat that alters the surface layer
- Deeper cuts increase cutting forces, which can push tool deflection and worsen both roughness and waviness
Tool selection and wear matter just as much as the numbers in the CAM program. Tool geometry (end mills, ball nose cutters, face mills, diamond tooling) determines the theoretical scallop pattern, but that's only the starting point.
As cutting edges dull, tool marks deepen and finish consistency drops across a production run. This is where coating choice becomes relevant to finish, not just tool life.
PVD-coated tooling, such as Alpha™ or CrN-coated cutters, resists wear and galling far longer than uncoated tooling. That durability helps hold a consistent Ra across longer runs before resharpening becomes necessary.

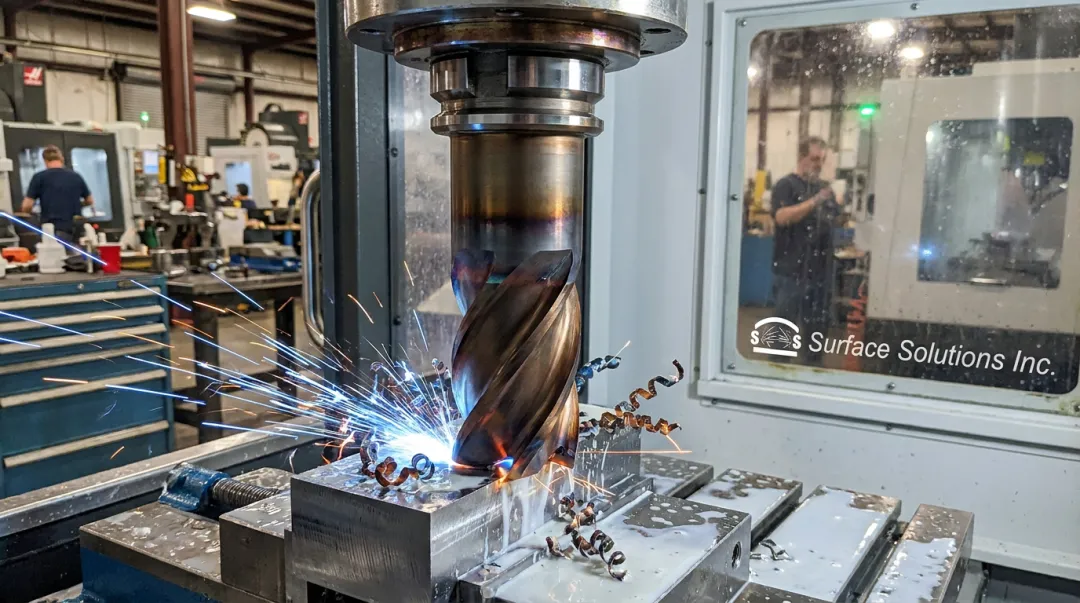

A customer testimonial shared with Surface Solutions illustrates that difference in scale. One shop running Alpha™-coated tooling completed a full order of 60,000 parts without resharpening. That's six times the normal interval of 10,000 parts on uncoated tools before edge degradation forced a stop. On a shop floor, that translates directly into fewer mid-run finish shifts.
Vibration and chatter show up as waviness and inconsistent lay. Machine rigidity, tool balance, and spindle runout all play a role here, and none of them show up in a simple Ra callout on a drawing.
Material and environmental factors round out the list:
- Harder materials generally resist deformation better but can accelerate tool wear
- Grain structure affects how cleanly material shears away from the cutting edge
- Coolant delivery and thermal effects during cutting can alter the finished surface layer
For context, a widely referenced NIST capability chart places conventional milling in the range of roughly 12.5 to 0.8 µm Ra, while grinding, honing, and polishing reach substantially finer values as shown below.
| Process | Typical Ra Range |
|---|---|
| Milling | 12.5 – 0.8 µm |
| Grinding | 1.6 – 0.025 µm |
| Honing | 0.8 – 0.025 µm |
| Polishing | 0.4 – 0.025 µm |
| Lapping | 0.2 – 0.025 µm |
Source: NIST Surface Finish Metrology Tutorial
Use that table as a starting point for process selection, then validate the numbers against the actual machine and tooling running the job.
Standard Surface Finish Values and Achievable Ranges
Achievable surface finish depends on two things working together: what the manufacturing process is physically capable of, and what the drawing actually calls for. Specifying tighter than the process needs just adds cost without adding function.
Nominal and Standard Ranges in CNC Machining
The commonly cited "as-machined" standard is 3.2 µm Ra (125 µin). This assumes standard tooling, moderate speeds and feeds, and no secondary finishing operation. It's a commercial default many shops quote, not a universal ASME requirement, so it should still be stated explicitly on the drawing.

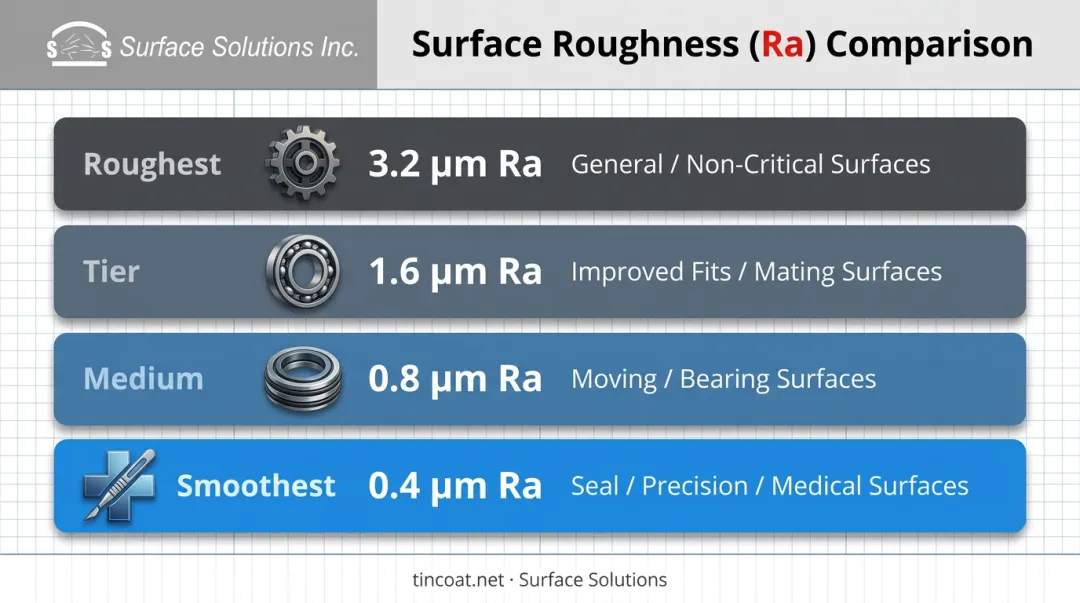

Industry commonly uses four Ra tiers:
- 3.2 µm Ra — general, non-critical surfaces; minor tool marks are visible and acceptable
- 1.6 µm Ra — improved fits and higher-quality mating surfaces
- 0.8 µm Ra — moving, bearing, or higher-stress contact surfaces
- 0.4 µm Ra — seal interfaces and select precision or medical surfaces
Each step down in Ra typically demands an intentional finishing pass rather than just tweaking feeds and speeds.
Types of Tooling and Part Surface Finishes
Finish types generally fall into five categories:
- As-machined — direct result of the cutting operation, no secondary process
- Smooth — ground or honed to remove tool marks
- Textured — knurled or bead-blasted for grip or cosmetic uniformity
- Mirror — polished to a highly reflective surface
- Coated/anodized — a functional or protective layer applied over the base finish
One distinction matters here: PVD coatings, including the TiN, AlTiN, CrN, and Alpha™ coatings Surface Solutions applies, run 0.0001"–0.0002" (2–5 microns) thick. That's thin enough to preserve part-to-part fit, but it won't disguise a rough substrate. Any polishing needed has to happen before coating, not after.
According to Xometry, improving finish from 125 µin down to 63, 32, or 16 µin generally increases the number of manufacturing operations and raises cost. Each step down often means separate equipment, fixturing, and inspection.
Safe Specification Margins
Specify the roughest finish the application can tolerate, not the smoothest one available. A mating bore that only needs to seat a bearing doesn't need mirror polish. Reserve tight Ra callouts for surfaces with a documented functional need, such as sealing, sliding contact, or fatigue-sensitive zones. Leave everything else at the process's natural as-machined capability.
How Surface Finish Is Measured, Specified, and Selected
A finish spec only matters if it can be verified consistently on the shop floor, which means both the drawing symbol and the measurement method need to align.
Specification and Symbols
The ASME/ISO surface finish symbol carries several pieces of information beyond a single number:
- Parameter and limit — which value (Ra, Rz) and its numeric limit
- Production method — notes on how the surface should be produced, if relevant
- Lay direction — required when function depends on it
- Sampling length — the cutoff over which roughness is evaluated

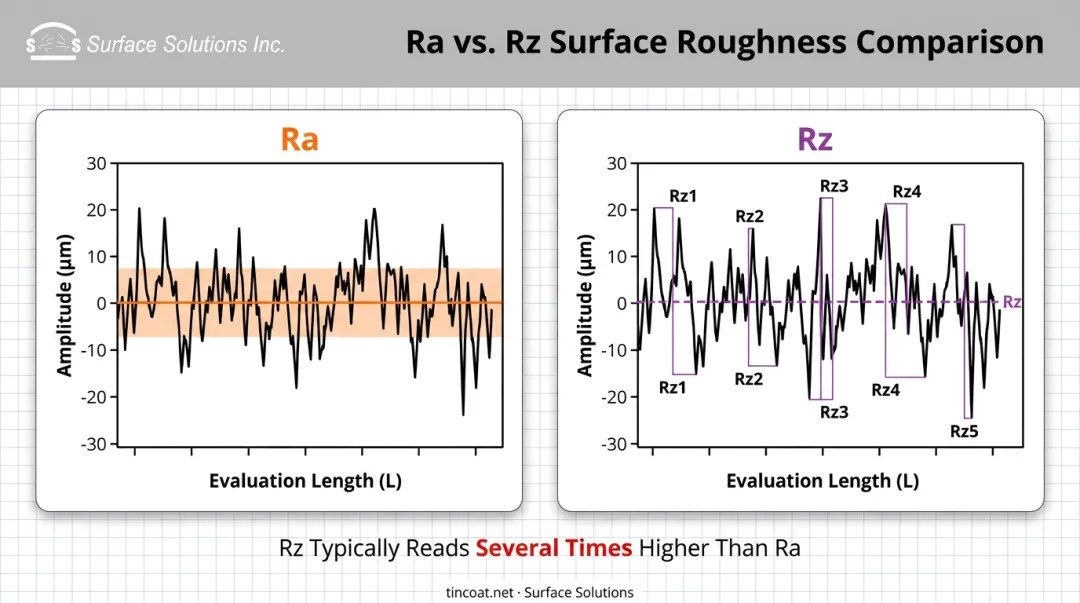

A critical distinction lives in the parameter itself. Ra (average roughness) is the arithmetic mean of all deviations across the evaluation length, so isolated peaks or valleys get averaged out. Rz (mean roughness depth) is derived differently: it averages the five largest peak-to-valley measurements from five separate sampling lengths.
Because Rz responds to the worst local features rather than the whole surface average, it typically runs several times higher than Ra on the same part. A rough 4:1 to 7:1 Rz-to-Ra ratio is sometimes used for estimating, but the actual ratio depends on profile shape, so never substitute a converted number for a measured one.
Measurement Tools and Methods
Shops choose between a few measurement approaches depending on speed, precision, and surface sensitivity:
- Contact profilometers (stylus-based) — the established method for traceable profile measurement, though the stylus tip can mechanically filter very narrow features or mark soft surfaces
- Non-contact/optical profilometers — fast, areal data collection with no risk of surface damage, but accuracy depends on surface reflectivity and slope
- Portable roughness testers — field-usable, lower-precision alternatives that give a numerical Ra/Rz reading right at the machine
- Surface comparators — physical reference plates for quick visual/tactile screening, useful for a go/no-go check but not a substitute for a measured value
Lab-measured roughness and in-process/field measurements don't always agree. Shops should validate finish under actual production conditions, on the real part, with the real tool, rather than relying solely on a bench measurement taken under ideal conditions.
Consequences of Poor Surface Finish and Common Misconceptions
Get the finish wrong, and the effects cascade quickly. Rough surfaces cause:
- Increased friction between mating parts
- Accelerated wear on contact surfaces
- Corrosion at exposed peaks
- Stress concentrations that shorten fatigue life A 2021 study on machined 7N01 aluminum alloy found that increasing surface roughness measurably reduced fatigue strength, since machining grooves act as stress risers under cyclic loading.
Tool wear drives a lot of this. As a cutting edge dulls mid-run, finish quality degrades, often forcing unplanned resharpening or scrapped parts. Wear-resistant coated tooling helps here too, maintaining finish consistency across the entire production run as edges hold their geometry longer.
Consider the difference documented by a Surface Solutions customer running Alpha™-coated M4 punches against .057-inch galvanized steel: the coated punches showed almost no galvanized build-up, while a TiN-coated punch running side by side in the same conditions accumulated significant build-up. Less galling means less mid-run finish variability, and fewer surprises during inspection.
Two misconceptions come up constantly:
- Treating Ra as an absolute pass/fail line. Ra is a statistical average across a sampling length, not a single-point measurement. A part can have isolated features outside the average and still meet spec.
- Applying lab-measured values to production conditions without adjustment. Tool wear, vibration, and material variation all shift real-world results away from a clean bench measurement.
Surface finish is a governing characteristic made up of roughness, waviness, and lay, shaped by tooling condition as much as by the machine itself. Balancing process capability, correct measurement, and tool wear management is what keeps parts reliable without inflating cost.
Frequently Asked Questions
What is the standard tooling surface finish for CNC machining?
The commonly used standard is around 3.2 µm Ra (125 µin) for as-machined parts. It balances cost and functional smoothness for most general-purpose applications without requiring secondary finishing.
What are the main types of tooling surface finish?
The main categories are as-machined, smooth (ground/honed), textured (bead-blasted/knurled), mirror-polished, and coated/anodized finishes. Each serves a different functional or cosmetic purpose.
What is the difference between Ra and Rz in tooling surface finish?
Ra averages all surface deviations across the measurement length, while Rz averages the five largest peak-to-valley measurements from five sampling lengths. Rz is typically several times higher than Ra on the same surface.
What tools are used for tooling surface finishing?
Common tools include end mills, face mills, ball nose cutters, diamond-tipped tools, and finishing brushes or abrasives. Tool choice depends on the material being cut and the target Ra value.
How does tool wear affect surface finish in CNC machining?
As cutting edges dull, roughness increases and consistency drops across the run. Wear-resistant coated tooling, like PVD-coated cutters, helps maintain finish quality over longer production intervals.
Can surface finish be improved without adding a secondary process?
Optimizing cutting parameters, tool selection, and machine rigidity can improve finish somewhat. However, very low Ra targets generally still require grinding, honing, or polishing to achieve reliably.
