DLC and TiCN are two high-performance coatings manufacturers frequently compare—both deliver significant tool life improvements over uncoated steel, but they're engineered for different conditions. Choosing the wrong one means either overpaying for properties you don't need or underequipping your tooling for the wear it actually faces.
This article breaks down the composition, hardness, friction, cost, and ideal applications for each coating, then walks through how to match the right one to your specific operation.
Key Takeaways
- DLC offers ultra-low friction (as low as 0.10) and superior corrosion resistance—strongest in wet, high-speed, or minimal-lubrication environments
- TiCN delivers hardness up to 37 GPa and is well-suited for blanking, punching, and heavy-duty forming operations
- Both coatings significantly extend tool life over uncoated equivalents and reduce lubrication requirements
- TiCN is generally the more cost-accessible option for high-volume metal forming operations
- The right choice depends on whether your primary wear challenge is friction and heat or abrasion and impact
DLC vs TiCN: Quick Comparison
| Property | DLC | TiCN |
|---|---|---|
| Composition | Amorphous carbon (sp3 + sp2 bonds); may include hydrogen or silicon | Ti-C-N ceramic compound; crystalline PVD structure |
| Hardness | a-C:H: ~15–30 GPa; ta-C variants: 45–50 GPa | ~37 GPa (±3 GPa per Oerlikon); ~36–38 GPa (PLATIT) |
| Friction vs. steel | 0.10–0.20 | 0.20–0.25 |
| Typical thickness | 1–5 micrometers (varies by DLC type) | 1–4 micrometers |
| Deposition method | PACVD (a-C:H) or PVD arc (ta-C) | PVD arc evaporation |
| Appearance | Black | Blue-gray or violet |
| Cost | Higher; typically 2–4× TiCN cost depending on variant | More accessible; $8–$16/tool size-dependent |
| Best for | Low-friction, corrosive, wet, or high-speed environments | Punching, forming, cutting hard alloys |
What Is DLC Coating?
Diamond-Like Carbon (DLC) is an amorphous carbon coating applied via plasma-assisted chemical vapor deposition (PACVD) for hydrogenated a-C:H variants, or PVD arc evaporation for hydrogen-free ta-C. Despite sharing carbon's chemistry with diamond, DLC lacks diamond's crystalline structure. Instead, it combines sp3 (diamond-like) and sp2 (graphite-like) bonds in a dense, disordered matrix. The ratio of those bonds controls the coating's properties: more sp3 content means higher hardness; more sp2 increases lubricity.

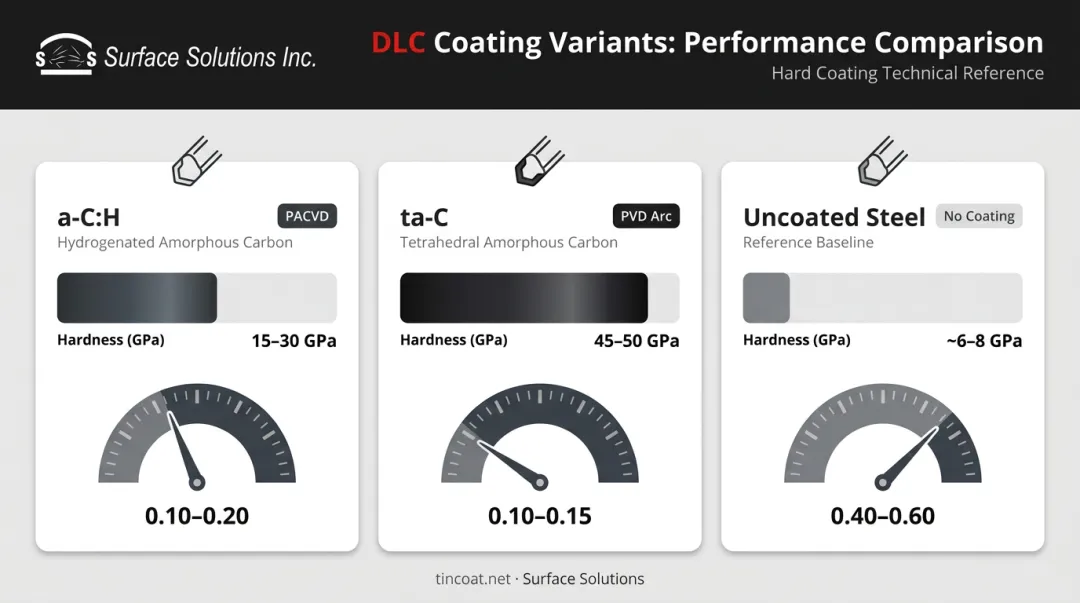

Hardness and Friction
DLC's hardness varies significantly by type. Common a-C:H formulations reach 15–30 GPa, while ta-C products like PLATIT DLC3 achieve 45–50 GPa. The friction coefficient against polished steel runs 0.10–0.20, among the lowest of any industrial coating according to Oerlikon Balzers. That low friction translates directly to less heat buildup, less material adhesion to the tool face, and reduced lubricant demand.
Corrosion Resistance
, giving manufacturers broad substrate flexibility. That said, in dry hard-turning tests at increasing speeds and feed rates, DLC coatings on ceramic tools showed flaking and converged toward uncoated performance. High-speed thermal stress is a real limitation for certain DLC formulations.
Where DLC Fits
- High-speed food packaging (blown film knives, bagger knives)
- Forming of galvanized or aluminized sheet, where galling resistance matters (Ionbond 40 DLC targets this specifically)
- Cutting graphite, composites, and aluminum alloys above 12% Si
- Applications requiring minimal lubrication or non-stick surface behavior
What Is TiCN Coating?
Titanium Carbonitride (TiCN) is a ceramic PVD coating that evolved from standard TiN by adding carbon to the titanium-nitrogen compound. That carbon addition occupies the TiN cubic matrix and produces measurably higher hardness, better abrasion resistance, and lower friction—while remaining compatible with the same substrates and deposition processes as TiN.
Applied via PVD arc evaporation, TiCN produces a characteristic blue-gray or violet surface at approximately 1–4 micrometers thickness.
Hardness and Wear Resistance
The hardness numbers for TiCN are more consistent across vendors than DLC. Oerlikon reports 37 ± 3 GPa for their BALINIT B formulation; PLATIT lists 36–38 GPa; Ionbond's TiCN reaches 2800 HV. These figures place TiCN meaningfully above standard TiN, and its crystalline ceramic structure resists chipping and flaking under impact loads better than many competing coatings.
Surface Solutions reports 2–8x tool life over uncoated cutting tools and 2–10x over uncoated punches for their TiCN coating. One documented example: a TiCN-coated brazed-carbide dovetail cutting 1018 steel ran for 8 hours versus 15 minutes for an uncoated equivalent.
Friction and Cutting Performance
At a friction coefficient of approximately 0.20–0.25 against steel, TiCN runs cooler and requires less lubrication than uncoated tooling—critical in punching and forming where repeated impacts generate sustained heat. The gap versus DLC (which floors at 0.10) matters in applications where surface slickness is the primary wear driver, but for abrasion-dominated wear, TiCN's hardness closes that gap.

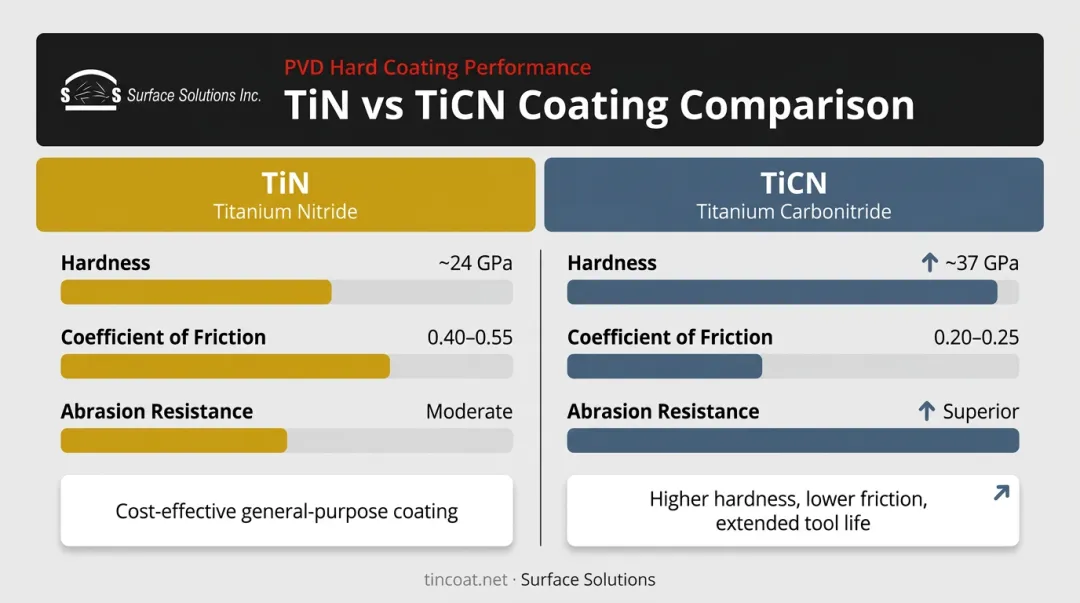

How TiCN Differs from TiN
| Property | TiN | TiCN |
|---|---|---|
| Hardness | ~24 GPa | ~37 GPa |
| Friction vs. steel | ~0.40–0.55 | ~0.20–0.25 |
| Abrasion resistance | Moderate | Superior |
| Appearance | Gold | Blue-gray/violet |
In practice, that hardness jump from ~24 to ~37 GPa is what pushes TiCN ahead of TiN in high-wear cutting and forming applications.
Where TiCN Fits
TiCN has explicit primary-vendor support (Ionbond and Oerlikon) for:
- Blanking, trimming, and piercing dies
- High-load punching and heavy-duty forming
- Cutting steel, stainless steel, cast iron, and hard alloys
- Medical instruments (Ionbond's Medthin 10 is marketed specifically for this)
- Metal stamping and drawing operations
Surface Solutions applies TiCN coatings to carbide, hardened tool steels (H-13, A-2, D2, O1), high-speed steels (M-2), and pre-hardened steels—covering the full range of substrates common in metal forming and cutting tool applications.

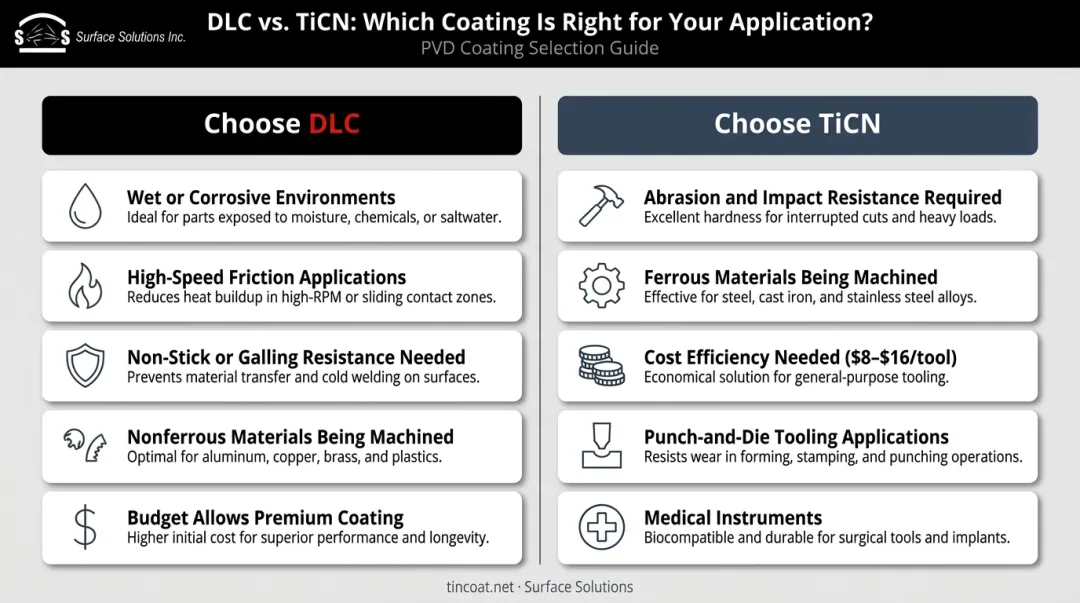

DLC vs TiCN: Choosing the Right Coating
The decision comes down to four variables: operating environment, primary wear mode, base material, and cost constraints.
Choose DLC When:
- Corrosion or moisture is present — wet environments, food contact, chemical exposure
- Friction and heat are the dominant wear drivers — high-speed cutting with minimal lubrication
- Non-stick performance matters — packaging knives, galling-prone forming of galvanized sheet
- You're cutting nonferrous materials — aluminum alloys above 12% Si, composites, graphite
- Budget allows for the premium — DLC's deposition complexity carries a higher per-tool cost
Choose TiCN When:
- Abrasion and impact are the dominant wear modes — punching, blanking, drawing, heavy forming
- You're cutting ferrous materials — steel, stainless steel, cast iron, hard alloys
- Cost efficiency matters in high-volume production — TiCN's $8–$16/tool pricing (per Surface Solutions' published rates) makes it practical for large batches
- You need proven punch-and-die support — both Ionbond and Oerlikon explicitly list TiCN for blanking, piercing, and heavy-load forming
- You're running medical instrument tooling — TiCN is established in surgical instrument applications
The Overlap Zone
Both coatings outperform uncoated tooling and reduce lubrication requirements. Both apply equally well to HSS, tool steel, and carbide substrates. If your application sits in the middle—moderate friction, moderate abrasion, no extreme corrosion risk—the practical choice usually comes down to cost and your coating provider's track record with that specific application.
A conversation with your coating specialist will get you further than any general comparison. Surface Solutions takes an application-first approach: they assess the material, wear mode, and production demands before recommending a coating — and will steer you toward whichever option actually fits your process.

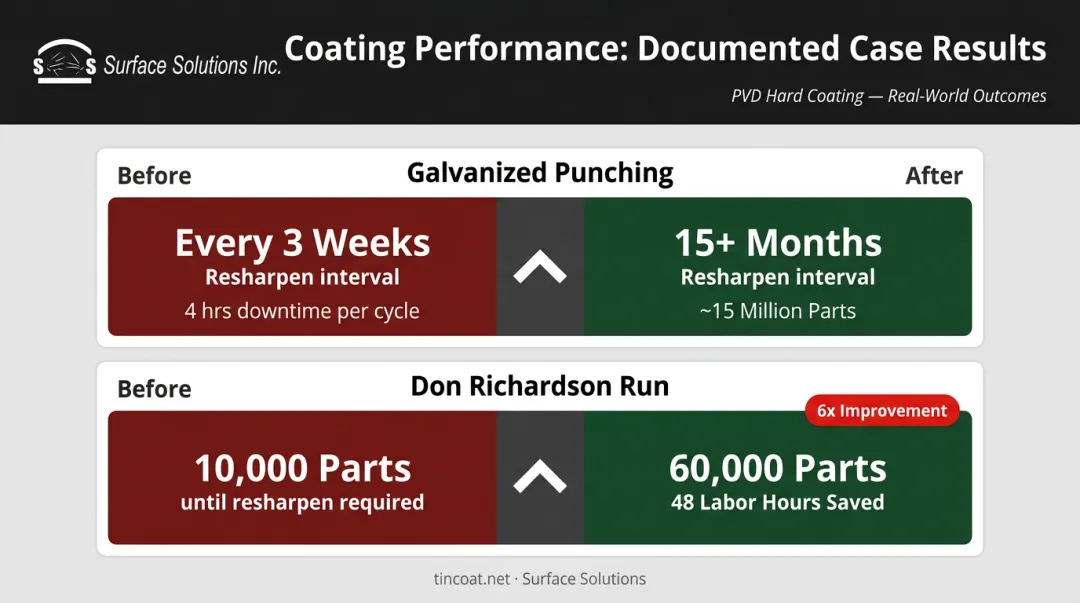

Real-World Performance: What Coating Results Look Like in Metal Forming
Consider a representative high-volume punching operation: M4 punches running through 0.057" galvanized steel at one stroke per second, 8–16 hours per day. With uncoated D2 punches, the operation required resharpening every three weeks—pulling the die, separating the tooling, grinding, reassembling, and reinstalling. Each maintenance cycle consumed a minimum of four hours of press downtime.
After switching to a high-performance PVD coating through Surface Solutions, that same operation ran for over 15 months and an estimated 15 million parts before requiring attention. Beyond raw cycle counts, the customer noted reduced punch chipping and significantly less galvanized material build-up on the punch face compared to TiN-coated equivalents.
In a separate documented case, customer Don Richardson ran a full order of 60,000 parts without resharpening—compared to a previous threshold of 10,000 parts. Each resharpening event requires 8 hours to complete, so eliminating six resharpening cycles saved 48 labor hours in a single production run.
| Operation | Before Coating | After Coating |
|---|---|---|
| High-volume galvanized punching | Resharpen every 3 weeks (~4 hrs downtime) | 15+ months, ~15 million parts before service |
| Don Richardson's production run | 10,000 parts before resharpening | 60,000 parts; 48 labor hours saved |
These results are attributed to Surface Solutions' Alpha™ coating (a proprietary PVD formulation), not TiCN specifically—but they illustrate what a well-matched PVD coating delivers in metal forming environments. MetalForming Magazine has documented that a single unplanned broken-punch event can exceed $500 once you factor in toolmaker labor, quality holds, idle press time, and restart costs—numbers that add up fast when unplanned downtime becomes routine.
The right coating depends on your specific wear mode, material, and run conditions. To find out whether TiCN, Alpha™, CrN, AlTiN, or another option fits your tooling, contact Surface Solutions at 763-785-9436 or info@tincoat.net.
Frequently Asked Questions
Is DLC better than TiCN?
Not categorically. DLC outperforms TiCN in friction coefficient (as low as 0.10 vs. 0.20) and corrosion resistance in wet environments. TiCN matches or exceeds certain DLC formulations in hardness and delivers better impact resistance for high-load forming. "Better" is entirely application-specific.
What is TiCN coating good for?
TiCN is engineered for metal forming, punching, blanking, drawing, and cutting hard ferrous materials like steel and stainless steel. Its hardness (~37 GPa), abrasion resistance, and friction coefficient (~0.20–0.25) extend tool life over uncoated or TiN-coated equivalents in these applications.
How thick are DLC and TiCN coatings?
DLC typically runs 1–5 micrometers depending on the formulation and process (some ta-C products deposit as thin as 0.3–1 micrometer). TiCN is typically 1–4 micrometers. Both are thin enough to preserve tight dimensional tolerances on precision tooling.
Which coating is better for punch and die tooling?
TiCN is generally the preferred choice—it has explicit vendor support from Ionbond and Oerlikon for blanking, trimming, piercing, and heavy-duty forming, along with a strong track record in high-volume stamping. DLC may be considered where galling resistance or friction reduction is the primary concern.
Can DLC and TiCN coatings be reapplied after resharpening?
TiCN can be stripped from steel substrates and reapplied at roughly 40% of original coating cost. Stripping from carbide is not recommended, as the chemicals attack the cobalt binder. DLC recoating after resharpening varies by substrate and formulation—confirm strip-and-recoat compatibility with your coating provider.
Is TiCN coating approved for food and medical applications?
TiCN is used on surgical instruments, and a specific TiCN-coated dental device received FDA 510(k) clearance in 2026. That clearance is device-specific, not blanket material approval. For food processing environments, CrN is often the stronger choice given its corrosion resistance profile.
