Pricing varies based on coating type, part geometry, batch volume, surface preparation requirements, and provider capabilities. Misunderstanding even one of these variables leads to budget surprises and poor coating decisions.
This guide breaks down the real factors behind PVD coating costs, what a complete quote should include, and how to think about total cost of ownership rather than just the line-item coating fee.
Key Takeaways
- PVD coating pricing is driven by coating chemistry, batch size, part geometry, and surface prep requirements — not a single fixed rate
- Choosing the wrong coating to save money almost always costs more through premature failure — match the coating to the application first
- Batch consolidation is the single most effective way to reduce per-part costs for outsourced coating
- Recoating resharpened tools is standard practice and should factor into your total cost-of-ownership calculations
- Most manufacturers get better economics from outsourcing than from investing in in-house coating equipment
How Much Does PVD Coating Cost?
PVD coating has no universal price list. Every quote reflects a combination of part-specific and job-specific variables. What one manufacturer pays per part for high-volume TiN-coated punches will look nothing like what a medical device company pays for small-batch surgical instrument coating.
Three cost misunderstandings come up repeatedly:
- Comparing only the coating fee without accounting for the tool life extension it delivers
- Underestimating how batch size shifts per-part economics — sometimes dramatically
- Treating published price ranges as quotes — geometry, volume, and coating type all move the final number
The only publicly documented example of in-house consumable cost modeling (VaporTech's 2025 equipment analysis) shows per-part costs dropping from $0.15 to $0.09 as chamber loads increase from 96 to 256 small parts. That's a 40% cost reduction purely from better batch utilization — and this is for consumables only, not the full outsourced service price. The takeaway for outsourced buyers: filling a chamber load is one of the most effective ways to lower your per-part cost.
For outsourced services, published pricing is scarce. As HEF's pricing FAQ notes, industrial PVD work is generally piece-priced with minimum delivery quantities, but no universal price schedule exists. TiN jobs alone can range from under $1 to $1,000+ per part — a spread that reflects just how much geometry, volume, and coating type affect the final price.

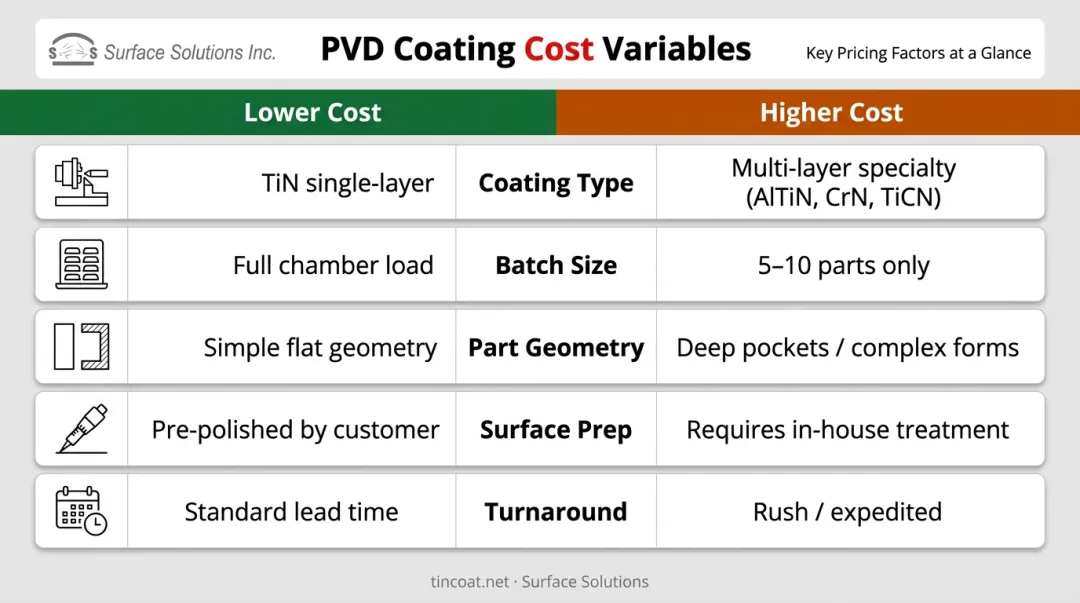

What Actually Drives the Price
These variables determine where your job lands on the cost range:
| Variable | Lower-cost scenario | Higher-cost scenario |
|---|---|---|
| Coating type | TiN (general purpose) | Multi-layer or specialty chemistry |
| Batch size | Full chamber load | 5–10 parts per run |
| Part geometry | Simple, flat, uniform | Deep pockets, mixed shapes, complex fixturing |
| Surface prep | Customer pre-polished | Requires in-house cleaning or matte treatment |
| Turnaround | Standard lead time | Rush or expedited |
For reference, Surface Solutions' documented pricing for AlTiN-coated carbide inserts runs $2.50–$4.00 per tool depending on size — a useful data point for small cutting tool applications, though larger or more complex parts will cost more.
Key Factors That Affect PVD Coating Cost
Coating Type and Material
Different PVD coatings use different source materials, reactive gases, and process settings. These process differences translate directly into cost — though no provider publicly ranks their coating prices in a ladder format.
Here's how the common industrial coatings compare on performance characteristics, which indirectly informs cost positioning:
| Coating | Hardness | Service Temp | Friction vs. Steel | Best For |
|---|---|---|---|---|
| TiN | 2,800 HV | 500°C | 0.5 | General-purpose cutting, stamping |
| TiCN | 2,800 HV | 300°C | 0.2 | Blanking, trimming, piercing |
| CrN | 2,300 HV | 700°C | 0.55 | Metal forming, molding, stainless |
| AlTiN | 2,800–3,000 HV | 850°C | <0.55 | High-temp wear, die casting |
| Alpha™ | High Hv | Application-specific | Low | Punching, forming, wear parts |
| DLC | 8–80 GPa | Variant-specific | Very low | Medical, precision components |
Source: Ionbond product specifications
Choosing a coating based on price rather than application fit typically costs more in the long run — through premature tool failure, rework, or shortened die run times.
Part Size, Geometry, and Fixturing
Larger parts consume more coating material per cycle. Complex geometries — deep pockets, mixed profiles, internal features — limit how many parts fit per batch and may require custom fixturing to ensure full coverage.
A simple flat punch and a complex forming die can differ substantially in coating cost even if they're the same material and coating type. Every dimension of complexity adds time, setup, and often a dedicated fixture.
Batch Size and Volume
PVD coating carries fixed process costs — chamber preparation, gas consumption, cycle time, operator labor — that get distributed across every part in the run.
A 10-part batch and a 50-part batch of identical tools go through roughly the same process. The 50-part batch spreads that fixed cost across five times as many pieces. For manufacturers sending 5–10 parts at a time, this is typically the single largest opportunity to reduce per-part cost without changing anything else.

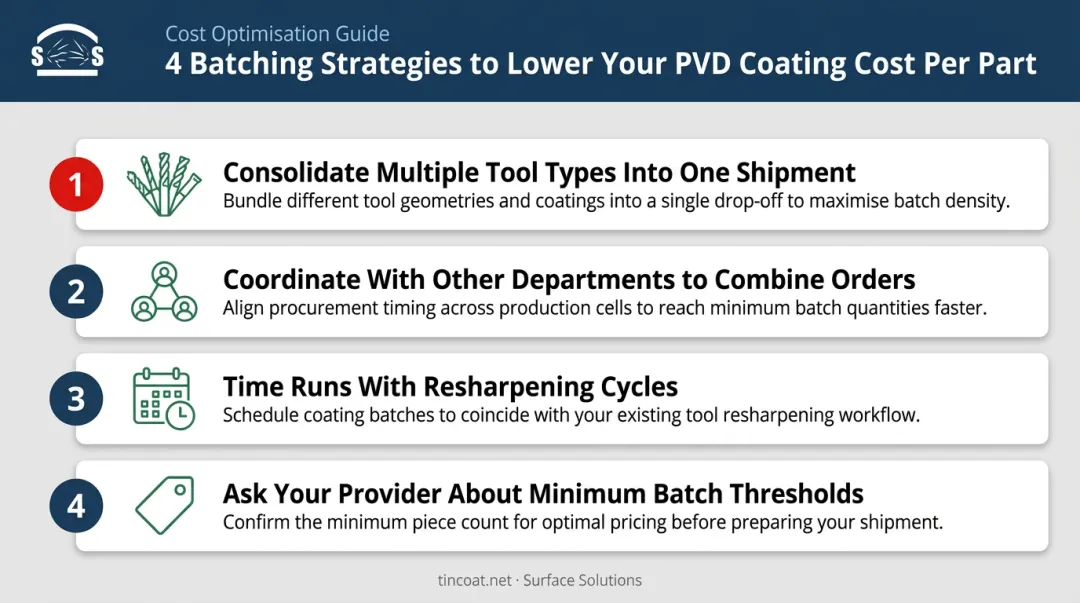

Practical ways to reduce cost per part through batching:
- Consolidate multiple tool types into a single shipment when compatible coatings are needed
- Coordinate with other departments or sister facilities to combine orders
- Time coating runs with scheduled resharpening cycles rather than as-needed submissions
- Ask your provider about minimum batch thresholds that qualify for better pricing
Surface Preparation Requirements
PVD coating bonds at the atomic level. Oerlikon Balzers notes that surface finish has a "decisive effect on coating performance" and requires removal of rust, swarf, wax, adhesive tape, paint, and other contaminants before coating.
Surface Solutions' requirements follow the same standard:
- Remove EDM recast layers, bluing, and surface oxides before submission — these contaminants prevent adhesion
- Pre-polish parts prior to shipping; at 0.0001"–0.0002" thick, PVD coatings won't cover surface imperfections
- Avoid customer-applied sandblasting on parts needing matte finishes — Surface Solutions handles this to prevent contamination
Parts arriving without proper prep may be returned or require additional treatment, which extends lead time and adds cost.
Provider Expertise and Turnaround
Rush turnaround typically carries a premium because it requires prioritizing your job over batched runs. Standard lead times allow providers to consolidate jobs and optimize chamber loads — which benefits pricing for everyone in the batch.
Geographic proximity also matters. For precision tooling, shipping cost and transit risk are real. Surface Solutions ships to and from Fridley, Minnesota, with UPS Ground reaching most of the Midwest in one to two days and over half the country within three days.
Full Cost Breakdown: What's Included in a PVD Coating Quote
The per-part coating fee is one line item. A complete cost picture includes:
Surface Preparation and Cleaning Covers degreasing, cleaning, and fixture setup. Some providers bundle basic cleaning into the quote; others itemize it separately. Always clarify upfront — it's one of the most common sources of quote surprises.
Coating Process Cost The core line item: chamber time, source material, process gases (argon, nitrogen, reactive gases), and operator labor. Coating type and batch size have the greatest impact here.
Post-Coating Inspection and QC Reputable providers check coating adhesion, color consistency, and thickness. For medical or precision applications, ask whether QC documentation or thickness reports are included or priced separately — providers like Surface Solutions offer traceability and certified processing specifically for medical instrument work.
Shipping and Handling Inbound and outbound freight is a real cost, particularly for heavy tooling. A provider with regional proximity or solid logistics coverage can meaningfully cut this expense over time.
Recoating PVD-coated tools can typically be resharpened and recoated multiple times. Each cycle restores performance at a fraction of replacement cost — making recoating one of the highest-ROI line items in the whole equation. Surface Solutions supports this workflow directly; as Tony Deschenes of Special Tools, Inc. puts it: "nearly everything we resharpen gets sent out to Surface Solutions for coatings."
Build recoating into your total cost-of-ownership model from the start. Over a tool's service life, it often offsets the initial coating investment several times over.

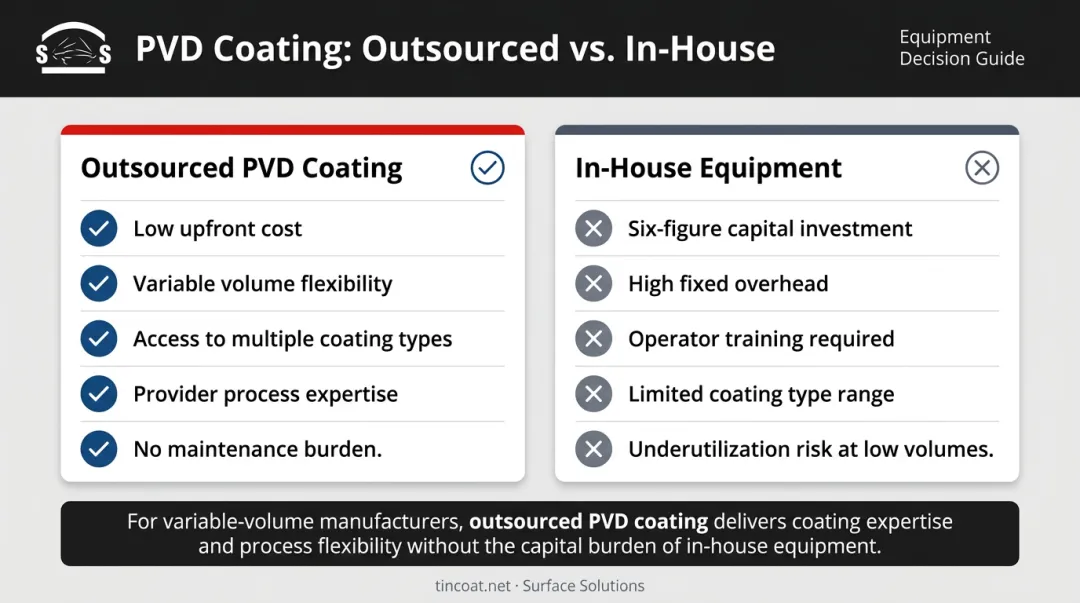

Outsourced PVD Coating vs. In-House Equipment
The trade-off is straightforward: in-house equipment eliminates per-part service fees but requires capital investment, trained staff, and ongoing maintenance. Outsourcing keeps upfront costs near zero, though per-part costs are higher at low volumes.
Industrial PVD coating systems range from compact entry-level units to full production chambers, with equipment costs typically starting in the six-figure range. That's before accounting for utilities, maintenance, consumables, and operator training — vendors acknowledge even straightforward systems require one to two days of training before operators can run quality parts reliably.
For most manufacturers, outsourcing makes more economic sense because:
- Volume is variable or unpredictable — underutilized chambers don't recover their capital cost
- Tool geometries vary — different parts may require different fixturing and process parameters
- Multiple coating types are needed — a single in-house system may not handle every formulation you need
- Process control expertise is non-trivial — coating quality depends on precise deposition parameters that take time to master
Surface Solutions operates from Fridley, Minnesota, running batch coating services for manufacturers across the US, Canada, and Mexico. For shops that don't have the volume to justify in-house equipment, batch outsourcing means access to TiN, AlTiN, CrN, TiCN, and Alpha™ coatings without the capital commitment.
What Most Manufacturers Get Wrong About PVD Coating Costs
Focusing on the coating fee instead of cost per part produced. A 2019 Cutting Tool Engineering case study documented a carbon-based PVD-coated end mill delivering 95% more parts and 55% lower production cost versus an uncoated tool. The coating invoice was higher; the manufacturing cost was not.
Surface Solutions' documented customer data makes this concrete: Don Richardson's Alpha™-coated tools ran 60,000 parts before resharpening, versus 10,000 uncoated. Each resharpening takes 8 hours of labor to remove tools, resharpen, and reinstall. That's 48 hours of labor saved in a single production run — from one coating decision.
Sending small, uncoordinated batches. Manufacturers who send 5–10 parts at a time pay significantly more per part than those who consolidate strategically. Audit your tooling cycles and plan coating schedules around full or near-full batch loads. The per-part savings compound over time.
Choosing coating type based on price rather than application fit. This is the most expensive mistake. One Surface Solutions customer learned this directly: in a stainless steel drawing application, Alpha™-coated tooling produced only 15 parts with excessive heat buildup. Switching to CrN produced over 500 parts, with finished parts just warm to the touch instead of too hot to handle. The "cheaper" coating cost more in failed production runs and tool wear.
Frequently Asked Questions
Frequently Asked Questions
What is the cost of PVD coating per square inch?
Per-square-inch pricing is more common in decorative or flat-surface applications. For industrial tool coating — punches, dies, cutting tools, forming components — pricing is structured per part or per batch, because geometric complexity makes surface area a poor proxy for actual process cost. Request quotes directly from providers with your part type and application details for accurate pricing.
How long will PVD coating last?
Lifespan depends on coating type, substrate material, and application conditions. Industrial case studies show 2x to 3x more parts produced versus uncoated tools under comparable conditions. Decorative PVD finishes can maintain appearance for decades under normal use.
Is PVD coating worth the cost for cutting and forming tools?
For high-production environments, yes. Reduced resharpening frequency, lower tool replacement costs, and less downtime deliver a positive return well within the first tool cycle. The key is matching the coating to the application rather than defaulting to the lowest-price option.
Can PVD-coated tools be resharpened and recoated?
Yes. Most PVD-coated tools can be resharpened and recoated multiple times, restoring performance at a fraction of new-tool replacement cost. Planning for this recoating cycle from the start is one of the most effective ways to reduce long-term tooling costs.
What is the minimum batch size for outsourced PVD coating?
Surface Solutions serves manufacturers and companies coating multiple parts at a time — individual consumer orders are no longer accepted. Batch thresholds vary by part type and coating. Contact Surface Solutions directly with your quantity and requirements to confirm eligibility and get an accurate quote.
How does PVD coating cost compare to electroplating or nitriding?
PVD generally costs more upfront than electroplating or nitriding. It delivers superior hardness (2,300–3,000+ HV versus roughly 800–1,000 HV for hard chrome), better adhesion, and avoids the Cr(VI) hazardous chemical exposure that OSHA flags in chromium electroplating. The higher initial cost is offset by longer service life and reduced maintenance frequency.
