Introduction
Forging tooling is what actually touches the metal. Dies, punches, and press components take a heated or cold billet and squeeze it into a finished part. Their condition determines whether that part meets tolerance or gets scrapped.
Many forge shops lose real money to premature tool wear. Chipping, galling, and thermal fatigue cracking drive up resharpening frequency and shorten die life. Reduced hot-forging die life can increase production costs by up to 40%, according to a 2024 peer-reviewed review on forging tool durability.
This article breaks down the main types of forging tooling, the equipment that drives them, and the steels tooling is made from. It also covers proven methods, including PVD coatings, for extending tool life before the next regrind.
Key Takeaways
- Forging tooling includes dies, punches, holders, and trim tools, each defined by shrinkage and draft allowances
- Tooling design shifts across open-die, closed-die, and rolled ring processes
- Press and hammer contact time directly affects how fast dies wear
- High-alloy tool steels resist heat and impact, but still degrade without surface protection
- PVD coatings like CrN and Alpha™ can boost parts-per-sharpening up to 6x while cutting labor hours
What Is Forging Tooling?
Forging tooling refers to the dies, punches, and related components that apply controlled compressive force to shape a billet, heated or cold, into a finished part. The industry often uses "tooling" and "die" interchangeably, both referring to the surfaces that make direct contact with the workpiece.
Getting the geometry right matters as much as picking the right steel. Tooling design has to account for:
- Shrinkage allowances: die impressions are cut oversize so the part reaches spec dimensions after cooling
- Draft angles: tapered sidewalls that let the forged part release from the die
- Parting lines: where the die halves meet, typically at the part's largest cross-section, where flash forms
Get any of these wrong, and even a perfectly hard die produces out-of-tolerance parts.

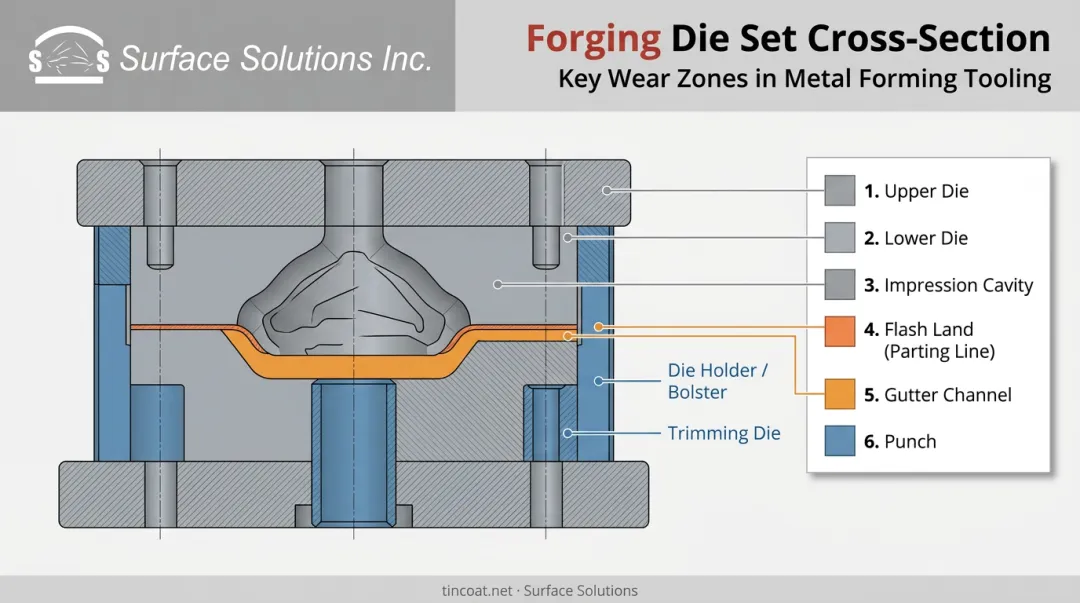

Key Components of a Forging Die Set
A typical die set has more moving parts than people expect. The upper die and lower die hold the impression halves. Between them, the flash land controls how much excess metal escapes the cavity, while the gutter catches that overflow so it doesn't damage the die edges.
Supporting components round out the system:
- Punches form holes, bosses, or other internal features
- Die holders (also called bolsters) align and clamp the dies to the press
- Trimming dies remove flash after forging, pushing the part through trimmer blades shaped to match its profile
All of these parts face the same punishing environment: rapid heating from the billet, rapid cooling from lubricant or air, and repeated mechanical impact. That combination is exactly why die material selection carries so much weight (a topic covered in detail further down).
Types of Forging Tooling by Process
Tooling design changes substantially depending on whether the operation is open-die, closed-die (impression-die), or rolled ring forging. Each process demands a different die geometry and support system.
Open-Die Tooling
Open-die forging uses flat or contoured dies, saddles, mandrels, and punches to shape large or custom parts without fully enclosing the workpiece. A saddle arrangement often replaces the lower die for hollow parts, supporting a mandrel through the bore while repeated blows reduce wall thickness and expand diameter.
This approach suits low-volume, oversized, or highly custom components where a full impression die wouldn't be economical.
Closed-Die (Impression-Die) Tooling
Closed-die tooling uses precision-machined cavity dies (complete with flash land and gutter features) to produce high-volume, complex, tightly toleranced parts. Production setups frequently include multiple impressions in sequence:
- Preform — rough-shapes the billet
- Blocker — refines the shape closer to final geometry
- Finisher — produces the final dimensional profile
This staged approach reduces stress on any single impression and improves die life across a production run.
Rolled Ring Tooling
Rolled ring forging expands a punched, donut-shaped preform into a seamless ring using a mandrel, driver roll, idler roll, and (on radial-axial mills) axial rolls. The driver roll rotates the ring while the mandrel presses inward, reducing wall thickness and growing the diameter with each pass.
Choosing between these three tooling types comes down to part complexity, expected volume, and tolerance requirements. It's a decision worth working through with your die designer or tooling supplier before cutting any steel.
Forging Equipment That Powers the Tooling
Tooling doesn't do anything without a machine behind it. Presses (mechanical, hydraulic, and screw) and hammers (drop and counterblow) deliver the force that drives dies and punches into the workpiece—and each does it differently.

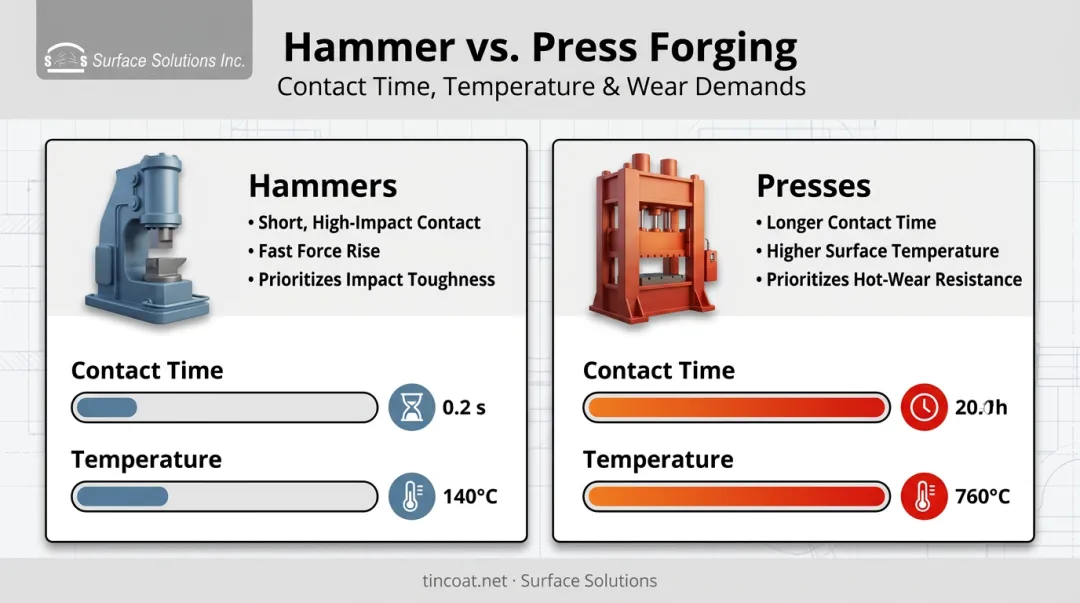

Hammers deliver very short, high-impact contact. Force rises fast, which puts a premium on impact toughness in the die steel. Presses, by contrast, hold the workpiece against the die much longer, generating higher surface temperatures and prioritizing hot-wear resistance over pure toughness. That's the coating challenge Surface Solutions solves daily: matching PVD chemistries like AlTiN and CrN to each die's heat and impact profile.
Two more specialized machines pair with their own dedicated tooling:
- Roll forging machines — shape long parts incrementally between contoured rolls
- Upsetting machines — thicken and shorten a bar's end using a specialized die-punch setup
The takeaway: equipment choice affects contact time with tooling, and contact time directly determines how fast dies and punches wear. A die that performs beautifully on a hammer might not last on a hydraulic press, and vice versa.
Materials Used in Forging Tooling
Forging dies and punches are typically machined from high-alloy or tool steels selected for hardness, toughness, and resistance to thermal fatigue. There's no single "best" grade: the right choice depends on several factors.
- Forging temperature: hot, warm, or cold processes each stress dies differently
- Workpiece alloy: harder metals like stainless steel accelerate die wear
- Load conditions: warm forging combines thermal-fatigue and mechanical-load demands
| Steel Category | Typical Use | Hardness Range |
|---|---|---|
| H11/H13 hot-work steels | Hot forging dies, press inserts | 38-50 HRC |
| L6/1.2714-type steel | Hammer die blocks (toughness priority) | 320-440 HB |
| Dievar / QRO 90 Supreme | High-performance hot-work applications | 38-54 HRC |
| Unimax and PM high-speed grades | Warm and cold forging, severe punches | 50-58 HRC |
Stainless steel workpieces demand more from tooling than carbon or low-alloy steel, since their elevated-temperature strength requires higher forging loads. Warm forging sits in a particularly tough zone—mechanical loads at 600°C can run 3 to 5 times higher than in hot forging, so tooling needs both thermal-fatigue and mechanical-load resistance at once.
Even the best tool steel wears down eventually. Friction, heat, and repeated impact take their toll over time, which is why surface treatments such as PVD hard coatings have become standard practice for extending die life.
Extending Forging Tooling Life: Wear, Maintenance, and Coatings
Forging tooling fails in a handful of predictable ways:
- Abrasive wear — hard scale and oxides grinding away the die surface
- Galling and galvanic build-up — material transfer between workpiece and tool under pressure
- Chipping — cracks initiating at edges under cyclic mechanical load
- Thermal fatigue cracking — heat-check patterns from repeated heating and cooling
Abrasive wear alone accounts for roughly 70% of working-surface destruction in reviewed hot-forging studies, according to a 2025 review of hot-forging die durability methods.
Lubrication Helps, But It's Not Enough
Die lubrication reduces friction and heat transfer, but it's labor-intensive and easy to get inconsistent. Uneven lubrication is one of the most common causes of premature tooling failure—an operator misses a cycle, and the die pays for it in accelerated wear.
Where PVD Coatings Change the Equation
PVD (physical vapor deposition) coatings add a hard, thin protective layer directly to the die or punch surface. Industrial trials back this up: a nitrided-and-CrN-coated hot-forging insert showed over 80% longer durability compared to nitriding alone, according to a 2021 industrial study on wear-resistant forging layers.

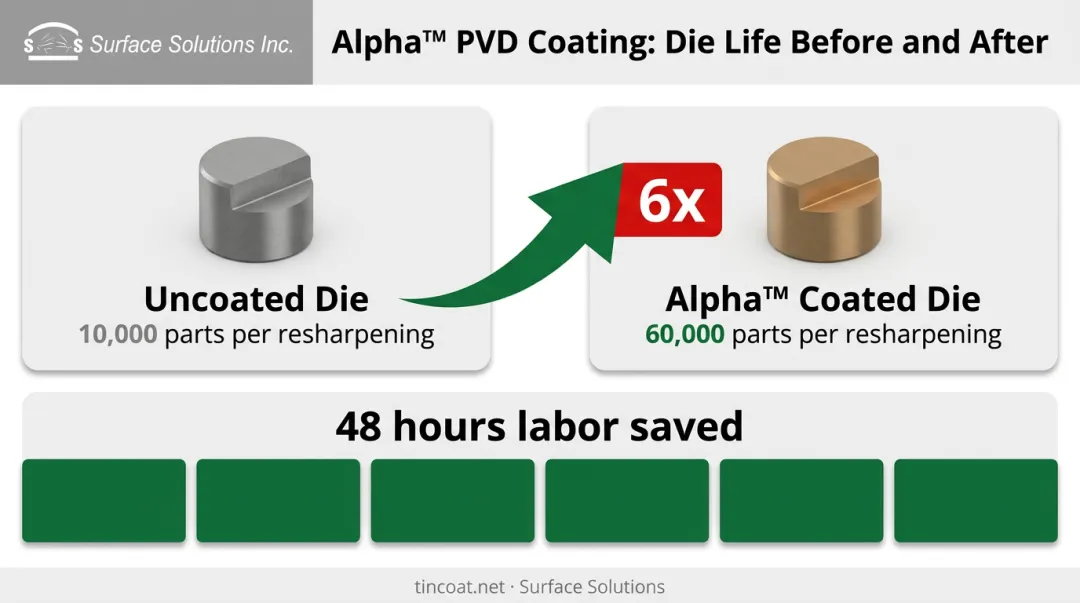

Surface Solutions has seen similar patterns in the field. One customer running press tooling reported needing resharpening every 10,000 parts with uncoated dies.
After switching to Surface Solutions' Alpha™ coating, that same tooling ran a full 60,000-part order without a single resharpening, a 6x improvement. Since each resharpening cycle takes about 8 hours of labor, avoiding six of them saved roughly 48 hours of labor on that one run.
Coating choice matters by application, too:
| Coating | Key Advantage |
|---|---|
| CrN | Cuts galvanic build-up and chipping vs. TiN-coated punches; ran 500+ parts warm to the touch versus 15 parts before overheating in a stainless steel drawing application |
| Alpha™ | Almost no galvanized steel build-up vs. TiN in side-by-side testing; reduces or eliminates lubricant in some forming applications |
Less resharpening means less downtime. For forging and stamping operations running multiple shifts, that translates directly into more parts produced per week without adding press time.
Choosing the Right Tooling Partner for Your Forging Operation
Selecting or upgrading forging tooling isn't a one-size-fits-all decision. Weigh these factors before committing to a die design or coating spec:
- Part geometry: complexity drives whether open-die, closed-die, or rolled ring tooling fits
- Production volume: high-volume runs justify precision impression dies; low volume favors flexible open-die setups
- Material hardness: harder workpiece alloys accelerate die wear and may call for higher-hardness tool steel or coating
- Required tolerances: tighter tolerances demand more precise dies and more frequent maintenance checks
Partnering with an experienced coating provider adds another layer of protection without requiring an in-house metallurgy team. Surface Solutions, based in Fridley, Minnesota, applies PVD coatings, including CrN and Alpha™, for forging and metal forming operations across the U.S., Canada, and Mexico. That nationwide reach matters for shops that don't have a local coating specialist nearby.
Investing in proper tooling design and a coating strategy upfront costs less than reactive die repairs and emergency replacements down the line. Shops that treat tooling maintenance as routine, rather than a fire to put out, consistently see longer runs between regrinds.
Frequently Asked Questions
What tools are used for forging?
Forging relies on dies (upper and lower), punches for holes and features, hammers or presses for force, and trimming tools for flash removal. Each component controls a specific part of shaping the workpiece into its final form.
What are the two basic types of forging equipment?
Forging equipment falls into two categories: hammers, which deliver force through rapid impact, and presses, which apply continuous, controlled pressure. Mechanical, hydraulic, and screw presses all fall under the press category.
What are the 4 types of forging?
The commonly cited categories are open-die, closed-die (impression-die), rolled ring, and cold forging. Within cold forging, operations like upsetting and heading are variations of the process rather than distinct forging types.
What metals cannot be forged?
Most carbon and low-alloy steels forge well. Brittle materials like ordinary gray cast iron are generally impractical to forge conventionally, though some specialized alloys can be hot-deformed under controlled conditions.
How can I extend the life of my forging dies and punches?
Consistent lubrication, scheduled maintenance and regrinding, and PVD coatings like CrN or Alpha™ are the three biggest levers. Coatings in particular reduce galling and chipping, cutting how often dies need to come off the press.
What materials are forging dies typically made from?
Dies are usually machined from high-alloy or tool steels such as H11, H13, or L6, chosen for hardness, wear resistance, and thermal fatigue resistance. The exact grade depends on whether the process is hot, warm, or cold forging.
