That piece of tooling is the cold heading die. A carbide cold heading die is a precision-engineered tool, typically built around a tungsten carbide insert, that shapes metal blanks into fastener components at room temperature under extreme force. No furnace. No torch. Just raw mechanical pressure, delivered thousands of times a minute.
This article breaks down what the die actually does, the different types and materials manufacturers rely on, and how surface treatments can multiply die life and keep production lines running longer between stops.
Key Takeaways
- Carbide cold heading dies shape fasteners under extreme pressure, working with a punch
- Tungsten carbide beats tool steel in hardness, wear resistance, and impact tolerance
- Dies are classified by function (upsetting, extrusion, trimming) and build (solid, segmented, insert)
- PVD coatings extend die life several times over, cutting resharpening and labor costs
- Matching die design, material, and coating strategy prevents costly downtime
What Is a Carbide Cold Heading Die?
A cold heading die is a mold with one job: contain the raw metal blank while a punch slams into it with tremendous force. The die's machined cavity dictates exactly how that metal flows, forcing it into the shape of a bolt head, a collar, or a socket recess.
Why "carbide" matters here. A tungsten carbide insert gives the die far greater hardness and compressive strength than a standard tool-steel die. That's why carbide has become the industry standard for high-volume, repetitive forming: steel alone tends to deform or wear out long before carbide does under the same cyclic loading.

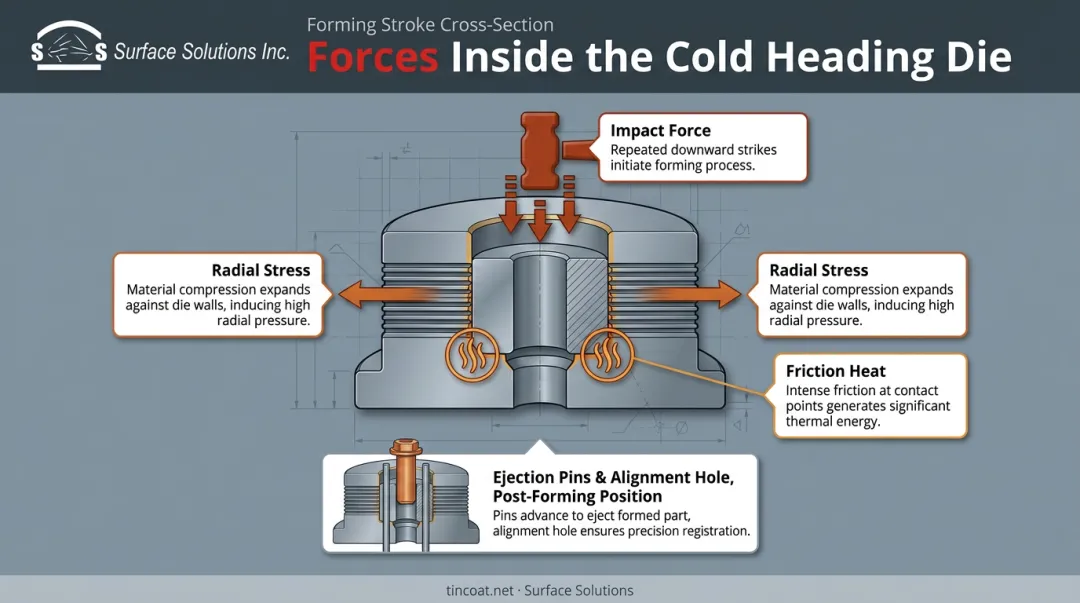

The Physical Demands on the Die
Every stroke hits the die with repeated impact plus significant radial pressure as metal flows outward to fill the cavity. This combination is brutal:
- Repeated hammer-like blows, thousands of times per shift
- Radial stress pushing outward against the die walls with every stroke
- Localized friction and heat buildup, even in a "cold" process
Because carbide is hard but relatively brittle, it needs a supporting steel casing around it. Without that casing, the carbide would crack under the same stress a steel-backed version handles indefinitely.
Ejection matters just as much as forming. A centered alignment hole and rear knock-out pins hold the formed part in position during the early part of the stroke, then release it once forming is complete. Get that timing wrong and you get deformed parts or jammed tooling.
Die durability isn't a nice-to-have — it directly caps how fast a line can run.
Hatebur's published fastener-machine specifications show cold heading and cold forming equipment operating anywhere from 140 to 660 parts per minute, with forming forces ranging from 60 to 2,500 kN depending on the machine configuration. A die that can't hold tolerance at that pace doesn't just wear out. It shuts the whole line down.
Types of Carbide Cold Heading Dies
Not every die does the same job. Manufacturers typically sort them two ways: by what they form, and by how they're built.
Categorization by Function
- Upsetting dies increase material diameter to form bolt heads or collars, the classic cold heading move
- Forward extrusion dies reduce diameter while increasing length, pushing metal forward through a smaller cavity
- Backward extrusion dies create internal cavities, such as socket recesses, as metal flows outward and rearward around the punch
- Trimming dies shape non-round external features, like hex heads, by removing excess flash material
- Socket dies form internal recesses such as hex or Torx drives
- Pointing and straight hole dies handle basic initial shaping before more complex forming stages
These functional categories often build on each other, with a single multi-stage die combining several operations to shape a finished part in one continuous run.
Categorization by Construction
Solid (single-piece) dies work fine for simpler geometries, but complex shapes often call for segmented dies with multiple inserts. Segmentation makes maintenance easier — swap out one worn segment instead of scrapping an entire die block.

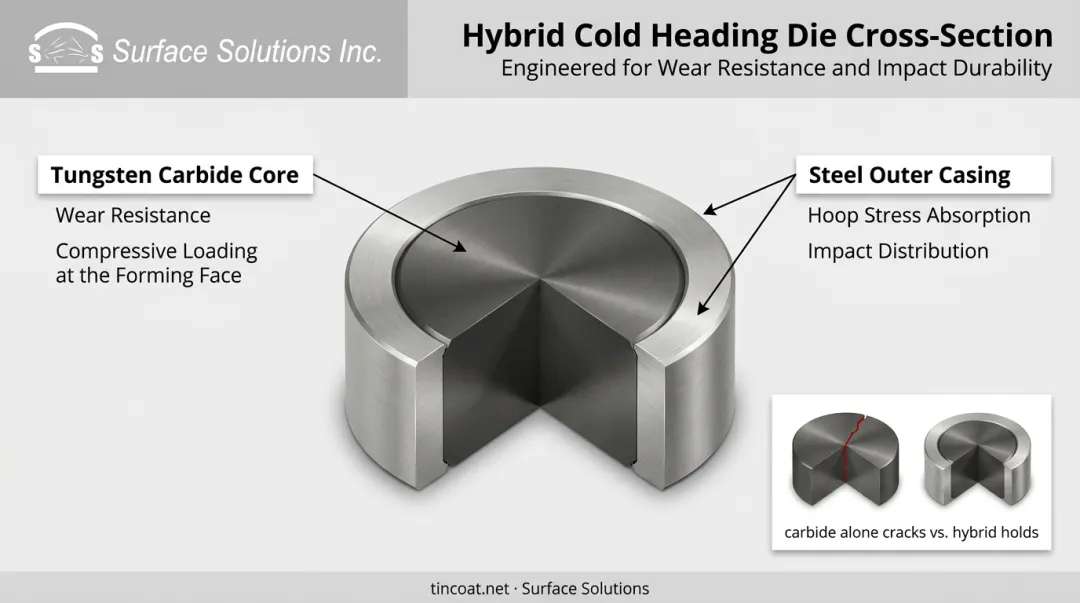

The most common configuration in the field, though, is the carbide insert with steel casing. Here's why it works so well:
- The hard carbide core resists wear and handles compressive loading at the forming face
- The tougher steel outer casing absorbs hoop stress and distributes impact energy
- Together, they prevent the catastrophic cracking that would occur if carbide alone had to absorb every blow
This hybrid design is a deliberate trade-off: carbide brings the hardness, steel brings the resilience to keep that hardness from shattering under repeated impact.
Tungsten Carbide Materials & PVD Coatings for Extended Die Life
Tungsten carbide earned its place as the go-to die material for a few concrete reasons:
- Exceptional hardness that resists deformation under extreme compressive loads
- Superior wear resistance against the constant friction of metal flowing through the cavity
- High compressive strength, holding shape under forces that would flatten softer materials
- Impact resistance across millions of repeated blows
Not all carbide is created equal, though. Manufacturers select different grades to balance hardness against toughness depending on the application. CERATIZIT's cold-forming carbide grade data shows hardness ranging from 850 to 1,150 HV30 across their product line. Harder grades suit wear-heavy extrusion and drawing work, while tougher, lower-hardness grades hold up better in high-impact upsetting applications.
For die casings and less demanding applications, tool steels like SKD11 or SKD61/H13 commonly fill in where full carbide isn't necessary or cost-effective.
Where PVD Coatings Come In
Even the best carbide die eventually meets its limit: friction, galling, and metal build-up wear down the surface long before the bulk material fails. That's the gap PVD (physical vapor deposition) coatings are built to close.
Coating hardness varies significantly by type. According to Richter Precision's published coating property data, TiN typically runs 2,300-2,500 HV, TiCN reaches 2,800-3,200 HV, and AlTiN climbs to 3,000-3,400 HV, each suited to different friction and wear profiles.
At Surface Solutions, our proprietary Alpha™ PVD coating was built to address exactly this wear gap. One customer, Don Richardson, ran a full order of 60,000 parts without needing a single resharpening (a job that previously required resharpening every 10,000 parts). That's 6x more parts before resharpening, and by his own math, roughly 48 hours of labor saved across those avoided sharpening cycles.
The gap becomes even more dramatic in demanding forming work. In a stainless steel drawing comparison, tooling coated with CrN produced over 500 parts while staying only warm to the touch, while a comparable coating on the same job managed roughly 15 parts before the tooling ran too hot to handle. That difference translates directly to the shop floor: a full shift's worth of production versus a tool change every fifteen pieces.

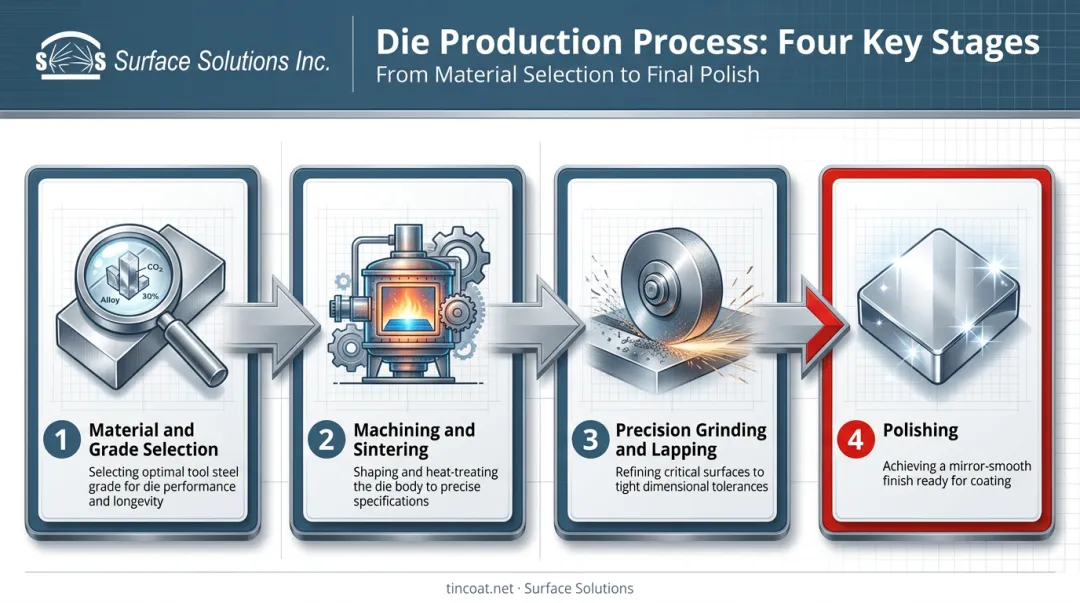

How Carbide Cold Heading Dies Are Manufactured
Building a die that survives millions of cycles takes a exacting sequence:
- Material and grade selection — matching carbide hardness and toughness to the forming application
- Machining and sintering — shaping the carbide compact, then heat-treating it into a dense, finished body
- Precision grinding and lapping — bringing the cavity to exact dimensional tolerances
- Polishing — smoothing internal surfaces so metal flows cleanly without galling or drag
For insert-style dies, carbide inserts are shrink-fitted or pressed into steel casings, preloading the carbide in compression so it never experiences tensile stress during cyclic loading. That preload is what keeps the assembly intact under repeated impact.
Once the carbide body or insert is finished, a PVD or CVD coating can be applied to enhance wear resistance. Surface Solutions applies PVD coatings directly to customer-supplied carbide substrates for this purpose, adding a wear-resistant layer to an already hard surface.
Quality control isn't optional at any of these stages. Dimensional accuracy checks and structural integrity testing are what separate dies rated for millions of cycles from ones that fail early and unpredictably.
Choosing & Maintaining the Right Die for Your Application
Picking the right die isn't just about grabbing the hardest carbide available. A few things are worth discussing with your tooling partner before you commit:
- Match die material and grade to the workpiece metal and the forming force involved — a grade built for low-impact extrusion won't survive high-impact upsetting
- Design internal contours without sharp corners, since sharp transitions concentrate stress and invite cracks or metal folds
- Plan for stress distribution across multi-stage progressive header stations, not just the final forming step
Lubrication and thermal management matter more than the "cold" in cold heading might suggest. Friction still generates localized heat, and that heat affects both die longevity and finished part quality. A poorly lubricated die can gall and fail well ahead of schedule.
Before writing off a worn die as scrap, consider recoating or reconditioning it first. Surface Solutions can restore performance on dies already in service through specialized PVD recoating, often extending useful life without the cost of a full replacement. If you're weighing that option, requesting a quote on an existing die is usually faster and cheaper than starting from scratch.
Frequently Asked Questions
What is the difference between cold heading and cold forming?
Cold heading is a specific type of cold forming used to form heads on fasteners through upsetting. Cold forming is the broader category, covering any room-temperature metal shaping process, including extrusion, drawing, and coining.
What is a cold forging die?
A cold forging die is a broader term for any die used to plastically deform metal at room temperature. A cold heading die, used specifically to form fastener heads, is one type within that category.
What does "cold heading" mean?
Cold heading is the process of progressively shaping metal wire into a specified form without added heat, using a series of dies, hammers, and punches at high speed.
What is a carbide cold heading die used for?
Carbide cold heading dies are used in high-volume production of fasteners, screws, bolts, rivets, and similar components where tight tolerances and long tool life are essential.
How long do carbide cold heading dies typically last?
Die lifespan varies based on material hardness, part complexity, and production volume. Coatings can extend the number of cycles a die runs before resharpening or replacement becomes necessary.
Can coatings improve the lifespan of a cold heading die?
Yes. PVD coatings such as Alpha™ or CrN reduce friction and galling on carbide dies, allowing up to 6x more parts to be produced before resharpening while cutting maintenance downtime.
