Key Takeaways
- TiN coating provides ~2,300 HV hardness and a thermal ceiling of 550–600°C — these two values define its valid operating range
- Cutting speeds vary by material: 40–70 SFM for mild steel, 60–90 SFM for cast iron, 50–75 SFM for aluminum (cut taps)
- TiN performs well in wet machining and moderate-heat applications; it is not a replacement for TiCN or TiAlN when sustained high temperatures are involved
- Exceeding TiN's thermal limits accelerates coating breakdown, leading directly to thread failure or tap breakage
- Coating amplifies a correctly specified tap: it cannot fix wrong geometry, an undersized pilot hole, or a mismatched substrate
What TiN Coating Does to a Tap
TiN — titanium nitride — is deposited onto an HSS or carbide tap substrate through Physical Vapor Deposition (PVD), a high-vacuum process where source material is vaporized, ionized into plasma, and condensed as a hard film on the tool surface. Oerlikon defines PVD as the creation of very thin, extremely hard coatings under high vacuum using arc evaporation or sputtering — the gold color that identifies TiN taps comes from arc-deposited TiN specifically.
That film modifies two baseline characteristics at once:
- Surface hardness — the TiN layer adds a wear-resistant skin over the cutting flanks, protecting them from abrasive breakdown as the tap engages the workpiece
- Friction coefficient — TiN reduces the friction between the cutting edge and workpiece material, which lowers cutting torque and reduces heat generation at the interface
Both changes work together to push the achievable cutting speed upward and extend the number of holes the tap can produce before wear degrades thread quality.
That said, TiN coating is not a geometry fix or a substrate upgrade. It amplifies the performance of a correctly specified tap — not a poorly selected one. If the geometry is wrong for the hole type, the pilot drill is undersized, or the substrate grade is mismatched to the application, TiN will not correct those problems.
It adds measurable performance to a tool that was already correctly selected. Nothing more.
Surface Solutions applies PVD TiN coatings at a controlled thickness of 0.0001″–0.0002″ (approximately 2–5 microns), which is thin enough to preserve tap tolerances and thread geometry while delivering the full hardness benefit.
Cutting Speed Range for TiN Coated Taps
TiN-coated taps don't have a single universal speed. They operate within a material-specific window: too slow, and certain materials work-harden ahead of the cutting edge; too fast, and the coating oxidizes and loses its protective advantage.

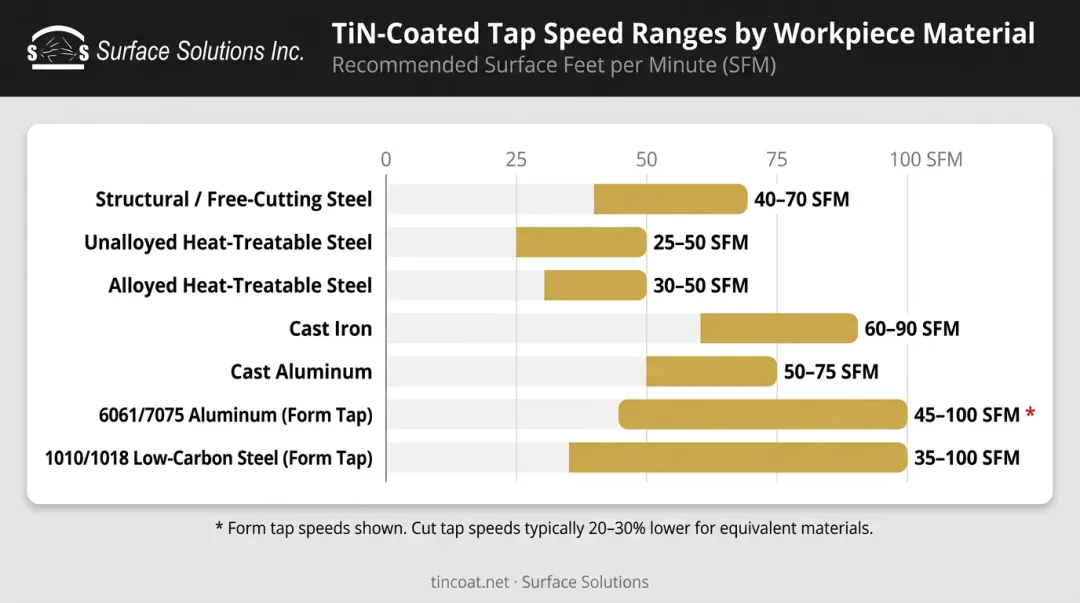

Nominal Speed Ranges by Material
The table below is based on Guhring's HSS-E TiN cut-tap catalog data and OSG forming tap specifications. Cut taps and form taps carry different speed ranges — verify tap type before applying these figures.
| Workpiece Material | Speed Range (SFM) | Notes |
|---|---|---|
| Structural/free-cutting steel (≤180 HB) | 40–70 SFM | Guhring HSS-E cut tap |
| Unalloyed heat-treatable steel (≤250 HB) | 25–50 SFM | Guhring HSS-E cut tap |
| Alloyed heat-treatable steel (≤280 HB) | 30–50 SFM | Guhring HSS-E cut tap |
| Cast iron (≤180 HB) | 60–90 SFM | Guhring HSS-E cut tap |
| Cast aluminum (≤6% Si) | 50–75 SFM | Guhring HSS-E cut tap |
| 6061/7075 aluminum (form tap) | 45–100 SFM | OSG HY-PRO SEVEN NRT |
| 1010/1018 low-carbon steel (form tap) | 35–100 SFM | OSG HY-PRO SEVEN NRT |
These ranges assume sharp cutting edges, adequate cutting fluid at the tap/workpiece interface, stable fixturing, and appropriate geometry for the hole type (through vs. blind).
Thermal Ceiling and Lower Boundary
TiN maintains its hardness and lubricity up to approximately 550–600°C. Oerlikon specifies 600°C as the maximum service temperature for BALINIT A TiN; Hannibal Carbide lists 550°C as the oxidation threshold.
A 2024 Lund University study on PVD-coated cutting tools found TiN oxidation beginning at 500°C — meaning the coating starts degrading before it reaches the nominal ceiling, not at it. Treat 600°C as a hard boundary, not a sustained operating temperature.
The upper thermal ceiling gets most of the attention, but the lower boundary carries equal risk. In gummy or work-hardening materials — austenitic stainless steels, high-nickel alloys — running too slowly causes the tap to dwell at the cutting interface. The workpiece surface hardens ahead of the edge, friction heat accumulates, and built-up edge (BUE) forms. BUE is as destructive as thermal overload, just slower.
Safe Operating Margin
In production settings, running 10–20% below the published upper speed limit is standard practice. This margin absorbs:
- Spindle speed variation between machines
- Fixture deflection under load
- Coolant delivery inconsistency during long runs
- Wear accumulation across multiple holes
Routinely pushing TiN taps to their thermal ceiling accelerates wear and makes tool life unpredictable. That unpredictability erases the cost-per-hole advantage of using a coated tap in the first place.
Key Technical Properties That Define TiN Tap Performance
Four properties interact to determine what a TiN-coated tap delivers in production: hardness, thermal resistance, friction coefficient, and coating thickness control.
Surface Hardness and Wear Resistance

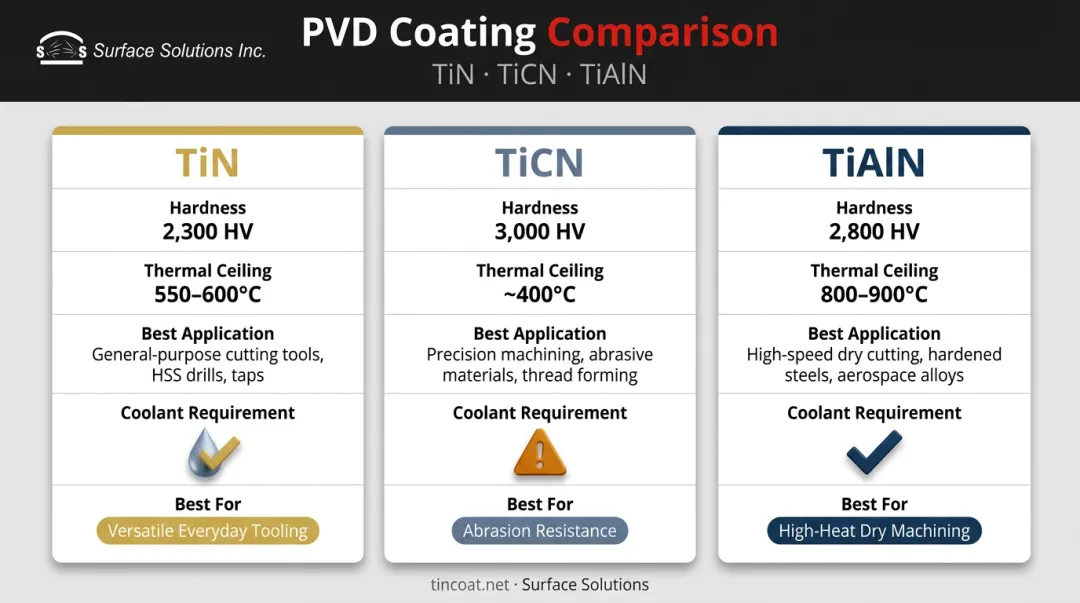

Hannibal Carbide's coating comparison table lists TiN at 2,300 HV — well above the HSS substrate beneath it. For context:
| Coating | Hardness (HV) |
|---|---|
| TiN | 2,300 HV |
| TiCN | 3,000 HV |
| TiAlN | 2,800 HV |
That hardness differential is what protects the cutting edge flanks from abrasive wear. A harder surface maintains geometry longer, which means consistent thread quality across more holes without needing to drop speed as a compensating measure.
Friction Coefficient and Lubricity
TiN reduces friction at the cutting interface compared to bare HSS, which has two practical effects: lower cutting torque makes the tap easier to drive, and reduced adhesion at the tool/workpiece interface discourages built-up edge. In aluminum and stainless steel specifically, poor lubricity causes material to stick to the cutting edge — built-up edge that degrades thread quality and shortens tool life. Oerlikon reports dry friction values for BALINIT A TiN against steel at approximately 0.4–0.6 depending on the test configuration, and that reduction versus uncoated HSS directly enables higher sustainable speed.
Thermal Resistance and Its Trade-offs
TiN's 550–600°C ceiling positions it appropriately for wet machining at general production speeds. Compared to alternatives:
- TiCN tops out at ~400°C with higher hardness; it requires strict coolant discipline to stay in range
- TiAlN handles 800–900°C oxidation resistance, making it the right choice for high-speed or dry cutting where heat buildup is unavoidable
TiN offers broader material compatibility and lower cost than either alternative, but it depends on coolant to stay within its thermal band. Dry tapping at standard production speeds pushes TiN toward its oxidation threshold faster than flood coolant allows. For dry tapping environments, TiAlN is the correct choice.
Coating Thickness and Recoatability
PVD TiN is applied at 1–4 microns (Oerlikon) or 2–4 microns (Hannibal), thin enough that it doesn't alter tap tolerances or chip clearance geometry when applied correctly. Over-thick application does affect both, so controlled deposition matters.
TiN-coated taps can be resharpened and recoated multiple times. Ionbond documents 3 to 10 or more recoating cycles for cutting tools generally, depending on tool type and application. The specific count for HSS taps depends on how much material is removed per resharpening cycle and whether the geometry remains within tolerance afterward.
Surface Solutions actively supports resharpened tool recoating as a standard service. Tony Deschenes of Special Tools, Inc. notes that "nearly everything we resharpen gets sent out to Surface Solutions for coatings," with coated tools performing better than new after the process.
Real-World Factors That Affect TiN Tap Speed
Published speed ranges assume ideal conditions. Production shops don't operate in ideal conditions. Several variables consistently compress the practical operating window.
Workpiece material variation is the most common cause of unexpected TiN tap failures. A tap specified for "mild steel at 40–70 SFM" may thermally overload when the actual incoming material is harder than assumed. The difference between 1018 and 12L14 steel — or between annealed and lightly work-hardened 304 stainless — can shift the effective speed boundary enough to cause premature coating degradation.
Before committing to production speed on a new material lot, run 10–20 test holes at the lower end of the speed range, check thread quality and tap temperature, then step up incrementally.

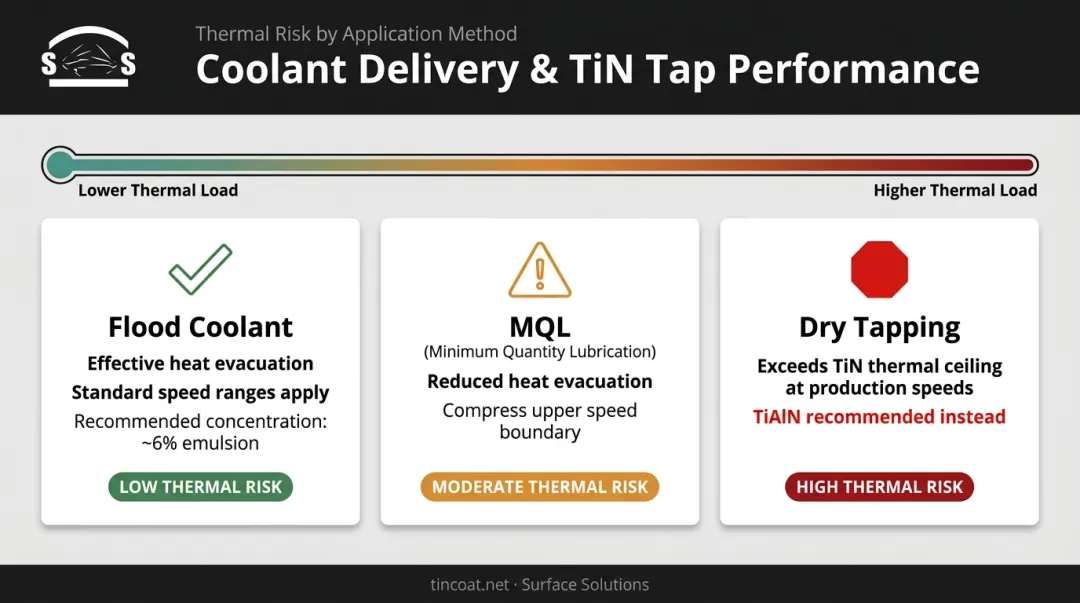

Coolant type and delivery method directly control whether TiN stays within its thermal operating band:
- Flood coolant at appropriate concentration (around 6% emulsion for most cut-tap applications per Guhring's catalog) is the standard scenario TiN's published performance ranges are built around
- Minimum quantity lubrication (MQL) reduces heat evacuation capacity, which compresses the upper speed boundary
- Dry tapping generates heat faster than TiN's thermal ceiling allows at standard production speeds — TiAlN is the appropriate coating for that scenario
Coolant concentration that's too low loses its protective effect nearly as fast as running dry. If a shop is experiencing unexpected TiN tap wear, checking coolant concentration is the first diagnostic step.
Consequences of Running TiN Taps Outside Their Performance Envelope

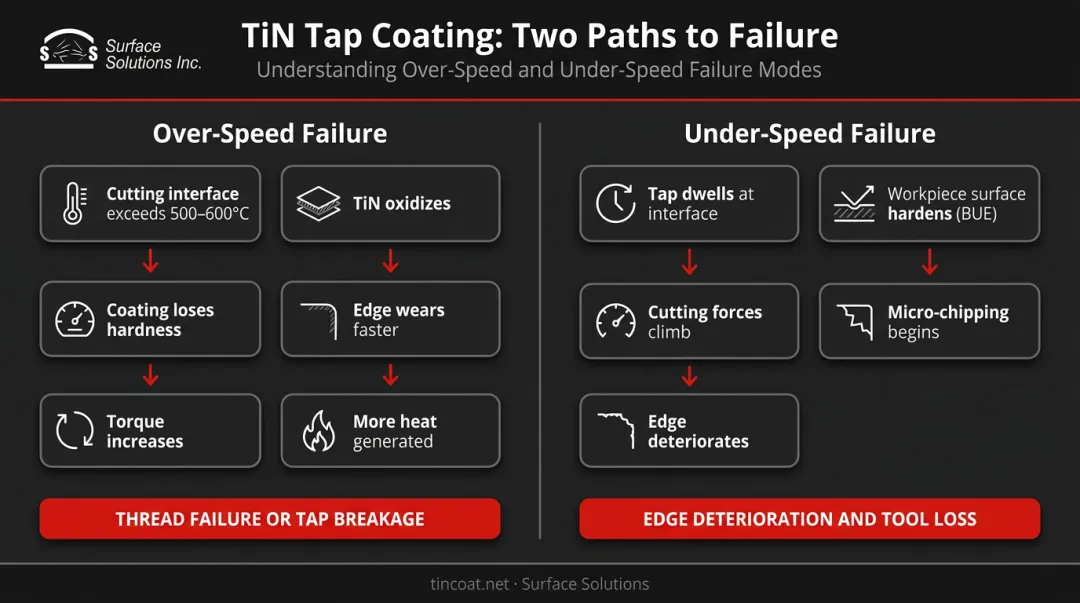

The failure chain for over-speed operation follows a predictable pattern: as the cutting interface approaches 500–600°C, TiN begins oxidizing. The coating loses hardness. The cutting edge wears faster, which increases torque demand, which generates more heat — a self-reinforcing loop ending in thread quality failure or tap breakage.
Under-speed failures take a different route. At insufficient speed, the tap dwells long enough at the cutting interface for the workpiece surface to harden ahead of the edge. Cutting forces climb, micro-chipping begins, and the edge deteriorates progressively. This is especially destructive in austenitic stainless steels and high-nickel alloys, where work hardening is aggressive.
The economic consequences compound quickly:
- Inconsistent thread tolerance means parts fail conformance inspection
- Shortened tool life negates the cost premium of a coated tap
- Tap breakage in a blind hole often means scrapping the workpiece or an expensive extraction operation
A TiN-coated tap run within its operating envelope produces more holes per tool and more consistent thread quality than an uncoated equivalent. Run outside that envelope, it often performs worse than the cheaper alternative. The coating's oxidation products can accelerate edge breakdown rather than prevent it.
Common Misinterpretations of TiN Coated Tap Performance
Two misinterpretations consistently undercut TiN tap performance in production environments. Both are avoidable.
TiN works on any material. The 550–600°C thermal ceiling makes TiN unsuitable for titanium, Inconel, hardened steels, and other heat-intensive materials. A TiN-coated tap run on these materials at production speeds will often fail faster than an uncoated tap used at the correct (lower) speed with proper lubrication: the coating degrades at the temperatures those materials generate, and the degradation products increase friction rather than reduce it.
For applications that exceed TiN's thermal range, Surface Solutions offers TiCN and AlTiN coatings designed for those conditions.
Coating selection substitutes for correct tap specification. TiN coating cannot fix a straight-flute tap used in a blind hole, a mismatched substrate grade (M2 HSS where M35 or M42 cobalt is needed), or an undersized pilot drill. These are geometry and substrate problems. Coating selection is the last decision in tap specification, not the first.
A correctly specified tap with TiN coating outperforms an incorrectly specified tap with any coating.
Frequently Asked Questions
How much can tool life increase when using TiN coated taps?
Regal Cutting Tools (2025) reports 25–40% longer tool life for coated hand taps (TiN and AlTiN grouped together) versus uncoated equivalents. Actual gains depend on workpiece material, speed settings, and coolant discipline. TiN performs best in wet machining on mild steel, cast iron, and non-ferrous metals.
What is the best tap coating for steel?
TiN suits mild and alloy steels in wet machining conditions. For harder steels or high-speed production where thermal load approaches TiN's 600°C ceiling, TiCN or TiAlN are more appropriate: both offer higher hardness and better thermal stability.
What is the best material for a thread tap?
M2 HSS handles most general threading. M35 or M42 cobalt HSS suits harder or more abrasive materials; carbide is reserved for high-volume CNC tapping where HSS can't maintain speed and consistency. Coating selection, including TiN, comes after the substrate is matched to the application.
What cutting speed should I use with TiN coated taps on aluminum?
TiN cut taps typically run 50–75 SFM on cast aluminum; form taps reach 45–100 SFM on wrought alloys like 6061 and 7075. Lubrication is critical regardless of temperature: built-up edge from aluminum adhesion is the primary failure mode, not thermal overload.
Can TiN coated taps be recoated after they wear out?
Yes. Resharpened taps can be recoated multiple times — Ionbond documents 3 to 10+ cycles depending on how much material each resharpening removes. Surface Solutions offers recoating as a standard service, restoring performance to near-original specification.
Why is my TiN coated tap wearing out faster than expected?
The three most common causes: insufficient coolant (or low concentration) allowing cutting interface temperatures to exceed TiN's 550–600°C oxidation threshold; workpiece material harder than the specification assumed; or a geometry mismatch generating excessive cutting forces that the coating cannot compensate for regardless of hardness.
