Introduction
A coating that performs differently from one batch to the next creates more than cosmetic problems. In high-wear applications—metal forming, punching, cutting—inconsistent coatings cause early tool failure, unpredictable resharpening cycles, rejected parts, and production stops across every shift.
Production managers and quality leads who depend on PVD coatings to meet tight tolerances know this reality. When a batch of punches performs 6x longer than the previous batch, something changed. If you can't identify what changed, you can't prevent the reverse from happening.
NIST's analysis of U.S. discrete manufacturing found that high-reactive-maintenance facilities experience 3.3x more downtime and 16x more defects than low-reactive-maintenance operations. Coating inconsistency is one of the variables that pushes manufacturers toward the reactive end of that spectrum.
This article covers why batch variability happens, which process variables matter most, and what manufacturers can do to achieve reliable, repeatable coating performance.
Key Takeaways:
- Visual consistency between batches does not equal mechanical consistency—hardness, adhesion, and thickness must be verified independently
- Substrate preparation and gas chemistry have the most direct, documented impact on coating performance
- Fixture configuration, load size, and operator decisions all introduce variability that written SOPs eliminate
- Structured batch records make root cause analysis possible when deviations occur
- A coating partner with application-specific experience reduces variability before production starts
Why Batch-to-Batch Consistency Matters in Industrial Coatings
Coating performance variability rarely announces itself. A batch of forming dies that should last six weeks wears out in three. Punches chip earlier than expected. Parts come off the line with surface finish variations that weren't there last month. Each symptom points back to a coating that behaved differently than the one before it.
The Operational Cost of Inconsistency
When coatings vary between batches, the downstream effects stack up fast:
- Triggers unplanned downtime when tools fail early or need resharpening ahead of schedule
- Drives up scrap rates as inconsistent tool performance introduces dimensional and surface finish variation
- Increases resharpening frequency, with each cycle consuming labor hours across disassembly, sharpening, and reinstallation
- Undermines production scheduling when tool life becomes unpredictable rather than a fixed planning input
One of Surface Solutions' manufacturing customers documented resharpening uncoated D2 punches every three weeks—with each cycle consuming at least four hours of production time. After switching to consistent Alpha™ coating, that shop ran 60,000 parts without a single resharpening event, saving an estimated 48 hours of labor across those avoided cycles. Consistent coatings let manufacturers plan around tool life instead of reacting to it.
Compliance and Traceability Exposure
Beyond operational costs, coating variability creates compliance risk in regulated industries. Medical device manufacturers operating under FDA QMSR requirements need documented process repeatability—a batch that performs differently from the last isn't just a quality problem, it's a traceability gap.
Aerospace supply chains face similar expectations under AS9100, where organizations remain responsible for the conformity of externally provided processes. Inconsistent coating results from a supplier introduce an audit liability that can affect the entire supply chain.
Appearance Is Not Performance
Visual inspection alone won't catch it: two batches of TiN-coated tools can look identical, same gold color, same surface texture, yet have measurably different hardness, adhesion strength, friction characteristics, and coating thickness. ISO 21874, the standard governing PVD multilayer hard coatings, treats surface quality, composition, thickness, hardness, and tribological properties as separate measurands for good reason. Releasing a batch based on color alone is releasing a batch that hasn't been qualified.
Key Causes of Coating Inconsistency Between Batches
Batch variability rarely has a single cause. It usually results from multiple small deviations compounding across substrate preparation, process parameters, and equipment condition. Isolating where variation enters the process is the first step toward eliminating it.
Substrate Preparation Variability
The coating only performs as well as the surface beneath it. A 1997 arc-PVD study on TiN-coated high-speed steel found significantly better scratch adhesion after neutral-molecule sputter cleaning compared to conventional methods—residual contaminants directly impaired the coating bond.
Sources of substrate-to-batch variation include:
- Residual oils or machining fluids not fully removed between batches
- Surface roughness differences from inconsistent grinding or blasting
- Oxide layers, EDM recast material, or prior coatings that weren't stripped
- Variability in pre-treatment chemicals (concentration, temperature, dwell time)
Surface Solutions' intake requirements illustrate this directly: PVD coatings won't adhere to surfaces with oxides, EDM recast, or bluing present. Those contaminants must be removed before coating, because even a thin interference layer between the substrate and the coating film undermines the bond. The same logic applies at the batch level — if substrate prep varies run to run, so will adhesion.
Process Parameter Drift

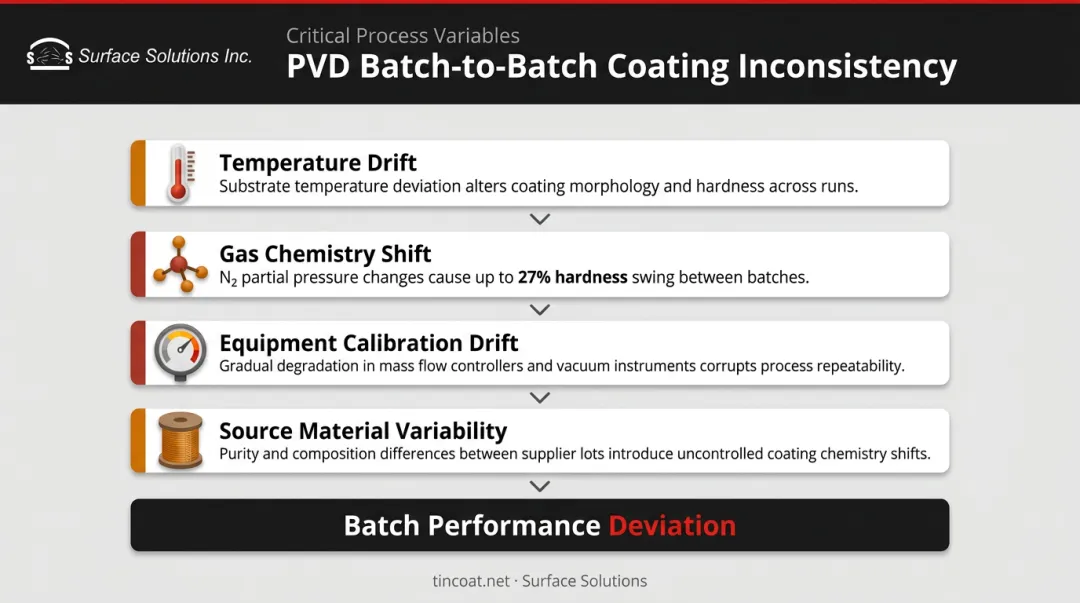

Even when recipes look unchanged, process parameters drift over time. The most consequential variables:
Temperature: Research on (Cr,Al)N deposition identifies substrate temperature as a critical control affecting coating morphology, adhesion, and hardness. Actual substrate temperature can differ from set-point by tens of degrees during heating and etching phases, shifting the coating's microstructure without triggering an alarm.
Gas chemistry: A 2003 RF magnetron sputtering study found that varying N₂ partial pressure during CrN deposition moved the coating through distinct phases, with hardness ranging from 21.4 to 27.1 GPa depending on the nitrogen level. That's a 27% hardness swing from a gas ratio change. For TiN and CrN deposition, this means recording actual gas pressure and flow, not just the recipe setpoints.
Equipment calibration drift: Gauges, mass flow controllers, and vacuum instruments degrade over time without obvious warning signs. The Society of Vacuum Coaters notes that regular calibration standards support process repeatability and tool-to-tool uniformity. Without scheduled calibration, drift accumulates quietly and surfaces as batch-level performance variation.
Target and powder lot quality: Coating source materials can differ between supplier lots in purity, particle size, or composition. Without incoming material qualification protocols, that variation passes directly into the deposited film.
Fixture and Load Configuration
An industrial PVD modeling study found that planetary-rotation periodicity and target spacing measurably affect coating thickness and composition uniformity across a load. What works for a half-filled chamber may not translate to a full load without adjustment. Part placement, spacing, and rotation mode all influence how uniformly coating material reaches every surface in the batch.
Critical Process Parameters That Drive Coating Consistency
Controlling variability means identifying which parameters have the most leverage over the final coating properties—and locking them in.
Thickness Control
Coating thickness is the most directly controllable consistency variable. Surface Solutions applies PVD coatings within a range of 0.0001″ to 0.0002″ (2–5 microns). At that scale, even minor thickness deviation changes hardness, friction, and wear performance in measurable ways.
ISO 21874 defines characterization methods for PVD hard coatings but deliberately doesn't prescribe a single tolerance for all tools. The right tolerance depends on the application — a forming die and a medical instrument have different requirements. Establish application-specific nominal thickness and tolerance limits based on acceptance trials before full production begins.
Thickness measurement must match the coating-substrate combination. ISO 2360 eddy current testing applies to non-conductive coatings on non-magnetic conductive bases; it does not apply to conductive nitride hard coatings like TiN or CrN. Cross-sectional SEM or crater grinding per ISO 26423 provides a more directly applicable reference route for thin ceramic PVD films.
Deposition Rate, Dwell Time, and Gas Composition
These three parameters interact to determine the coating's crystalline structure and stoichiometry:
- Dwell time in the chamber controls total coating deposition; drift changes film thickness
- Deposition rate affects the microstructure of the deposited film as it forms
- Gas ratios (nitrogen/argon in reactive PVD) directly control the stoichiometry of the nitride coating — a partial pressure shift of a fraction of a Pascal can change the coating's hardness by GPa-scale amounts
All three must be recorded as actual values, not just recipe settings, to enable meaningful batch-to-batch comparison.
The Human Factor
Operator decisions about load arrangement, part spacing, fixturing, and process sequencing introduce variability that automated systems or documented procedures eliminate. Two operators handling the same recipe differently can produce measurably different results.
Written standard operating procedures and structured operator training are process controls, not administrative overhead. If the SOP doesn't specify where parts go in the chamber, how far apart, and in what orientation, that decision gets made informally — and informal decisions introduce variation that no amount of equipment precision can compensate for.
Quality Control and Testing Protocols for Coating Batches
Baseline Testing Methods

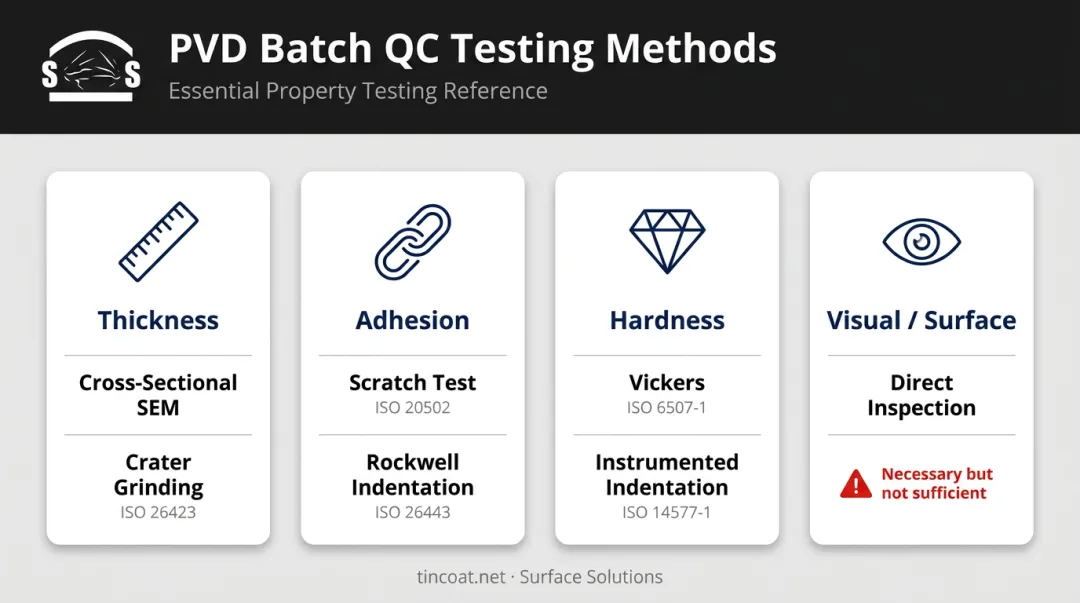

Every coating operation should establish a minimum testing protocol before releasing batches. The essential methods:
| Property | Method | Notes |
|---|---|---|
| Thickness | Cross-sectional SEM (ISO 9220), crater grinding (ISO 26423) | Validate gauge/coating/substrate combination before adopting eddy current |
| Adhesion | Scratch testing (ISO 20502), Rockwell indentation (ISO 26443) | Scratch critical load is comparative, not absolute; establish pass/fail by application |
| Hardness | Vickers (ISO 6507-1), instrumented indentation (ISO 14577-1) | Control indentation depth relative to film thickness to avoid substrate influence |
| Visual/surface | Direct inspection | Necessary but not sufficient—appearance does not confirm mechanical properties |
Establish upper and lower tolerance limits using acceptance trial runs before committing to full production volumes. The tolerance limits should be application-specific, not generic.
The "Golden Batch" Reference
ISO Guide 80:2014 provides general guidance for in-house reference material preparation. The concept is straightforward: the verified-optimal run produces coated witness coupons alongside the production parts. Those coupons are measured, documented, and archived.
Every subsequent batch includes fresh coupons measured against the same methods. Any property drift gets caught at the coupon stage—before it reaches production parts.
Structured Batch Records
A batch record that captures every relevant parameter for every run creates the foundation for both traceability and continuous improvement. Suggested fields:
- Job/lot ID, date, operator, and equipment ID
- Substrate grade, condition, and pre-treatment method
- Actual temperature, pressure, gas flow, and bias voltage traces
- Target identity, lot, and erosion state
- Chamber fixture map and load configuration
- Witness coupon thickness, adhesion, and hardness results
- Any deviations, rework, or approved process changes
When a batch deviates, the record tells you exactly where to look—and gives you the data to distinguish a process drift from a one-time anomaly.
How to Choose a Coating Partner That Delivers Consistent Results
Choosing a coating service provider on price or proximity is understandable. But for applications where tool life and part quality depend on coating consistency, the right questions to ask are about process control, not just capability:
- Do they maintain batch records for every run?
- What thickness tolerances do they hold, and how do they measure them?
- How do they qualify incoming coating source materials?
- What does their QC sign-off process look like before releasing coated parts?
- Can they provide performance validation data—not just certifications—across multiple batches?
Depth of application experience matters here. A generalist coating shop applying a dozen different coating types across industries operates very differently from one that has run thousands of batches of TiN, CrN, and AlTiN on cutting and forming tools. The process knowledge that comes from application-specific focus directly reduces batch-to-batch variability—because the variables that matter in cutting tool PVD are not the same ones that matter in decorative coatings.

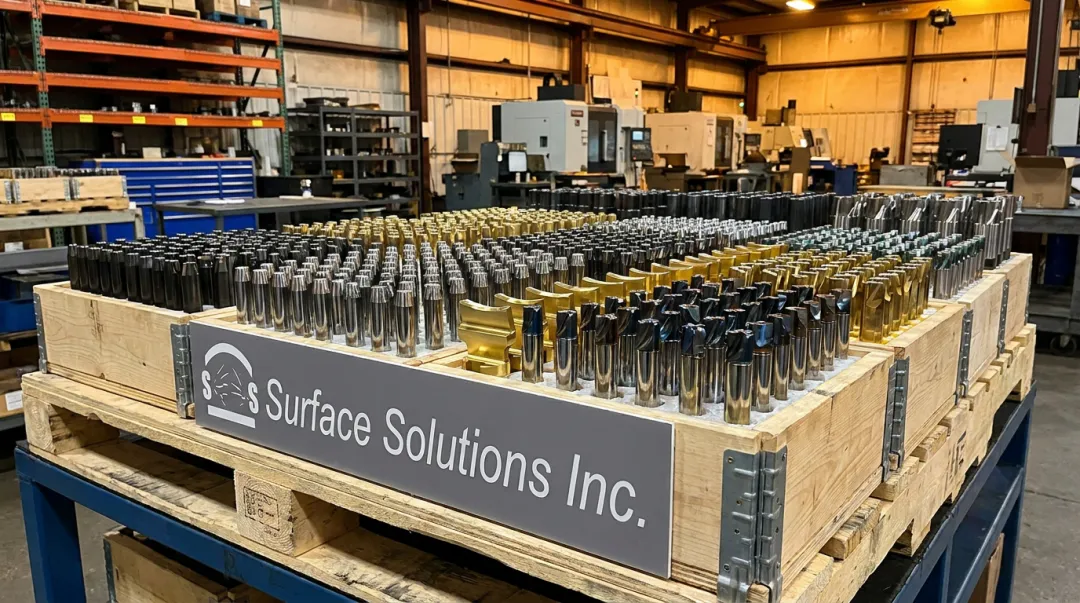

Surface Solutions applies PVD coatings—TiN, CrN, AlTiN, TiCN, and their proprietary Alpha™ coating—engineered specifically for metal forming, punching, and cutting tool applications. Their processes target consistent hardness, lubricity, and wear resistance that translate into measurable production outcomes:

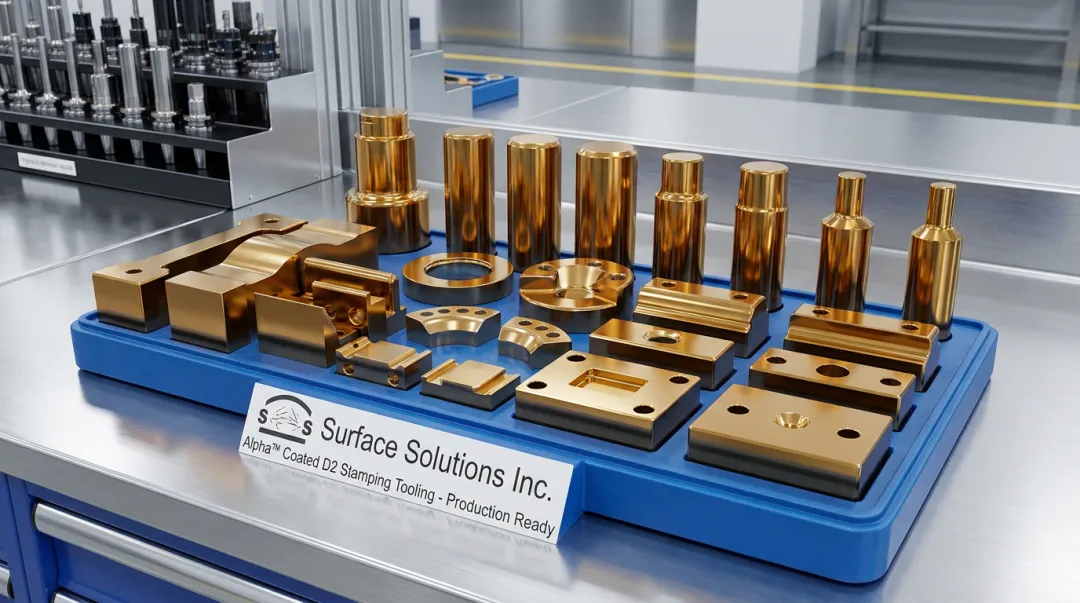

- A customer switching to Alpha™ coating ran 60,000 parts without resharpening, up from 10,000 parts per cycle previously
- A shop running CrN on a stainless steel drawing application produced over 500 parts with parts only warm to the touch, versus 15 parts before overheating halted production with a different coating
Before committing to a long-term supplier relationship, request trial coating runs and ask for real-world performance data across multiple batches. Certifications confirm a process exists on paper. Batch-level performance data shows whether it holds up in production.
Frequently Asked Questions
What are the 4 types of coatings?
The four main families are conversion coatings (surface reaction transforms the substrate), electroplated coatings (electrically deposited from solution), thermal spray coatings (heated feedstock propelled onto a surface), and vapor deposition coatings such as PVD and CVD. PVD dominates hard tooling applications because of its thin-film precision and mechanical properties.
What is the 80/20 rule for coating?
The 80/20 rule in coating holds that most failures trace back to a small number of root causes—most commonly surface preparation and process parameter control. While no authoritative PVD-specific study has confirmed an exact 80/20 split, the principle still directs improvement efforts effectively: audit substrate cleanliness and key deposition parameters first before investigating less common variables.
Why is batch-to-batch consistency important in industrial coatings?
Inconsistent coatings produce unpredictable tool life, higher scrap rates, and unplanned downtime—all of which compound across production schedules. In regulated industries, batch variability also creates compliance and traceability risk. Repeatability is what converts coating performance from a variable into a planning input.
What causes variations in industrial coating batches?
The main culprits are inconsistent substrate preparation, process parameter drift (temperature, deposition time, gas composition), equipment calibration gaps, raw material variability between supplier lots, and operator-introduced variation in load configuration. These factors often compound: substrate variation and temperature drift occurring simultaneously produce larger deviations than either cause alone.
How is coating thickness measured to ensure quality control?
Common methods include cross-sectional SEM, crater grinding per ISO 26423, and magnetic induction for appropriate coating-substrate combinations. Each method must be validated against the specific pairing: eddy current testing, for example, is not applicable to conductive nitride coatings like TiN or CrN. Enforcing documented thickness tolerances is one of the most direct ways to catch batch inconsistency early.
