The financial stakes are enormous. NACE International's IMPACT study estimated that corrosion costs the global economy roughly $2.5 trillion annually, or about 3.4% of global GDP. That figure shows up as rusted structural beams, failed pipelines, and manufacturing tools worn down long before their time.
Each of these failures triggers unplanned downtime, safety risks, and maintenance bills that balloon fast. This guide covers why steel corrodes, the major coating categories available, how to select the right one for your application, and where advanced options like PVD coatings fit into high-wear manufacturing environments.
Key Takeaways
- Corrosion is an electrochemical reaction; coatings block it via barriers or sacrificial metal layers
- Coating selection must match exposure conditions (marine, industrial) and mechanical demands like heat or abrasion
- Poor surface preparation, not material choice, causes most coating failures
- Galvanizing and epoxy protect structural steel; PVD protects tooling facing wear and corrosion together
Why Does Steel Corrode?
Rust forms through a straightforward chemical exchange. Iron reacts with oxygen in the presence of water to form iron oxide. Electrolytes such as salts speed up the process, making it easier for electrons to move between anodic and cathodic sites on the metal surface.
Several environmental factors accelerate this reaction:
- Humidity and prolonged wetness: moisture needs to linger on the surface for the reaction to sustain itself
- Salts and chlorides: common near coastlines or on roads treated with de-icing salt
- Industrial chemicals: acidic or sulfur-based pollutants in manufacturing environments
- Temperature swings: condensation cycles that repeatedly wet and dry the surface

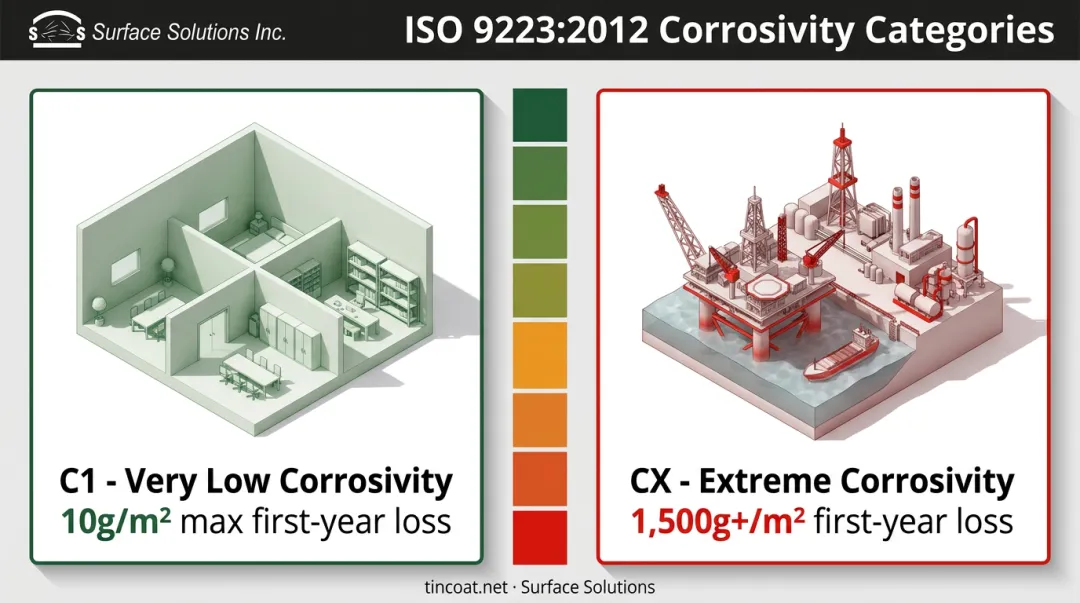

The severity gap between environments is significant. Under ISO 9223:2012, carbon steel in a very low-corrosivity setting (category C1) loses at most 10 grams per square meter in its first year. Extreme marine or industrial exposure (category CX), by contrast, can strip away more than 1,500 grams. That's a difference measured in orders of magnitude, not percentages.
Corrosion also doesn't spread evenly:
- Pitting corrosion attacks localized spots, boring through steel while the surrounding surface still looks fine
- Galvanic corrosion occurs when two dissimilar metals contact each other in the presence of an electrolyte, accelerating decay of the less noble metal
Neither responds well to a generic coating chosen without regard for design or metal compatibility. That's exactly why coating selection requires more thought than picking whatever's cheapest.

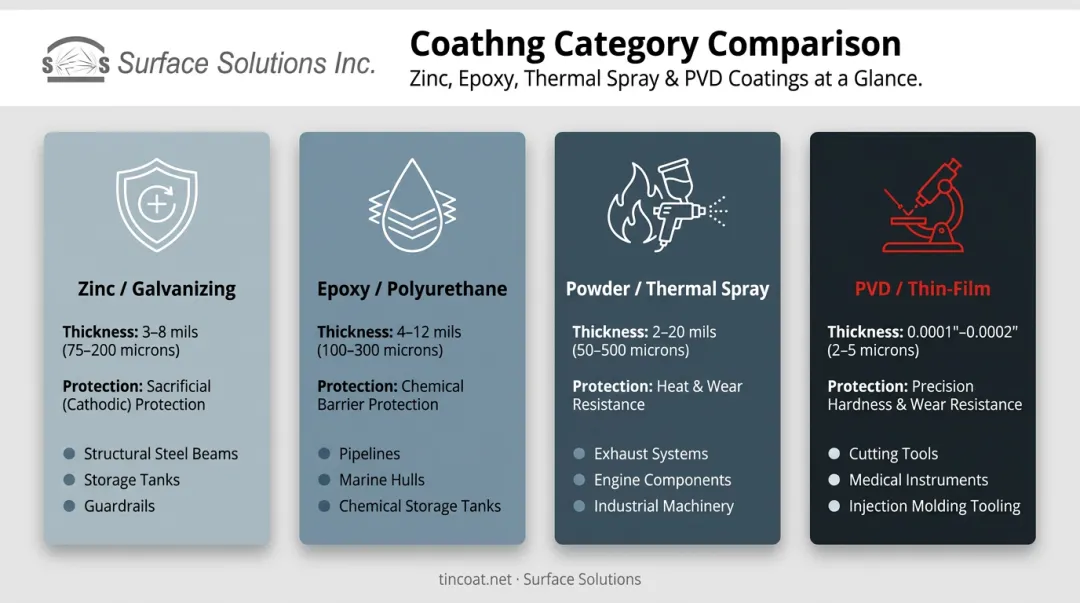

Types of Protective Coatings for Steel
Protective coatings generally fall into two camps: metallic/sacrificial systems that corrode in place of the steel, and non-metallic barrier systems that simply block moisture and oxygen from reaching the surface. The right category depends on your budget, exposure conditions, and how much mechanical stress the part will see.
Zinc Coatings & Galvanizing
Hot-dip galvanizing dips steel into molten zinc, forming a metallurgically bonded layer through diffusion. Zinc electroplating achieves a similar result electrochemically, typically with a thinner deposit. Either way, the zinc sacrifices itself first, corroding before the underlying steel does.
This makes galvanizing a go-to choice for construction beams, pipelines, guardrails, and outdoor structural steel where decades of service life matter more than appearance.
Epoxy & Polyurethane Coatings
Epoxy coatings resist chemicals and moisture well, which is why they show up on storage tanks and marine steel. Polyurethane topcoats add UV resistance and flexibility, protecting outdoor-exposed steel like railings and roofing from sun damage and cracking.
Many bridge and industrial systems combine both: a zinc-rich epoxy primer, an epoxy barrier coat, and a polyurethane topcoat layered together for redundant protection.
Powder & Thermal Spray Coatings
These two methods sit at opposite extremes: everyday wear resistance versus extreme heat protection.
- Powder coating applies dry pigment electrostatically, then cures it under heat into a hard, continuous film. It resists chips and scratches better than liquid paint, making it common for equipment housings, railings, and appliance frames.
- Thermal spray melts metallic or ceramic feedstock and deposits it onto the steel surface, building resistance to extreme heat and abrasion. It shows up on exhaust systems, turbine components, and high-temperature manufacturing equipment where standard paints would simply burn off.
PVD & Advanced Thin-Film Coatings
Physical vapor deposition (PVD) takes a different approach entirely. Instead of a thick applied layer, PVD deposits an ultra-thin, dense, extremely hard film measured in microns rather than millimeters. It delivers corrosion resistance and dramatic wear protection at the same time, making it the standard choice for cutting tools, dies, and precision components. We'll dig into this in more detail later in the guide.
How to Choose the Right Corrosion Coating for Your Application
Picking the right coating comes down to matching specific properties to your specific operating conditions, not chasing one universally "best" option.
Environmental severity. ISO 12944-2 classifies atmospheric exposure from C1 (very low, dry indoor spaces) through C5 (very high) and CX (extreme, offshore or heavy industrial). Immersion categories (Im1 through Im4) cover freshwater, seawater, and soil contact. Start here: a coating rated for indoor office equipment won't survive an offshore platform.
Substrate compatibility. Alloy composition and steel grade affect how well a coating adheres and performs. ASTM B633, for example, cautions against zinc electroplating on steels above 1,700 MPa tensile strength due to hydrogen embrittlement risk. Always verify compatibility before committing to a process.
Mechanical wear and abrasion resistance. Dies, punches, and forming tools face physical stress that has nothing to do with humidity. A coating that blocks moisture but wears through in a few thousand cycles isn't solving the real problem for these applications. Surface Solutions' Alpha™ coating, for example, is built for exactly this kind of punishment, extending die life up to 6x longer before resharpening is needed.
Budget and lifecycle cost. Compare upfront pricing against long-term maintenance. Some coatings cost more per part initially but stretch resharpening or replacement cycles far enough to pay for themselves several times over.
Application method and turnaround. Spray, dip, electroplating, and vacuum deposition all carry different lead times and facility requirements:
- Spray and dip systems typically require less specialized equipment but longer cure times
- Electroplating needs tank capacity and part-specific fixturing
- Vacuum deposition (PVD) requires conductive, single-piece metal parts and runs in batch cycles inside a vacuum chamber
Each method affects how quickly you can get parts back into production, so factor scheduling into your decision alongside performance.
Surface Preparation & Application Best Practices
Here's a truth the industry doesn't advertise enough: the coating you choose matters less than how well the surface was prepared before it went on.
A 2012 U.S. Bureau of Reclamation guide found that up to 80% of premature coating failures on bridge structures were caused partly or wholly by deficient surface preparation or application, not the coating material itself.
Standard prep work includes:
- Abrasive blasting to remove rust, mill scale, and old coating residue
- Solvent or alkaline cleaning to strip oils and grease
- Chemical treatment such as phosphating for improved adhesion
- Profile verification to confirm the surface roughness matches the coating's specification
This principle holds true even for advanced systems. PVD coatings, despite their high performance, will not mask a poorly finished surface.
At Surface Solutions, parts commonly get rejected for adhesion risk when they arrive with:
- Surface oxides from improper storage or handling
- EDM recast layers left over from prior machining
- Bluing caused by heat treatment processes
Each contaminant must be removed before coating begins. If a customer wants a polished finish, the part must be polished before coating: the film is only 2 to 5 microns thick and simply replicates whatever surface it's applied to.
PVD Coatings: Advanced Corrosion and Wear Protection for Manufacturing Tools
Traditional coatings protect against moisture and chemical attack. PVD coatings do that too, but they also solve a problem that galvanizing and epoxy can't touch: mechanical wear at the tool surface.
How the PVD Coating Process Works
The process deposits an extremely thin, dense film (0.0001″–0.0002″, or 2–5 microns) inside a vacuum chamber at roughly 700°F–800°F. That thinness means tolerances stay intact, but it also means the process only works on fully conductive, single-piece metal parts — no aluminum, no zinc alloys, no assemblies with plastic inserts.
Proven Results From Real Manufacturers
Real-world tool life gains tell the story better than specs. One customer, Don Richardson, ran an order of 60,000 stamped parts with Surface Solutions' Alpha™ coating without needing a single resharpening, compared to his previous baseline of resharpening every 10,000 parts.
That's six times more parts per sharpening cycle. At 8 hours per sharpening event, it added up to 48 hours of saved labor on one production run.
Alpha™ coating also eliminates polishing steps entirely in some forming applications. One metal forming customer, Chris, previously polished tooling multiple times per run when working 3/8″ hot-rolled steel. After switching to Alpha™: "We have never had to polish."
K&C Manufacturing's CFO, Angela Naasz, reported that Alpha™ cutters "eliminated an entire process" from their workflow.
Heat and galling resistance separate coatings further. In a stainless steel drawing application prone to galling, Alpha™-coated tooling produced 15 parts before running too hot to touch.
CrN-coated tooling, by contrast, produced over 500 parts while staying only warm to the touch, reflecting real thermal management at the tool-workpiece interface rather than marginal improvement.
Where PVD Coatings Deliver the Most Value
PVD coatings fit naturally into:
- Metal forming, punching, and sheet metal drawing tools
- Cutting tools and carbide inserts
- Injection molding dies
- Medical device manufacturing, where biocompatibility and corrosion resistance against sterilization matter as much as wear life
Surface Solutions coats parts for manufacturers across the U.S., Canada, and Mexico from its Fridley, Minnesota facility, with ground shipping reaching over half the country within three days. If your tools face both corrosion exposure and mechanical wear, it's worth a conversation to see whether a PVD coating fits your application.
Frequently Asked Questions
What is the best protective coating for steel to prevent rust?
It depends on environment and use case. Galvanizing works well for structural steel exposed outdoors, while PVD coatings suit tooling that also needs wear resistance alongside corrosion protection.
How long does a protective coating on steel typically last?
Most barrier coatings like epoxy systems need maintenance within 10 to 30 years, depending on the system. Galvanizing and PVD coatings often last much longer with proper application and upkeep.
What is the difference between galvanizing and PVD coating?
Galvanizing applies a thick zinc layer that sacrifices itself to protect steel from corrosion. PVD applies a thin, extremely hard vacuum-deposited film designed for combined corrosion and wear resistance, mainly on tooling.
Can protective coatings be combined with cathodic protection for extra durability?
Yes. Duplex systems pairing a barrier coating with cathodic protection are standard for marine and offshore steel structures, since the coating reduces the current demand needed to protect exposed metal.
Why do coatings fail even when the right material is chosen?
Inadequate surface preparation is the leading cause of coating failure. Rust, oils, and contaminants left on the surface prevent proper adhesion regardless of how good the coating itself is.
Is PVD coating suitable for parts that need both corrosion and wear resistance?
Yes, PVD coatings are specifically engineered for this dual need. Forming dies, cutting tools, and punches that face both moisture exposure and constant friction benefit from PVD's hard, dense film.
