A plastic extrusion die is the shaping tool at the end of an extruder. It takes molten plastic under pressure and forces it into a continuous, uniform cross-section, whether that's a pipe, a sheet, or a custom profile for weatherstripping. Get the die wrong, and the whole production run suffers.
This guide covers how these dies work, the components inside them, the main types manufacturers use, and why wear management (including surface coatings) matters for keeping production quality consistent.
Key Takeaways
- A die shapes molten plastic into continuous profiles under pressure
- Hardened tool steel or stainless steel construction lets dies withstand heat and repeated cycling
- Internal geometry, not just the opening shape, determines wall thickness and finish
- Buildup, abrasion, and corrosion drive most dimensional drift and surface defects
- Surface coatings extend time between cleaning and maintenance cycles
What Is a Plastic Extrusion Die?
A plastic extrusion die is a precision-engineered tool mounted at the end of an extruder. Its job: take molten plastic being pushed under pressure and shape it into a continuous, uniform profile as it exits.
The die's internal cavity geometry does the heavy lifting here. It determines:
- Final part dimensions
- Wall thickness consistency
- Surface characteristics of the finished product
Because the die operates continuously under significant pressure and heat, it needs to hold tight tolerances cycle after cycle without deforming.
Built to Handle Pressure and Heat
Extrusion pressures typically run in the 1,000 to 5,000 psi range, according to Paulson Training's process control documentation, though actual die-inlet pressure varies with polymer type, output rate, and screen pack resistance.
That kind of sustained pressure, combined with melt temperatures often exceeding 400°F, is why dies are typically machined from hardened tool steel or stainless steel rather than softer alloys.
Extrusion Dies vs. Injection Molds
People often confuse the two. Here's the distinction:
| Feature | Extrusion Die | Injection Mold |
|---|---|---|
| Process type | Continuous | Cyclical, discrete parts |
| Output | Indefinite length | Fixed, individual parts |
| Shape control | Constant cross-section | Fully enclosed 3D shape |
Extrusion produces a rope of material that can theoretically run forever, like pipe or sheet stock. Injection molding fills a closed cavity, cools it, and ejects one finished part at a time.
Die design matters more than most people assume. Dimensional accuracy and surface finish get locked in at this single stage. There's no downstream step that fixes a poorly designed die.

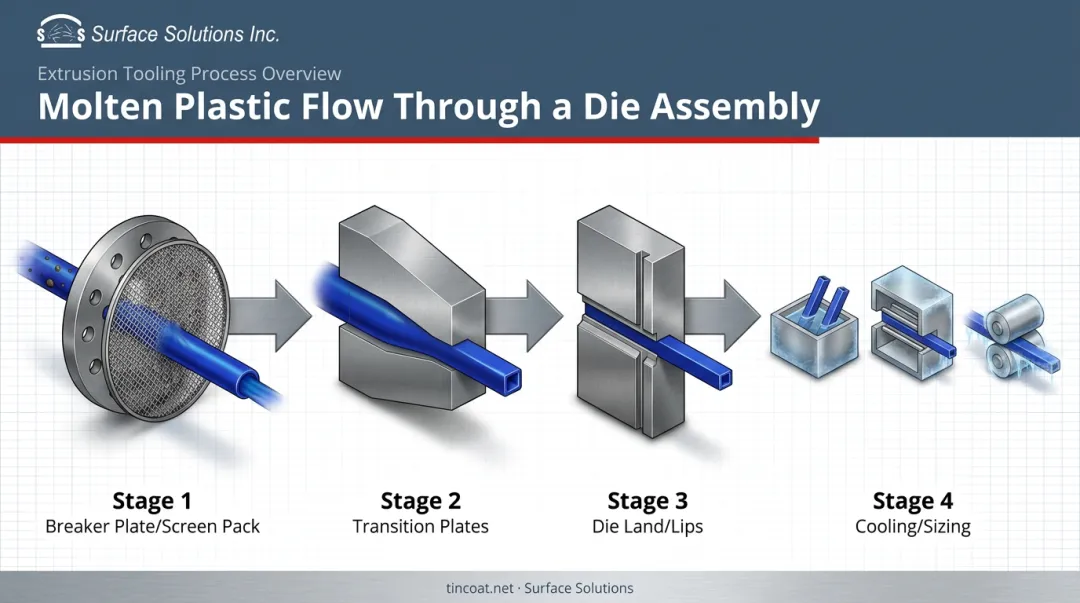

How Does a Plastic Extrusion Die Work?
Before plastic ever reaches the die, it goes through a transformation inside the extruder barrel. A combination of rotating screw shear and barrel heaters melts the pellets, building into a continuous stream of molten polymer moving toward the die assembly.
Filtering and Straightening the Flow
Just before the die sits the breaker plate and screen pack. This combination does three things:
- Filters out contaminants that could create defects
- Builds backpressure needed for consistent melt density
- Converts the screw's rotational flow into straight-line (longitudinal) flow
Without this step, the melt would still carry a swirling motion from the screw, which would translate into an uneven, twisted extrudate.
Reshaping the Flow
Once the melt enters the die, internal streamlining reshapes it from a round cross-section into the target profile. This isn't a single abrupt change. Well-designed dies transition gradually to avoid stagnant zones or uneven shear.
The final stretch of this path is the die land, a straight channel just before the exit. The land stabilizes flow and sets the final dimensions and surface finish.
A Plastics Technology example illustrates how sensitive this balance is: a die tuned for 50 lb/hr of polypropylene produced a visibly distorted profile once output was pushed to 100 lb/hr. Land length and geometry are rate-specific, not universal.
Locking In the Shape After the Die
The extrudate exits soft and hot. It needs immediate cooling and sizing, or it will warp before it sets. Common methods include:
- Water baths for general cooling of pipe and profile
- Vacuum sizers that draw the hot extrudate against calibrated surfaces, especially useful for hollow shapes
- Cooling rolls (often 3 to 5 in an S-path) for sheet, where roll temperature and surface finish affect gauge and appearance

Key Components of an Extrusion Die
A die assembly isn't one solid block. It's built from interlocking plates and features, each handling a distinct part of the shaping job.
Adapter Plate
The adapter plate attaches the die to the extruder barrel. It typically houses the breaker plate, giving the melt its first opportunity to normalize direction before entering the shaping section.
Transition Plates
Transition plates gradually reshape the circular melt flow into the part's target geometry. Wider or more intricate profiles usually need more transition plates, or more complex ones, to avoid uneven wall thickness across the finished part.
Die Land and Die Lips
The die land is the final straight channel. The die lips are the actual exit point, and together they give the extrudate its finished dimensions and surface texture. Small changes here, like a slightly longer land or a sharper exit edge, can noticeably reduce die swell and improve surface quality.
Spider and Mandrel (Hollow Profiles)
Pipe and tubing dies need to form a hollow center, which requires a spider plate and mandrel. The spider holds a central mandrel in place while distributing material evenly around it. Some designs use spiral-mandrel channels specifically to avoid weld lines where split melt streams recombine.
Flow Dividers (Co-Extrusion)
For multi-material parts, flow channels (sometimes called distribution blocks, manifolds, or adapters depending on the manufacturer) keep two or more polymers separate inside the die until just before exit. This lets materials bond at the surface without one overpowering or contaminating the other.

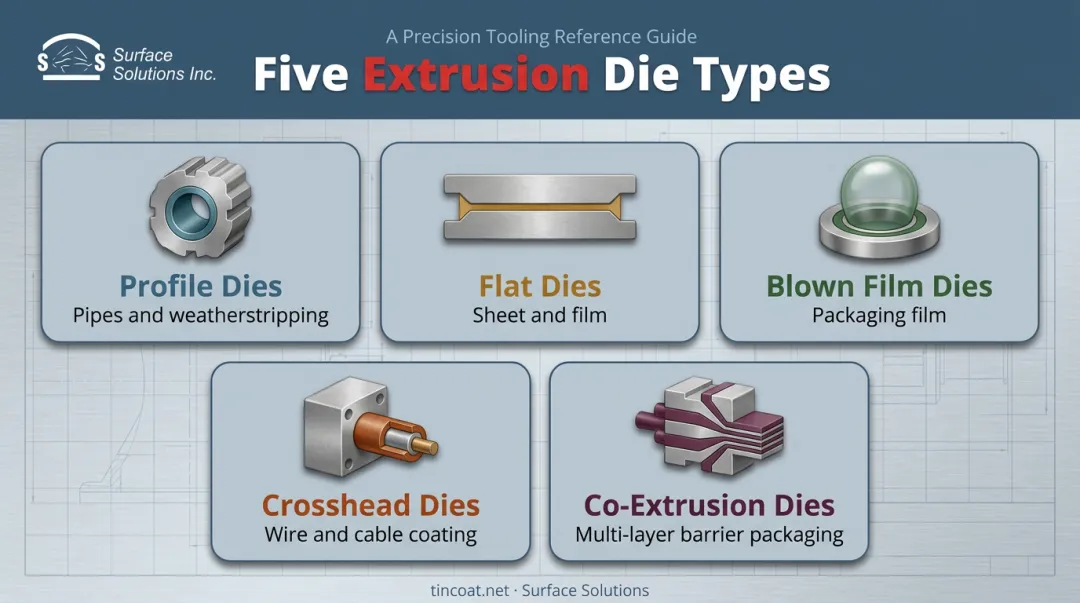

Types of Plastic Extrusion Dies
Different products need fundamentally different die architectures. Here's a rundown of the main categories.
Profile Dies
Used for pipes, tubing, weatherstripping, and custom cross-sections. Internal geometry has to compensate for unequal flow resistance in corners and thick versus thin sections, otherwise the profile warps as it cools. Window and door profiles show this clearly: designers slow melt flow near thick corner joints so the entire cross-section cools and shrinks at the same rate.
Flat Dies (T-Die and Coat-Hanger)
Flat dies redistribute melt from a compact circular inlet into a wide, thin slit for sheet and film. Coat-hanger dies use a primary manifold and preland distributor to spread material evenly across the full width. Adjustable lips help fine-tune final gauge. Sheet lines commonly run 40 to 100 inches wide, while film dies hold tolerances measured in microns rather than millimeters.
Specialty Configurations
- Blown film dies (annular, spider, or spiral) form a tube that's inflated into a bubble for film production, such as packaging and agricultural sheeting
- Crosshead dies turn incoming melt 90 degrees around a moving substrate, used for wire and cable coating, including automotive wiring harnesses
- Co-extrusion dies combine multiple melt streams, either through a feedblock before a single die, or through separate manifolds that merge just before exit, enabling multi-layer barrier packaging

Common Challenges and Wear Issues in Extrusion Dies
Even a well-designed die degrades over time. Knowing the failure modes helps operators catch problems before they show up in the finished product.
Die Buildup
Material accumulates on internal surfaces, particularly with high-viscosity polymers or channels that have stagnant corners. Low-molecular-weight fractions can separate from the main melt and deposit at the exit, where they oxidize and eventually flake into the product, creating recurring surface defects.
Standard maintenance for flat dies typically calls for a full disassembly and clean at least annually, though heavier-buildup processes need it far more often.
Die Lip Wear and Corrosion
Abrasive fillers, recycled content, or reactive polymer chemistries wear down the die lip surface over time. This shows up as:
- Dimensional drift from the original spec
- Die lines and streaking on the extrudate surface
- Increased scrap rates as tolerances slip
PVD coatings such as TiN, CrN, or AlTiN—applied by services like Surface Solutions—create a hard barrier that slows this wear and extends time between resharpening.
Poor Transition Plate Design
Overly sharp internal corners or poorly balanced transition plates are a leading root cause of uneven flow. The result is inconsistent wall thickness, more frequent maintenance stops, and product that drifts out of spec faster than it should.
Extending Die Life with Surface Coatings
Hard, low-friction surface coatings applied to die-contact surfaces reduce material adhesion and buildup, addressing the wear mechanisms covered above at the source rather than after the fact.
PVD (Physical Vapor Deposition) coatings are one option gaining traction on production tooling. These coatings apply in an extremely thin layer, typically 0.0001" to 0.0002" (2 to 5 microns). This means they don't alter part dimensions while still creating a harder, slicker surface than the base tool steel.
What This Looks Like on Production Tooling
Surface Solutions applies PVD coatings, including its Alpha™ coating, to production tooling for manufacturers across Minnesota, the Upper Midwest, and nationwide. Its documented results on stamping and forming tools illustrate the kind of wear reduction coatings can deliver:

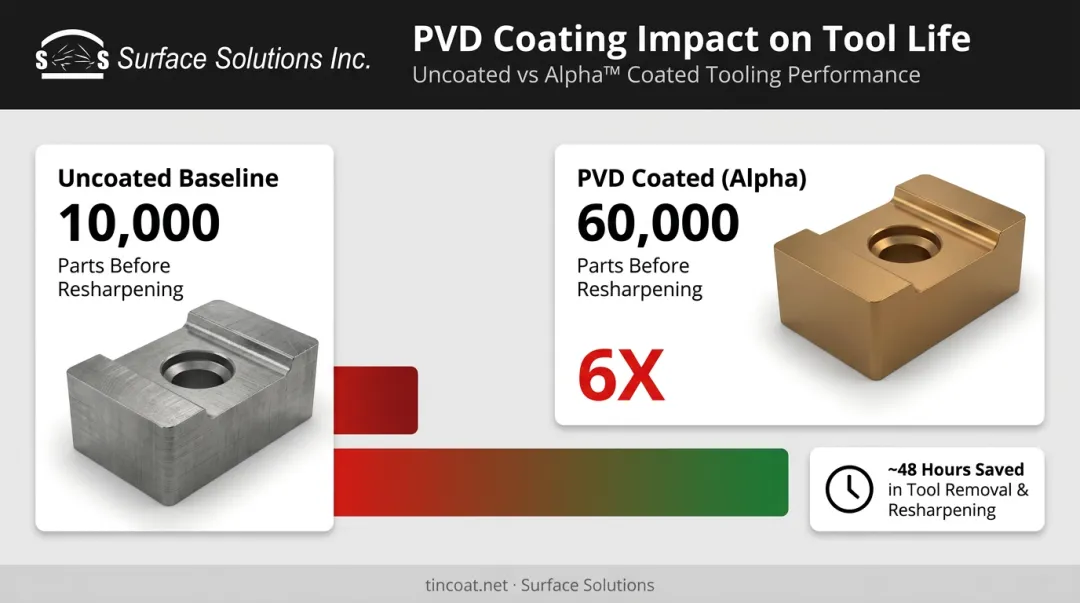

- One customer ran 60,000 parts without resharpening, up from a 10,000-part baseline, a 6x improvement saving roughly 48 hours in tool removal and resharpening time
- A metal forming customer reported no need to polish forming blocks a full year after coating, plus reduced lubricant use and a better finished-part appearance
These results come from stamping and forming applications rather than plastic extrusion dies specifically. Still, they point to the same underlying mechanism at work in extrusion tooling: a harder, lower-friction surface resists the adhesion and abrasion that drive most die wear.
This holds true whether the tool is punching galvanized steel or shaping molten polymer. For operations dealing with frequent buildup or lip wear on production dies, coating the contact surfaces is a strategy worth evaluating alongside standard maintenance and re-polishing schedules.

Frequently Asked Questions
What is the difference between a plastic extrusion die and a mold?
A die shapes continuous profiles as material is pushed through it, producing indefinite lengths like pipe or sheet. A mold forms individual, enclosed parts, as in injection molding, where each cycle produces one discrete piece.
What material are plastic extrusion dies typically made from?
Dies are commonly made from hardened tool steel, with 17-4 PH stainless steel used where corrosion resistance matters. Highly corrosive applications, like PTFE ram extrusion, sometimes call for nickel-based alloys such as Hastelloy or Inconel.
How long does a plastic extrusion die typically last?
There's no fixed universal lifespan. According to Nordson's guidance on extending die life, consistent preventive maintenance is the biggest factor, though normal wear, material buildup, and process conditions all play a role.
What causes die lines or surface defects on extruded plastic?
Die lines usually trace back to buildup or carbon deposits in the die land, contamination, or scratches and dents on the lip edges. Incorrect melt temperature and moisture in the resin can also contribute.
Can a worn plastic extrusion die be repaired instead of replaced?
Yes. Many dies can be refurbished through re-polishing, re-plating, or recoating rather than full replacement. This typically involves stripping old surface treatments, restoring lip edges, and resetting the exit gap.
How does die design affect wall thickness and tolerances?
Transition plate geometry and flow balancing determine how evenly material reaches every part of the die. Poor balance causes unequal exit velocity, which shows up as inconsistent wall thickness in the finished profile.
