Introduction
Die cast tooling operates in one of manufacturing's harshest environments. Each cycle subjects cavity steel to molten aluminum above 700°C, injection pressures exceeding 1,000 bar, and rapid thermal swings that repeat hundreds of times per shift.
H13 tool steel wasn't designed to survive that abuse indefinitely. When it fails prematurely, the costs compound quickly.
A 2025 peer-reviewed review found that thermal fatigue alone accounts for 70% of die-casting die failures, with associated losses reaching 30% of production costs. For high-volume operations, that's not an acceptable baseline.
PVD (Physical Vapor Deposition) coatings have emerged as the most practical surface treatment for extending die cast tooling life. This guide covers how PVD works, which coatings suit which applications, and what preparation and maintenance practices matter most.
Key Takeaways
- PVD coatings deposit a 1–5 micron ceramic layer that resists wear, soldering, erosion, and thermal fatigue without altering tool dimensions
- TiN, CrN, AlTiN, and TiCN each target different failure modes; matching the coating to your alloy and operating temperature is the deciding factor
- PVD process temperatures (150°C–500°C) keep H13 core hardness intact, protecting tool geometry that CVD's 900°C+ process cannot
- Proper surface prep before coating and production monitoring are required to realize the full tool life gains PVD delivers
Why Die Cast Tooling Fails Without Protection

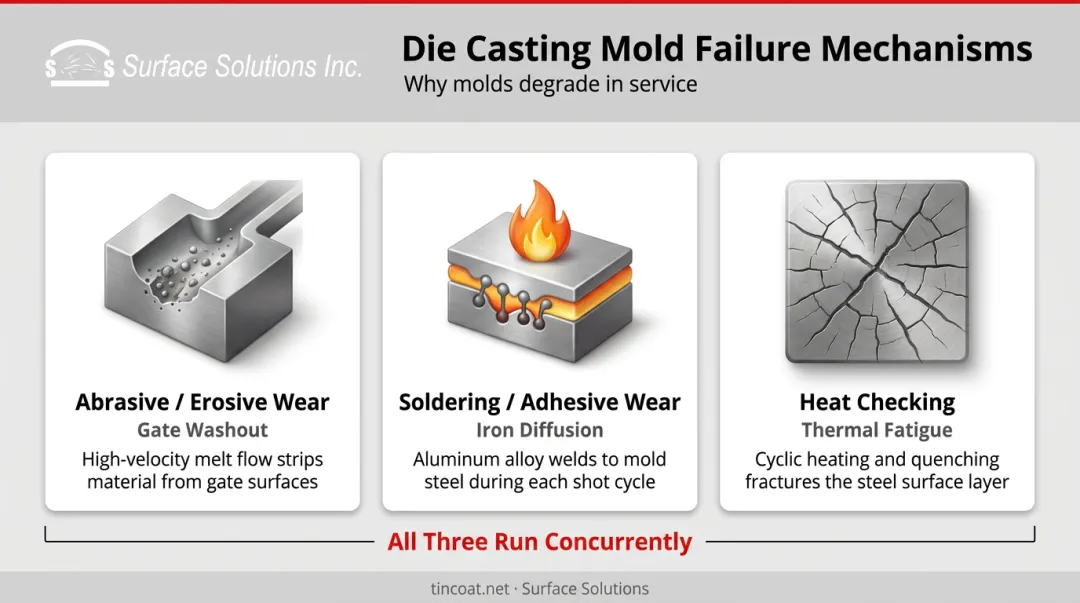

High-pressure die casting punishes tooling through three simultaneous failure mechanisms. Understanding each one clarifies why surface treatment isn't optional — the economics depend on it.
Abrasive and Erosive Wear
Silicon-containing aluminum alloys (like A380, which contains 7.5–9.5% Si) carry hard particles that physically abrade cavity surfaces on every shot. At turbulent gate locations, high-velocity melt flow compounds this into what foundry engineers call "washout": gradual erosion that distorts cavity geometry and degrades dimensional consistency. Once tolerances drift beyond the customer's specification window, the die is pulled regardless of its remaining structural life.
Soldering and Adhesive Wear
Soldering is the die casting industry's most production-disruptive failure mode. When molten aluminum contacts H13 die steel, iron diffuses out of the steel surface and into the aluminum melt, forming an intermetallic weld layer at the interface.
The consequences compound quickly:
- Aluminum bonds to cavity surfaces, resisting ejection
- Core pins seize under increased extraction force
- Cast parts emerge with surface defects requiring rework
- Recovery demands aggressive mechanical removal that damages the die further
Heat Checking
Every injection-and-ejection cycle creates a thermal shock event. The die surface heats rapidly during fill, then quenches when coolant flows and the casting is ejected. Over thousands of cycles, this repeated expansion and contraction initiates surface cracks, known as heat checking, that propagate deeper with each cycle until the die requires refurbishment or replacement.
All three mechanisms run concurrently in production. An effective coating strategy has to interrupt all three failure paths — which is exactly what the right PVD coating is designed to do.
What Is PVD Coating and How Does It Work?
Physical Vapor Deposition is a vacuum-based process that converts a solid metallic source into a ceramic coating. The source material (titanium, chromium, or an alloy) is vaporized inside a vacuum chamber using arc evaporation or magnetron sputtering.
The vaporized metal reacts with introduced gases — typically nitrogen — and deposits as a thin, dense ceramic film on tooling loaded into the chamber.
Key Process Parameters
The critical advantage for die cast tooling is temperature. PVD processes typically run at 150°C–500°C, well below the tempering temperature of H13 tool steel (~450°C). This means the substrate retains its core hardness and dimensional stability through the coating cycle.
Deposited films range from 1–5 microns, with HPDC production studies confirming effective performance at 2–3.2 microns. That thickness fits within the dimensional tolerances of precision die cast tooling without rework.
PVD vs. CVD for Die Cast Tooling
Chemical Vapor Deposition produces comparable coatings but requires process temperatures of 900°C–1,050°C (or 720°C–900°C for MT-CVD variants). At those temperatures, H13 loses the hardness gained during heat treatment. For tooling that arrives already hardened, CVD effectively undoes the metallurgical preparation. PVD avoids this entirely.
How the Coating Protects the Substrate
The ceramic film protects the substrate on multiple fronts:
- Resists abrasive and erosive wear at 1,750–2,800+ HV (versus ~500 HV for uncoated H13)
- Blocks aluminum from contacting the iron-bearing steel surface, eliminating the diffusion mechanism behind soldering
- Slows thermal cycling at the die surface through oxidation resistance above 800°C, reducing fatigue crack initiation
- Maintains these properties without altering the substrate's core hardness or dimensional tolerances
Surface Solutions applies PVD coatings to H13 and other hardened die steels using deposition temperatures of 700°F–800°F (approximately 370°C–425°C), which keeps substrate hardness intact throughout the process.
Common PVD Coating Types for Die Casting
Coating selection is application-specific. The four most common PVD materials for die casting each occupy a distinct performance niche.
Titanium Nitride (TiN)
TiN is the industry's proven baseline, recognizable by its gold color, with hardness around 2,300 HV and service temperature up to 600°C. It offers solid wear resistance and anti-soldering protection for zinc die casting and lower-temperature aluminum applications.
Notably, a 2024 HPDC production study casting AlSi11Cu2(Fe) at 708–712°C found TiN-coated H11 inserts achieved 15,000 shots before part surface quality (Ra > 2.5 µm) required retirement — compared to just 7,000 shots for uncoated inserts. That's more than double the service life in a real production environment.
Chromium Nitride (CrN)
CrN is the most widely specified coating for aluminum die casting. Its properties explain why:
- Hardness: ~1,750 HV (lower than TiN, but with higher ductility)
- Service temperature: 700°C before oxidation onset
- Anti-soldering: Outstanding — CrN-coated tooling in semi-industrial HPDC trials showed very little soldering after 50 cycles, while uncoated and nitrided surfaces showed significant buildup
- Thermal management: CrN's corrosion resistance and thermal stability reduce heat transfer to the substrate
Surface Solutions' real-world forming data shows CrN's thermal performance advantage clearly: in a stainless steel drawing application, CrN-coated tooling ran 500+ parts with parts only warm to the touch, while non-CrN tooling produced just 15 parts before parts became too hot to handle. That thermal gap translates directly into longer die run times and fewer production stops.
Aluminum Titanium Nitride (AlTiN)
When thermal loads are most extreme, AlTiN is the right choice. Its oxidation resistance reaches approximately 850°C–900°C, covering high-pressure aluminum casting with thin walls, tight fill times, or high-temperature gate areas.
Key performance specs:
- Hardness: 4,000–4,200 HV
- Tool life improvement: 2–7x versus uncoated tooling
- Protection mechanism: high aluminum content (>50 atomic percent) forms an aluminum oxide barrier at elevated temperatures, adding a secondary layer of defense
Titanium Carbonitride (TiCN)
TiCN incorporates carbon into the nitride structure, reaching the highest verified hardness of the four options at 2,800 HV, with a low friction coefficient of approximately 0.2 against steel. Those two properties together make it the strongest candidate when silicon-bearing alloys create severe abrasive wear conditions.
The trade-off: TiCN's service temperature ceiling is only 300°C, which limits its use to zinc and lower-temperature aluminum applications. It's not appropriate where thermal loads dominate.
How to Choose the Right PVD Coating
Start with three questions: What alloy are you casting? What's the primary failure mode? What are the thermal conditions at the tool surface?

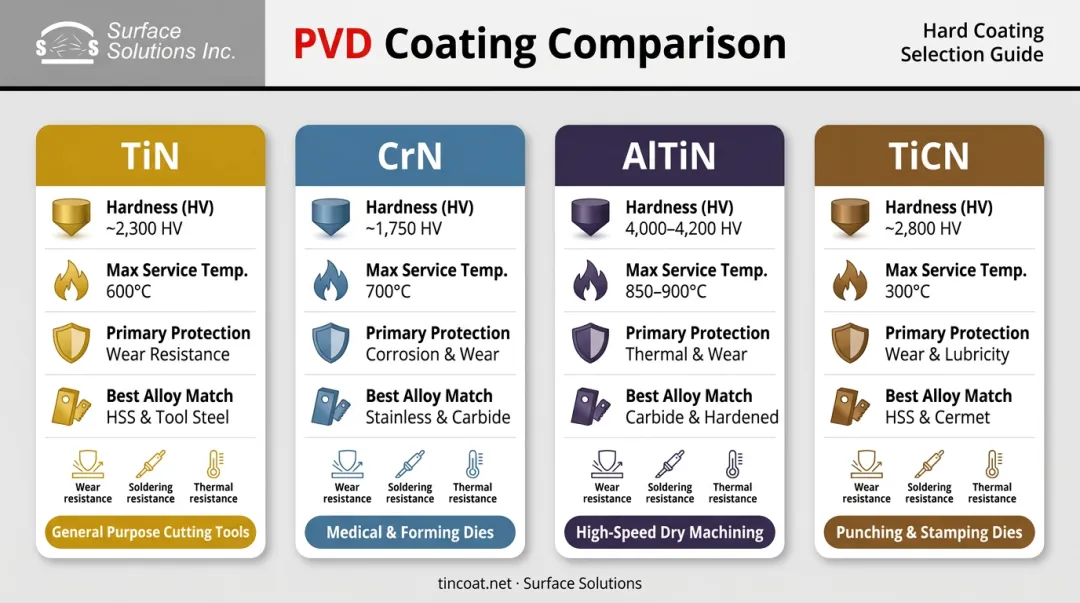

Coating Selection Reference
| Coating | Best Alloy Match | Max Service Temp | Primary Protection | Hardness |
|---|---|---|---|---|
| TiN | Zinc, lower-temp Al | 600°C | Wear, soldering | ~2,300 HV |
| CrN | Aluminum | 700°C | Anti-soldering, ductility | ~1,750 HV |
| AlTiN | High-pressure Al | ~850–900°C | Thermal resistance, wear | 4,000–4,200 HV |
| TiCN | Zinc, Si-heavy Al | 300°C | Abrasive wear | ~2,800 HV |
For most aluminum high-pressure die casting, CrN is the starting point for anti-soldering protection, while AlTiN makes sense where gate areas see the most intense thermal exposure. TiN remains competitive where cost is a priority and temperatures stay below 600°C. TiCN is reserved for abrasion-dominated failure.
Secondary Considerations
Beyond alloy and temperature, three factors shape coating selection:
- Request a feasibility review for complex geometry — PVD deposits unevenly on surfaces not directly facing the source, and deep core pins or blind bores receive significantly reduced flux
- Polish before coating, not after — PVD replicates the substrate surface exactly, so rough tooling stays rough once coated
- Match coating cost to run volume — high shot counts justify AlTiN or CrN, while lower-volume runs often make TiN's cost-performance ratio the better call
Surface Solutions provides application-specific guidance for manufacturers working through this selection. Contact their team at 763-785-9436 or info@tincoat.net to discuss your specific alloy, failure mode, and geometry.
Surface Preparation and Maintenance Best Practices
A coating applied to a poorly prepared surface will underperform or fail early — through adhesion loss, not normal wear. Getting the substrate right before submission is as important as the coating itself.
Pre-Coating Requirements
Before submission for PVD coating:
- Polish to specified surface roughness: PVD films faithfully reproduce substrate texture. If the cavity needs a smooth finish, achieve it before coating — the 1–5 micron film won't hide roughness. Industry practice for die cast tooling typically targets Ra < 0.4 µm, though specific requirements should be confirmed with your coating provider
- Remove surface contamination: Oxides, EDM recast layers, bluing, and prior coatings prevent proper adhesion. All must be stripped before coating
- Verify substrate condition: H13 tooling should be fully heat-treated and tempered at a temperature above the PVD process temperature to prevent dimensional change during coating
Monitoring and Re-Coating
During production, watch for these early warning signs of coating breakdown:
- Soldering recurrence on cavity walls or core pins
- Dimensional drift in critical features
- Surface finish degradation on cast parts
When early signs appear, re-polishing between runs can restore surface condition temporarily. When soldering or erosion recurs within a normal maintenance interval, re-coating is warranted. Tooling can typically be stripped, re-polished, and recoated multiple times — making PVD a repeatable part of the maintenance cycle, not a one-time fix.
The Broader Maintenance Picture

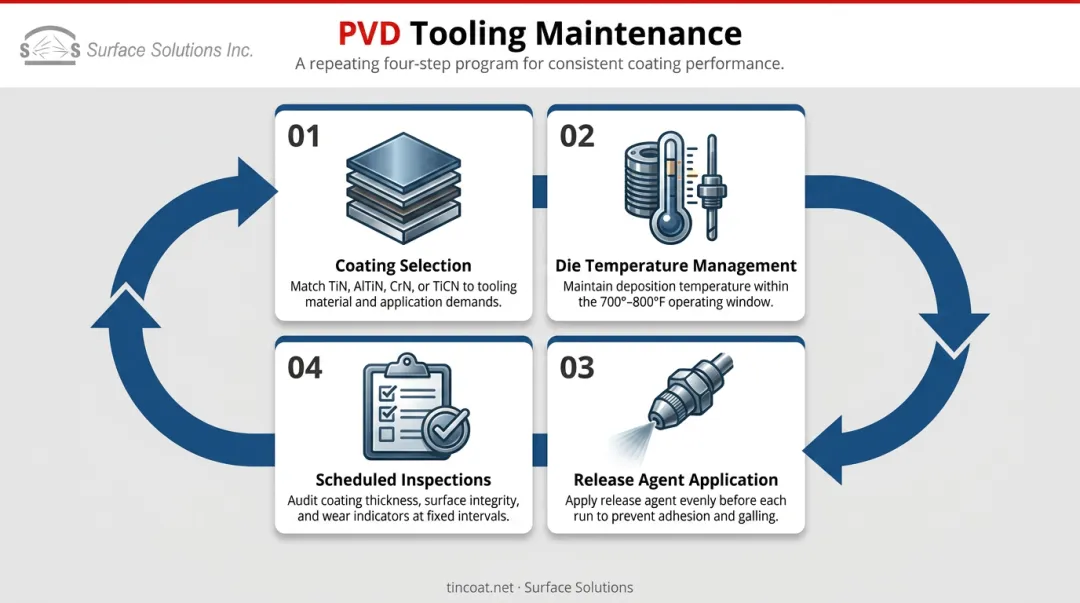

PVD coating works best as one component of a complete tooling maintenance program:
- Correct coating selection matched to alloy and failure mode
- Die temperature management — a 2019 production case study showed that reducing spray time from 13 seconds to 3 seconds significantly reduced heat checking when combined with CrN coating
- Appropriate release agent application — CrN's anti-soldering properties can reduce dependence on aggressive die sprays, cutting lubricant consumption and cycle time
- Scheduled inspections at defined shot-count intervals to catch coating degradation before it becomes a production problem
Frequently Asked Questions
What is PVD coating for die cast tooling?
PVD (Physical Vapor Deposition) coating is a vacuum-based process that deposits a thin, hard ceramic film — typically 1–5 microns — directly onto die cast tooling surfaces. It protects against wear, soldering, erosion, and thermal fatigue, extending service life without altering tool dimensions.
How long does PVD coating last on die cast tooling?
HPDC insert studies show coated tooling reaching 10,000–15,000+ shots before part quality degrades, compared to roughly 7,000 shots for uncoated controls. Actual results vary by casting alloy, process conditions, and coating type — surface preparation quality is the biggest variable.
Which PVD coating materials are widely used to enhance wear resistance in die cast tooling?
TiN, CrN, AlTiN, and TiCN are the most common. CrN is the most widely used for aluminum die casting due to its anti-soldering properties. AlTiN is preferred where thermal loads are highest, while TiCN offers the greatest hardness for abrasion-dominated applications.
What are the most common failure modes in die cast tooling that PVD coatings address?
PVD coatings address five mechanisms: abrasive wear, erosive washout, adhesive wear, soldering/sticking, and heat checking. The hard, chemically resistant film targets all five — though thermal fatigue resistance also depends on substrate condition and die temperature management.
Does PVD coating change the dimensions of die cast tooling?
PVD films are 1–5 microns thick (0.0001"–0.0002"). This falls within the dimensional tolerance of most precision die cast tooling, making PVD suitable for tight-tolerance cavities and core pins.
Can die cast tooling be recoated after the PVD coating wears out?
Yes. Tooling can be stripped of the worn coating, re-polished to the required surface condition, and recoated multiple times. This makes PVD an economical long-term maintenance approach rather than a one-time surface treatment.
