ASTM D3359 is the industry's established standard for evaluating coating adhesion through a tape test. Originally published in 1974 and maintained by ASTM Committee D01, it remains one of the most referenced adhesion test methods across protective coatings, prepainted metal, and manufacturing applications. Understanding how it works — and how to perform it correctly — can prevent coating-related failures before they reach the production floor.
Key Takeaways
- ASTM D3359 rates coating adhesion on a 0–5 scale using pressure-sensitive tape pulled over scribes in the film
- Two methods exist: Method A (X-cut, coatings over 5 mils) and Method B (cross-cut lattice, coatings under 5 mils)
- Ratings of 4–5 indicate good adhesion; 0–1 require immediate investigation
- Blade sharpness, tape freshness, pull angle, and substrate inspection (not the tape backing) all determine test accuracy
- PVD hard coatings (TiN, AlTiN, CrN) fall within Method B's thickness range, though scratch testing yields more precise data for hard films
What Is ASTM D3359?
ASTM D3359 is a standardized test method for rating the adhesion of coating films applied to metallic substrates. The test works by scribing cuts into a cured coating, applying a pressure-sensitive tape over the cut area, removing it, and visually assessing how much coating came away with the tape.
The standard covers both freshly applied coatings and panels that have undergone agreed-upon preliminary exposure — water immersion, salt spray, or high humidity — before testing. That range covers both process qualification during production and field inspection of aged or weathered systems.
Adhesive vs. Cohesive Failure
The rating reflects two distinct failure types worth distinguishing:
- Adhesive failure — separation at the interface between the coating and the substrate, or between two coating layers
- Cohesive failure — separation within a single coating layer, indicating the coating itself fractured rather than detached
Adhesive failure points to surface preparation or compatibility issues; cohesive failure suggests the film was overstressed or is inherently brittle. Each failure mode leads to a different corrective path.
Where It's Used
ASTM D3359 sees formal use in at least two sectors with documented requirements:
- Structural steel protective coatings — NCDOT's Structural Steel Shop Coatings Program requires Method A with a minimum 3A rating for specified acrylic topcoats
- Prepainted metal products — Referenced by the Metal Construction Association for tape-off evaluation after bend and reverse-impact testing
It also serves as a quick screening method in several other contexts:
- Industrial quality control labs verifying coating batch consistency
- Conformal coating evaluation for electronics assemblies
- Manufacturing shops assessing adhesion before parts move to the next process stage
Why Coating Adhesion Testing Matters in Manufacturing
Adhesion is what allows any coating to do its job. Whether the goal is corrosion protection, wear resistance, or lubricity, a coating that hasn't bonded properly to its substrate will fail under load — sometimes within the first production run, and always at a cost.
AMPP reported in 2024 that an estimated 75% of coating failures are attributable to poor surface preparation, citing Materials Analytical Group (2019). Poor prep means poor adhesion — and poor adhesion means the rest of the coating system doesn't matter.
The Real-World Cost of Adhesion Failures
In metal forming and stamping operations, the consequences are concrete:
- Delaminating coatings accelerate die wear — a punch that chips early puts greater load on the die itself
- Early tool replacement compresses production runs and drives up cost per part
- Each unplanned sharpening or tool change event can require 4+ hours of labor to remove, service, and reinstall tooling
Surface Solutions' customer data shows what proper adhesion looks like in practice. An anonymous customer running Alpha™-coated M4 punches through 0.057" galvanized steel at one stroke per second reported over 15 months and approximately 15 million parts before requiring sharpening — compared to uncoated D2 punches that needed resharpening every three weeks.
That performance didn't come from the coating chemistry alone. It came from the coating staying bonded through tens of millions of cycles.
For PVD coatings applied to punches, dies, and cutting tools, adhesion testing — including ASTM D3359 during process qualification and routine checks — helps verify that a coating will perform as expected before it's deployed in production.
Method A vs. Method B: Choosing the Right Approach
The two methods in ASTM D3359 are not interchangeable. Applying the wrong one based on coating thickness produces misleading results.

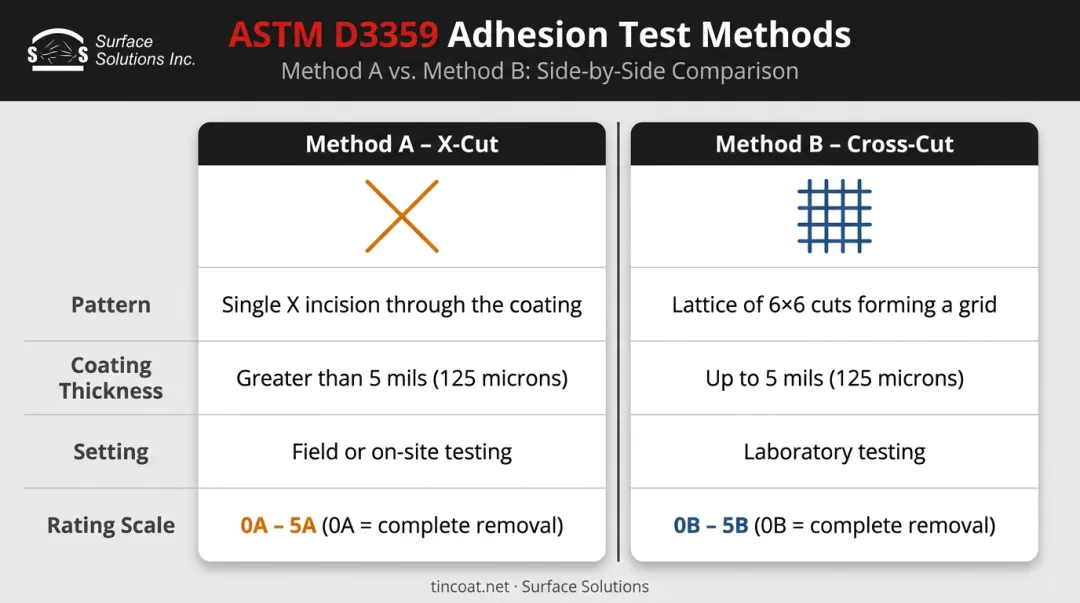

| Attribute | Method A | Method B |
|---|---|---|
| Pattern | X-cut, two ~40mm cuts at 30–45° | Lattice, 6 or 11 cuts in each direction |
| Coating thickness | Over 5 mils (125 µm) | Up to 5 mils (125 µm) |
| Setting | Primarily field use | Lab or shop |
| Rating scale | 5A–0A (descriptive only) | 5B–0B (descriptive + pictorial guide) |
Method A – X-Cut Tape Test
Method A uses two cuts approximately 40mm (1.5 inches) long forming an X, with the intersection angle between 30° and 45°. A template is recommended — an X-cut that's too wide or too narrow affects the rating. Method A is rated 0A–5A but lacks a pictorial reference, making evaluation more subjective. When results are ambiguous, a range (e.g., 3–4A) should be reported.
That subjectivity reflects the method's intended environment: thick coating systems tested in the field, such as heavy-duty protective coatings on steel structures. It doesn't produce the lattice pattern needed to evaluate individual layers in a multi-coat system.
Method B – Cross-Cut (Crosshatch) Tape Test
Method B creates a grid by making either 6 or 11 parallel cuts in one direction, then repeating at 90°:
- Up to 2 mils (50 µm): 11 cuts spaced 1mm apart
- 2–5 mils (50–125 µm): 6 cuts spaced 2mm apart
Spacing matters. Cuts too close together can cause the coating to ribbon off (false low rating); cuts too far apart produce false high ratings. A multi-blade cutter or template is recommended for consistent results. Method B includes a pictorial guide in the standard, making evaluation more objective than Method A.
Quick reference: Coating under 5 mils in a lab or shop → Method B. Over 5 mils or testing in the field → Method A.
Neither method distinguishes well between higher adhesion levels. For hard, high-bond-strength coatings — including PVD nitrides — more sensitive methods may be required.

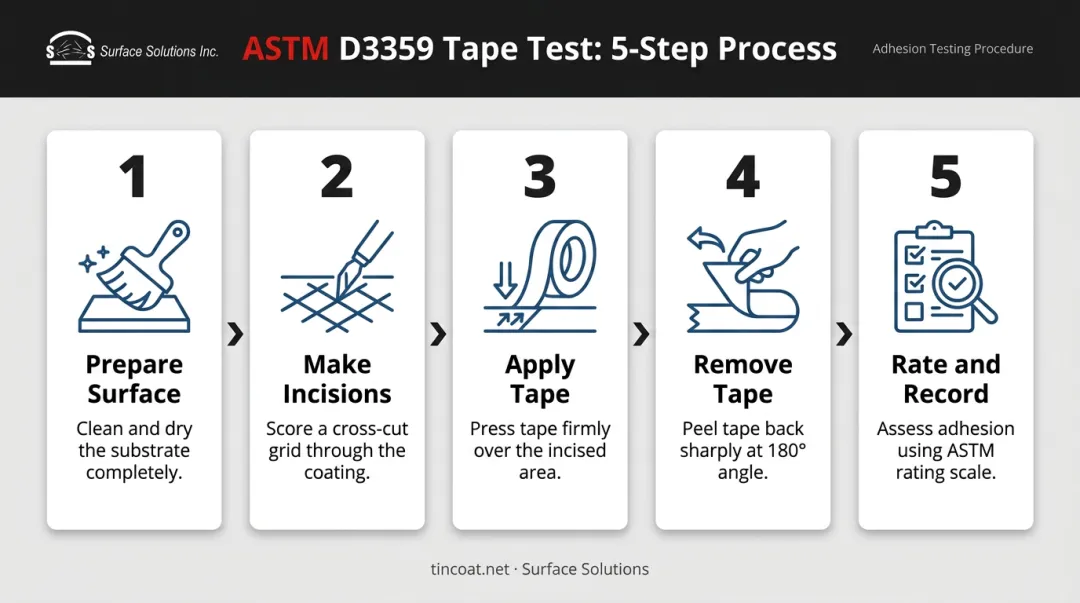

How to Perform the ASTM D3359 Tape Test: Step by Step
The test is straightforward in concept. In practice, small procedural deviations consistently produce invalid ratings. Each step has specific requirements in the standard.
Step 1 – Prepare the Test Surface
Any chalking, oil, moisture, or surface contamination will interfere with tape adhesion and yield false results. Clean the surface before testing if these conditions are present. After making incisions, remove debris with a soft bristle brush before applying tape.
Step 2 – Make the Incisions
Use a sharp razor blade, scalpel, or knife with a cutting-edge angle between 15° and 30° (Method B). Key requirements:
- Incisions must penetrate through all coating layers to the substrate in one steady pass
- Do not re-cut an existing incision — this produces false ratings
- Inspect the cutting edge after cuts; discard any blade that develops defects that tear the film rather than cut it cleanly
A dull blade causes chipping or tearing along the cut edge, which routinely generates false low ratings. Blades dull quickly when cutting hard coatings down to the substrate, so replace them when defects appear rather than on a fixed schedule.
Step 3 – Apply the Tape
Use 25mm (1-inch) wide, semitransparent, pressure-sensitive tape with adhesive properties agreed upon in advance. Before each day of testing:
- Discard the first two complete wraps from the roll — adhesive degrades with sunlight and temperature exposure
- Cut a piece approximately 75mm long
- Center the tape over the cut area
- Press firmly using a pencil eraser — not a thumb or knife back — because the eraser's pliability ensures uniform contact across the surface
Step 4 – Remove the Tape and Inspect
Remove the tape within 90 ± 30 seconds of application. Grasp the free end and pull rapidly (not jerked) back upon itself as close to 180° as possible — keep the pull parallel to the surface, not angled upward.
After removal, inspect the test surface on the substrate — not the tape. Coating debris from the incisions will appear on the tape regardless of actual adhesion quality.
Step 5 – Rate and Record the Results

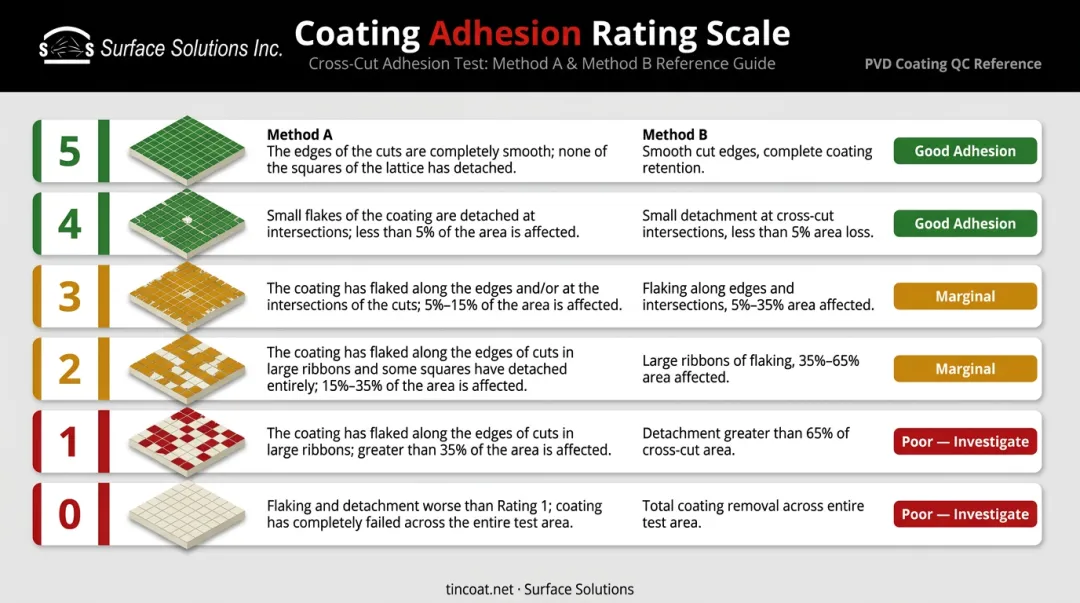

| Rating | Method A | Method B |
|---|---|---|
| 5 | No peeling | No removal |
| 4 | Trace detachment at incisions | Under 5% of grid removed |
| 3 | Removal along cuts, up to 1.6mm | 5–15% removed |
| 2 | Removal along cuts, up to 3.2mm | 15–35% removed |
| 1 | Most of X area affected | 35–65% removed |
| 0 | Removal beyond incision area | Over 65% removed |
General interpretation: 4–5 = good adhesion; 2–3 = marginal; 0–1 = poor, requires investigation. Always append the method suffix to the rating (e.g., 4B, not just 4). Document whether separation was adhesive or cohesive, and where on the test area it occurred.
Common Mistakes and How to Avoid Them
Even experienced inspectors make errors on what looks like a simple test. Five mistakes account for most invalid results:
- Measure dry film thickness before selecting a method. Method B on coatings over 5 mils — or Method A on thin films — produces results that won't hold up to scrutiny.
- Replace blades more often than you think necessary. Hard coatings like PVD nitrides dull edges quickly; a single dull blade is one of the most consistent sources of false low ratings.
- Agree on compliant tape in writing before testing begins. The original reference tapes — Permacel P99 (withdrawn July 2009) and 3M 610 (discontinued February 2022) — are no longer available. An NCCA study identified 3M 681 as the closest performer, though it appears only in a non-mandatory footnote in the current ASTM language. Discard rolls exposed to sunlight or heat.
- Pull at exactly 180° within the 90 ± 30 second window, with steady force. Jerking the tape or pulling at an off-angle changes the applied force enough to shift the rating in either direction.
- Rate the coated surface, not the tape backing. Debris transfers to tape regardless of whether adhesion is genuinely poor — the surface tells the real story.
How Surface Solutions Can Help

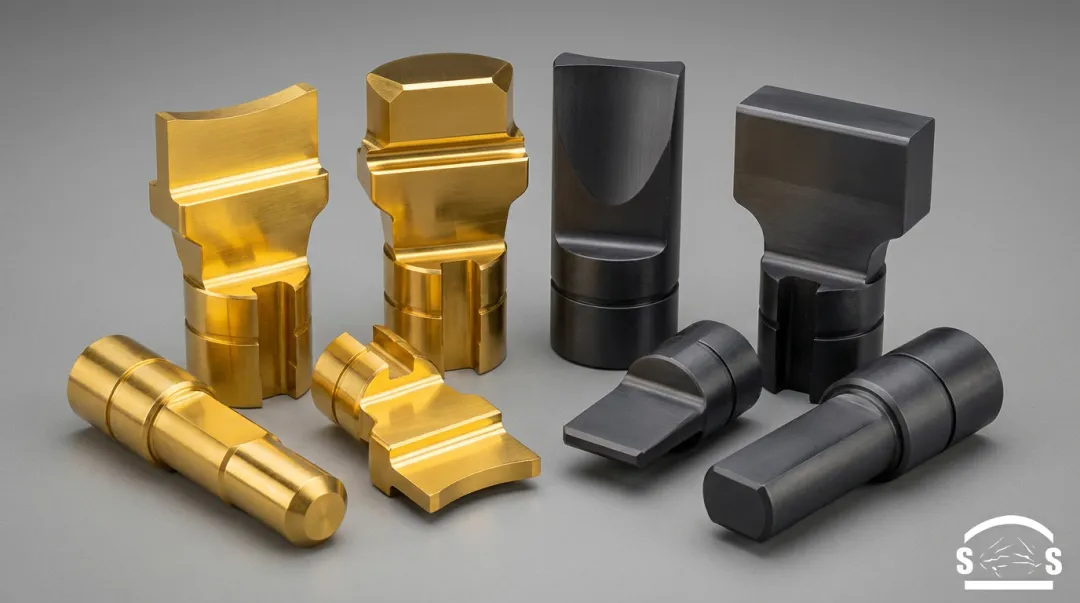

Surface Solutions (based in Fridley, Minnesota) provides batch PVD coating services for manufacturers across the US, Canada, and Mexico — applying TiN, AlTiN, CrN, TiCN, and proprietary Alpha™ coatings to punches, dies, cutting tools, and industrial wear components.
Their coatings are applied at approximately 800°F in a controlled vacuum environment, producing films in the 0.0001"–0.0002" (2–5 micron) range — well within ASTM D3359 Method B's thickness scope, engineered to adhere and hold up under real production loads.
Two documented cases show what that looks like in service:
- A CrN-coated forming tool produced over 500 parts per run in a stainless steel drawing operation — compared to 15 parts from an uncoated tool
- Alpha™-coated M4 punches ran 15 months and roughly 15 million parts before sharpening, with reduced chipping and near-zero galvanized steel build-up versus TiN-coated punches running in parallel
To discuss the right coating for your application, contact Surface Solutions at 763-785-9436 or info@tincoat.net.
Frequently Asked Questions
What is the ASTM D3359 tape test for coating adhesion?
ASTM D3359 is a standardized method for evaluating how well a coating adheres to a metallic substrate. The test scribes cuts into the film, applies pressure-sensitive tape, removes it, and rates the amount of coating detached on a 0–5 scale using either an X-cut (Method A) or a cross-cut lattice (Method B).
What tape is used for ASTM D3359?
The standard specifies 25mm wide, semitransparent pressure-sensitive tape meeting agreed-upon adhesion properties, but does not mandate a brand. Both original reference tapes (Permacel P99 and 3M 610) have been discontinued; industry testing identified 3M 681 as the closest replacement, referenced in a non-mandatory footnote. Confirm compliant tape in writing before testing.
What is the difference between Method A and Method B in ASTM D3359?
Method A uses an X-cut and is designed for coatings over 5 mils thick, typically in field settings. Method B uses a cross-cut lattice pattern for coatings under 5 mils in lab or shop environments, and includes a pictorial rating guide for more consistent evaluation.
What does a rating of 5B or 5A mean on the ASTM D3359 scale?
A 5A or 5B rating indicates no peeling or removal from the incision area, the highest possible result. Ratings of 4–5 indicate good adhesion; 2–3 are marginal; 0–1 signal poor adhesion requiring investigation into surface preparation, coating compatibility, or application conditions.
Can ASTM D3359 be used to test PVD coatings on metal tools?
ASTM D3359 was developed for relatively ductile coating films and can offer a preliminary adhesion indication on hard coatings. However, ASTM C1624 (quantitative scratch testing for ceramic coatings 0.1–30 µm) and ASTM D4541 (pull-off strength) provide more precise, quantitative data for thin hard PVD films like TiN, CrN, or AlTiN.
What are the most common mistakes when performing the ASTM D3359 tape test?
The top errors: using a dull blade (false low ratings), selecting the wrong method for the coating thickness, using expired or non-compliant tape, pulling tape at an angle other than 180°, and rating the tape backing instead of the test surface on the substrate.
