Many shops chase the wrong culprit when tool life goes south. They blame the machine, the coolant, or the operator. But the substrate and coating combination on that insert often decides whether you get clean, predictable cuts or a fight against chipping and premature wear.
Mismatched grades cause real damage: flank wear that creeps up faster than expected, edges that chip mid-run, surface finishes that miss tolerance, and tool changes nobody planned for. Each one eats into your margins.
This guide breaks down what turning insert grades actually are, walks through the five major grade families, and gives you a practical framework for matching grade to job.
Key Takeaways
- Insert grade (substrate + coating) sets hardness, toughness, and wear resistance, not shape.
- Five grade families cover nearly every job: carbide, cermet, ceramic, CBN, and PCD.
- Match grade to workpiece material, cutting stability, and roughing vs. finishing.
- The right grade choice cuts tool changes, scrap rates, and cycle times.
- PVD recoating can extend usable life once a coating wears out.
What Are Turning Insert Grades & Why They Matter
A turning insert grade is the specific substrate material (carbide, ceramic, CBN, PCD) combined with any coating or surface treatment applied to it. Together, these determine three things: hardness, toughness, and wear resistance. Surface Solutions applies PVD coatings like TiN, AlTiN, and CrN to sharpen that wear resistance on customer-supplied tooling, adding a hard, low-friction layer to whatever substrate a shop starts with.
Grade isn't the same as geometry. Geometry describes the insert's shape and chip breaker design, the features that control chip formation and cutting forces. Grade describes what the insert is made of and how it resists heat and abrasion.
A shop can run the same geometry across several grades, or the same grade across multiple geometries. Confusing the two leads to picking a tool that looks right on paper but fails in the cut.
Why does grade selection carry so much weight? Tooling itself is a small slice of total part cost, but the ripple effects of a bad grade choice are large. Modern Machine Shop's cost model found that cutting tools account for roughly 3% of the average total cost of a machined part.
In that same model, a 20% increase in cutting speed cut modeled part cost by about 15% through shorter cycle time. That gain only holds if the grade can actually handle the speed without failing early.

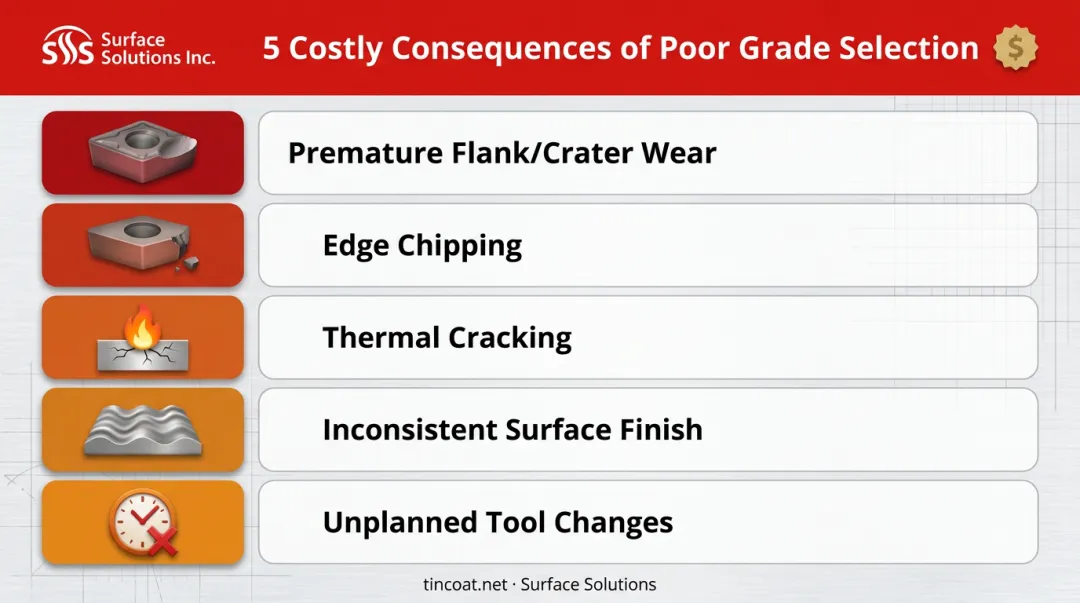

Without proper grade selection, shops typically see:
- Premature flank or crater wear that shortens tool life
- Edge chipping under interrupted cuts or unstable setups
- Thermal cracking from heat the grade wasn't built to handle
- Inconsistent surface finishes that push parts out of tolerance
- Unplanned tool changes that stall production schedules
Each of these problems traces back to a mismatch between the insert's material properties and what the job actually demands.
Types of Turning Insert Grades
No single grade works for every job. Each family trades off toughness, hardness, and heat resistance differently, and that trade-off is what makes grade selection a skill rather than a checkbox.

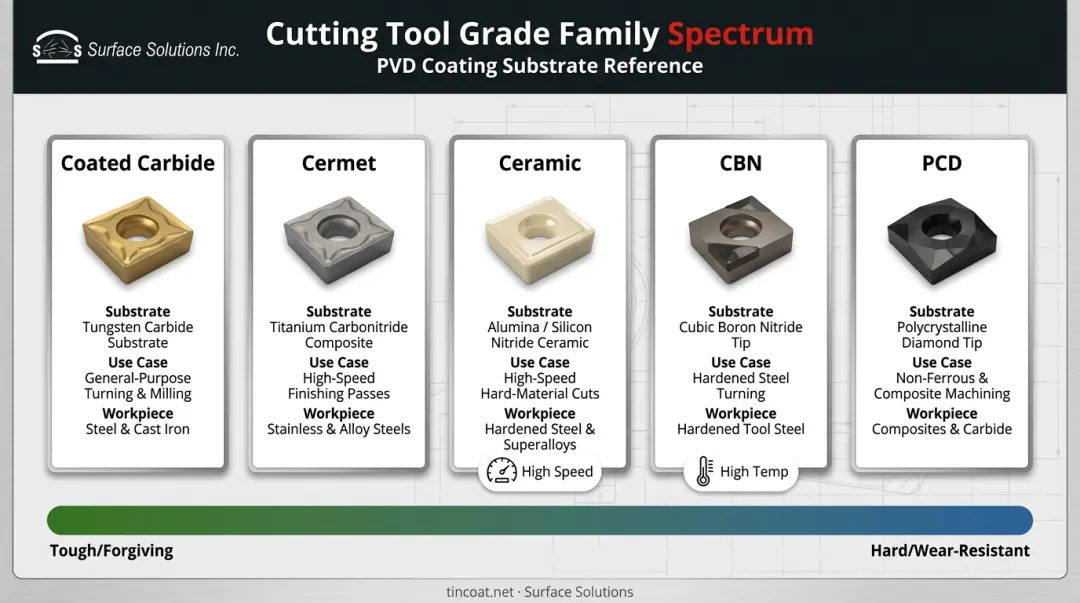

Think of the five major families as sitting along a spectrum. On one end are tough, forgiving grades that shrug off interrupted cuts and unstable setups. On the other are hard, wear-resistant grades that hold an edge at extreme speeds and temperatures but chip if the setup isn't rigid. Here's how each one stacks up.
Coated Carbide
Coated carbide pairs a cemented tungsten carbide substrate with a CVD or PVD coating layer (TiN, TiCN, TiAlN, or Al2O3) to boost wear resistance beyond what bare carbide offers.
It's the workhorse grade family. Sandvik Coromant notes that coated cemented carbide makes up 80-90% of all cutting-tool inserts used in industry, and for good reason: it covers steels, stainless steels, and cast irons at a reasonable cost.
Strengths and limits:
- Strong toughness/wear-resistance balance for general-purpose and high-volume production
- Underperforms ceramics or CBN at extreme speeds and temperatures
- Broadest application range of any grade family
Once the original coating wears down, the insert doesn't have to go straight into the scrap bin. Many shops extend coated-tool life through professional PVD recoating. Surface Solutions applies Alpha and CrN coatings to worn carbide tooling, which cuts down on insert consumption and how often tools need resharpening.
Cermet
Cermet is a ceramic-metal composite, typically titanium carbide or titanium nitride bound in a metallic matrix. That combination gives it chemical stability and a surface finish that standard carbide struggles to match.
It's harder and more chemically resistant than carbide, but it trades away some toughness to get there. Cermet is comparatively brittle.
Best fit: finishing operations on steel and stainless steel where tight tolerances and fine surface finishes matter most. Poor fit: interrupted cuts or heavy roughing, where the brittleness catches up fast.
Ceramic
Ceramic inserts are die-pressed and sintered from oxide or mixed-ceramic materials such as Al2O3 or Si3N4, engineered for hot hardness: the ability to hold an edge at temperatures that would soften other materials.
That hot hardness translates into serious speed. One CTE comparison of cast-iron turning found ceramic inserts running at 2,000 to 3,000 surface feet per minute versus 500 to 600 sfm for carbide in that application. The tradeoff is brittleness. Ceramic inserts chip more readily than tougher grades.
Best suited for:
- High-speed roughing of hardened steels
- Nickel-based superalloys, including Inconel
- Grey cast iron
Ceramic only performs well in rigid, stable setups. Chatter or excess tool overhang turns its biggest strength into its biggest liability.
CBN (Cubic Boron Nitride / PCBN)
PCBN is sintered cubic boron nitride, the second-hardest material after diamond. It's engineered for edge strength and hot hardness in equal measure.
Unlike PCD, CBN combines near-diamond hardness with high thermal stability and doesn't react with ferrous metals. That makes it the go-to for hard part turning.
Where it excels:
- Hardened steels in the 45-65 HRC range
- Chilled cast iron
- Superalloys
CBN often replaces grinding operations entirely, turning parts directly to final tolerance instead of sending them to a grinder afterward. The catch is upfront cost. CBN inserts carry a real price premium that only pays off at appropriate production volumes.
PCD (Polycrystalline Diamond)
PCD is sintered diamond particles bonded to a carbide substrate, giving it diamond-level hardness backed by carbide's toughness.
That abrasion resistance is unmatched, but it comes with a hard limit: PCD cannot machine ferrous materials. Diamond reacts chemically with iron at cutting temperatures, so it wears out fast on anything containing iron.
Best suited for: aluminum, copper, brass, composites, and graphite.
The high cost of PCD inserts is offset by exceptional tool life in these abrasive, non-ferrous applications. Where a carbide insert might last minutes, PCD can run for hours.

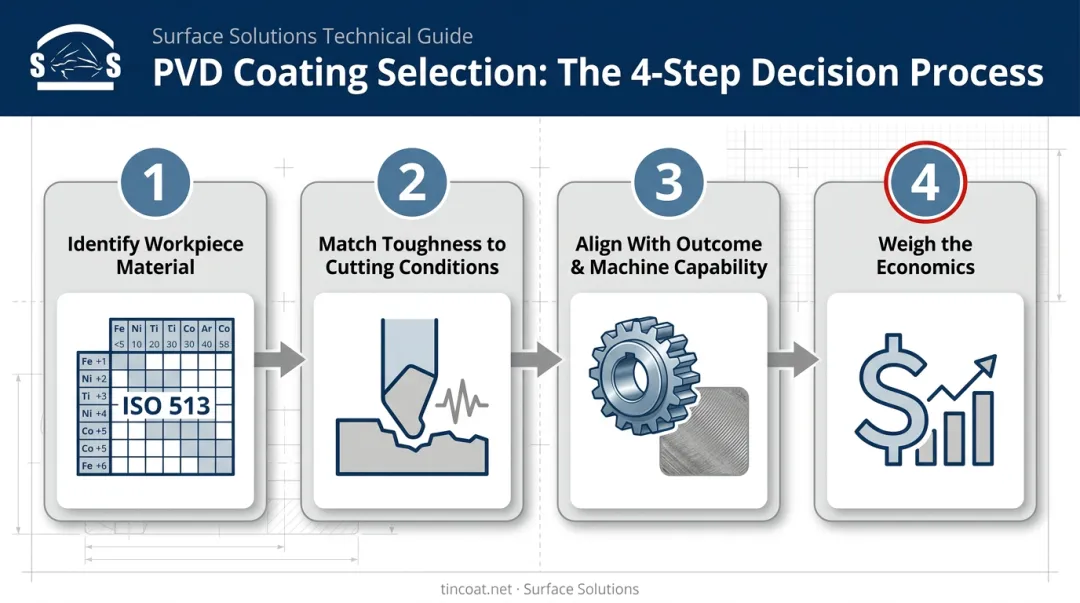

How to Choose the Right Turning Insert Grade
The right grade is the one matched to your material, your setup, and what you're actually trying to achieve, not necessarily the most advanced option on the shelf.
Start With the Workpiece Material
Workpiece material is your primary filter. ISO 513 sorts materials into six groups, and matching your grade to the correct group narrows the field fast:
| ISO Group | Material Category |
|---|---|
| P | Steel |
| M | Stainless steel |
| K | Cast iron |
| N | Non-ferrous metals |
| S | Heat-resistant superalloys, titanium |
| H | Hardened steel, hard cast iron |
Identify your group first, then compare grades built for that group against your actual cutting conditions.
Match Toughness to Cutting Conditions
Material alone doesn't tell the whole story. Consider:
- Continuous vs. interrupted cuts: interrupted cuts demand tougher grades regardless of material
- Setup rigidity: a shaky fixture calls for forgiving toughness over maximum hardness
- Scale or inclusions: abrasive surface conditions chew through wear-sensitive grades fast
Align With Outcome and Machine Capability
Roughing and finishing pull in opposite directions on the toughness-to-wear-resistance spectrum. Roughing favors tougher grades that survive heavy chip loads and interruptions. Finishing favors harder, more wear-resistant grades that hold tight tolerances and produce better surface finish.
Machine condition matters too. An unstable machine or worn spindle bearings can force you into a tougher grade even when the material itself would otherwise call for something harder, since no grade choice fixes a machine problem.
Weigh the Economics
Per-insert price tells you almost nothing about actual cost. Weigh it against:
- Expected tool life in your specific application
- Cycle-time savings from running at higher, grade-appropriate speeds
- Scrap reduction from more consistent finishes
For higher-value tooling, carbide inserts especially, reconditioning through PVD recoating can lower total cost of ownership. Surface Solutions' documented case work shows AlTiN recoating delivering up to six times the tool life of standard TiN on a 304 stainless steel turning application, at a coating cost of roughly $2.50 to $4.00 per tool. That's a meaningful lever before writing off a worn insert as scrap.
Common Mistakes to Avoid When Selecting Turning Insert Grades
Even experienced machinists fall into a handful of predictable traps when picking turning insert grades.
Defaulting to the hardest or most advanced grade available. Ceramic and CBN inserts look impressive on a spec sheet, but they're wasted, and expensive, on a job a standard carbide grade would handle just fine. More hardness doesn't automatically mean more performance; it usually means more brittleness if the setup can't support it.
Ignoring the trade-offs that come with premium grades. Ceramic and PCD both sacrifice toughness for wear resistance, and CBN carries a real cost premium on top of that. If your process has interrupted cuts, marginal rigidity, or lower volumes, those trade-offs can bite before the grade ever pays for itself.
Chasing per-insert price instead of total cost of ownership. A cheaper insert that needs replacing three times as often isn't actually cheaper. Factor in:
- Tool life under your actual cutting conditions
- Cycle time at the speeds the grade supports
- Scrap and rework from inconsistent finishes
The insert that costs more upfront often wins on all three counts once you run the numbers.
Conclusion
Turning insert grade selection shapes tool life, surface finish, and production cost on every job you run.
No single grade fits every application. The right choice comes from matching substrate and coating to your material and cutting conditions, not from grabbing whatever's newest in the catalog.
When you're unsure, lean on supplier grade charts or talk to someone who spends their day matching grades to jobs.
Grade selection isn't the only lever for extending tool life, though. Before writing off a worn coated-carbide insert, consider whether reconditioning services like PVD recoating can squeeze more life out of it. Surface Solutions works with shops running carbide inserts, punches, and dies across the Upper Midwest and beyond, applying Alpha, AlTiN, and CrN coatings that extend usable tool life well past what the original coating could deliver.
Frequently Asked Questions
What types of coatings are used on inserts?
Common insert coatings include TiN, TiCN, TiAlN, Al2O3, and CrN. CVD coatings apply at higher temperatures with strong adhesion, while PVD coatings apply at lower temperatures and support sharper, tougher edges for finishing and interrupted cuts.
What do the numbers on carbide inserts mean?
The letters and numbers in an ISO insert code identify shape, relief angle, tolerance class, size, thickness, and nose radius. That code is separate from the grade designation, which describes substrate and coating rather than dimensions.
What radius is a 432 insert?
In the ANSI/ISO system, the last digit indicates nose radius in 1/64-inch increments, giving a 432 insert a 1/32" (0.031-inch) radius. Confirm against your manufacturer's chart, since some suppliers vary slightly.
What is the difference between insert grade and insert geometry?
Grade refers to the substrate material and coating, which govern wear resistance and toughness. Geometry refers to the insert's shape and chip breaker design, which govern chip control and cutting forces.
How do I know which turning insert grade to use for stainless steel?
M-group grades and PVD-coated carbides are common starting points for stainless steel. Pay close attention to built-up edge and corrosion resistance, since stainless work-hardens quickly.
Can turning insert life be extended through recoating?
Yes. Reconditioning services such as PVD recoating, including Surface Solutions' Alpha and CrN coatings, can restore wear resistance and extend usable life on reusable carbide tooling once the original coating wears down.
