Manufacturers have relied on Chromium Nitride (CrN) PVD coating since the mid-1990s to fight this exact problem. Peer-reviewed research documents CrN use on cold-forming tools and die-casting molds as early as 1995, with factory-scale adoption across a dozen plants by 1997. It's not a new idea. It's a proven one.
This article breaks down what CrN actually is, the properties that make it perform, how it stacks up against TiN and DLC coatings, and where it delivers the most value on the shop floor.
Key Takeaways
- CrN hardness reaches 2,300 HV, resisting galling and abrasion better than uncoated tool steel
- Service temperature reaches 700°C, outperforming TiN's 500°C ceiling in high-heat forming and cutting
- CrN-coated dies in copper-drawing operations have shown 100%+ longer die life than uncoated tooling
- Coating thickness runs just 2-5 microns, leaving part geometry untouched
- Surface Solutions has documented CrN tools producing 500+ parts while staying just warm to the touch, versus 15 parts with competing coatings
What Is Chromium Nitride (CrN) PVD Coating?
CrN is an interstitial compound of chromium and nitrogen (CAS 24094-93-7), where nitrogen atoms sit inside a chromium lattice in a rock-salt cubic structure. That structure is what gives the coating its ceramic-like hardness and stability.

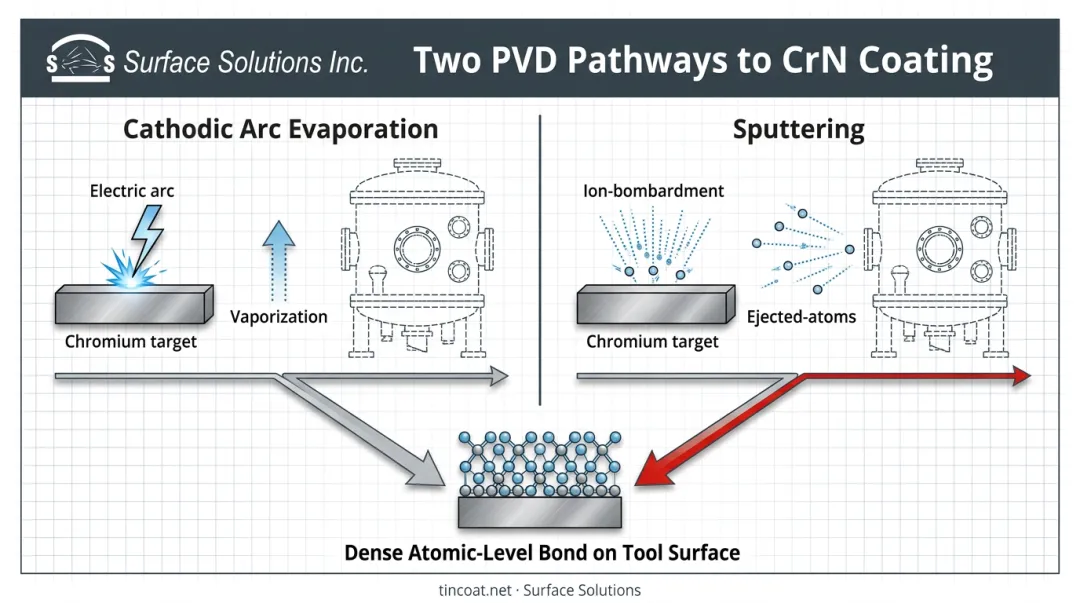

The coating is applied through Physical Vapor Deposition, a vacuum process that turns solid chromium into vapor and reacts it with nitrogen gas to build a thin, dense film on the tool surface. Two methods dominate:
- Cathodic arc evaporation: chromium is vaporized from a solid target using an electric arc
- Sputtering: chromium atoms are ejected from a target through ion bombardment
Both routes produce a coating that bonds at the atomic level rather than sitting on top like paint. There's no blistering, no flaking, no delamination under normal use. That bond holds even as the coating itself stays remarkably thin.
Thickness That Doesn't Change Your Part
Typical CrN coatings run 2-5 microns thick (roughly the width of a few strands of spider silk). Surface Solutions applies CrN in the 0.0001"-0.0002" range at a deposition temperature around 700-800°F.
That thinness matters. The coating conforms exactly to the part's existing surface profile. Sharp edges stay sharp, and tight tolerances stay tight. If you need a polished finish, you polish before coating; CrN won't smooth out a rough surface, it just protects the one you give it.
Key Properties That Make CrN Coating Outperform Uncoated Tools

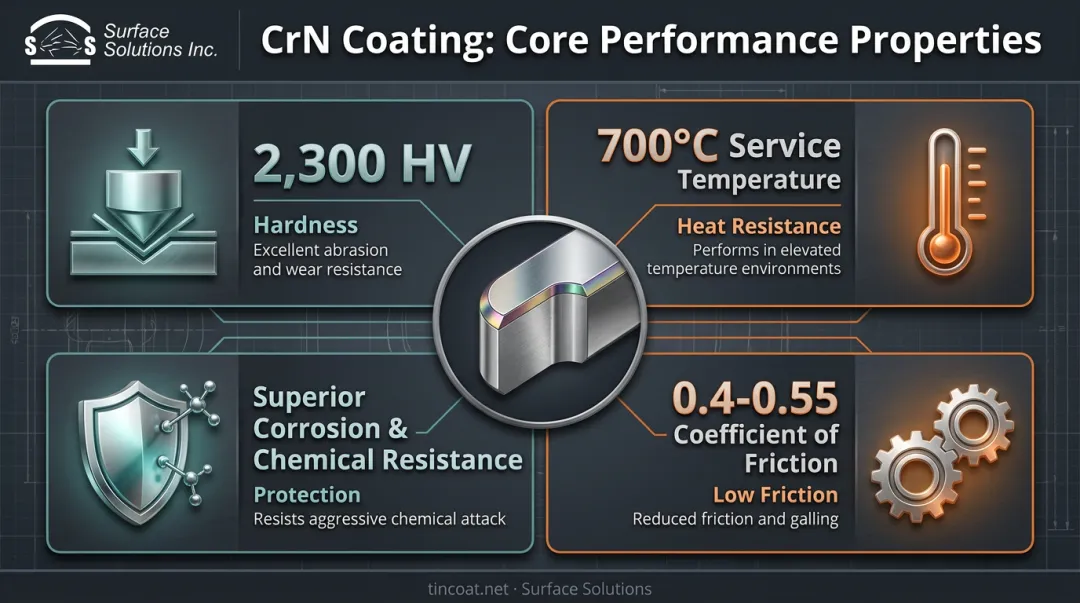

CrN outperforms uncoated tools through the combination of hardness, thermal stability, corrosion resistance, and low friction working together in the same thin film.
Exceptional Hardness & Wear Resistance
Arc-PVD CrN coatings commonly reach 2,300 HV, with independent testing on a 4-micron drawing-die coating measuring around 1,900 HV under lighter load conditions, according to Ionbond's published coating specifications. For comparison, hardened tool steel typically sits between 500-700 HV.
This hardness advantage translates directly into wear resistance:
- Resists galling from repeated metal-to-metal contact
- Reduces fretting damage on high-cycle punches and dies
- Slows abrasive wear from sheet metal and stamping burrs
Surface Solutions has seen this play out in real production. In one stainless steel drawing application, CrN-coated tooling produced over 500 parts while staying just warm to the touch — a dramatic contrast to alternative coatings that overheated after just 15 parts. Durability like this directly cuts the labor hours spent pulling tools for resharpening.
High-Temperature Stability
CrN holds its structural integrity and protective properties up to 700°C, according to Ionbond's product data on arc-deposited CrN coatings. TiN, by comparison, is rated to 500°C on the same manufacturer's product line.
That 200°C gap matters in high-speed cutting operations that generate significant friction heat and hot-forming processes where dies stay elevated for long cycles. In both cases, TiN coatings start to soften and lose protection well before CrN reaches its limit.
Corrosion & Chemical Resistance
CrN forms a stable, dense oxide layer that resists moisture, acids, and alkalis better than most PVD coatings on the market. CrN withstands repeated steam and chemical autoclaving cycles without degrading, making it a common choice for:
- Medical implants and surgical instruments requiring repeated sterilization
- Food-grade processing equipment exposed to washdown chemicals
- Components operating in humid or corrosive plant environments
This corrosion resistance is a core reason CrN shows up so often in medical device manufacturing, where biocompatibility and non-toxicity are non-negotiable requirements.
Low Friction & Reduced Adhesion
CrN's coefficient of friction against steel runs around 0.4-0.55, depending on test conditions and counterbody material. That lower friction reduces material sticking and galvanic build-up on the tool surface.
In side-by-side production runs, CrN's lower friction coefficient has translated into noticeably less galvanic build-up than higher-friction coatings like TiN produce on the same job. Less build-up means less frequent cleaning, reduced lubricant consumption, and fewer unplanned stops for maintenance.
CrN Coating vs Other PVD Coatings
No single coating wins every application. The right choice depends on the specific combination of heat, load, and corrosive exposure your tool will face.
CrN vs. TiN
| Property | CrN | TiN |
|---|---|---|
| Hardness | ~2,300 HV | ~2,800 HV |
| Service Temperature | 700°C | 500°C |
| Corrosion Resistance | Superior | Moderate |
TiN is harder on paper, but CrN wins where heat and corrosion are the bigger threats. If your tool runs hot or sees moisture and chemical exposure, CrN typically outlasts TiN even with a lower raw hardness number.
Surface Solutions has seen this play out in production: CrN-coated tools have run over 500 parts while staying just warm to the touch, compared to as few as 15 parts before other coatings overheated.
CrN vs. DLC (Diamond-Like Carbon)
DLC coatings can hit friction coefficients as low as 0.1 against steel, making them attractive for applications where sliding wear and lubricant reduction are the top priority. CrN can't match that friction number.
Where CrN pulls ahead is temperature tolerance and corrosion resistance. DLC coatings generally aren't rated for the same high-heat or corrosive service life as CrN, which makes CrN the better fit for forming and cutting operations that generate real heat.
Some cutting tool applications push past what standard CrN can handle. In these cases, coating providers may turn to CrAlN or similar aluminum-enhanced chromium nitride systems.
These multicomponent coatings push service temperatures well beyond standard CrN, though they're typically reserved for specialized high-speed cutting rather than general forming or stamping work.
Quick Decision Guide
Choose CrN when:
- Corrosion resistance is a top requirement
- The application runs hot (near or above 500°C)
- Wear from galling and adhesion is the main failure mode
Consider alternatives when:
- You need the absolute lowest friction possible (DLC)
- Raw hardness matters more than heat tolerance (TiN)
- You're cutting at extreme temperatures with specialized tooling (CrAlN)
Industries and Applications for CrN PVD Coating

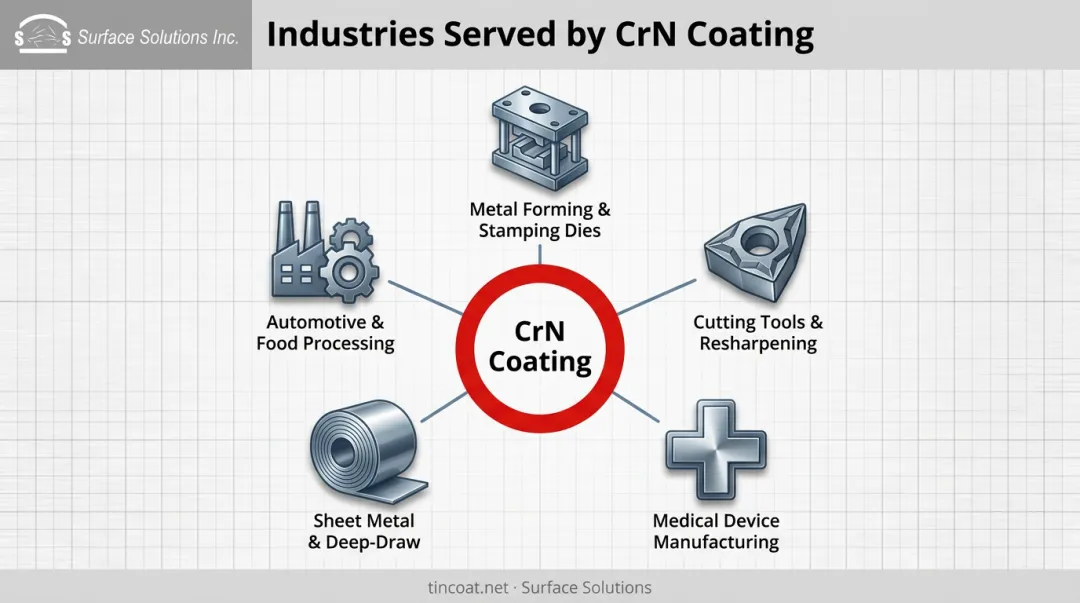

CrN's property mix (hardness, heat tolerance, and corrosion resistance) makes it useful across a wide range of manufacturing sectors:
- Metal forming, stamping, and punching dies. A 2005 study in Surface and Coatings Technology found that a 4-micron CrN coating on a cemented-carbide drawing die increased tool life by more than 100% by limiting adhesion wear. That translates directly into longer die run times between maintenance cycles.
- Cutting tools and resharpening services. CrN delays resharpening and reduces chipping on punches; in real-world use, CrN-coated tools have produced over 500 parts while staying just warm to the touch, compared to roughly 15 parts before uncoated tools overheat. Resharpening shops that add CrN recoating give customers noticeably longer intervals between visits.
- Medical device manufacturing. CrN's biocompatibility and resistance to autoclaving chemicals suit it for surgical instruments and implant components that need repeated sterilization without degrading.
- Sheet metal drawing and deep-draw applications. Lower friction means less lubricant needed and a better surface finish on formed parts, cutting both consumable costs and post-processing cleanup.
- Adjacent industries such as automotive and food processing equipment also benefit, particularly where corrosion resistance and hygiene standards are strict.
Choosing the Right CrN Coating Partner
Surface Solutions applies high-performance PVD coatings (including CrN, TiN, AlTiN, TiCN, and its Alpha™ coating) for manufacturers across the metal forming, punching, and tool resharpening industries. The company serves customers throughout the U.S., Canada, and Mexico from its Fridley, Minnesota facility.
Real-world results back up the technical specs. In a documented stainless steel drawing application, tooling coated with an alternative coating produced only 15 parts before overheating to the point of being too hot to touch. Switching to CrN pushed that same tool to over 500 parts, staying just warm throughout the run.
This performance came from an actual production floor, not a controlled lab test.
If your operation faces similar issues, such as frequent resharpening, galling, or heat-related tool failure, a CrN consultation can determine whether it's the right fit for your application. Surface Solutions offers reasonable turnaround times and can be reached at 763-785-9436 or info@tincoat.net to request a quote.
Frequently Asked Questions
What is chromium nitride coating used for?
CrN is used on metal forming dies, cutting tools, medical implants, and corrosion-resistant industrial components. Its combination of hardness and chemical resistance makes it a common choice anywhere heat, wear, and moisture combine.
How long does CrN PVD coating last?
Coating life depends on the specific application, but documented case studies show CrN extending die life by more than 100% compared to uncoated tooling. Resharpening intervals typically stretch much longer as well.
Is CrN coating better than TiN coating?
CrN offers superior temperature resistance (700°C vs. 500°C) and better corrosion protection. TiN can still be the right call for lighter-duty, lower-heat applications where its slightly higher hardness matters more.
What is the maximum operating temperature for CrN coating?
CrN is rated to withstand approximately 700°C without losing its protective properties. Beyond that threshold, the coating can begin to lose structural integrity and its effectiveness.
How thick is a typical CrN PVD coating?
Most CrN coatings run 2-5 microns thick, or roughly 0.0001"-0.0002". That thin layer doesn't alter part dimensions or geometry in any meaningful way.
Can CrN coating be reapplied after tool resharpening?
Yes. Tools can typically be recoated with CrN after resharpening to restore corrosion resistance and wear protection. This is a standard, repeatable workflow for tool resharpening shops that partner with Surface Solutions.
