Introduction
Tool wear remains one of the most significant drains on manufacturing budgets. A single punch set cycling through 10,000 galvanized-steel parts may require an 8-hour sharpening cycle—multiply that across dozens of tools, and the downtime, labor costs, and replacement expenses add up quickly.
Iron nitride coating addresses this challenge by creating a metallurgically bonded, nitrogen-enriched surface layer. That layer raises hardness and wear resistance without the dimensional distortion common to conventional hardening methods.
This article explains what iron nitride coating is, how different nitriding processes work, the measurable performance benefits, and when to select nitriding over alternative surface treatments like TiN or CrN PVD coatings.
Key Takeaways
- Forms Fe₂N, Fe₃N, and Fe₄N compounds via thermal diffusion at 500–580°C (930–1,075°F)
- Compound layer of 5–25 microns sits over a diffusion zone up to 500+ microns deep
- Surface hardness of 650–1,211 HV delivers 10–15× lower laboratory wear rates
- Gas, plasma, and salt-bath nitriding each trade off temperature, duration, and control
What Is Iron Nitride Coating?
Iron nitride coating is a thermochemical diffusion treatment that introduces nitrogen atoms into the surface of ferrous metals at elevated temperatures, forming hard iron-nitrogen compounds.
Unlike Physical Vapor Deposition (PVD) coatings that deposit a thin film on top of the substrate, nitriding chemically alters the steel’s surface structure itself, creating a metallurgically bonded layer.
The Chemistry
During nitriding, nitrogen atoms diffuse into iron or steel surfaces at 500–580°C (932–1076°F), forming specific iron-nitrogen phases:
- Epsilon (ε-Fe₂₋₃N): Hexagonal iron nitride
- Gamma-prime (γ′-Fe₄N): Cubic iron nitride
- Nitrogen in solid solution: Dissolved nitrogen atoms in the diffusion zone beneath the compound layer
The nitrogen source depends on the process: ammonia gas (NH₃), ionized nitrogen plasma (N₂/H₂), or molten salt baths containing nitrogen compounds.

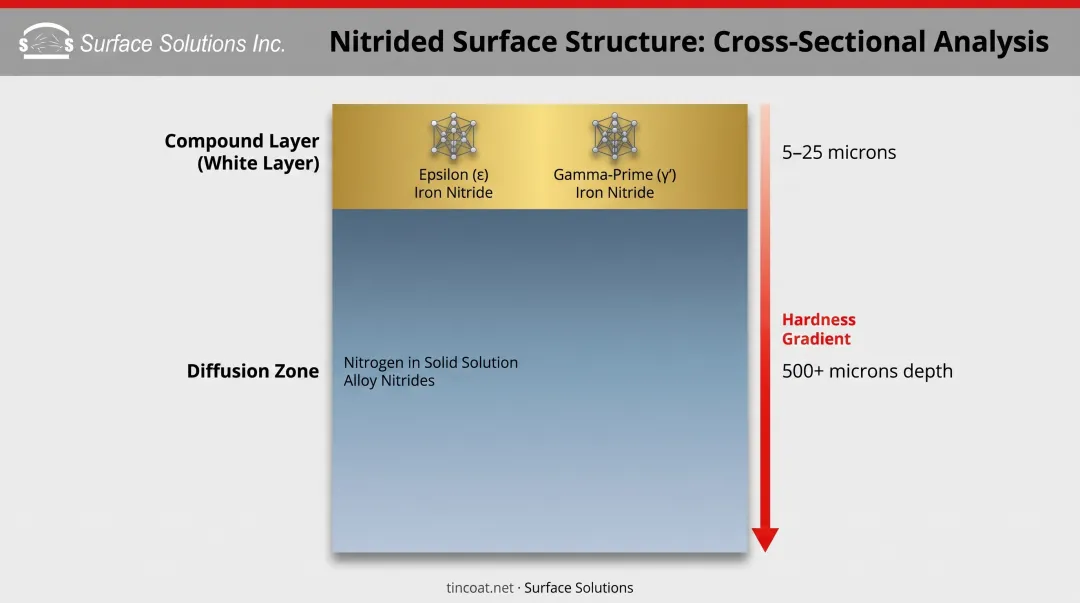

Surface Structure
A nitrided surface consists of two distinct zones:
1. Compound Layer (White Layer)
- Outer layer composed primarily of epsilon and gamma-prime iron nitride phases
- Typical thickness: 5–25 microns (material and cycle dependent)
- Provides primary wear and corrosion resistance
- Appears white under optical microscopy after etching
2. Diffusion Zone
- Subsurface region containing nitrogen in solid solution and alloy nitrides (AlN, CrN, MoN)
- Extends up to 500+ microns depending on temperature, duration, and steel composition
- Contributes to fatigue resistance through compressive residual stresses
- Gradual hardness transition from surface to core
On pure iron under controlled gas-nitriding conditions, reported compound layers run about 8–19 microns, with diffusion depths around 0.2–1.0 mm. Commercial results still shift with steel grade, process type, and cycle parameters.
Terminology Clarification
- Nitriding = the thermal diffusion process
- Iron nitride = the specific iron-nitrogen compounds formed on ferrous metals
- Nitrocarburizing = a variation that adds both nitrogen and carbon
- White layer = the visible compound layer seen in metallographic cross-sections
Types and Processes of Iron Nitride Coating
Iron nitride coatings are produced with three primary industrial processes: gas nitriding, plasma (ion) nitriding, and salt-bath nitrocarburizing. Temperature, chemistry, cycle time, and part geometry drive which method fits a given alloy and production volume.
Gas Nitriding
Gas nitriding uses ammonia (NH₃) as the nitrogen source. Parts are heated in a controlled ammonia atmosphere at 500–550°C, where ammonia dissociates into nitrogen and hydrogen:
2NH₃ → N₂ + 3H₂
The released nitrogen atoms diffuse into the steel surface, forming nitride compounds.
Process characteristics:
- Temperature: Typically 520°C for general tooling and automotive components
- Duration: Cycle-dependent; industrial processes range from several hours to multi-day treatments
- Control: Precise atmosphere management allows tailored compound-layer thickness and phase composition
Advantages:
- Uniform coating on complex geometries
- Established process for gears, crankshafts, and dies
- Excellent repeatability in batch furnaces
- No line-of-sight limitations
Plasma (Ion) Nitriding
Plasma nitriding operates in a low-pressure vacuum chamber where nitrogen/hydrogen gas is ionized. An electrical potential between the workpiece (cathode) and chamber walls (anode) accelerates ions toward the part surface, delivering energy and reactive nitrogen simultaneously.
Process characteristics:
- Temperature: 350–550°C (lower than gas nitriding for many applications)
- Pressure: Typically evacuated to 0.1 Torr before introducing process gas
- Duration: 2–20 hours depending on alloy and case-depth requirements
- Control: Voltage, gas composition, and pressure allow precise layer engineering
On H13 tool steel, plasma nitriding at 460–500°C for 4 hours has produced surface hardness of 1,081–1,211 HV₀.₂.
Advantages:
- Lower processing temperatures reduce distortion risk
- Selective masking possible using metal foil or fixtures
- Suitable for high-alloy and stainless steels
- Faster cycle times than conventional gas nitriding for many applications
Modern applications:
- High-value tooling requiring tight dimensional tolerances
- Stainless steel components where chrome depletion must be minimized
- Complex parts requiring selective nitriding
Salt Bath Nitriding (Nitrocarburizing)
Salt-bath ferritic nitrocarburizing (FNC) immerses parts in molten alkali-cyanate salts at 550–570°C. The bath simultaneously introduces nitrogen and carbon, creating a nitrocarburized surface layer rather than pure nitriding.
Process characteristics:
- Temperature: 550–570°C in molten salt
- Chemistry: Proprietary alkali-cyanate formulations
- Post-treatment: Oxidizing quench neutralizes cyanide compounds
- EPA classification: Processes using cyanide fall under hazardous-waste listings F010, F011, and F012
Note on environmental regulation: Use of cyanide-bearing chemistry imposes strict waste-handling, disposal, and environmental compliance obligations. While not universally banned, regulatory requirements have led many facilities to transition to gas or plasma nitriding for equivalent applications.
Advantages:
- Rapid heating and treatment in compact equipment
- High throughput for small to medium parts
- Combined nitrogen-carbon diffusion in a single step

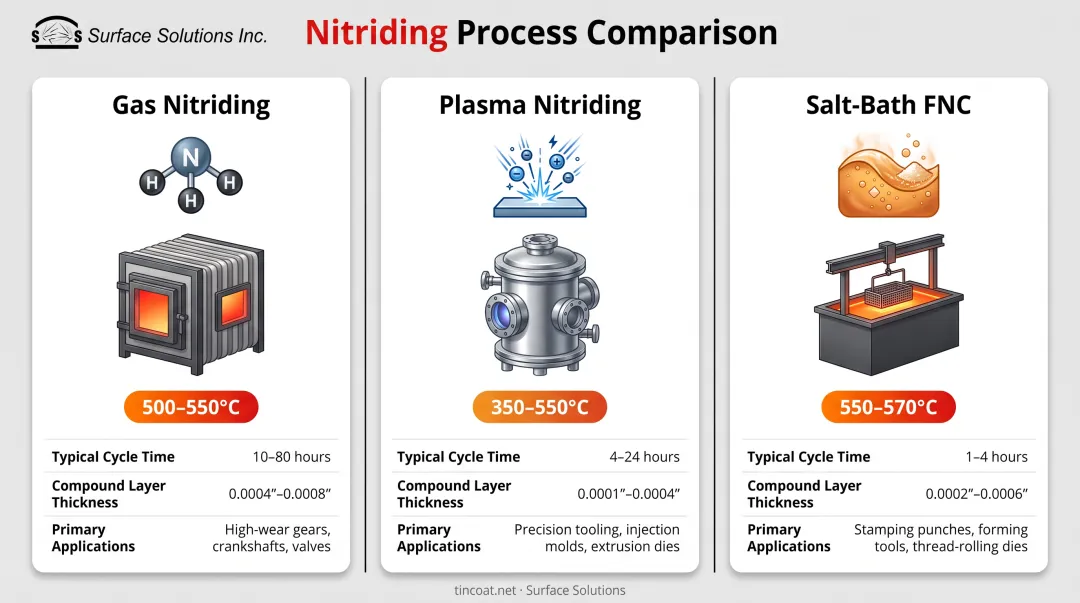

Process Comparison
| Process | Temperature | Typical Cycle | Compound Layer | Surface Hardness | Best Applications |
|---|---|---|---|---|---|
| Gas Nitriding | 500–550°C | Material/depth dependent | 5–25 μm | 650–700 HV (P20 steel) | Gears, crankshafts, general tooling |
| Plasma Nitriding | 350–550°C | 2–20 hours | 5–25 μm | 1,081–1,211 HV (H13 steel) | High-alloy steels, selective masking, tight-tolerance tooling |
| Salt-Bath FNC | 550–570°C | Rapid | Variable | Variable | High-volume parts, nitrocarburized surfaces |
Benefits and Properties of Iron Nitride Coating
Dramatic Hardness Increase
Nitriding produces surface hardness values far exceeding the base steel:
- P20 mold steel: Gas nitriding at 525°C for 20 hours achieved 650 HV₁; ion nitriding at 480°C for 48 hours reached 700 HV₁ (compared to base hardness ~200–300 HV)
- H13 tool steel: Plasma nitriding at 460–500°C for 4 hours produced 1,081–1,211 HV₀.₂ (compared to base hardness ~400–500 HV)
The compound layer's epsilon and gamma-prime iron nitride phases provide the primary hardness boost, while the diffusion zone creates a gradual transition that supports the hard surface without risking brittle failure.

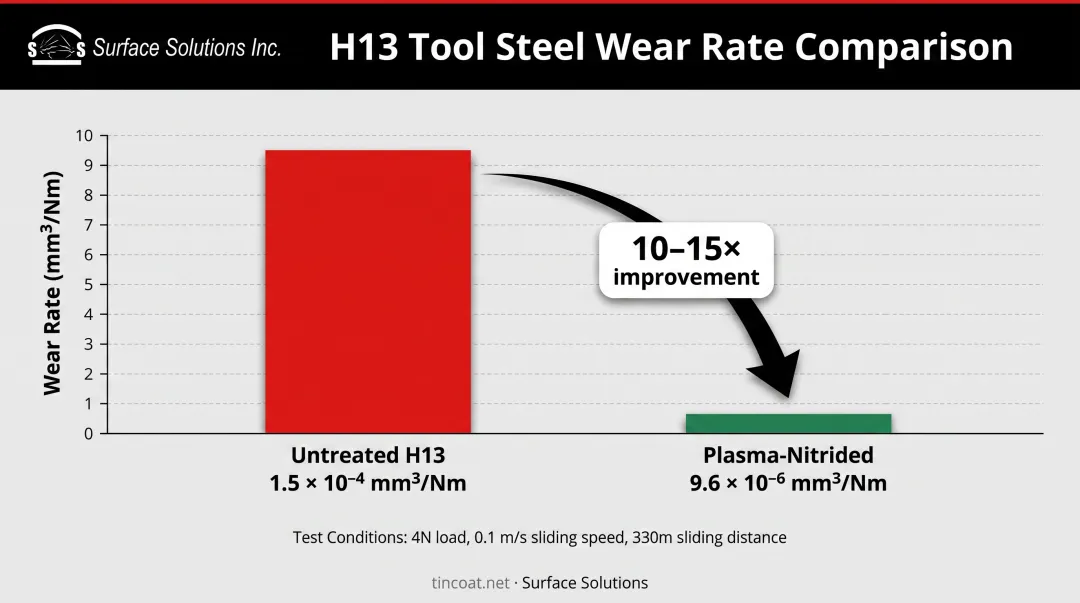

Wear Resistance Improvement
Laboratory wear testing of plasma-nitrided H13 tool steel showed:
- 10–15× lower wear rate under controlled dry ball-on-disk testing (4 N load, 0.1 m/s, 330 m sliding distance)
- Untreated H13 wear rate: 1.5 × 10⁻⁴ mm³/Nm
- Plasma-nitrided (480°C) wear rate: 9.6 × 10⁻⁶ mm³/Nm
These laboratory results show the wear-reduction mechanism. They do not translate directly to field tool-life claims, which depend on part geometry, material combinations, operating loads, and maintenance practices.
Fatigue Strength Improvement
The nitrogen diffusion zone introduces compressive residual stresses in the surface, which oppose tensile stresses during cyclic loading and delay crack initiation. Research combining fine-particle peening and gas nitriding of H13 steel at 540°C for 8 hours reached about 1,000 MPa fatigue strength versus 650 MPa untreated. That figure reflects the combined treatment, not nitriding alone.
The diffusion zone's contribution to fatigue resistance makes nitriding particularly valuable for rotating components like crankshafts, camshafts, and gears subjected to repeated bending and torsional loads.
Corrosion Resistance Enhancement
The iron nitride compound layer acts as a barrier to moisture and corrosive media. Post-nitriding oxidation treatment can further enhance corrosion protection by forming a thin oxide film over the nitride layer.
Critical caveat: Nitriding does not universally improve corrosion resistance. Research on 1Cr15 martensitic stainless steel showed:
- Good salt-spray resistance after low-temperature nitriding (250–300°C for 24 hours)
- Severe corrosion after higher-temperature cycles (350–450°C for 24 hours) due to chromium nitride (CrN) precipitation, which depletes surface chromium and reduces passivation
Stainless steel nitriding cycles must be validated alloy by alloy to avoid unintended corrosion sensitivity.
Dimensional Stability
Nitriding occurs below the steel's transformation temperature (typically below 580°C), meaning the part does not undergo phase changes or require quenching. This results in:
- Minimal distortion compared to conventional hardening and quenching
- Suitability for finished or near-finished parts with tight dimensional tolerances
- Reduced risk of warping, size growth, or cracking
However, "minimal distortion" does not mean zero growth. Controlled nitrogen potential and proper fixturing remain essential for precision parts.
Applications and Industries Using Iron Nitride Coating

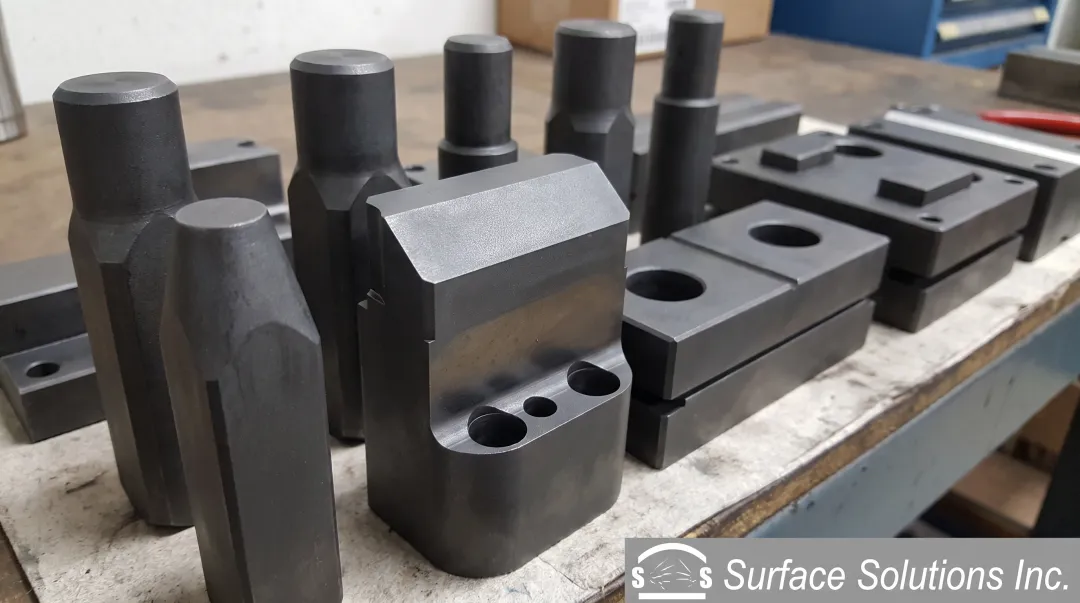

Metal Forming and Tooling
Iron nitride coating is widely adopted in metal forming operations where abrasive wear, galling, and die pickup shorten tool life:
- Punches and dies for sheet metal stamping and blanking
- Extrusion tooling for aluminum and steel extrusion
- Forging dies subjected to high temperatures and pressures
- Cold-forming tools requiring extreme surface hardness
One stamping operation running M4 punches reported more than 15 months of life and roughly 15 million parts in 0.057-inch galvanized steel. Uncoated tooling in the same job needed sharpening every three weeks.
Automotive Industry
Automotive manufacturers rely on nitriding for durable, high-cycle components:
- Crankshafts and camshafts benefiting from fatigue-strength improvement
- Gears and transmission components requiring wear resistance
- Valve components exposed to high temperatures and combustion byproducts
- Fuel injection parts demanding precision and corrosion resistance
Injection Molding
Nitrided P20 and similar mold steels extend maintenance intervals and improve part consistency in plastic injection molding. The hard, wear-resistant surface reduces polymer adhesion, gate wear, and ejection-pin damage.
Cutting Tools
While PVD coatings like TiN and AlTiN dominate high-speed cutting applications, nitriding serves specialized cutting-tool roles:
- Drills, taps, and reamers for difficult-to-machine materials
- Milling cutters requiring subsurface support
- Tooling for interrupted cuts where impact resistance matters
When a job needs still higher surface hardness and oxidation resistance than nitriding provides, PVD options such as TiN, AlTiN, and CrN reach about 4,000–4,200 HV at 2–5 microns thick. Surface Solutions applies these PVD coatings for metal forming, medical device, and cutting-tool manufacturers at 700–800°F.
Iron Nitride Coating vs Other Surface Treatments
Iron nitride is not a drop-in swap for every hard coating or case treatment. Load, part geometry, distortion limits, and wear mode usually decide which process wins.
Iron Nitride vs Titanium Nitride (TiN) PVD Coating
| Characteristic | Iron Nitride (Diffusion) | TiN PVD Coating |
|---|---|---|
| Layer type | Metallurgically bonded diffusion | Thin deposited ceramic film |
| Thickness | 5–25 μm compound + 500+ μm diffusion | 2–5 μm |
| Surface hardness | 650–1,211 HV (steel dependent) | ~2,300–2,800 HV |
| Substrate support | Deep diffusion zone supports surface | Thin coating depends on substrate hardness |
| Distortion | Minimal (low-temperature process) | Minimal (low-temperature deposition) |
| Best for | Heavy loads, impact, subsurface support needed | High-speed cutting, abrasive wear, friction reduction |
When to choose iron nitride: Parts requiring deep case support, impact resistance, or treatments on complex internal passages that PVD line-of-sight cannot reach.
When to choose TiN PVD: High-speed cutting tools, precision components where minimal thickness change is critical, or applications requiring gold appearance for identification.
Surface Solutions applies TiN at 2,300–2,800 HV and 2–5 microns for cutting tools and wear parts that need an ultra-hard surface without a deep nitride case.
Iron Nitride vs Chromium Nitride (CrN) PVD Coating
CrN is a thin PVD film often chosen when corrosion resistance and low friction matter. Typical properties include:
- CrN surface hardness: ~2,300 HV
- CrN thickness: 2–6 microns
- Corrosion resistance: Superior to TiN and iron nitride
- Non-stick properties: Lower coefficient of friction, ideal for stainless-steel forming
In a Surface Solutions stainless-steel drawing application, CrN-coated tooling produced over 500 parts with parts remaining only warm to the touch, while alternative coatings managed just 15 parts before parts became too hot to handle.
When to choose iron nitride: Cost-effective wear resistance with deeper case support, especially on ferrous substrates.
When to choose CrN PVD: Corrosion-prone environments, medical devices, food processing, or high-heat stainless-steel forming applications.

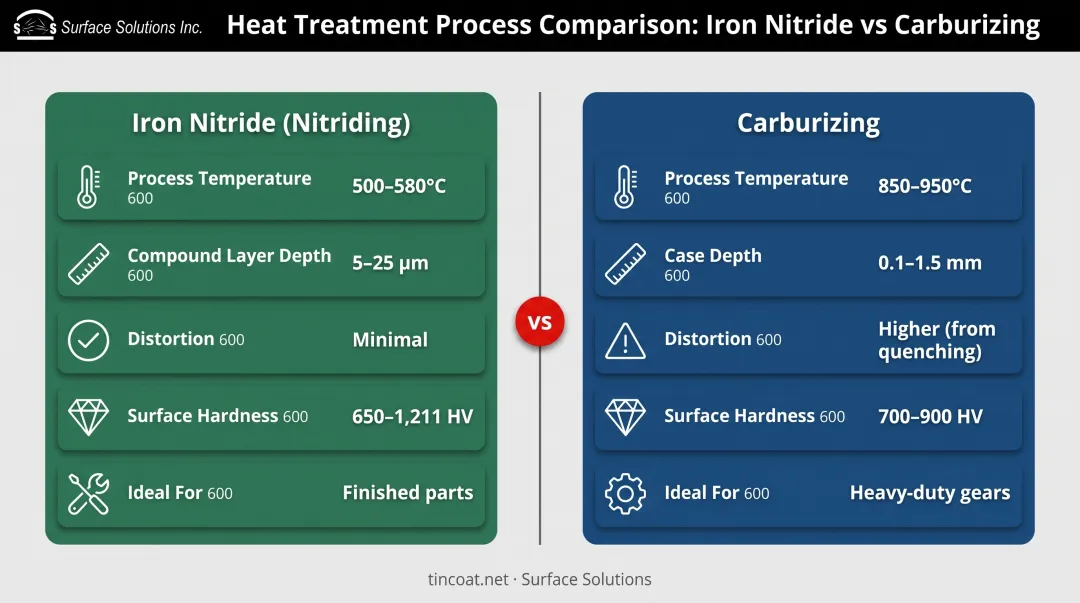

Iron Nitride vs Carburizing
Carburizing introduces carbon (not nitrogen) at 850–950°C, creating a carbon-enriched case that is then quenched to form hard martensite:
- Carburizing case depth: 0.1–1.5 mm (deeper than typical nitriding)
- Surface hardness: 700–900 HV after quenching (steel dependent)
- Distortion: Higher due to quenching requirement
- Best for: Heavy-load applications requiring deep case depth, such as large gears and shafts
When to choose iron nitride: Finished or near-finished parts requiring low distortion, or when surface hardness and fatigue resistance are priorities over extreme case depth.
When to choose carburizing: Heavy-duty gears, bearings, and shafts where deep case depth (>0.5 mm) and core toughness are essential.
Materials and Selection Considerations
Ideal Base Materials
Iron nitride coating performs best on low-alloy and tool steels containing nitride-forming elements:
Nitriding steels:
- Contain aluminum (Al), chromium (Cr), molybdenum (Mo), vanadium (V)
- Form stable alloy nitrides (AlN, CrN, MoN, VN) in the diffusion zone
- Achieve higher surface hardness and deeper effective case
Tool steels:
- H13 (hot-work steel): Excellent nitriding response; widely used for die-casting and forging dies
- P20 (mold steel): Common in plastic injection molds; nitriding extends service life
Stainless steels:
- Plasma nitriding allows treatment of high-chromium stainless steels (>12% Cr)
- Low-temperature cycles (250–350°C) preserve corrosion resistance
- High-temperature cycles risk chromium depletion and corrosion sensitivity
Pre-Treatment Requirements
Successful nitriding requires proper part preparation:
- Heat treat and temper to final hardness before nitriding – Nitriding is a surface treatment, not a bulk hardening process
- Clean, oil-free surfaces – Contaminants prevent nitrogen diffusion
- Remove oxides, EDM recast, or prior coatings – These layers block nitrogen penetration
- Stress relieve if necessary – Relieve machining stresses to prevent distortion during nitriding
For example, Uddeholm's recommended P20 preparation sequence is: rough machine → stress temper at 550°C → grind → nitride.
Masking and Selective Nitriding
Areas requiring post-nitriding machining, tight dimensional tolerances, or specific hardness profiles may need protection:
- Gas nitriding: Masking with stop-off paints or copper plating
- Plasma nitriding: Metal foil or fixture masking due to line-of-sight ion bombardment
- Salt-bath: Limited masking options due to immersion
Cost-Benefit Analysis
Nitriding investment makes sense when:
- Part replacement costs are high – Complex dies, molds, or tooling with long lead times
- Downtime is expensive – High-volume production where tool changes halt operations
- Production volume justifies treatment cost – Batch nitriding spreads fixed costs across multiple parts
- Measured failure mode is wear or fatigue – Nitriding directly addresses these mechanisms
Without a verified baseline failure mode, cycle specification, and cost structure, generic ROI claims should not guide purchasing decisions. Consult with nitriding providers and measure actual tool-life improvement in your specific application.
Frequently Asked Questions
What is iron nitride?
Iron nitride refers to a family of iron-nitrogen compounds, primarily epsilon (Fe₂₋₃N) and gamma-prime (Fe₄N), formed when nitrogen diffuses into iron or steel surfaces during thermal nitriding at 500–580°C.
Is iron nitride the same as nitriding?
No. Nitriding is the surface treatment process, while iron nitride is the compound formed on ferrous metals. Other metals produce different nitrides, such as chromium (CrN) and titanium (TiN).
How long does iron nitride coating last?
Properly applied iron nitride coating is metallurgically bonded and permanent. It will not peel or flake. Tool-life gains depend on the application, but service intervals often extend several times versus untreated tooling.
What industries commonly use iron nitride coating?
Common users include:
- Automotive manufacturing (crankshafts, gears, valves)
- Tool and die making (punches, extrusion dies, forging dies)
- Injection molding (mold components)
- Metal forming (stamping and drawing tools)
- Aerospace (precision components)
Can iron nitride coating be removed or reapplied?
The coating cannot be easily removed without grinding away surface material. Re-nitriding is possible after resharpening or regrinding removes the original nitrided layer and restores surface properties.
What are the different types of iron nitride coatings?
The main phases are epsilon (ε-Fe₂₋₃N, hexagonal) and gamma-prime (γ′-Fe₄N, cubic). Nitriding process and atmosphere control which phases form and their share of the compound layer.
Iron nitride coating improves hardness, wear resistance, and fatigue strength on demanding tooling. When you need ultra-hard surfaces, lower friction, or stronger corrosion resistance, complementary PVD coatings such as TiN, AlTiN, or CrN from Surface Solutions can match specific operating conditions.
