Here's the catch: there's no universal "best" fastener coating. The right choice depends on your environment, base metal, torque requirements, and budget. A coating that performs beautifully indoors can fail within months on a coastal dock.
This guide breaks down the top fastener coatings by corrosion resistance, cost, and typical use case, so engineers and buyers can specify with confidence instead of guessing.
Key Takeaways
- Zinc coatings remain the most cost-effective option for general corrosion protection
- Stainless steel, cadmium, and chrome perform best in extreme environments, at a higher price
- Salt spray testing (ASTM B117) is the industry benchmark for comparing coating durability
- Match corrosion resistance, friction, and appearance to your application, not a generic "best" label
- Tooling quality shapes fastener performance — a factor buyers often overlook
Overview of Fastener Coatings in Industrial Manufacturing
Fastener coatings are protective or decorative layers applied to bolts, screws, nuts, and washers. They exist to resist corrosion, reduce installation friction, or improve appearance. Since fasteners are the structural connectors holding assemblies together, a coating failure doesn't stay isolated — it compromises the whole joint.

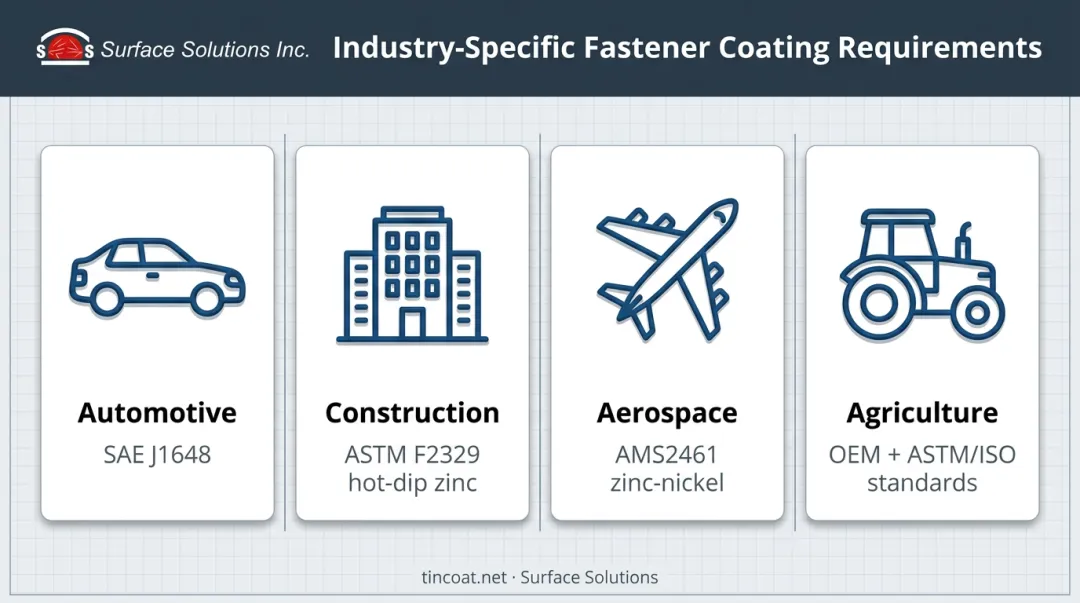

The stakes are growing. The corrosion-protective coatings market was valued at $20.59 billion in 2023, with a projected 7.4% CAGR through 2030, according to a 2023 report by Grand View Research. That growth reflects rising demand across sectors that each treat coating differently:
- Automotive fasteners follow SAE J1648 for corrosion, lubricity, and grounding requirements
- Construction relies heavily on ASTM F2329 hot-dip zinc specifications
- Aerospace frequently specifies electrodeposited zinc-nickel per AMS2461
- Agriculture typically defers to OEM requirements layered on top of general ASTM/ISO fastener standards
No single coating dominates every industry. What follows are the coatings most widely specified across these sectors, compared on corrosion resistance, cost, and reliability.

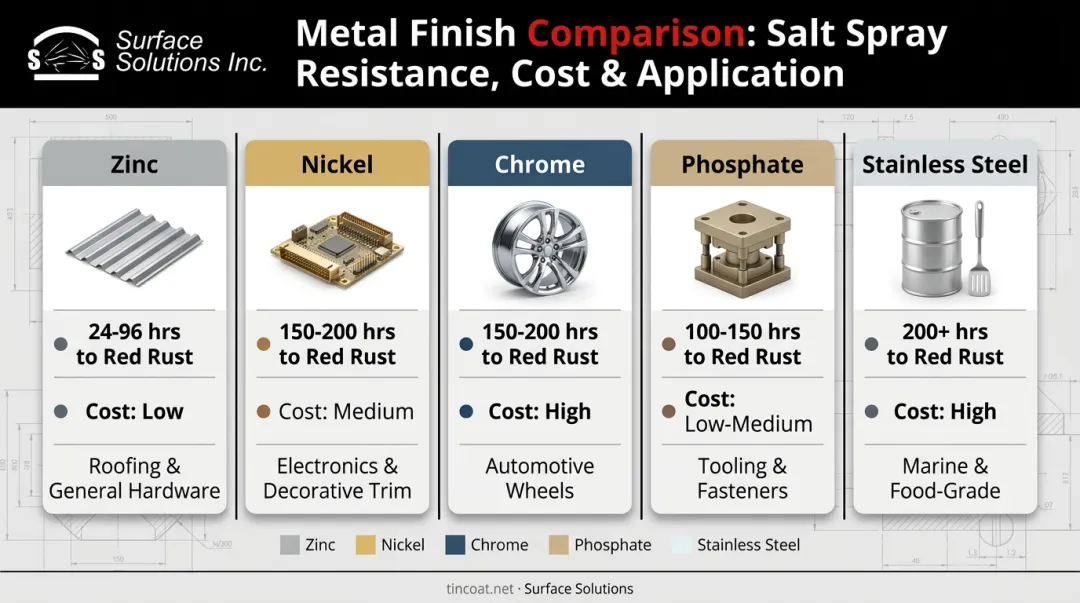

Top Fastener Coatings for Corrosion Resistance and Durability
Before comparing options, it helps to know the criteria that actually matter: salt spray hours (how long a coating resists red rust under ASTM B117 testing), cost-effectiveness, friction and torque behavior, and typical industry use. Here's how the major coating families stack up.
Zinc Coatings (Electroplated, Mechanical, Hot-Dip, Flake)
Zinc remains the workhorse of fastener coatings. It's inexpensive and sacrificial, meaning it corrodes preferentially to protect the base steel underneath. But not all zinc processes perform the same:
- Electroplated zinc suits indoor or light-duty use where cost matters more than harsh exposure
- Hot-dip galvanizing handles coastal and outdoor exposure thanks to its thicker coating
- Zinc flake avoids the hydrogen embrittlement risk that comes with electrolytic plating, making it preferred for high-strength fasteners above 1,000 MPa
| Criteria | Details |
|---|---|
| Corrosion Resistance | Per ASTM F1941, yellow electrozinc ranges from 24 hours at 3 microns to 144 hours at 12 microns to red rust; zinc flake systems can exceed 1,000 hours |
| Typical Applications | Roofing, general construction, indoor fasteners, humid environments |
| Cost & Considerations | Inexpensive but not built for high-salt coastal or heavy-corrosive settings |
Nickel Coatings
Nickel plating delivers a bright, decorative finish with moderate corrosion protection. It comes in a few flavors depending on the goal:
- Watts bright nickel: decorative, though high sulfur content can lower ductility
- Nickel sulfamate: better elongation, suited to parts under mechanical stress
- Black nickel: thin tin-nickel codeposit used on defense and specialty hardware
| Criteria | Details |
|---|---|
| Corrosion Resistance | Pure nickel plating has no universal published B117 benchmark; zinc-nickel alloy systems, by contrast, reach 1,500 hours to red rust per F1941 |
| Typical Applications | Electronics, decorative hardware, engineering components |
| Cost & Considerations | Higher cost than zinc; verify performance with fastener-specific testing before specifying for ammonia-heavy agricultural environments |
Chrome (Chromium) Plating
Hard chrome functions primarily as a wear coating, not a corrosion coating. It offers the highest hardness of any common fastener finish, typically 940-1,210 HV, and holds up in applications where abrasion, not rust, is the enemy.
Where it earns its price tag:
- Hydraulic cylinders and molds
- Tooling requiring an easy-to-clean, attractive surface
- Automotive and firearm components subject to repeated friction
| Criteria | Details |
|---|---|
| Corrosion Resistance | Strong wear and surface hardness, but no defensible public cost comparison exists against zinc or nickel for finished fasteners |
| Typical Applications | Automotive components, tooling, high-wear mechanical parts |
| Cost & Considerations | Most expensive common coating; justified only where durability outweighs cost |
Phosphate Coatings
Phosphate functions as a base layer, not a standalone corrosion solution. Its porous structure holds oil or paint, which does the actual protecting.
- Reduces friction for smoother, more consistent installation
- Improves adhesion for secondary paint or oil topcoats
- Zinc phosphate systems test at a coefficient of friction of 0.15-0.20 under ISO 16047
| Criteria | Details |
|---|---|
| Corrosion Resistance | Minimal alone; requires an oil or paint topcoat for real protection |
| Typical Applications | Automotive wheels, indoor fasteners, pre-paint surface prep |
| Cost & Considerations | Low cost but unsuitable for outdoor or wet environments without supplemental finish |
Stainless Steel Fasteners
Stainless steel is technically a material choice, not a coating, but buyers constantly weigh it against coated carbon steel. There's no plating to wear off, chip, or degrade over time.
- 304/305 grade: rated "very good" for general and commercial use
- 316 grade: rated "maximum" corrosion resistance, the standard recommendation for ocean or waterfront exposure, according to Simpson Strong-Tie
| Criteria | Details |
|---|---|
| Corrosion Resistance | Naturally corrosion-resistant across most environments; no plating degradation over time |
| Typical Applications | Marine, medical, food processing, outdoor structural use |
| Cost & Considerations | Higher upfront material cost, but lower long-term maintenance and replacement expense |
How to Choose the Right Fastener Coating
The most common mistake buyers make? Picking a coating based on price or appearance alone, without matching it to actual environmental exposure and torque demands.
Key factors to weigh before you specify a coating:
- Exposure level: indoor, outdoor, or coastal/chemical environments each demand different corrosion resistance
- Mating material compatibility: dissimilar metals in contact can trigger galvanic corrosion; check ASTM G82 galvanic series data before pairing coatings with connected materials
- Friction and torque behavior: coatings change the nut factor (K-factor), which shifts the torque-tension relationship; published K-factors range from 0.12 for lubricated assemblies to 0.35 for dry stainless
- Budget constraints: weigh acquisition cost against long-term maintenance and replacement costs
Before finalizing a supplier, ask for salt spray test data (ASTM B117 results) and confirm which industry certification the coating meets. A supplier who can't produce test data is a red flag.
Beyond the Fastener: Why Tooling Coatings Matter in Production
Fastener coatings protect the finished part. But the dies, punches, and forming tools that manufacture those fasteners face their own wear and corrosion battle, often under far more punishing conditions than the parts they produce.
High-volume cold-heading, thread-rolling, and stamping operations put enormous cyclical stress on tooling. Every resharpening cycle means pulling tools from the press, which translates directly into downtime.

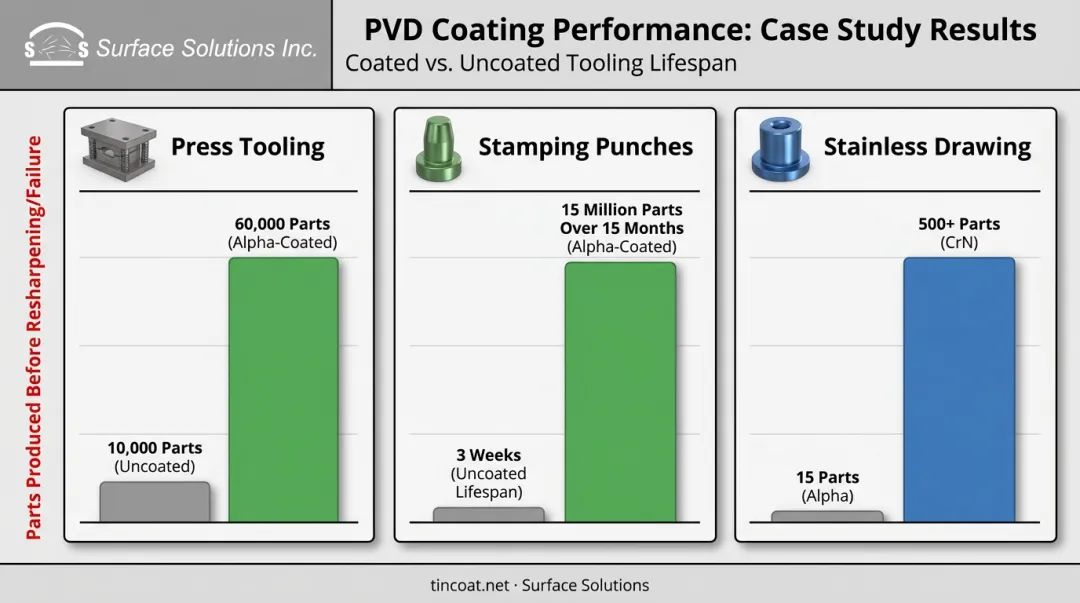

That wear pattern is exactly what tooling coatings are built to slow down. Surface Solutions, a PVD coating provider based in Fridley, Minnesota, applies coatings like TiN, AlTiN, CrN, and its proprietary Alpha™ formulation to production tooling used in stamping, punching, and forming operations. The documented results from its customers illustrate the stakes:
- One press-tooling customer reached 60,000 parts without resharpening, up from a 10,000-part baseline — a six-fold gain that saved 48 hours of labor per run
- A stamping operation using Alpha™-coated M4 punches on galvanized steel hit 15 million parts over 15 months without resharpening, versus every 3 weeks with uncoated punches
- Switching a stainless steel drawing application from Alpha™ to CrN coating raised output from 15 parts before overheating to over 500 parts, staying only warm to the touch
Manufacturers producing coated fasteners at scale can cut both downtime and tooling costs by applying high-performance coatings to their production tooling, not just their finished parts.
Conclusion
There is no single "best" fastener coating. The right answer balances corrosion resistance, cost, and the specific demands of your application, whether that's a humid warehouse or a saltwater dock.
Before finalizing a decision, evaluate salt spray ratings, environmental exposure, and long-term maintenance costs rather than upfront price alone.
If you're manufacturing fasteners at volume, don't overlook the dies and punches that shape them. Extending their life through PVD coating keeps production running longer between maintenance cycles — worth exploring alongside your fastener coating strategy.
Frequently Asked Questions
What are the different coatings for fasteners?
The main categories are zinc (electroplated, hot-dip, mechanical, flake), nickel, chrome, phosphate, cadmium, and stainless steel. Each balances corrosion resistance and cost differently, so the right pick depends on your exposure conditions.
What is the best coating for bolts?
Zinc and hot-dip galvanizing cover most general-purpose needs affordably. For extreme or marine environments, stainless steel or cadmium plating typically perform better long-term.
What is the yellow coating on fasteners?
That's yellow zinc, an electroplated finish also called zinc chromate. It offers improved corrosion resistance over plain zinc and a golden appearance, making it common in moisture-prone settings.
How long do zinc-coated fasteners last before corroding?
Under ASTM B117 salt spray testing, electroplated zinc ranges from 24 hours at 3 microns to 144 hours at 12 microns before red rust appears. Zinc flake systems often exceed 1,000 hours.
Is stainless steel better than a coated fastener?
Stainless offers superior long-term corrosion resistance since there's no plating layer to degrade. It costs more upfront than coated carbon steel, but often reduces replacement expense over time.
Can fastener coatings affect torque and clamp load?
Yes — coatings like phosphate change friction, which shifts the torque-tension relationship. Always follow coating-specific torque charts rather than reusing values meant for uncoated fasteners.
