Introduction
Manufacturers across aerospace, automotive, metal forming, and tooling are under mounting pressure to move away from hard chrome plating. Regulatory requirements are one driver — but performance limitations are pushing the transition just as hard.
The compliance burden is substantial and growing:
- OSHA 29 CFR 1910.1026 sets a permissible exposure limit of 5 µg/m³ for hexavalent chromium, with an action level of 2.5 µg/m³ (8-hour TWA)
- The EU's REACH Annex XIV sunset date for chromium trioxide passed in September 2017 — any facility still using it in surface treatment must hold a valid authorization
- EPA hazardous waste codes D007 and F006 impose strict handling and disposal requirements
Beyond compliance, hard chrome underperforms in several critical applications where modern coatings now offer measurable advantages in hardness, adhesion, and operating temperatures.
This guide covers the five most viable alternatives, how they compare technically, and how to choose the right one for your application.
Key Takeaways
- Hexavalent chromium (Cr6+) is a Group 1 carcinogen facing tightening regulations in the US and EU
- PVD coatings (CrN, TiN, AlTiN) lead for precision tooling, punches, and forming dies
- HVOF thermal spray exceeds hard chrome in hardness for large external wear surfaces
- Electroless nickel handles complex geometries that line-of-sight processes can't reach
- The right alternative depends on part geometry, required hardness, and operating temperature
Why Hard Chrome Plating Is Being Replaced
The Health and Regulatory Case
IARC classifies hexavalent chromium compounds as Group 1 carcinogens, linked to lung, nasal, and sinus cancers along with skin ulceration and allergic dermatitis. The health risk alone is enough to trigger scrutiny — but OSHA's exposure standard adds a significant operational burden on top of it.
Compliance requires facilities to:
- Conduct ongoing air monitoring
- Implement engineering controls (ventilation, enclosures)
- Provide employee medical surveillance
- Manage hazardous waste under RCRA codes D007 and F006
In the EU, the picture is even clearer. Chromium trioxide (Annex XIV, Entry 16) and acids generated from it (Entry 17) passed their REACH sunset date in 2017. Facilities without valid authorizations face potential enforcement exposure, and the European Commission's proposed Annex XVII restriction — expected in late 2027 or early 2028 — could eliminate the authorization pathway altogether.

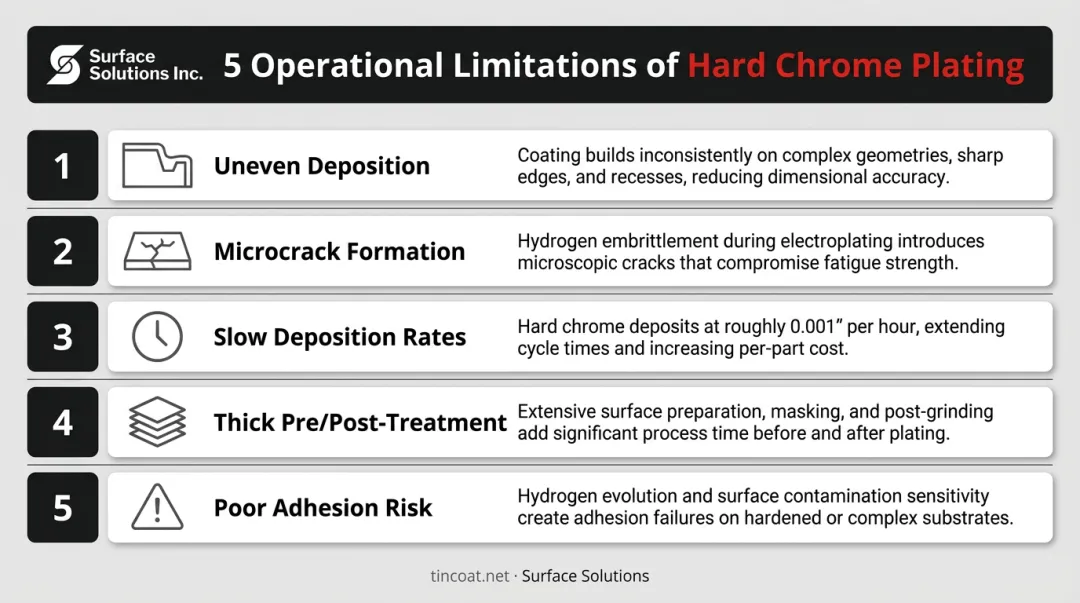

Operational Limitations
Beyond the regulatory burden, hard chrome plating carries process-level limitations that affect part quality and production efficiency:
- Uneven deposition on complex geometries, recesses, and internal bores
- Microcrack formation that reduces fatigue resistance in high-cycle applications
- Slow deposition rates compared to thermal spray alternatives
- Thick pre- and post-treatment requirements that add time and cost
- Poor adhesion risk on some substrates without careful surface preparation
For precision tooling and high-volume forming operations, these drawbacks are hard to ignore — which is why PVD coatings and other alternatives have steadily displaced hard chrome in demanding applications.
Top Alternatives to Hard Chrome Plating
The right alternative depends on part geometry, substrate material, required hardness, operating temperature, and coating thickness needs. No single process wins across all categories.
PVD Coatings (Physical Vapor Deposition)
PVD vaporizes solid coating materials — chromium, titanium, aluminum — in a high-vacuum chamber and deposits them as an ultra-thin, dense film (typically 0.0001″–0.0002″, or 2–5 microns) onto the part surface. Common coating types include CrN (Chromium Nitride), TiN (Titanium Nitride), TiCN (Titanium Carbo-Nitride), and AlTiN (Aluminum Titanium Nitride).
Performance advantages:
- Very high hardness — AlTiN reaches 4,000–4,200 HV
- Low coefficient of friction, reducing heat generation and adhesive wear
- No toxic chemistry involved in the process
- Replicates the substrate's surface finish without post-grinding
- Documented tool life improvements of 2–7x over uncoated equivalents
PVD is particularly effective for cutting tools, punches, and forming dies. In one stainless steel drawing application, Surface Solutions' CrN coating delivered over 500 parts produced with parts only warm to the touch — compared to just 15 parts before overheating forced a stop under a different coating, a 33x output increase from a single process change.
Limitations: Parts must fit inside a vacuum chamber and withstand processing temperatures of approximately 800°F. This rules out aluminum and zinc alloys, assemblies with plastic inserts, and very large hydraulic components.
Electroless Nickel Plating
Electroless nickel uses a chemical reduction reaction (no electrical current) to deposit a nickel-phosphorus alloy uniformly across all surfaces — recesses, blind holes, and internal bores included. That even coverage across complex geometry is what hard chrome and PVD can't match.
Performance properties:
- Hardness ranges from 450–550 HV as-plated (high-phosphorus formulations), rising to 900–1,000 HV after heat treatment
- Good corrosion resistance across a wide range of environments
- More ductile than hard chrome, reducing brittleness-related failures
- Compatible with steel, aluminum, and plastics
Best suited for molds, gears, bearings, valves, and medical devices where geometry complexity makes PVD or thermal spray impractical. ASTM B733-22 governs specification and testing.
HVOF Thermal Spray Coatings
High Velocity Oxygen Fuel (HVOF) thermal spray propels carbide materials — most commonly tungsten carbide-cobalt (WC-Co) or WC-CoCr — at supersonic velocity onto the substrate, producing a dense, hard coating.

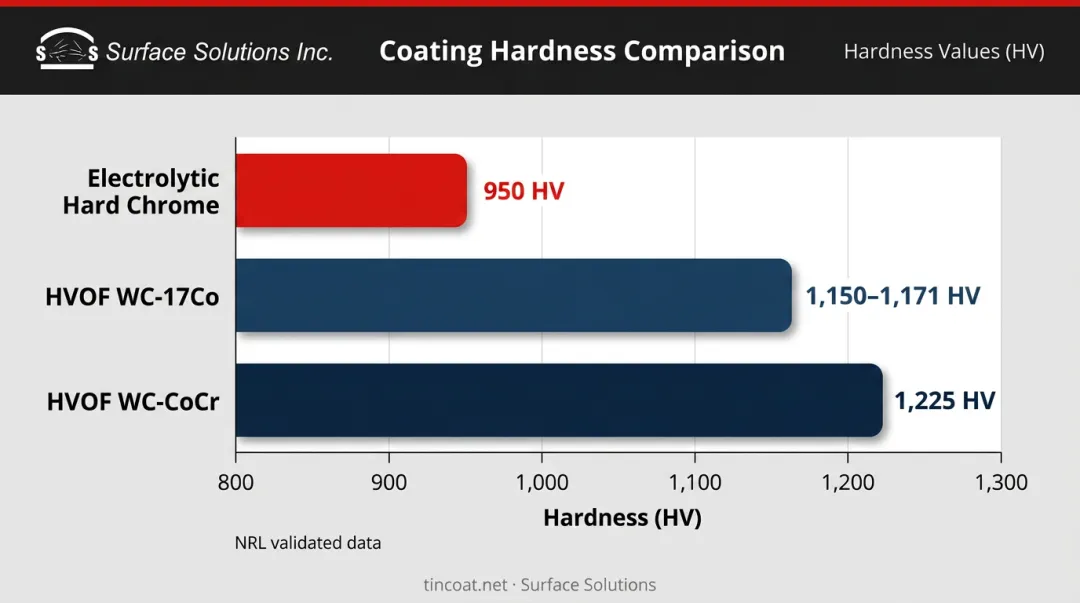

Validated Naval Research Laboratory data puts the hardness comparison in clear terms:
| Coating | Hardness (HV) |
|---|---|
| Electrolytic Hard Chrome | 950 HV |
| HVOF WC-17Co | 1,150–1,171 HV |
| HVOF WC-CoCr | 1,225 HV |
HVOF coatings are qualified for aerospace landing gear under SAE ARP5935A, and WC-17Co P-3C main landing gear pistons completed 38,000 simulated flight hours without cracking in DoD testing.
Key limitation: HVOF is a line-of-sight process — it cannot coat internal bores or recesses. Best suited for outside diameters, hydraulic piston rods, and rolls. Coating thickness typically ranges from 0.005″ to 0.050″. Also worth noting: HVOF carbide coatings require separate corrosion system validation, as WC-Co and WC-CoCr did not pass ASTM B117 salt-fog criteria in the same NRL program.
Nickel-Tungsten (Ni-W) Alloy Plating
Ni-W is an electrodeposited alloy that delivers 600–690 HV as-plated, rising to 1,060–1,150 HV after heat treatment according to IAEG 2025 aerospace guidance. It offers solid wear and corrosion resistance, and performs well at elevated temperatures.
The relevant process specification is AMS2451/14 (Plating, Brush, Nickel-Tungsten Low Hydrogen Embrittlement), reaffirmed January 2022 — especially useful for localized brush repair work. Ni-W uses non-toxic chemistry compared to hexavalent chrome, though nickel salts carry their own EHS considerations.
Best fit: Aerospace and defense repair applications, especially localized brush plating where full tank immersion isn't practical.
Trivalent Chrome Plating
Trivalent chromium (Cr3+) uses a fundamentally safer chemistry than hexavalent chrome. It generates less hazardous waste, poses lower health risk, and is gaining traction as a transitional alternative.
A 2020 ACS study pushed trivalent chrome deposits beyond 30 µm thickness — overcoming a long-standing limitation — but IAEG 2025 aerospace guidance still classifies functional trivalent chrome as low maturity, flagging macrocracking, process control, and qualification concerns.
For corrosion protection and decorative applications, trivalent chrome is a credible choice. In heavy-duty wear environments, however, qualification gaps mean it isn't a direct substitute for hexavalent hard chrome yet.
How to Choose the Right Hard Chrome Alternative
Match the Process to the Geometry
| Geometry Type | Preferred Process |
|---|---|
| Complex internal bores, recesses, blind holes | Electroless nickel, trivalent chrome |
| External diameters, cylindrical surfaces | HVOF thermal spray |
| Precision tooling, punches, dies (external) | PVD coatings |
| Localized repair areas | Ni-W brush plating |
Filter by Hardness and Wear Requirements
For maximum hardness in precision tooling applications, PVD leads the field. AlTiN at 4,000–4,200 HV exceeds hard chrome by a wide margin. For large-format external wear surfaces requiring thick builds, HVOF WC-CoCr at 1,225 HV is the strongest validated option.
For moderate wear with corrosion protection as the primary requirement, electroless nickel or Ni-W plating are often sufficient — and considerably easier to qualify for complex geometries.
Consider Substrate and Temperature Constraints
- PVD: Parts must withstand ~800°F; excludes aluminum, zinc alloys, and assemblies with plastic components
- HVOF: No bulk substrate heating; suitable for a broader range of base metals on external surfaces
- Electroless nickel: Most substrate-flexible option; compatible with steel, aluminum, and plastics
- Ni-W: Brush application limits it to accessible surfaces; verify qualification requirements per AMS2451/14
Total Cost of Ownership vs. Upfront Cost

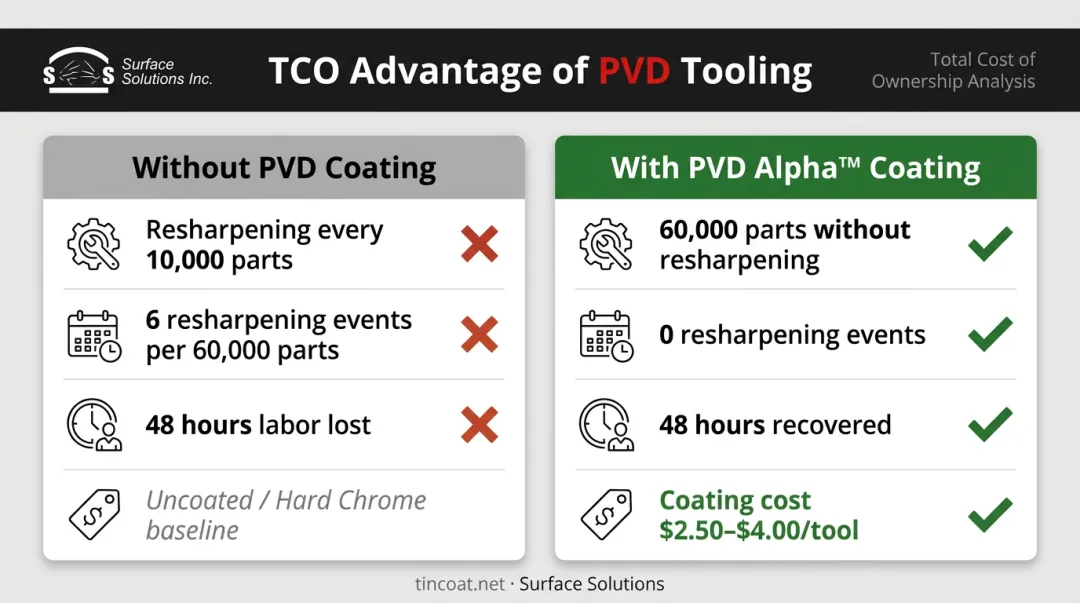

The TCO advantage of PVD is well-documented for high-volume tooling. A Surface Solutions customer running Alpha™-coated M4 punches on galvanized steel stamping produced 60,000 parts without resharpening, compared to resharpening every 10,000 parts previously. At 8 hours of labor per resharpening event, that's 48 hours of recovered labor in a single production run — at a coating cost of $2.50–$4.00 per tool.
Costs across all five processes are application-specific and depend on part geometry, batch size, and finishing requirements. No universal per-square-inch price holds across them all. What that means in practice:
- Compare processes on total cycle cost, not upfront coating price alone
- Factor in hard chrome compliance costs: exposure monitoring, engineering controls, waste treatment, and authorization fees
- Account for recoat and rework frequency — longer intervals reduce total cost even if per-application cost is higher
Those compliance burdens don't appear in a simple per-square-inch price, but they belong in any full cost comparison.
Frequently Asked Questions
What is the best alternative to chrome plating?
There's no single universal answer. PVD coatings (CrN, TiN, AlTiN) excel for precision tooling and forming dies; HVOF thermal spray is preferred for large cylindrical components and hydraulic piston rods; electroless nickel handles complex internal geometries. The right choice depends on part size, geometry, operating conditions, and required hardness.
Is PVD a better alternative to chrome plating?
For tooling applications, PVD often outperforms hard chrome, delivering comparable or greater hardness, lower friction, no toxic chemistry, and significantly extended tool life. The limitation is physical: parts must fit inside a vacuum chamber and tolerate approximately 800°F deposition temperatures — and for large hydraulic components, HVOF thermal spray is typically more appropriate.
Is there any paint that really looks like chrome?
Spray-on chrome paints and powder coatings can approximate chrome's appearance for decorative use, but they don't replicate the hardness, wear resistance, or functional properties of electroplated chrome. These are cosmetic solutions only — not suitable for industrial, structural, or wear-critical applications.
What regulations are driving manufacturers away from hard chrome plating?
OSHA 29 CFR 1910.1026 sets a PEL of 5 µg/m³ for hexavalent chromium. EPA RCRA codes D007 and F006 govern hazardous waste from electroplating operations. In the EU, REACH Annex XIV (Entries 16–17) requires authorization for chromium trioxide use in surface treatment, with a sunset date that passed in September 2017. An EU Annex XVII restriction is expected in 2027–2028.
How does electroless nickel compare to hard chrome in terms of hardness?
Hard chrome typically achieves 750–1,050 HV. High-phosphorus electroless nickel deposits around 450–550 HV as-plated, but can approach 900–1,000 HV after heat treatment. Electroless nickel's key advantage is uniform deposition on complex geometries — something hard chrome struggles with on internal features and recesses.
Can PVD or electroless nickel be applied to existing tools and dies?
Yes. Both processes can be applied to previously used tooling after stripping old coatings and reconditioning the surface. For PVD specifically, any oxides, EDM recast, or prior surface treatments must be removed before coating to ensure adhesion. Recoating worn tools this way can restore — and often exceed — original performance for significantly less than replacement cost.
Conclusion
Hard chrome plating isn't going away overnight, but tightening regulations, environmental liability, and genuinely superior alternatives have changed the calculus for most manufacturing applications.
Each process fills a distinct role:
- HVOF delivers harder coatings for large external wear surfaces
- PVD outperforms chrome for precision tooling, with documented tool life gains of 6x or more
- Electroless nickel handles geometry that chrome has always struggled with
- Ni-W offers a viable brush-plating repair path
- Trivalent chrome is closing the gap for transitional applications
The next step: assess your part geometry, required hardness, substrate material, and production volume — then match the process to those constraints rather than defaulting to chrome out of habit.
For cutting tools, punches, forming dies, and metal forming applications, Surface Solutions (Fridley, MN) specializes in PVD coating services including CrN, TiN, AlTiN, TiCN, and Alpha™ coatings for manufacturers across the US, Canada, and Mexico. Reach their technical team at +1 763-785-9436 or info@tincoat.net to discuss your specific application.
