Introduction
Steel is the backbone of modern manufacturing, infrastructure, and precision tooling — but it corrodes. According to the NACE IMPACT study, corrosion costs the global economy an estimated $2.5 trillion annually, equivalent to 3.4% of global GDP. For manufacturers, that figure isn't abstract: it shows up as scrapped parts, emergency maintenance, premature tool replacement, and unplanned downtime.
The right coating does more than prevent rust. It protects structural integrity, extends component life, cuts maintenance frequency, and — in wear-critical applications — improves dimensional performance and surface hardness.
This guide covers:
- Zinc-based systems, nickel plating, epoxy coatings, chrome plating, and PVD coatings
- How to match the right coating to your environment, part geometry, and performance requirements
- Why surface preparation determines coating success regardless of which system you choose
Written for engineers, procurement managers, and manufacturing professionals who need to make informed, cost-justified coating decisions for steel components, tools, or structures.
Key Takeaways
- Corrosion resistant coatings fall into five main categories: zinc-based, nickel plating, epoxy/paint, chrome plating, and PVD coatings
- Coating selection depends on exposure environment, part geometry, required durability, and whether wear resistance is also needed
- Surface preparation determines whether any coating succeeds or fails prematurely
- PVD coatings like CrN and TiN deliver both corrosion and wear resistance, making them ideal for precision manufacturing tools
- Total cost of ownership, not upfront material cost, should drive the final coating decision
Why Steel Corrodes and What's at Stake
The Electrochemical Reality
Steel corrodes because iron reacts with oxygen and moisture to form hydrated iron oxides — rust. The process is electrochemical: iron oxidizes at an anodic site, releasing electrons that travel to a cathodic site where oxygen reduction occurs. Water acts as the electrolyte completing the circuit.
Different environments accelerate this at widely different rates:
- Marine environments — salt water accelerates ion transfer, speeding corrosion significantly
- Industrial atmospheres — sulfur dioxide and pollutants create acidic conditions
- Chemical processing — acids, alkalis, and solvents attack both steel and many coatings
- High humidity — even indoor environments can sustain continuous corrosion cycles
Operational Consequences for Manufacturers
Corrosion in manufacturing settings isn't just surface-level damage. The downstream consequences include:
- Premature tool and component failure mid-production run
- Increased maintenance frequency pulling technicians off productive work
- Unplanned downtime for replacement or repair
- Part quality degradation as worn, corroded tools produce inferior output
- Safety risks from structurally compromised components
A 2001 localized corrosion failure at a Delaware refinery caused an explosion after holes formed in a sulfuric acid tank. One worker was killed and eight others were injured.

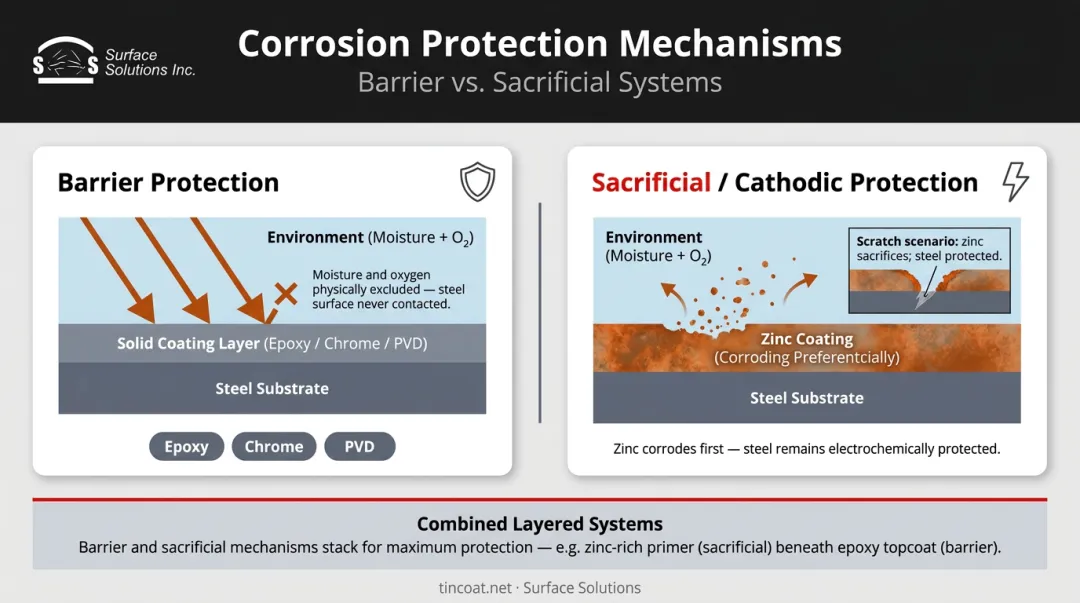

Two Mechanisms Coatings Use to Fight Corrosion
Those consequences make coating selection a practical decision, not just a maintenance checkbox. Two core mechanisms determine how a coating holds corrosion at bay:
- Barrier protection — physically separates steel from moisture, oxygen, and corrosive agents (epoxy, paint, chrome, PVD)
- Sacrificial/cathodic protection — the coating corrodes preferentially, protecting the steel beneath even if the coating surface is scratched or damaged (zinc-based systems)
Some coating systems combine both mechanisms, layering a zinc-rich primer beneath a barrier topcoat to cover multiple failure scenarios.
Types of Corrosion Resistant Coatings for Steel
No single coating fits every application. The right choice depends on environment severity, base steel type, part geometry, required service life, and whether additional properties — hardness, lubricity, heat resistance — are needed alongside corrosion protection.
Zinc-Based Coatings (Galvanizing and Electroplating)
Zinc provides cathodic protection: it corrodes preferentially, shielding the underlying steel even through surface scratches or minor coating damage. The three main variants serve different applications:
| Variant | Thickness | Best For |
|---|---|---|
| Hot-dip galvanizing | ~35–100 µm | Structural steel, bridges, outdoor infrastructure |
| Electrogalvanizing | 5–25 µm | Precision parts, fasteners, automotive components |
| Zinc-rich paint | Variable | Field repairs, large structures, touch-up applications |
According to the American Galvanizers Association, approximately 72 years to first maintenance is achievable for steel with ~4.0 mil of zinc in industrial atmospheric conditions — one of the most corrosive environment categories.
Key limitations: Hot-dip galvanizing is too thick for precision components with tight tolerances. Zinc also offers limited protection in highly acidic or alkaline environments where the zinc itself dissolves rapidly.
Nickel Plating (Electroplating and Electroless)
Nickel adds both hardness and corrosion resistance. The two plating methods serve different part geometries:
- Electroplating — uses electric current; thickness can vary on complex geometries
- Electroless nickel plating — chemical deposition, highly uniform thickness regardless of part geometry; ideal for threaded parts, internal bores, and complex shapes
Electroless nickel is particularly valuable where uniform coverage on precision parts is critical — aerospace components, hydraulic systems, and injection molding tooling are common applications. ASTM B733 governs autocatalytic nickel-phosphorus deposits, with performance depending on phosphorus content, deposit thickness, and processing conditions.
Epoxy and Paint-Based Coatings
Epoxy coatings function as barrier systems: they bond strongly to steel and resist moisture and chemical penetration. Common applications include industrial flooring, pipelines, storage tanks, and heavy equipment.
Epoxy-specific considerations:
- Requires careful surface preparation — typically near-white blast cleaning per ISO 8501-1, with a defined surface profile
- Vulnerable to UV degradation (chalking, discoloration) on exterior applications without a UV-stable topcoat
Paint-based alternatives cover different performance ranges:
- Alkyd coatings — handle moderate indoor/outdoor environments but offer limited heat and chemical resistance
- Acrylic coatings — better UV resistance and faster drying, but limited chemical resistance; better suited for architectural exterior steel
Chrome Plating
Hard chrome plating produces extreme surface hardness (57–63 HRC per NASA process specifications) alongside corrosion resistance, making it suited for components that face both wear and chemical exposure — hydraulic cylinders, pistons, molds, rolls, and pump shafts. The dense chromium oxide layer performs well in low-oxygen environments.
One major limitation: hexavalent chromium (Cr(VI)) carries serious regulatory obligations. OSHA sets a permissible exposure limit of 5 µg/m³ as an 8-hour TWA for workers. In the EU, chromium trioxide was placed in REACH Annex XIV with continued use requiring authorization. These compliance burdens have driven growing industry interest in alternative coatings.
Physical Vapor Deposition (PVD) Coatings
PVD is a dry, vacuum-based process that deposits a ceramic coating — typically 2–6 microns thick — directly onto steel tools and components. Unlike electroplating, PVD adds virtually no dimensional change, making it suitable for precision parts with tight tolerances.

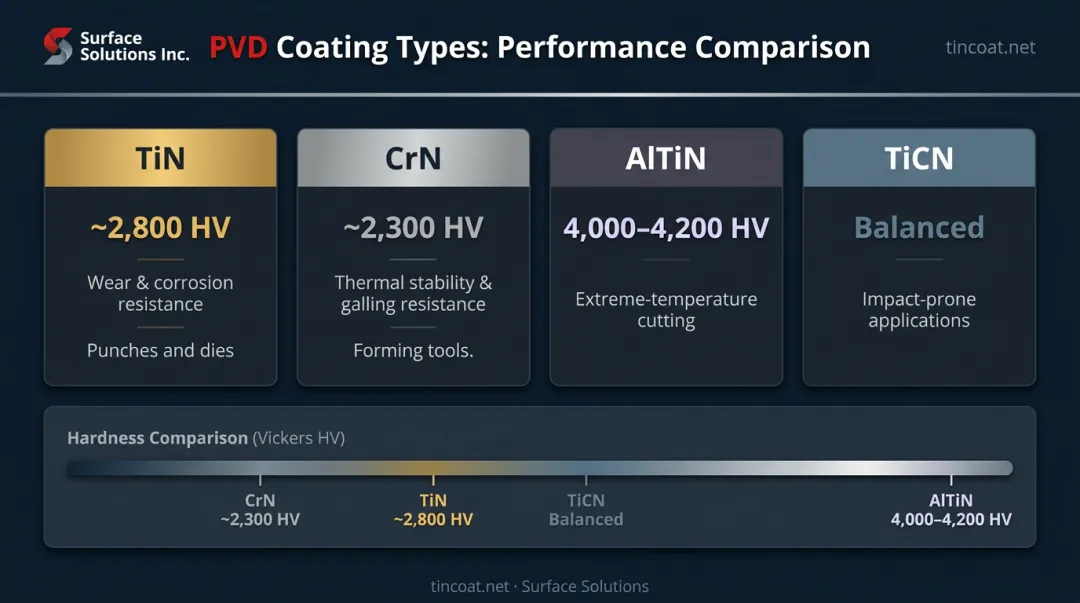

Key PVD coating types for steel:
- TiN (Titanium Nitride) — gold in appearance, hardness ~2,800 HV, wear and corrosion resistance
- CrN (Chromium Nitride) — hardness ~2,300 HV, superior thermal stability and galling resistance
- AlTiN (Aluminum Titanium Nitride) — hardness 4,000–4,200 HV, extreme-temperature cutting applications
- TiCN (Titanium Carbo-Nitride) — balances hardness and toughness for impact-prone applications
Where other coatings address corrosion alone, PVD coatings simultaneously resist wear and reduce friction — which is why cutting tools, injection molding tooling, and stamping dies typically see service life extend several times over after coating.
Advanced PVD Coatings for Industrial Steel and Tooling
Why PVD Suits High-Performance Manufacturing
The PVD process has several characteristics that make it uniquely suited to demanding manufacturing environments:
- Deposition occurs at approximately 700°–800°F, preserving the hardness of heat-treated steel substrates
- Coatings are deposited in a vacuum, producing extremely uniform, adherent films
- The resulting surface resists corrosion, reduces friction, minimizes material adhesion (galling and buildup), and withstands high contact stresses during metal forming and cutting
TiN — The Established Baseline
TiN is the most widely recognized PVD coating: gold in appearance, with a hardness of approximately 2,800 HV. It improves wear resistance and corrosion protection on punches, dies, and cutting tools compared to uncoated steel.
That said, in high-volume galvanized steel stamping operations, TiN shows a notable weakness: zinc material from galvanized workpieces tends to adhere to the tool surface, accelerating wear and requiring more frequent maintenance. This is where more advanced coatings outperform TiN.
CrN — The Preferred Choice for Heat and Forming Applications
CrN (Chromium Nitride) is the go-to PVD option when thermal management and galling resistance are the primary concerns. Its performance in sheet metal forming is documented in a customer testimonial from Surface Solutions:
"In a drawing application (stainless steel), the Alpha™ coated tooling only produced 15 parts and the parts were too hot to touch. Putting CrN on the tool resulted in over 500 parts, with the parts being just warm to the touch." — Sheet Metal Forming Customer
This result — over 500 parts vs. 15 parts, with lower operating temperatures — reflects CrN's superior thermal management in high-friction stainless steel forming. Lower tool temperatures mean less thermal stress on the workpiece, better part quality, and longer tool life per run.
Alpha™ Coating — Surface Solutions' Advanced Option
Surface Solutions' proprietary Alpha™ coating takes PVD performance further, with documented benefits across multiple manufacturing applications:
- 6x more parts before resharpening — Don Richardson ran a full order of 60,000 parts without resharpening, versus a previous baseline of 10,000 parts. That eliminated 6 resharpening cycles, saving 48 hours of labor per production run
- Near-zero galvanic buildup — in a head-to-head comparison running round punches through 0.057" galvanized steel, Alpha™ showed almost no zinc adhesion while TiN accumulated significant buildup
- Eliminated polishing entirely — a metal forming customer (Chris) reported that after applying Alpha™, his operation never had to polish mid-run, used less lubricant, and produced better-looking finished parts
- Reduced punch chipping — documented in a galvanized steel stamping application where M4 punches ran over 15 months and an estimated 15 million parts before requiring attention
- Longer die life — because the punch stays sharper longer, it exerts less load on the die with each stroke, extending die life as a secondary benefit
Angela Naasz, CFO of K&C Manufacturing, reported that Alpha™ cutters "just eliminated an entire process to the current one we have to do" — a process-level efficiency gain beyond simple tool life improvement.
AlTiN and TiCN — Specialized High-Performance Options
For cutting and machining applications, Surface Solutions also offers:
- AlTiN (4,000–4,200 HV): The premier coating for high-speed cutting of hard materials. In a documented case study machining 304 stainless steel, AlTiN-coated carbide inserts delivered 6x the tool life of TiN at a coating cost of just $2.50–$4.00 per tool
- TiCN: A hybrid formulation that balances hardness and toughness — suited to interrupted cuts or impact-prone applications where TiN alone would fracture

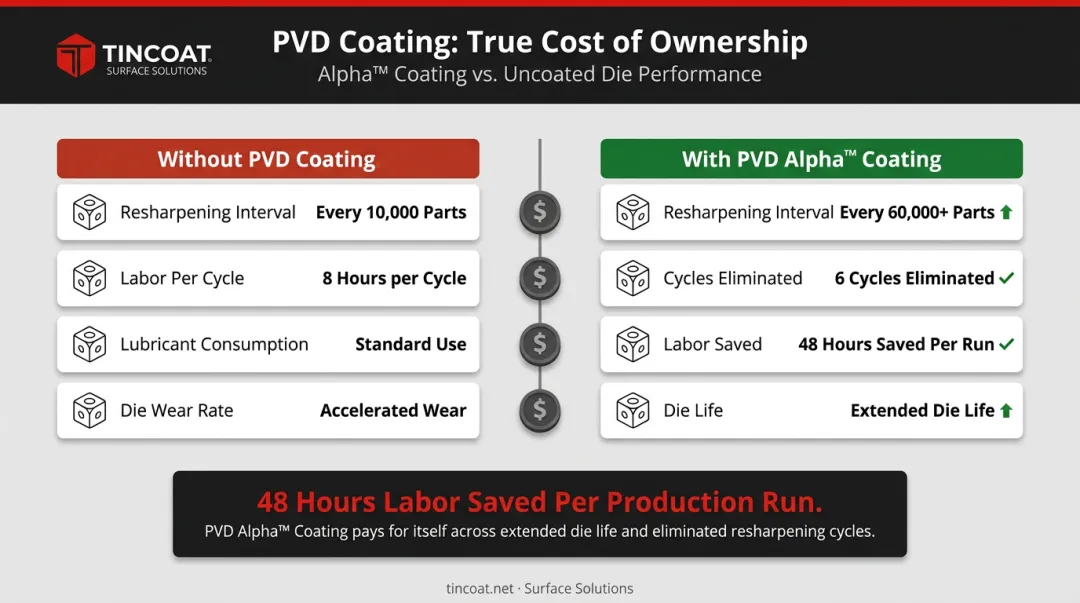

Total Cost of Ownership: The Real Case for PVD
PVD coatings carry a higher upfront cost than zinc or paint systems. The TCO math still favors them decisively for precision tooling:
| Cost Factor | Without PVD | With PVD (Alpha™ Example) |
|---|---|---|
| Resharpening frequency | Every 10,000 parts | Every 60,000+ parts |
| Labor per sharpening cycle | 8 hours | Eliminated for 6 cycles |
| Labor saved per run | — | 48 hours |
| Lubricant consumption | Standard | Reduced |
| Die wear | Accelerated by dull punches | Reduced (sharper punch = less load) |
The tool stays sharper longer, the die lasts longer, lubricant costs drop, and maintenance labor is freed for productive work. For high-volume stamping and forming operations, that combination of gains adds up faster than the coating cost.
How to Choose the Right Corrosion Resistant Coating
No single coating works everywhere. Match your choice to three factors: the environment, the functional requirements, and the part itself.
Environment and Exposure Type
Match the coating to the harshness of the corrosive environment:
- Marine/outdoor structural steel → Hot-dip galvanizing (thick sacrificial protection, decades of service)
- Indoor precision manufacturing tools → PVD coatings or electroless nickel (thin, hard, dimensionally precise)
- Chemical processing equipment → Epoxy or specialty barrier coatings with specific chemical resistance
- High-heat forming operations → CrN or AlTiN PVD coatings (thermal stability is critical)
Required Properties Beyond Corrosion Resistance
Ask whether the part also needs:
- Wear resistance → PVD (TiN, CrN, AlTiN, Alpha™, TiCN)
- Uniform coverage on complex geometries → Electroless nickel (consistent deposition regardless of shape)
- Dimensional precision (tight tolerances) → PVD or electroless nickel (both are very thin and uniform)
- High-temperature performance → CrN or AlTiN (stable above 1,000°F)
- Low friction / anti-galling → CrN or Alpha™ (reduces adhesion and material pickup)
Part Geometry and Size
Geometry constrains your options as much as chemistry does:
- Large structural components suit hot-dip galvanizing or spray-applied coatings — both scale economically
- Precision parts with tight tolerances require PVD (2–6 µm) or electroless nickel, where controlled thickness matters
- Complex internal geometries need electroless nickel, the only option that deposits uniformly inside cavities and blind features
Use the three criteria above to narrow your options, then check the table below to confirm the fit.
Quick Reference Comparison
| Coating Type | Corrosion Resistance | Wear Resistance | Thickness | Best Application | Cost Tier |
|---|---|---|---|---|---|
| Hot-dip galvanizing | High | Low | 35–100 µm | Structural/outdoor steel | Low |
| Electroless nickel | Medium–High | Medium | 25–75 µm | Precision parts, complex geometry | Medium |
| Epoxy | Medium–High | Low | 100–150 µm | Tanks, pipelines, industrial floors | Low–Medium |
| Hard chrome | High | Very High | 12–38 µm | Hydraulics, molds, rolls | Medium–High |
| PVD (TiN/CrN/AlTiN) | Medium–High | Very High | 2–6 µm | Precision tools, dies, punches | Medium–High |
Surface Preparation: The Foundation of Coating Performance
Surface preparation is the single factor that most determines whether a coating succeeds or fails. Oils, scale, rust, machining residue, EDM recast layers, or oxide contamination will prevent proper bonding, causing premature delamination, bubbling, or corrosion underfilm regardless of coating quality.
Standard Preparation Steps for Industrial Steel
- Mechanical cleaning — abrasive blasting (SP-10/NACE No. 2 near-white blast for high-performance coatings) or power-tool cleaning for less demanding systems
- Chemical cleaning and degreasing — removes oils, cutting fluids, and surface contaminants that mechanical cleaning misses
- Acid pickling or passivation — removes rust and mill scale where applicable, creating a chemically clean surface
Different coatings have specific requirements. Epoxy systems need a defined anchor profile to bond mechanically. PVD requires a precision-cleaned, degreased surface free of oxides, EDM recast layers, and prior treatments like bluing.
Surface Solutions is explicit with customers submitting steel parts for PVD coating: bluing, EDM recast layers, and surface oxides must be removed before coating is applied.
Because PVD films are only 0.0001"–0.0002" thick, they faithfully replicate whatever surface condition exists — including imperfections. If a polished finish is desired, the part must be polished before submission.
Post-Coating Handling
Even a well-applied coating can be compromised by handling damage during transport, storage, or installation. Coating type determines how much ongoing attention the system needs:
- Epoxy and paint systems — require periodic inspection and maintenance recoating over their service life
- PVD and electroless nickel — once properly applied to a prepared surface, provide a maintenance-free service life with no scheduled recoating requirements
Frequently Asked Questions
What are the main corrosion protection coatings for steel?
The primary categories are zinc-based coatings (hot-dip galvanizing and electroplating), nickel plating, epoxy and paint barrier systems, chrome plating, and PVD coatings. Each offers different protection levels suited to different environments, part geometries, and performance requirements.
What is the most durable corrosion resistant coating for steel?
Durability depends on the application. For outdoor structural steel, hot-dip galvanizing can last decades with no maintenance; the AGA documents approximately 72 years to first maintenance for ~4.0 mil zinc in industrial atmospheres. For precision manufacturing tools, PVD coatings like CrN and AlTiN combine corrosion resistance with exceptional hardness for the longest tool life in demanding conditions.
How long do corrosion resistant coatings on steel last?
Service life varies significantly by coating type and environment. Hot-dip galvanizing can reach 72+ years in industrial atmospheres depending on zinc thickness, while epoxy systems require condition-based reassessment over time. PVD coatings on precision tools extend tool life by 6x or more over uncoated alternatives before any maintenance is needed.
What is the difference between galvanizing and PVD coating for steel?
Galvanizing applies a thick zinc layer (35–100 µm) via hot-dip immersion, providing cathodic/sacrificial protection suited to large structural steel. PVD is a vacuum-deposited ceramic coating, only 2–6 µm thick with hardness up to 4,200 HV, best for precision manufacturing tools where corrosion resistance, wear resistance, and dimensional accuracy must all be met at once.
Can corrosion resistant coatings also improve wear resistance?
Yes. PVD coatings (TiN, CrN, AlTiN, TiCN, and Surface Solutions' proprietary Alpha™) are engineered to deliver both corrosion and wear/friction resistance simultaneously. That dual performance makes them the go-to choice for cutting tools, punches, dies, and forming tooling where both failure modes occur.
Which coating works best for steel tools in high-heat manufacturing environments?
CrN (Chromium Nitride) and AlTiN are the strongest options for high-heat applications. CrN's thermal stability and resistance to material adhesion make it particularly effective in stainless steel forming; Surface Solutions' customer data shows CrN-coated tooling producing over 500 parts at lower operating temperatures versus just 15 parts with a different PVD coating. AlTiN handles even higher cutting temperatures in machining applications.
