If you're shopping for PVD-coated jewelry, watches, or fixtures, you've probably seen sellers claim the finish is scratch-proof or that it lasts a decade. Neither claim holds up under scrutiny. PVD is used across wildly different applications, from wedding bands to industrial cutting tools, and durability expectations shift dramatically depending on which one you're talking about.
This article breaks down the actual science behind PVD wear, what real-world lifespan looks like for consumer goods versus industrial tooling, and how to get the most life out of a coated item.
Key Takeaways
- Gold PVD thins from friction—it doesn't flake or chemically fade like dye or tarnish
- Jewelry-grade PVD typically lasts 2–5 years with care; industrial PVD handles far higher stress
- Thickness, base metal, environment, and handling frequency all drive wear speed
- Avoiding chemicals, gentle cleaning, and separate storage extend coating life
What Is Gold PVD Coating and How Is It Applied?
Physical Vapor Deposition works by vaporizing metal inside a vacuum chamber, then letting that vapor condense onto a part's surface as an extremely thin film. This isn't a coating that sits on top like paint does. It bonds at an atomic level, which is a different mechanism than dipping a part in an electrolytic bath, the process used for traditional gold electroplating.
Most "gold" PVD isn't actually gold. Titanium nitride (TiN) and titanium oxynitride are the workhorses behind that warm gold tone, chosen because they're durable and cost-effective compared to running real gold through a vapor deposition process.

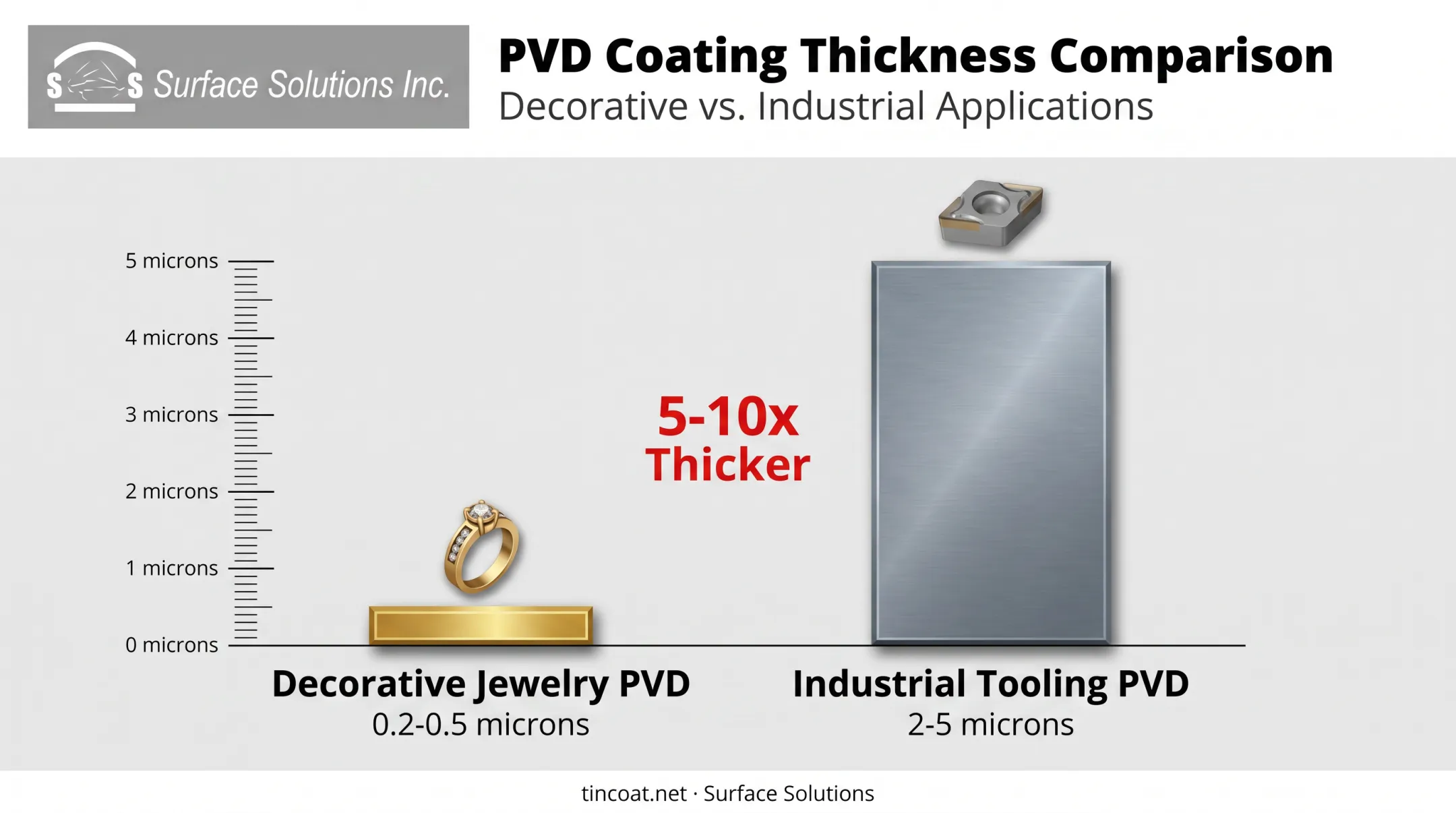

Thickness varies by manufacturer and application:
- Decorative jewelry-grade PVD: roughly 0.2 to 0.5 microns (200 to 500 nanometers)
- Industrial tooling coatings: 2 to 5 microns, several times thicker
That thickness gap matters. A thicker, harder film has more material to wear through before the base metal shows.
Does Gold PVD Coating Wear Over Time? The Straight Answer
Yes. Gold PVD wears gradually with friction and contact. It doesn't fade the way a dye or a tarnish-prone metal does.
What people describe as "fading" is almost always physical thinning or scratching that exposes the base metal underneath. The gold color itself isn't degrading chemically. It's being mechanically worn away at high-contact points like ring edges, watch lugs, and clasps.
Lifespan claims: Commercial jewelry sources commonly cite 2-5 years for consumer PVD with regular wear and proper care. Treat that as a planning range, not a lab-verified guarantee—no independently tested universal figure exists. Marketing copy promising 10-year durability on fashion jewelry should be read skeptically.
Industrial-grade PVD is a different animal entirely. Tools used for cutting and forming metal face mechanical stress that dwarfs anything a ring or watch experiences, so those coatings are engineered with different thickness and hardness targets from the ground up.
Across both consumer and industrial grades, wear still follows the coating's structure—which is why PVD fails differently than traditional plating.
Why PVD Resists Flaking Where Electroplating Doesn't
Because PVD bonds at a molecular level rather than sitting as a loosely adhered surface layer, it resists the peeling and flaking that older plating methods are prone to. Ion bombardment during deposition densifies the film and improves adhesion, so failure tends to look like gradual thinning rather than sudden delamination.

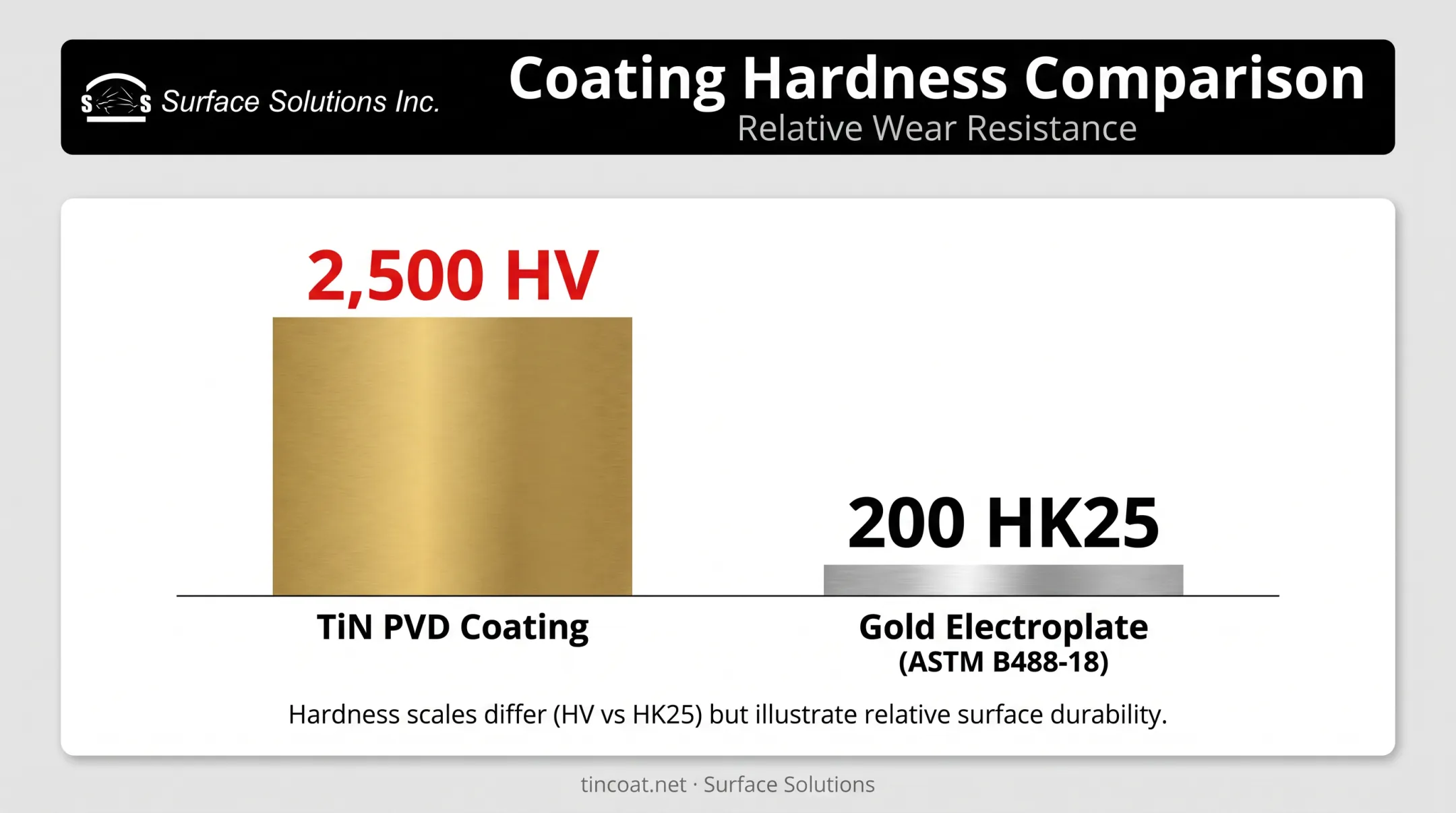

A 2016 materials study measured mean Vickers hardness of 2,500 HV for TiN. Gold electroplate grades under ASTM B488-18 top out around 200 Knoop (HK25) for the hardest listed class.
The tests aren't directly interchangeable, but the gap shows why PVD films resist scratching better than a soft gold electroplate layer.

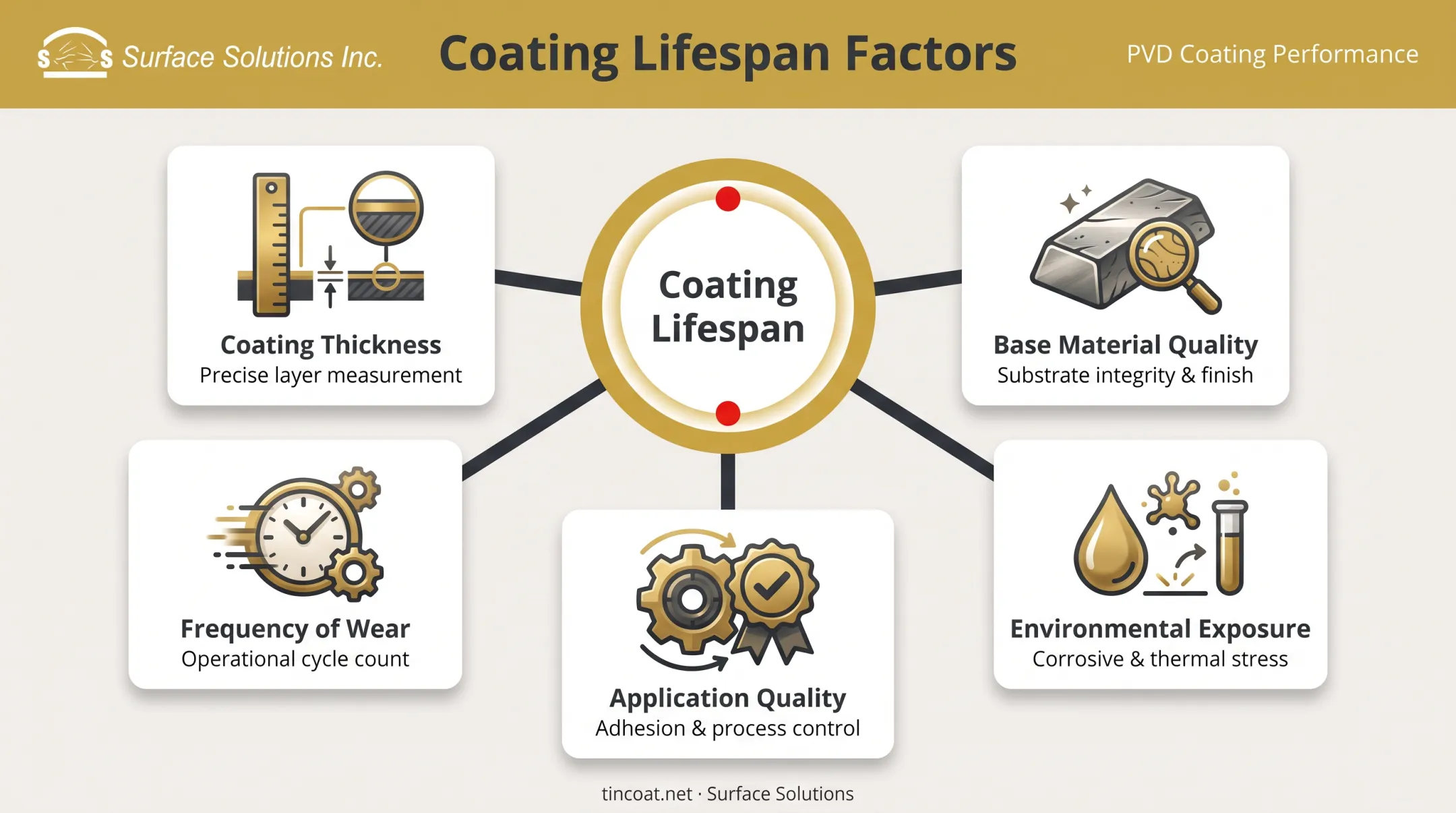

Factors That Affect How Long Gold PVD Coating Lasts
Five variables determine how long gold PVD coating holds up under real operating conditions:
- Coating thickness — thicker films generally last longer, though not linearly; films around 200nm show more pinhole defects
- Base material quality — stainless steel and titanium hold PVD better than brass or copper, which often need a nickel or chromium underlayer
- Frequency and type of wear — daily contact, friction, and impacts thin coatings much faster than occasional use
- Environmental exposure — chlorine, saltwater, coolants, and harsh chemicals degrade coatings faster than dry, low-contact conditions
- Application quality — proper pre-treatment and deposition parameters drive adhesion; a poorly prepped surface fails regardless of chemistry
None of these factors work in isolation. A thick coating on a poorly cleaned brass substrate can underperform a thinner coating properly applied to stainless steel.
Gold PVD vs. Traditional Plating: A Durability Comparison
The core difference comes down to how the coating attaches to the part.
| Factor | Gold PVD | Traditional Gold Electroplating |
|---|---|---|
| Bonding mechanism | Molecular/atomic bond | Surface-level electrolytic deposit |
| Scratch resistance | Higher (ceramic-hard film) | Lower (softer metal layer) |
| Color stability | Stable; wears rather than fades | Can wear thin and discolor |
| Hypoallergenic potential | Conditional on alloy/nickel content | Conditional on alloy/nickel content |
| Typical cost | Higher | Lower |
| Maintenance | Gentle cleaning, avoid chemicals | Similar, but more fragile to abrasion |
PVD's advantage isn't unconditional, though. It's more brittle in some stacks, meaning a hard impact can crack the film rather than dent it the way a soft electroplate might.
Hypoallergenic performance also depends on the specific alloy and nickel content, not the coating method alone. Confirm those details with your coating provider before specifying a finish.
How to Extend the Life of Your Gold PVD Coating
Simple shop habits make a measurable difference on gold PVD coated tools and components:
- Limit chemical exposure: harsh solvents, chlorinated cleaners, and strong acids accelerate wear at edges and contact points
- Clean gently: a soft cloth and mild detergent are enough; skip abrasive pads and aggressive polishing compounds
- Dry thoroughly: residual moisture or coolant left on the surface speeds degradation at high-wear and thin-film areas
- Store and handle with care: stacking coated tools against harder or uncoated parts causes constant micro-scratching from metal-on-metal contact
None of this requires special products. Treat the coating as a durable-but-finite surface, not an indestructible one.
When Durability Really Matters: Industrial-Grade PVD Coatings
Jewelry wear is cosmetic. Industrial tooling wear is a direct line item on a production floor. When a punch or die coating fails, the cost shows up as downtime, resharpening labor, and scrapped parts.
This is where coating choice becomes a production decision. Surface Solutions, based in Fridley, Minnesota, applies coatings such as Alpha™, TiN, AlTiN, CrN, and TiCN to cutting tools, dies, punches, and injection molding components across the U.S., Canada, and Mexico.
The productivity difference is documented, not theoretical:
- Alpha™-coated tooling produced 60,000 parts before resharpening versus about 10,000 before — a 6x gain
- Fewer sharpening cycles saved an estimated 48 labor hours (about 8 hours per remove-and-resharpen cycle)
- In stainless-steel drawing, switching to CrN raised output from 15 parts too hot to handle to over 500 just warm to the touch
These are customer-reported results. They show coating chemistry and thickness matched to the job's mechanical demands, not one generic formula applied everywhere.
Frequently Asked Questions
How long will gold PVD last?
Jewelry-grade gold PVD typically lasts 2-5 years with proper care, based on industry estimates rather than independent lab testing. Industrial-grade coatings handle heavier mechanical stress and often last longer in controlled use.
Does gold PVD coating tarnish?
No. PVD resists tarnish and corrosion far better than untreated metals. Wear usually shows up as gradual thinning from friction that eventually exposes the base metal.
Is PVD gold fake?
PVD gold is a real metal coating bonded to a base metal, not solid gold throughout. You are buying a coated piece, not a solid-gold one.
Can gold PVD coating last 10 years?
For fashion jewelry, a 10-year claim is unrealistic under routine handling, chemicals, and friction. In industrial settings with controlled use, longer service life is much more realistic.
Does PVD coating wear off with regular use?
Yes, but gradually as thinning rather than sudden flaking or peeling. Daily wear on high-contact points like ring edges or clasps accelerates the timeline compared to occasional use.
Can you shower or swim with PVD-coated jewelry?
Remove PVD-coated jewelry before swimming or showering—chlorine and prolonged moisture accelerate wear. If it gets wet, dry it thoroughly right away.
