For manufacturers running metal forming, tooling, and cutting operations, the right coating extends part life, cuts maintenance labor, and keeps lines moving. This guide breaks down the top corrosion-resistant coating options and how to pick the right one for your application.
TL;DR
- Match the coating mechanism—barrier, sacrificial, or inhibitive—to your failure mode
- Use metallic, organic, or ceramic/PVD (TiN, CrN) coatings based on substrate and environment
- Select by substrate, temperature, and structural steel vs. precision tooling needs
- Rank options by durability, versatility, and proven industrial track record
Overview of Corrosion-Resistant Coatings for Industrial Applications
Corrosion-resistant coatings form a protective layer that blocks oxidation, moisture, and chemical attack from reaching bare metal. Some do it with a physical barrier. Others sacrifice themselves to protect the substrate underneath.
These coatings show up everywhere: automotive manufacturing, aerospace, medical devices, metal forming, cutting tools, and infrastructure projects across the U.S.

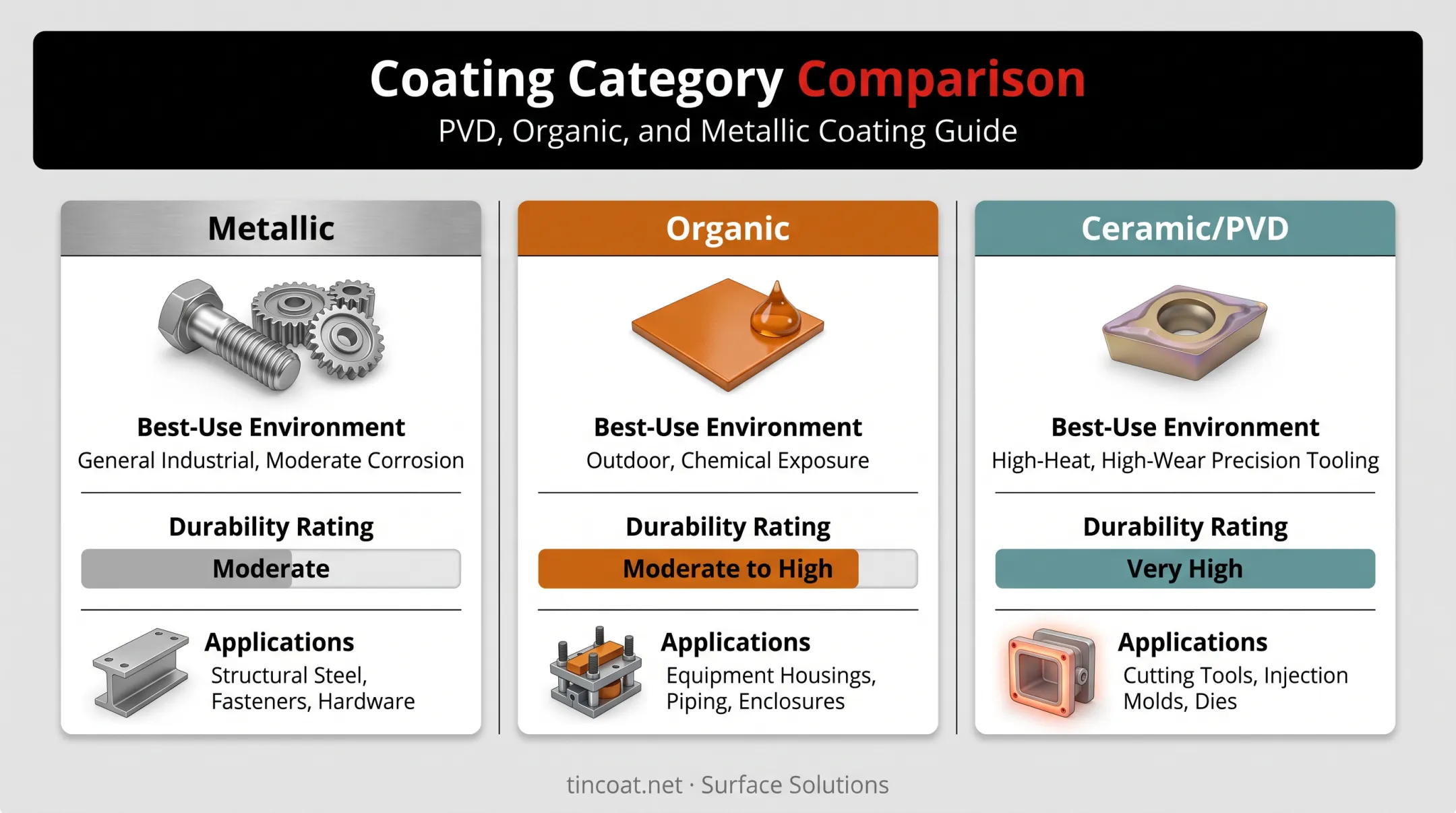

Three broad categories dominate industrial use:
- Metallic coatings (zinc, nickel, chrome)
- Organic coatings (epoxy, powder coat)
- Ceramic/PVD coatings (TiN, CrN, and diffusion treatments)
The rankings below compare these categories on durability, adhesion, versatility, and real-world track record — not just sticker price.
Top Corrosion-Resistant Coatings for Industrial Applications
We ranked each option on real-world durability, where it applies best, and cost over the part’s full service life. The list covers PVD hard coatings, zinc plating, epoxies, nickel plating, and high-temperature diffusion coatings.
Surface Solutions – PVD Coatings (TiN, CrN, Alpha Coating)
Surface Solutions, based in Fridley, Minnesota, applies high-performance PVD coatings for metal forming, punching, and cutting tool applications, serving customers across the U.S., Canada, and Mexico.
CrN coatings are formulated for superior corrosion resistance, making them a fit for medical devices, food-processing equipment, and moisture-heavy environments. In one stainless-steel drawing application, CrN-coated tooling produced over 500 parts while staying just warm to the touch, compared to only 15 parts from another coating before tools got too hot to handle.

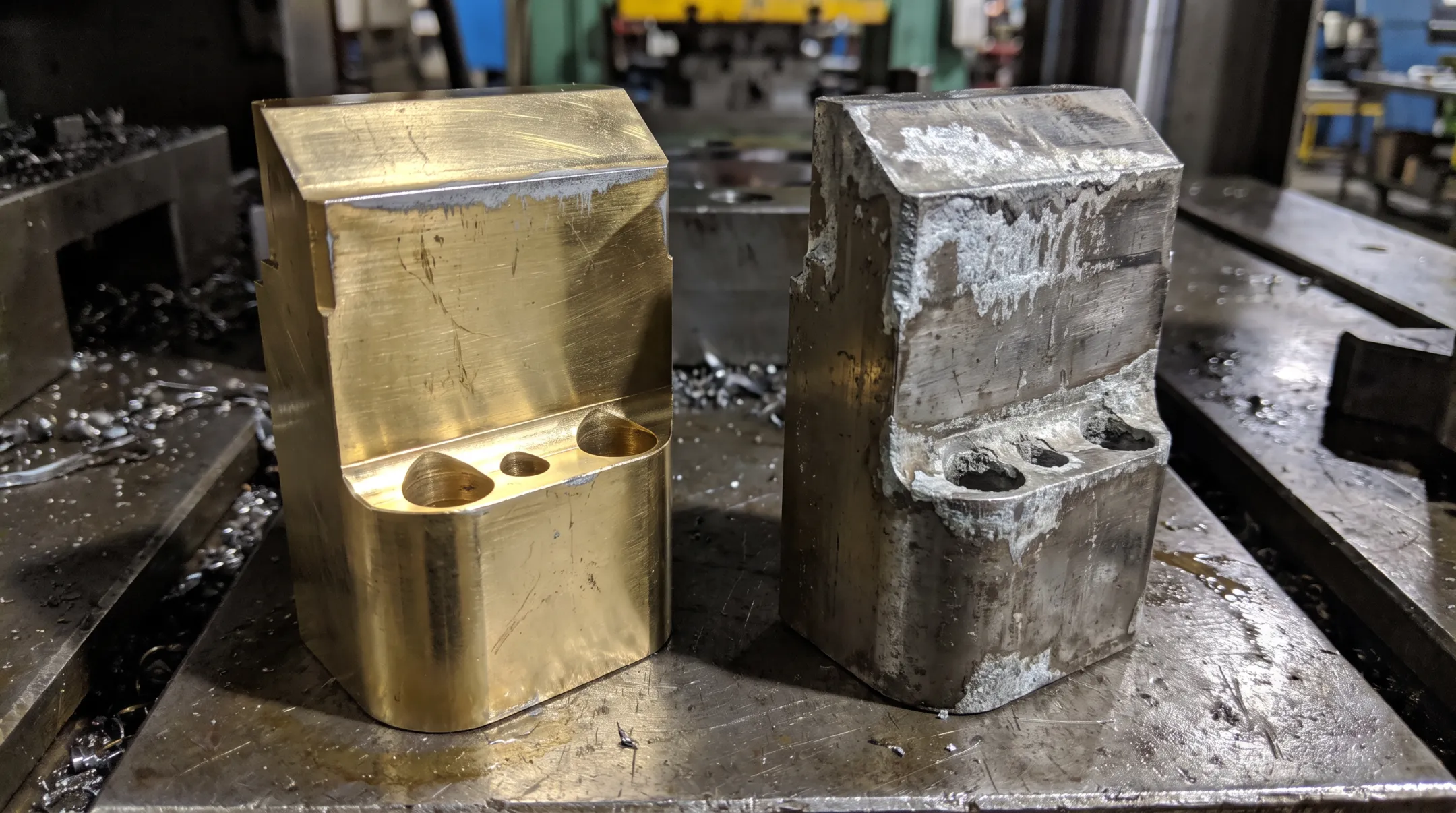

Alpha™ coating addresses a different corrosion problem: galvanized buildup. One customer running M4 punches reported almost no galvanized buildup on Alpha-coated tools versus significant buildup on TiN-coated tools — and fewer chipped punches as a result. Those Alpha-coated parts stayed in service over 15 months, producing an estimated 15 million parts, compared to uncoated D2 punches that needed sharpening every three weeks.
| Attribute | Detail |
|---|---|
| Best For | Tooling, dies, punches, and forming components exposed to wear and corrosive buildup |
| Key Benefit | Extended part life, reduced maintenance, fewer production stoppages |
| Turnaround | Nationwide service across the U.S., Canada, and Mexico with reasonable lead times |
Zinc Metal Plating (Hot-Dip Galvanizing, Electro-Galvanizing)
Beyond tool-level PVD, many plants still rely on proven commodity systems for large structures and hardware. Zinc plating remains a workhorse for structural steel and fasteners. The American Galvanizers Association reports zinc coatings can corrode 10 to 100 times more slowly than bare steel, depending on exposure conditions.
The zinc layer sacrifices itself, protecting the steel underneath even where the coating gets scratched. Application methods include hot-dip galvanizing, electro-galvanizing, mechanical plating, and zinc-rich paint.
| Attribute | Detail |
|---|---|
| Best For | Structural steel, fasteners, outdoor infrastructure |
| Key Benefit | Low cost, long-lasting sacrificial protection |
| Limitation | Not suited to precision tooling or high-heat wear applications |
Epoxy Coatings
Epoxy resins are standard in chemical plants, refineries, and heavy industrial equipment. They bond well to substrates and resist chemical and abrasion damage — as long as surface prep is done right.
The catch: epoxy degrades under UV exposure. Expect yellowing, chalking, and gloss loss on anything left outside long-term.
| Attribute | Detail |
|---|---|
| Best For | Industrial flooring, tanks, pipelines, structural steel in harsh chemical environments |
| Key Benefit | High durability and chemical resistance |
| Limitation | UV exposure causes yellowing and surface degradation over time |

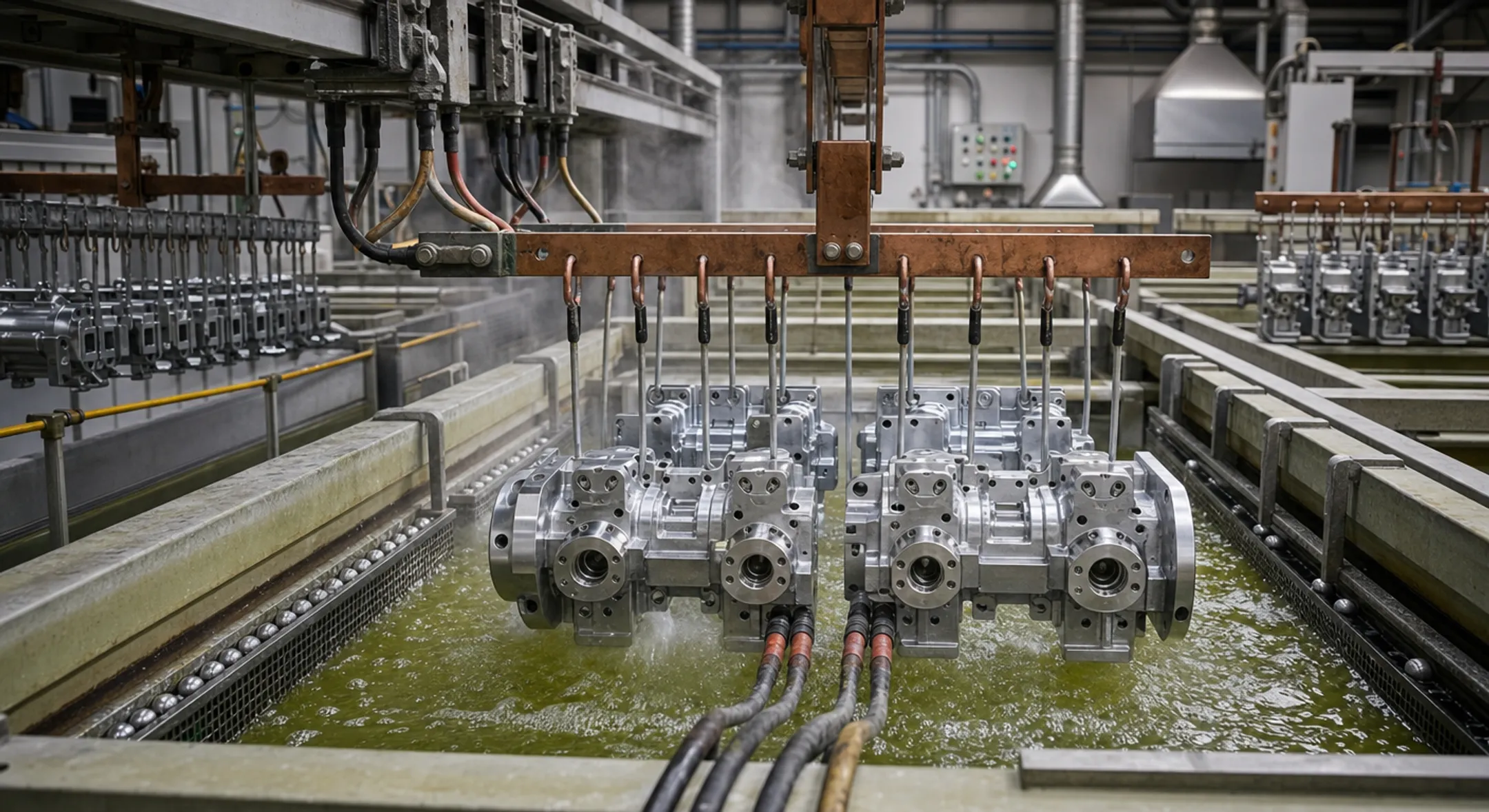

Nickel & Electroless Nickel Plating
Nickel plating increases both corrosion resistance and hardness. The electroless version — a chemical deposition process rather than electrolytic — produces a more uniform coating, which matters for threaded or geometrically complex parts.
Electroless nickel also boosts electrical conductivity, useful for battery contacts and hydraulic components.
| Attribute | Detail |
|---|---|
| Best For | Precision parts, injection molds, firearms, hydraulic components |
| Key Benefit | Uniform coating with added hardness and conductivity |
| Limitation | Higher cost than basic plating methods |
Ceramic & Diffusion Coatings (Chromizing, Aluminizing)

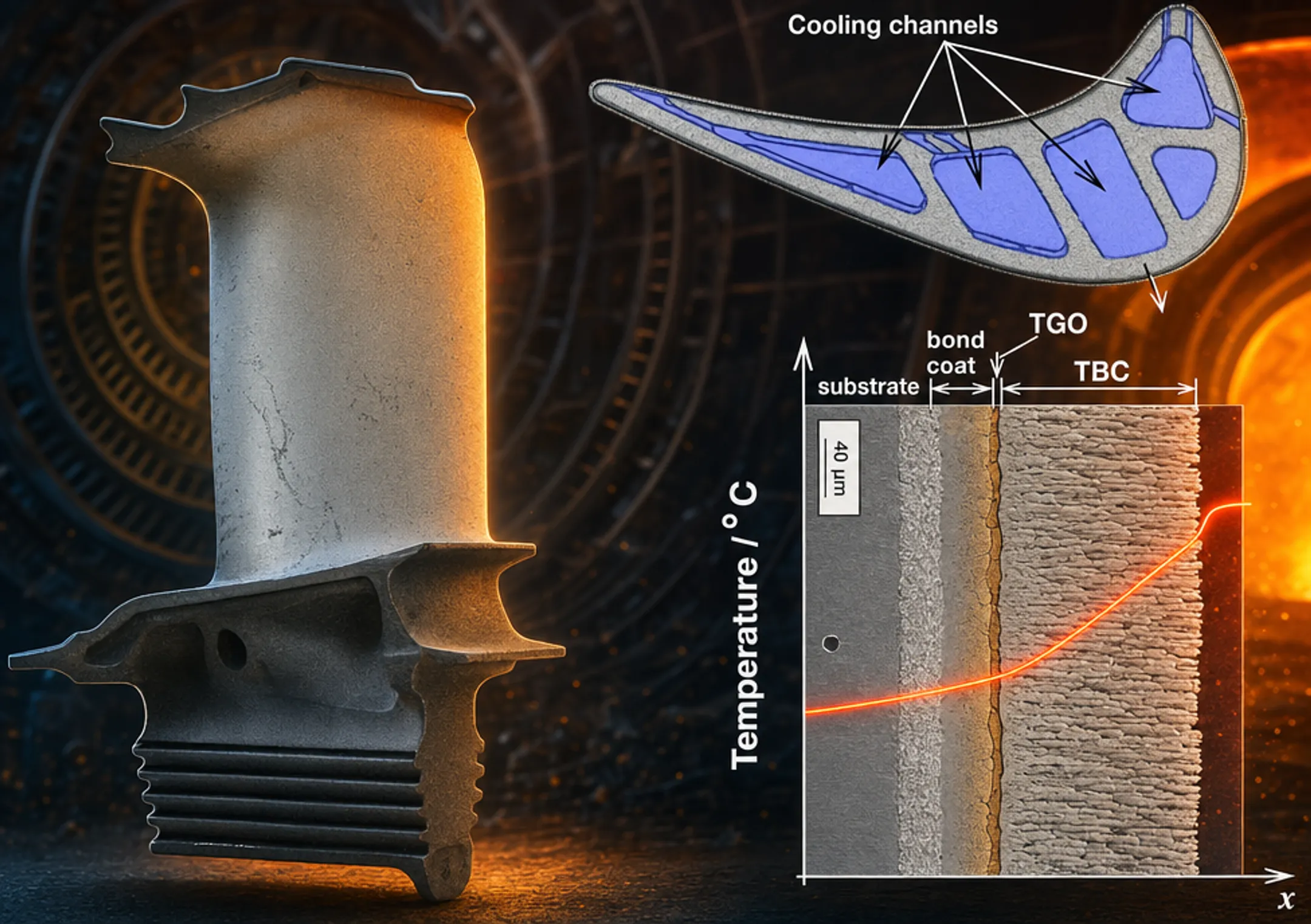

When temperatures climb into extreme territory, diffusion coatings take over. Aluminide coatings form adherent alumina scales that block oxygen diffusion, protecting nickel superalloys used in turbine blades and combustors. One 2026 review found aluminide coatings maintain oxidation resistance from 900°C to 1200°C.
These coatings target reformers, furnaces, and other process equipment where organic and even metallic coatings simply can't survive.
| Attribute | Detail |
|---|---|
| Best For | High-temperature process equipment, reformer tubes, furnace components |
| Key Benefit | Withstands extreme heat and aggressive chemical exposure |
| Limitation | Specialized process with higher cost and longer lead times |
How We Chose the Best Corrosion-Resistant Coatings
We prioritized durability under real operating conditions—including corrosive exposure—plus substrate compatibility and application versatility over upfront price. Total cost of ownership tells a more complete story than a quote sheet ever will.
A common mistake: picking the cheapest coating, then eating higher maintenance and downtime costs for years afterward. A $2,000 savings on coating cost means nothing if it triggers monthly resharpening instead of quarterly.
We also weighted:
- Case studies with measurable outcomes (parts produced, hours saved, wear and corrosion-related failure reduction)
- Client feedback tied to business results, not satisfaction scores alone
- ASTM and ISO compliance where applicable, including methods used to judge coating durability in service
One customer's Alpha™-coated probe tips completed 500 scratch-test passes with no visible degradation, while chrome-plated equivalents showed visible wear after just 100 passes. Measurable durability like that carried more weight in our picks than brand names or sticker price.
Conclusion
There's no single "best" corrosion-resistant coating. The right choice comes from matching coating chemistry to your environment, substrate, and performance goals.
Before you commit to a coating partner, weigh cost per extended part life, turnaround time, and fit for your batch volumes. A coating that works on one part can still be the wrong fit for another in the same facility.
For metal forming, punching, and tooling applications, Surface Solutions' PVD coatings help extend tool life, cut maintenance load, and keep production running longer between service intervals.
Frequently Asked Questions
What kind of rustproofing is best?
It depends on the application. Zinc galvanizing works well for structural steel and fasteners, while PVD or nickel coatings suit precision tooling exposed to wear and corrosion together.
What is the most effective corrosion-resistant coating for steel?
Zinc-based coatings handle general structural steel effectively at low cost. For tooling exposed to heat and wear alongside corrosion, ceramic or PVD coatings like CrN perform better.
What are the two most popular types of anticorrosion coatings?
Metallic coatings (zinc, nickel) and organic coatings (epoxy, polyurethane) are the most common in industrial use. Metallic coatings suit structural and precision parts, while organic coatings excel in chemical and immersion environments.
What is a corrosion-resistant coating?
It's a barrier or sacrificial layer on metal that prevents oxidation and chemical attack. It either blocks moisture and chemicals or corrodes first to protect the substrate.
How often do corrosion-resistant coatings need to be reapplied?
Lifespan varies widely by coating type and environment. Paints and epoxies may need reapplication every few years, while PVD and ceramic coatings can last a decade or more under the right conditions.
Can corrosion-resistant coatings improve tool or part performance beyond rust prevention?
Yes. Coatings like Alpha™ reduce friction, cut lubricant use, and extend intervals between resharpening or maintenance. Those gains show up in labor savings and production uptime.
