Many shops still lump "repair" and "maintenance" into one bucket. That's a mistake. Repair is what you do after something breaks. Maintenance is what keeps it from breaking in the first place. Confusing the two hides the true cost of running reactive.
This guide breaks down the maintenance types stampers actually use, the best practices that keep dies running longer, and how PVD coatings like Alpha, TiN, and CrN can stretch the time between sharpenings.
Key Takeaways
- Unplanned die repair can cost 4x more than planned maintenance once hidden costs are included
- Preventive maintenance alone can save 12%–18% versus reactive work; predictive adds another 8%–12%
- Match each die to one of five approaches—reactive, preventive, predictive, condition-based, or proactive/RCM—based on criticality
- PVD coatings like Alpha have helped shops produce 6x more parts before resharpening
- Tracking repair costs separately from maintenance spend reveals where your die shop is bleeding money
What Is Die Maintenance and Repair?
Die repair restores a damaged or broken die to working condition. It's reactive by definition: a punch snaps, a cam surface fails, and now you're pulling the die mid-run. The visible cost is the part and the labor. The hidden costs are the ones that hurt:
- Downtime while the press sits idle
- Scrapped or quarantined parts from the failure event
- Expedited shipping to hit a customer deadline anyway
- Quality-lab time confirming nothing else went out defective
Die maintenance is the planned process of preserving die condition: inspection, cleaning, lubrication, sharpening, and small preventive fixes before failure happens.
Why separate the two on paper? Because a shop that only tracks "die shop labor hours" can't tell if it's spending money keeping dies healthy or constantly patching them back together. Split repair spend from maintenance spend, and the ratio tells you exactly how reactive your operation really is.
What is tool and die work, exactly? Per the Bureau of Labor Statistics, tool-and-die makers analyze specifications, machine tool steel, and fit components to build and repair dies, jigs, fixtures, and gauges used in stamping and forming. It's a skilled trade that covers both the build and the ongoing service life of the tooling.
Why Maintenance Programs Matter
The numbers back up the shift toward planned work. The Department of Energy's Federal Energy Management Program estimates that preventive maintenance saves 12%–18% over reactive maintenance. Predictive maintenance can add another 8%–12% on top of that, and in some cases total savings exceed 30%–40%.
A solid maintenance program typically delivers:
- Fewer unplanned breakdowns mid-run
- Extended die life and fewer full rebuilds
- Better spare-parts inventory planning (you know what's wearing out and when)
- Improved operator safety from fewer worn punches and burrs

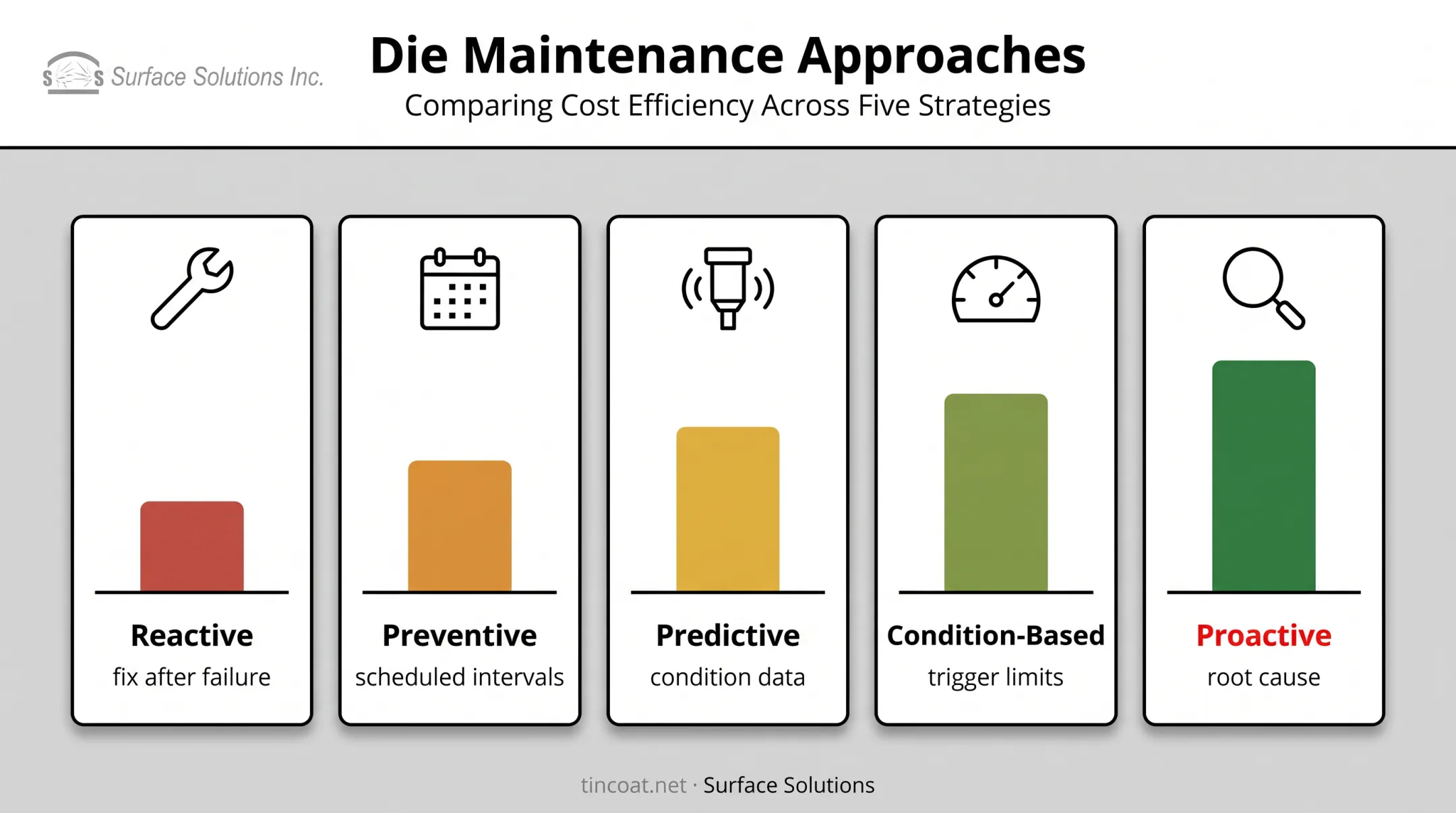

Types of Die Maintenance Programs
Not all maintenance looks the same. Here's how the five approaches shake out for die shops.
Reactive maintenance means you fix it when it breaks. It's the most expensive approach because every failure comes with downtime, scrap, and often a rushed shipment to cover the gap. Some reactive work is unavoidable, but if it's your default strategy, you're paying the $500 premium repeatedly.
Preventive maintenance (PM) runs on a schedule: every X cycles, hours, or days, regardless of actual wear. It's predictable and easy to budget for. The risk is over-maintaining (sharpening a punch that still had life left) or under-maintaining (waiting too long and getting surprised anyway).
Predictive maintenance (PdM) uses actual condition data (vibration analysis, thermal imaging, dimensional trending) to flag wear before it becomes failure. Instead of guessing at an interval, you're watching the die tell you when it needs attention.
Proactive or reliability-centered maintenance (RCM) targets the root cause of recurring failures instead of treating the symptom. If a spring keeps failing at 2,000 strokes, RCM asks why, then upgrades to a longer-life spring or gas cylinder instead of replacing the same part on repeat.
Condition-based maintenance is the trigger-based cousin of predictive maintenance. Work happens only when a measured condition crosses a defined limit.
Most mature die shops run a blend: PM for known wear items, PdM or condition-based for higher-risk components, and RCM thinking whenever the same failure shows up twice.
Best Practices for Effective Die Maintenance & Repair

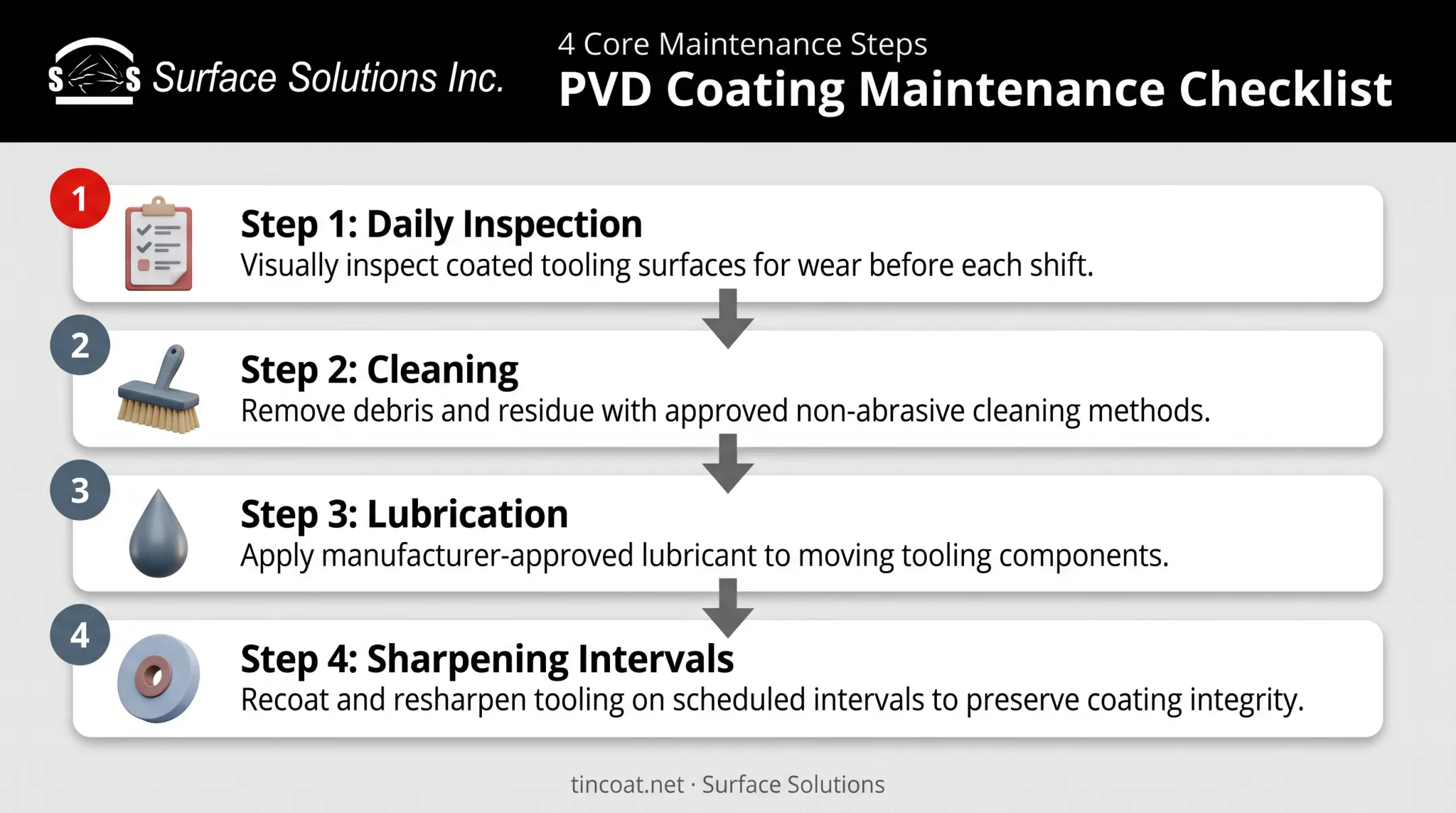

A documented schedule beats tribal knowledge every time. At minimum, it should cover:
- Daily inspection — check for loose dowels, screws, springs, wear plates, and debris buildup
- Cleaning — remove slugs, slivers, and lubricant residue that accelerates corrosion
- Lubrication — apply to mating surfaces to reduce friction and heat buildup
- Sharpening intervals — set by stroke count, then adjusted based on burr and dimensional data
Track It or Lose It
A work order system matters more than most shops admit. Without one, root causes get forgotten and the same spring failure happens every 2,000 strokes without anyone noticing the pattern.
Document every repair with cause, parts used, and downtime incurred. That history becomes your best planning tool.
Train staff specifically on:
- Inspection techniques for burrs, edge wear, and alignment
- Calibration checks on punch-to-button alignment
- Correct shimming — fewer, thicker shims placed straight, never overhanging or crooked
Lubrication reduces friction and heat, but it creates its own maintenance load: more lubricant often means more cleaning cycles and buildup to manage. Coatings change that equation by cutting how much lubricant you need in the first place, which we'll cover below.
Monitor the data you're already generating. Downtime logs and scrap rates aren't just for accounting. They tell you whether your PM interval is too tight, too loose, or about right.

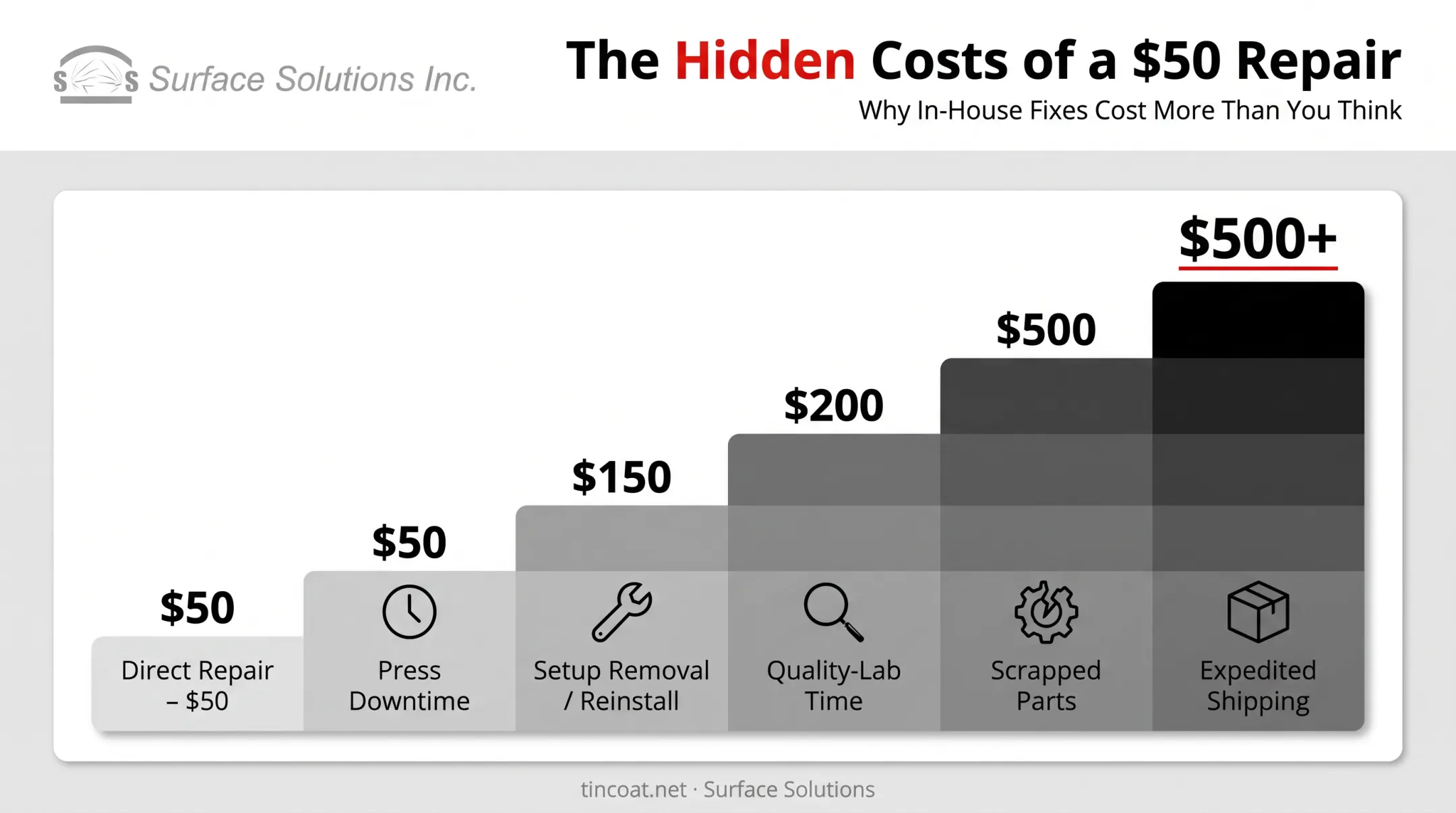

Die Repair vs. Preventive Maintenance: Understanding the True Costs
Here's where most shops lose the thread. The direct cost of a repair (a punch and an hour of labor) looks cheap on paper. It isn't.
What actually gets counted in a true repair cost:
- Press downtime during the fix
- Setup removal and reinstallation
- Quality-lab time confirming no bad parts shipped
- Scrapped or quarantined production
- Idle operator time
- Expedited shipping to cover a missed deadline
MetalForming Magazine's example shows a $50 direct repair ballooning past $500 once every one of those factors gets tallied. That's the gap between what your die shop reports spending and what the failure actually cost.
The relationship works in the other direction too. As PM investment increases, firefighting and repair costs tend to drop, not linearly but steeply once you clear the worst offenders.
One anonymous stamper who switched to Alpha-coated M4 punches on galvanized steel went from sharpening every three weeks to running over 15 months between interventions. Basic maintenance workload fell sharply as a result.
A simple priority system for allocating die shop resources:
- Fix anything currently causing scrap or safety risk. Repair first.
- Schedule PM for known wear items on a stroke-based interval
- Flag any component that's failed twice for root-cause review (RCM)
- Reserve engineering time for chronic failures, not one-offs

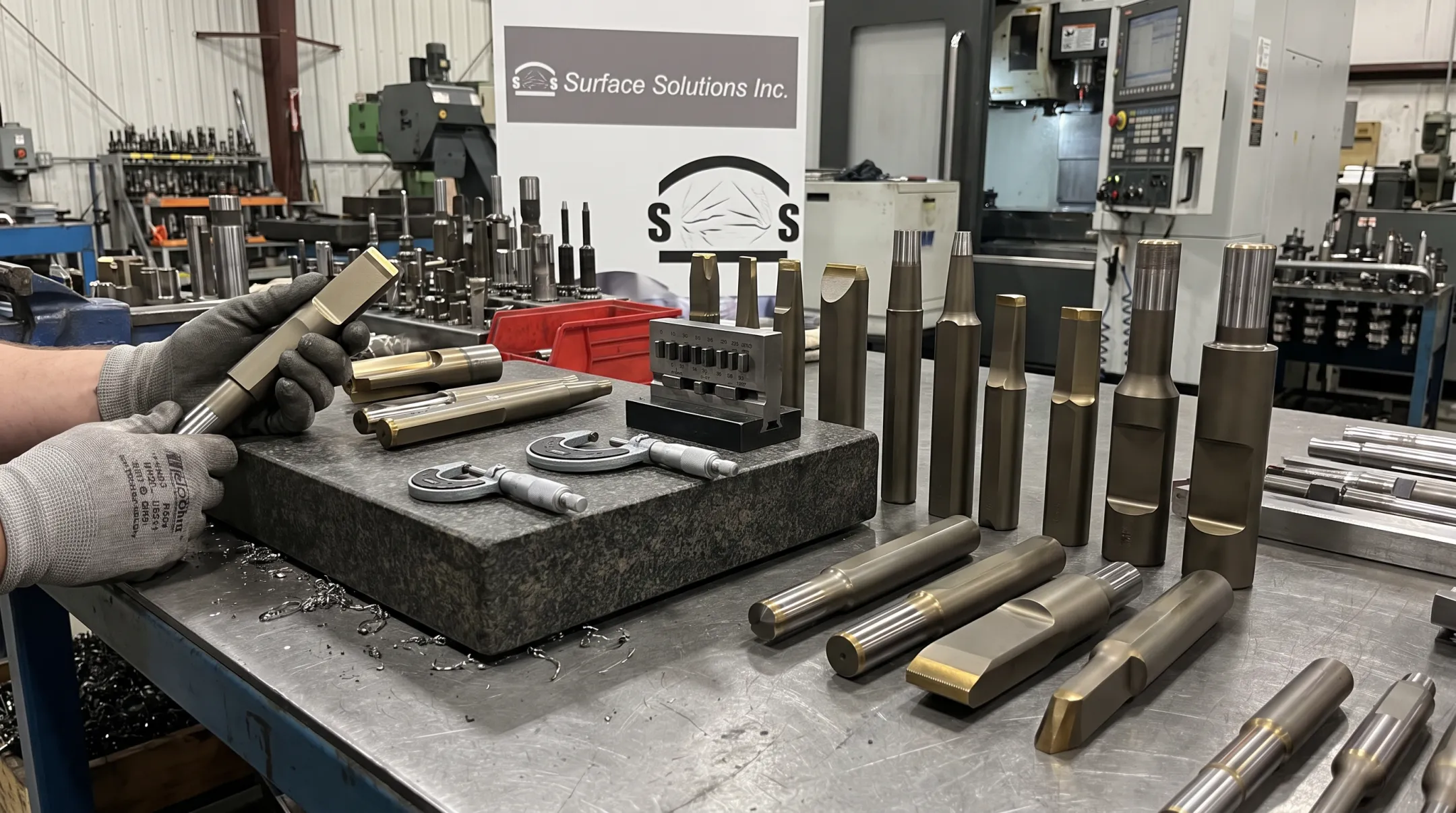

Reducing Maintenance Frequency with High-Performance PVD Coatings
This is where coatings shift the math instead of just tightening the schedule.
Surface Solutions applies PVD coatings (Alpha™, TiN, AlTiN, and CrN) directly onto customer-supplied punches and dies to reduce the wear that drives sharpening frequency in the first place.
The clearest example: a customer running Alpha-coated tooling completed a full production order of 60,000 parts without resharpening, where the same die normally needed a regrind after 10,000 parts. That's 6x more parts per sharpening cycle.
Each sharpening event took roughly 8 hours to pull, regrind, and reinstall the tooling. Avoiding six of those cycles saved an estimated 48 labor hours on a single job.
CrN coating tackles a different problem: heat. In one stainless-steel drawing application, an Alpha-coated tool produced only 15 parts before the parts were too hot to touch. Switching to CrN on the same tool pushed output past 500 parts, with parts staying just warm enough for safer handling and less thermal wear.
Alpha also outperforms standard TiN on buildup and chipping. In a side-by-side trial stamping 0.057-inch galvanized steel, the TiN-coated punch showed noticeably more galvanized buildup than the Alpha-coated punch under identical conditions. The customer also reported less chipping with Alpha, which meant fewer emergency swaps mid-run.
In short, the right coating can deliver:
- 6x more parts between resharpening cycles
- 48 labor hours saved on a single production job
- 500+ parts in heat-sensitive drawing vs. 15 before parts ran too hot
- Less galvanized buildup and fewer mid-run punch chips vs. standard TiN
None of this eliminates maintenance. It shifts the interval. A die that used to need attention every three weeks might go over a year between interventions, freeing your die shop to focus on genuine root-cause work instead of routine firefighting.
Surface Solutions provides this coating service nationwide. The Fridley, Minnesota facility ships to and from customers across the U.S., plus Canada and Mexico, with much of the Upper Midwest reachable within a day or two by ground shipping.
Frequently Asked Questions
What are five types of maintenance?
Reactive, preventive, predictive, proactive/reliability-centered (RCM), and condition-based maintenance. Condition-based is closely related to predictive: both trigger work from measured wear rather than a fixed calendar interval.
What is tool and die work?
It's the skilled trade of building, repairing, and maintaining dies and tooling used in metal stamping and forming. Per the Bureau of Labor Statistics (BLS), it includes machining, fitting, and assembling components to spec.
How often should dies be inspected or sharpened?
Intervals vary by tool material, cycle count, and part tolerance requirements. Most shops start with a stroke-based baseline, then adjust using burr, dimensional, and downtime data.
What's the difference between preventive and predictive maintenance?
Preventive maintenance runs on a fixed schedule regardless of condition. Predictive maintenance uses actual measurements (vibration, temperature, dimensions) to trigger work only when wear crosses a set threshold.
Can coatings reduce how often a die needs maintenance?
Yes. PVD coatings like Alpha and CrN reduce friction and heat at the tool surface, which delays sharpening intervals and often lowers lubricant requirements during production.
How do I calculate the true cost of die repair?
Add direct material and labor to press downtime, setup and teardown/reset, scrap or quarantined parts, and any expedited shipping needed to cover the delay. The hidden costs usually dwarf the direct repair bill.
