Hardness alone doesn't predict tool life. A coating rated at 3,500 HV can still fail early if it's mismatched with substrate toughness, load type, or thermal conditions. This article breaks down actual hardness ranges, how they're measured, and why chasing the highest HV number often backfires.
TL;DR
- PVD coating hardness typically runs 1,500-4,000+ HV, depending on chemistry (TiN, CrN, AlTiN, and others)
- Hardness is measured via Vickers or Knoop microindentation, not a single universal test
- Higher hardness doesn't guarantee longer tool life: toughness and substrate matching matter just as much
- Ignoring hardness-to-thickness ratios accelerates delamination and edge chipping
What PVD Coating Hardness Represents
Hardness is a material's resistance to localized plastic deformation under an indenter. It says nothing about fracture toughness, impact resistance, or how well the coating bonds to the substrate underneath it.
In a coated tool system, hardness works as a wear-resistance parameter. It governs how well the surface resists abrasion, adhesive wear, and micro-cutting during operation. But it's a derived output of coating chemistry and deposition process, not something you can dial up independently like adjusting thickness.
A peer-reviewed coining study published in 2025 illustrates this well. Researchers measured average nanoindentation hardness of 1,714.85 HV for CrN and 2,622.24 HV for TiN—yet tool failure in one alloy-steel sample occurred at just 852 HV, while a tool tested at 677 HV actually showed superior toughness under repetitive impact. High HV numbers alone do not predict which coated tool survives repetitive impact.
Factors That Influence Hardness in Real-World Operation
Lab-measured hardness rarely matches field performance exactly. Load, heat, and part geometry all shift the equation. Key variables include:
- Coating chemistry and structure — single-layer versus multilayer or gradient designs change stress distribution and crack resistance
- Deposition parameters — bias voltage, temperature, and reactive gas ratios all shape grain structure during coating formation
- Substrate condition — surface prep and base-material hardness before coating application
- Operating temperature — thermal cycling during machining or forming stresses the coating differently than a static lab indent
- Progressive wear — micro-chipping and gradual thinning change the coating's effective hardness over a tool's working life

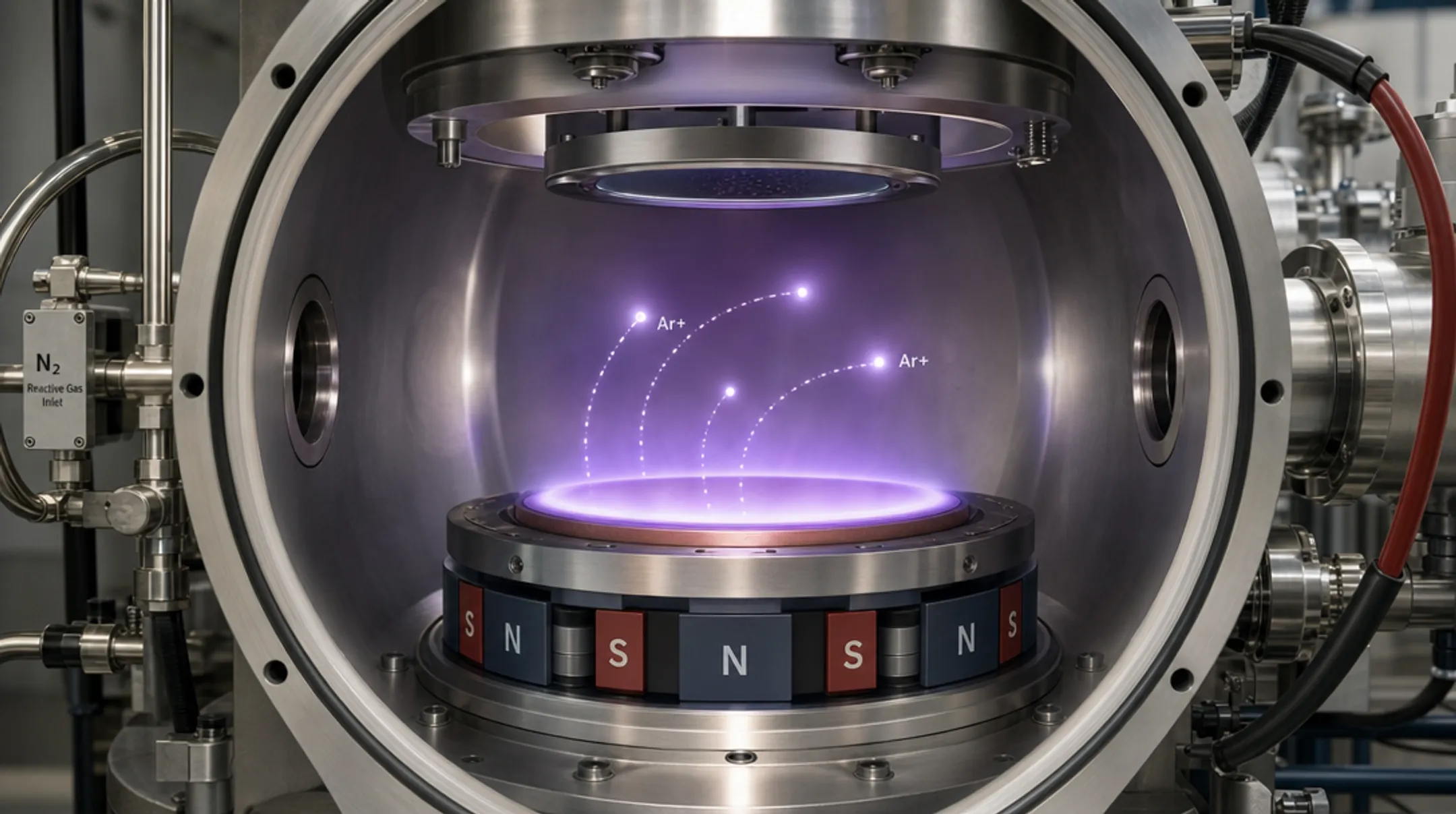

One study on TiN deposition via DC magnetron sputtering found that adjusting the nitrogen-flux ratio shifted crystal texture and grain size—peak hardness of 26.1 GPa occurred at a specific ratio (0.45), with performance dropping at higher ratios due to agglomerated grain structure. Tight control of those deposition settings is what keeps hardness consistent from batch to batch.
Range of PVD Coating Hardness
Hardness values are governed by coating chemistry and shouldn't be treated as interchangeable across applications.

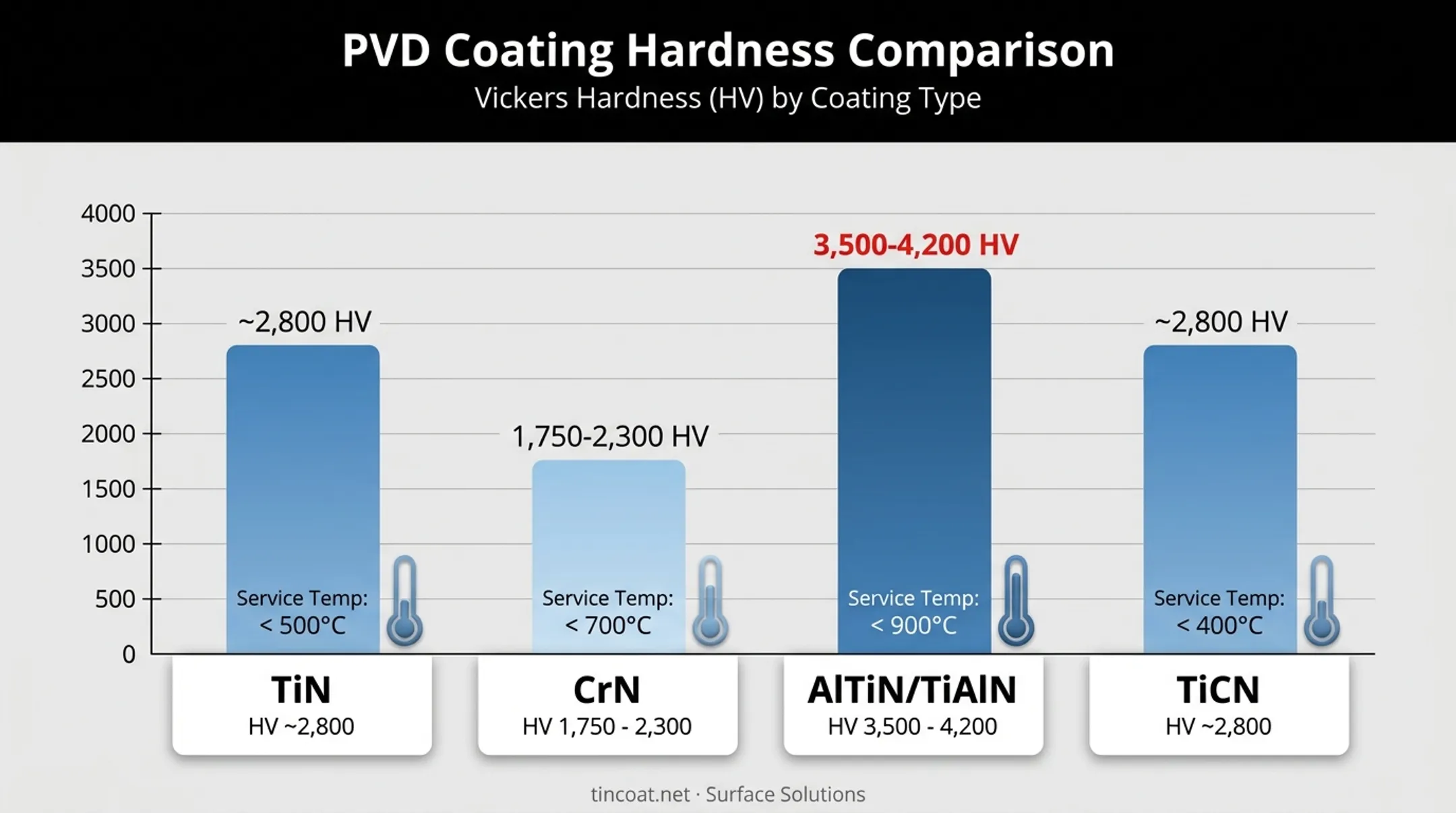

Nominal Hardness Ranges by Coating Type
Documented values vary by manufacturer and test method, but general benchmarks include:
| Coating | Documented Hardness | Typical Service Temp |
|---|---|---|
| TiN | ~2,800 HV | ~500°C (~932°F) |
| CrN | ~1,750-2,300 HV | ~700°C (~1,292°F) |
| AlTiN/TiAlN | 3,500-4,200 HV | 450-900°C (842-1,652°F) |
| TiCN | ~2,800 HV | ~300°C (~572°F) |
| Surface Solutions' own AlTiN coating, for example, is specified at 4,000-4,200 HV, applied at a thickness of 0.0001"-0.0002" (2-5 microns). These figures assume standard lab indentation on flat, polished surfaces. Field conditions introduce variables that shift the picture. |
Allowable Tolerance and Boundary Limits
There's no single, universally agreed "brittleness ceiling" across coating families in the current research record. Pushing any coating toward its upper hardness range without accounting for impact loading increases micro-cracking risk. Short thermal spikes and continuous high-temperature exposure also stress coatings differently, and each family responds on its own curve.
Safe Operating Margin
Manufacturers build margin between rated hardness and expected field stress. Running a tool at the edge of its hardness ceiling tends to produce:
- Increased chipping at cutting edges
- Reduced die run times between maintenance cycles
- Inconsistent part quality as the coating degrades unevenly
Key Technical Properties of PVD Coating Hardness
Hardness isn't a static number. It's defined by how stable it stays under load, how it couples with toughness, and how it interacts with coating thickness.
Stability and Variability
Repeated thermal cycling and mechanical loading can drift hardness over a tool's operating life. Batch-to-batch repeatability also matters. Process control during deposition determines whether every coated part performs consistently or drifts from the datasheet number.
Hardness-Toughness Trade-off
Maximizing hardness alone often increases brittleness. This is where coating design matters more than raw HV numbers.
Surface Solutions' Alpha™ coating was engineered to balance wear resistance with chip resistance in punching applications. One customer reported 60,000 parts produced without resharpening, versus 10,000 previously—a sixfold gain from edge durability, not peak HV alone.
Coupling with Coating Thickness

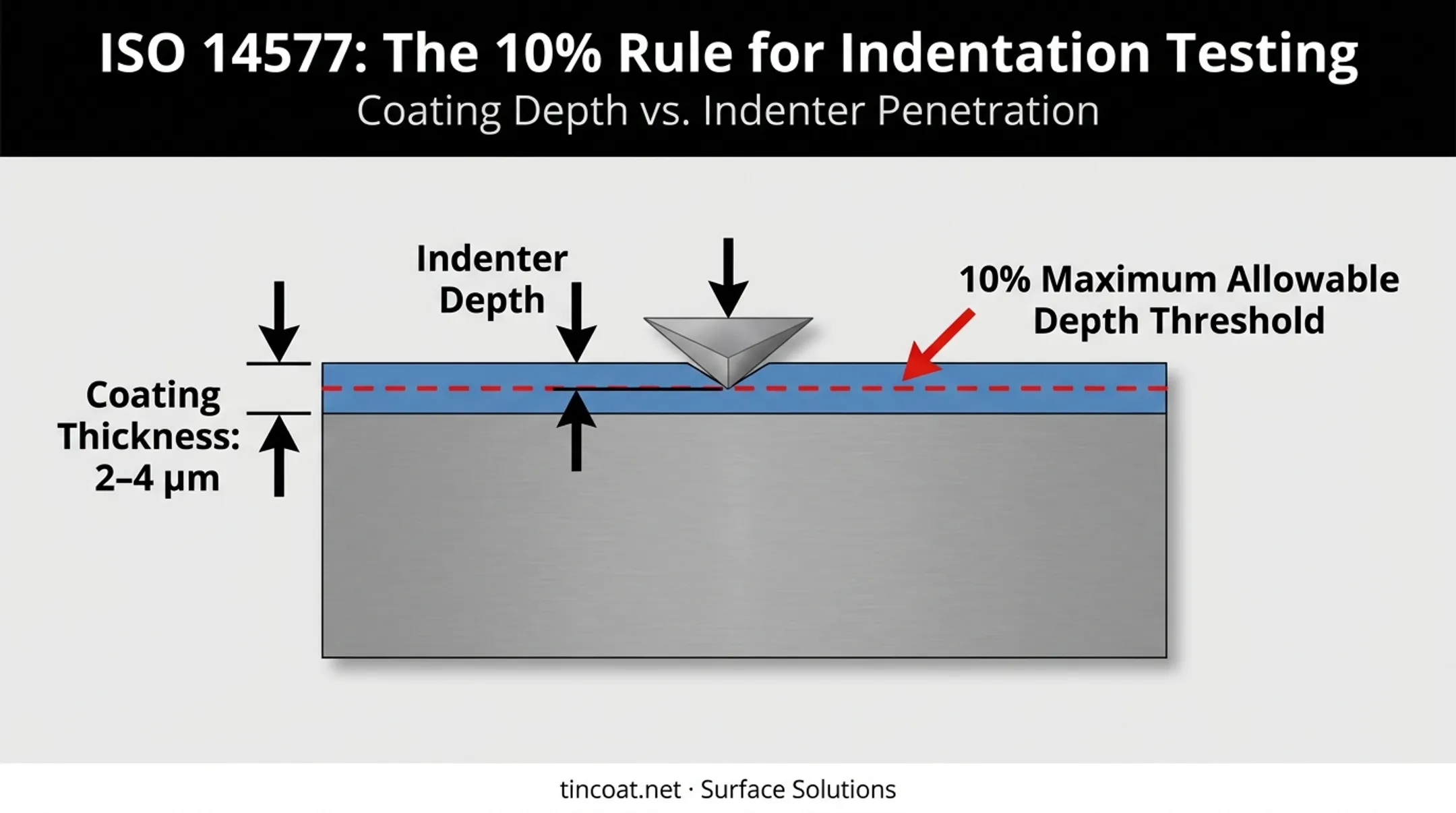

Per ISO 14577 guidance on instrumented indentation, depth during testing must stay below 10% of the coating thickness for an accurate reading. On a 2-4 micron coating, that leaves only a fraction of a micron of allowable indentation depth.
These factors can skew results when testing isn't tightly controlled:
- Surface roughness
- Thickness variation
- Substrate support
Thicker coatings support more reliable hardness testing and often improve durability, but they can also affect tight tolerances on precision tooling.
How PVD Coating Hardness Is Specified, Measured, and Validated
Hardness is specified on the datasheet and checked again in the field once coated tools enter production.
Specification and Documentation
Datasheets typically report hardness in HV or HK values, ideally referenced to standards like ISO 14577 or ASTM E2546. A coating's rated nominal hardness can differ from the actual tested hardness on a specific customer part. Part geometry and surface prep often drive that gap.
Measurement and Verification Methods

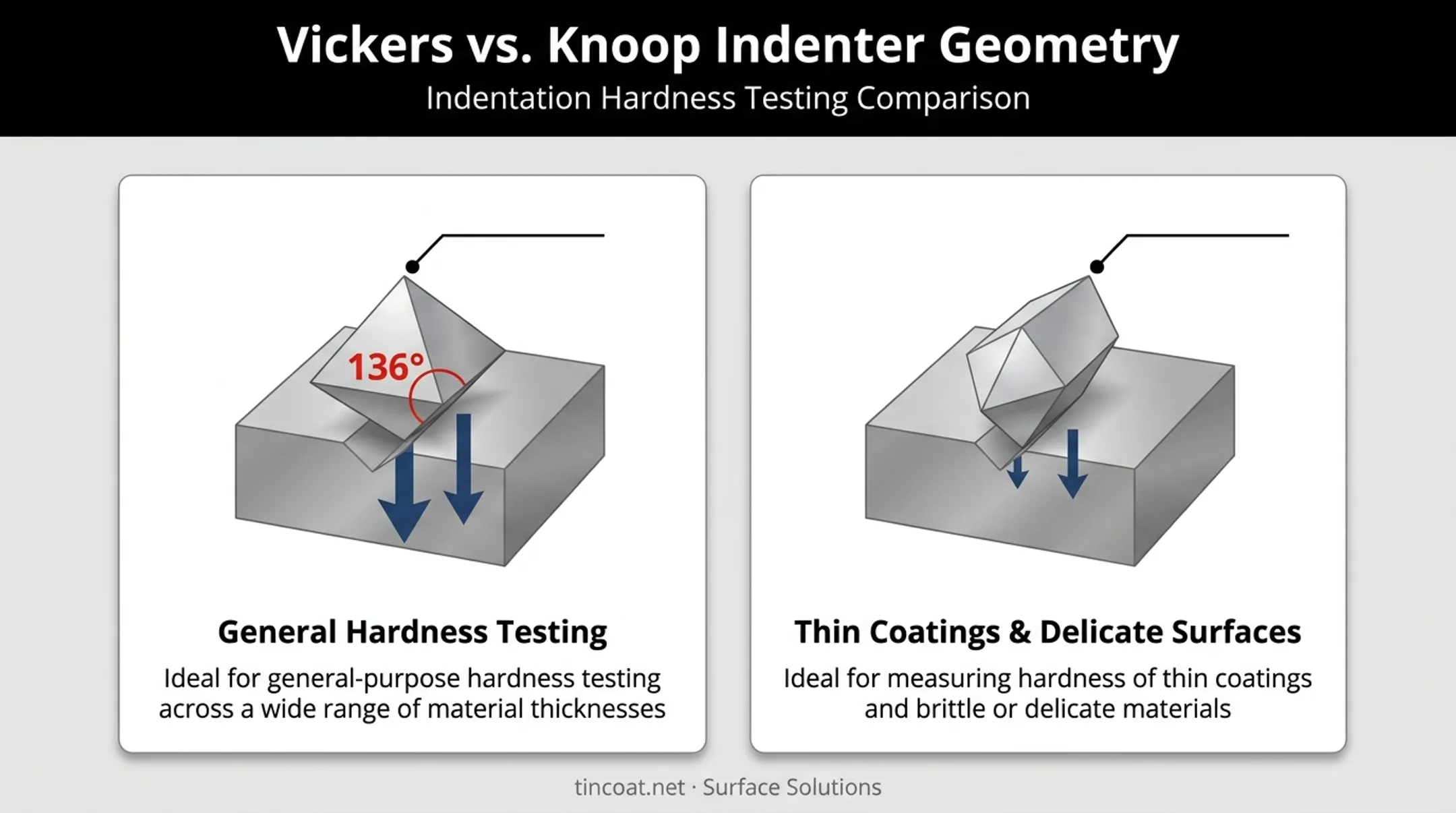

Two microhardness testing methods dominate:
- Vickers testing: uses a square-based diamond pyramid indenter with a 136° angle between opposing faces
- Knoop testing: penetrates roughly half as deep as Vickers, so it suits thin coatings and small, precise measurement areas
Both methods face accuracy challenges at micron-scale coating thicknesses. Field-measured hardness on production tools can also differ from lab samples because geometry, surface finish, and accumulated wear affect real-world results.
Implications of Operating Outside the Recommended Hardness Range
Hardness mismatches with application conditions produce predictable failure patterns.
When hardness is too low for the application:
- Reduced wear resistance
- Increased galling between tool and workpiece
- Higher lubricant consumption to compensate
When hardness is too high (or the coating too brittle) for the substrate and load:
- Micro-cracking under repeated impact
- Spalling and edge chipping
- Premature coating failure independent of substrate condition
Avoiding those failure modes depends on matching hardness and coating chemistry to the job—not chasing the highest HV number. Coating choice also shapes thermal behavior in production. In one documented drawing application on stainless steel, CrN produced over 500 parts with the tooling staying only warm to the touch, compared to a shorter run with a different coating where parts ran noticeably hotter. That thermal difference reflects how coating chemistry, not just hardness, shapes real production outcomes.
On the cost side, one customer running Alpha™-coated M4 punches produced an estimated 15 million parts over 15+ months, versus uncoated D2 punches that needed sharpening every three weeks. Maintenance dropped to roughly four hours per cycle for die removal, sharpening, and reinstallation. That gain comes from matching coating properties to the application, not from picking the highest HV number on a chart.
Common Misinterpretations of PVD Coating Hardness
A few recurring mistakes show up when teams specify coating hardness:
- Treating one HV number as a guarantee of tool life, regardless of substrate or load conditions
- Ignoring interaction effects between hardness, coating thickness, and adhesion strength. These three properties work together, not independently
- Applying lab hardness to field conditions without adjusting for high-impact or high-temperature operating stress
- Over-specifying maximum hardness for punching or stamping applications without weighing brittleness trade-offs against impact resistance
Conclusion
PVD coating hardness is a key performance factor you match to the job, not a single value to push as high as possible. Its useful range, how you measure it, and how it works with toughness and thickness decide whether a coating holds up or fails early.
Datasheet figures only go so far. An experienced PVD coating provider like Surface Solutions can match hardness to your real operating conditions (load, temperature, substrate, and wear mode) instead of a single spec-sheet number.
Frequently Asked Questions
What is a good hardness value for a PVD coating?
It depends entirely on the application. Typical ranges run 1,500-4,000+ HV, but the right choice depends on substrate hardness, load type, and thermal exposure, not just the highest number available.
How is PVD coating hardness measured?
Vickers and Knoop microhardness testing are the industry standards, often referenced to ISO 14577 or ASTM E2546. Indentation depth must stay below 10% of coating thickness for accurate readings.
Does a harder PVD coating always mean better performance?
No. Maximizing hardness alone often increases brittleness, raising the risk of micro-cracking and chipping under impact. Toughness and substrate matching matter just as much as raw hardness.
What is the hardness difference between TiN and TiAlN coatings?
TiN typically runs around 2,800 HV with service temperatures near 500°C. AlTiN/TiAlN is considerably higher, often 3,500-4,200 HV, with service temperatures up to 850-900°C.
Can PVD coating hardness change over time or with use?
Yes. Thermal cycling and mechanical loading over a tool's working life can cause hardness to drift, along with progressive wear and micro-chipping that reduce effective coating performance.
How do I know which PVD coating hardness is right for my tooling application?
Consult with a coating provider who can match hardness to your specific load, temperature, and material conditions. Contact Surface Solutions at 763-785-9436 or info@tincoat.net for application-specific guidance.
