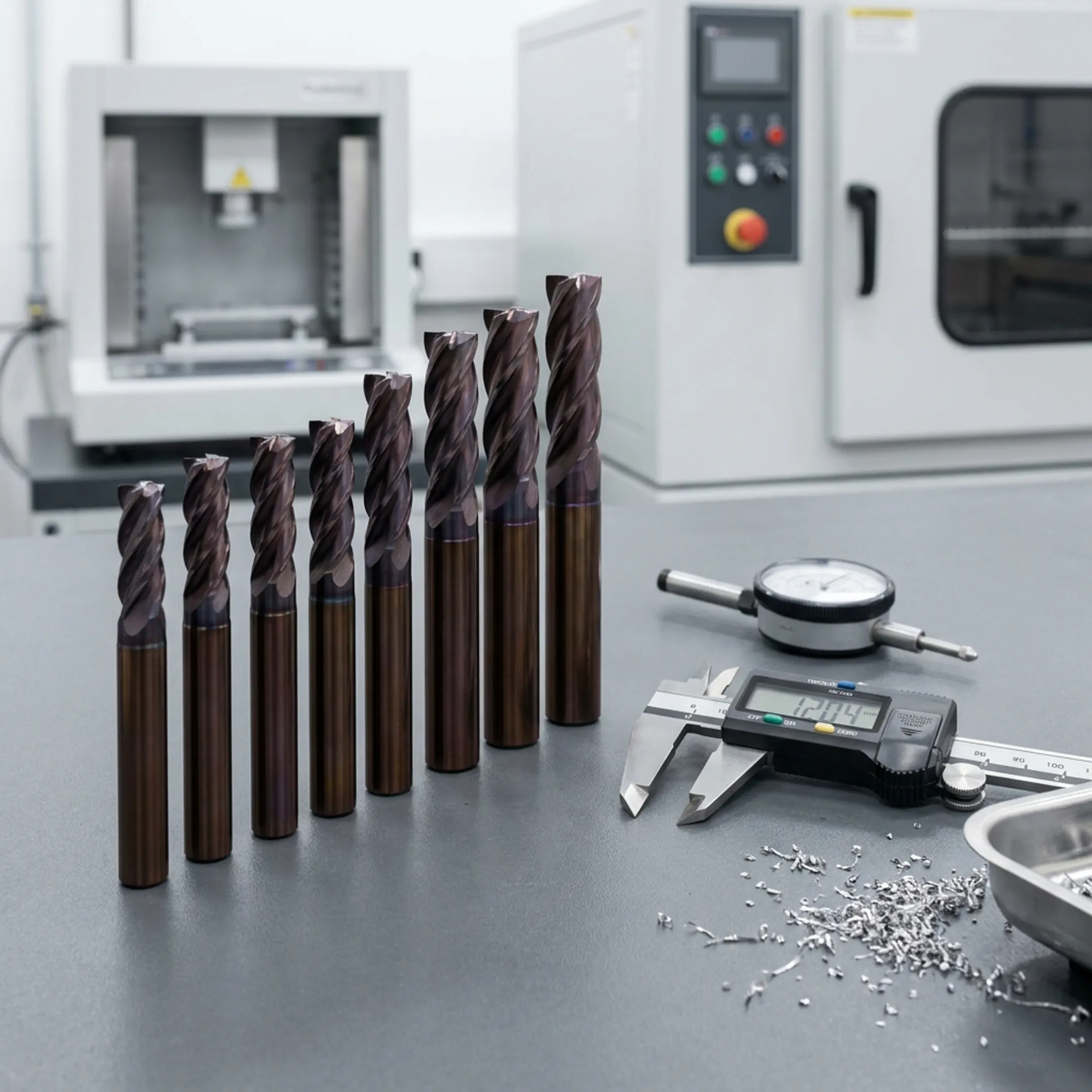

TiAlN Coated Carbide End Mills for Precision Cutting

The best carbide-tool coating depends on the workpiece, cutting speed, coolant strategy, and failure mode. TiAlN is often selected for high-temperature machining of steels and stainless steels because it offers strong heat and wear resistance. TiN, TiCN, CrN, and AlTiN may be better suited to other conditions. A coating should be selected alongside the tool geometry and specific machining operation.

For aluminum, coatings that minimize material adhesion and built-up edge are generally preferred. TiAlN is usually not the first choice for aluminum because aluminum can adhere to it under certain cutting conditions. Uncoated polished carbide or coatings designed for nonferrous materials, such as zirconium nitride or diamond-like options, are commonly considered. Proper flute polishing, geometry, lubrication, and chip evacuation remain equally important.

TiCN, or titanium carbonitride, is valued for hardness and low friction in many lower-to-moderate temperature cutting and forming applications. TiAlN, or titanium aluminum nitride, is designed to retain performance at higher temperatures and is widely used for dry or high-speed machining of ferrous materials. TiAlN generally provides stronger thermal protection, while TiCN may suit operations prioritizing hardness, lubricity, or specific material behavior.

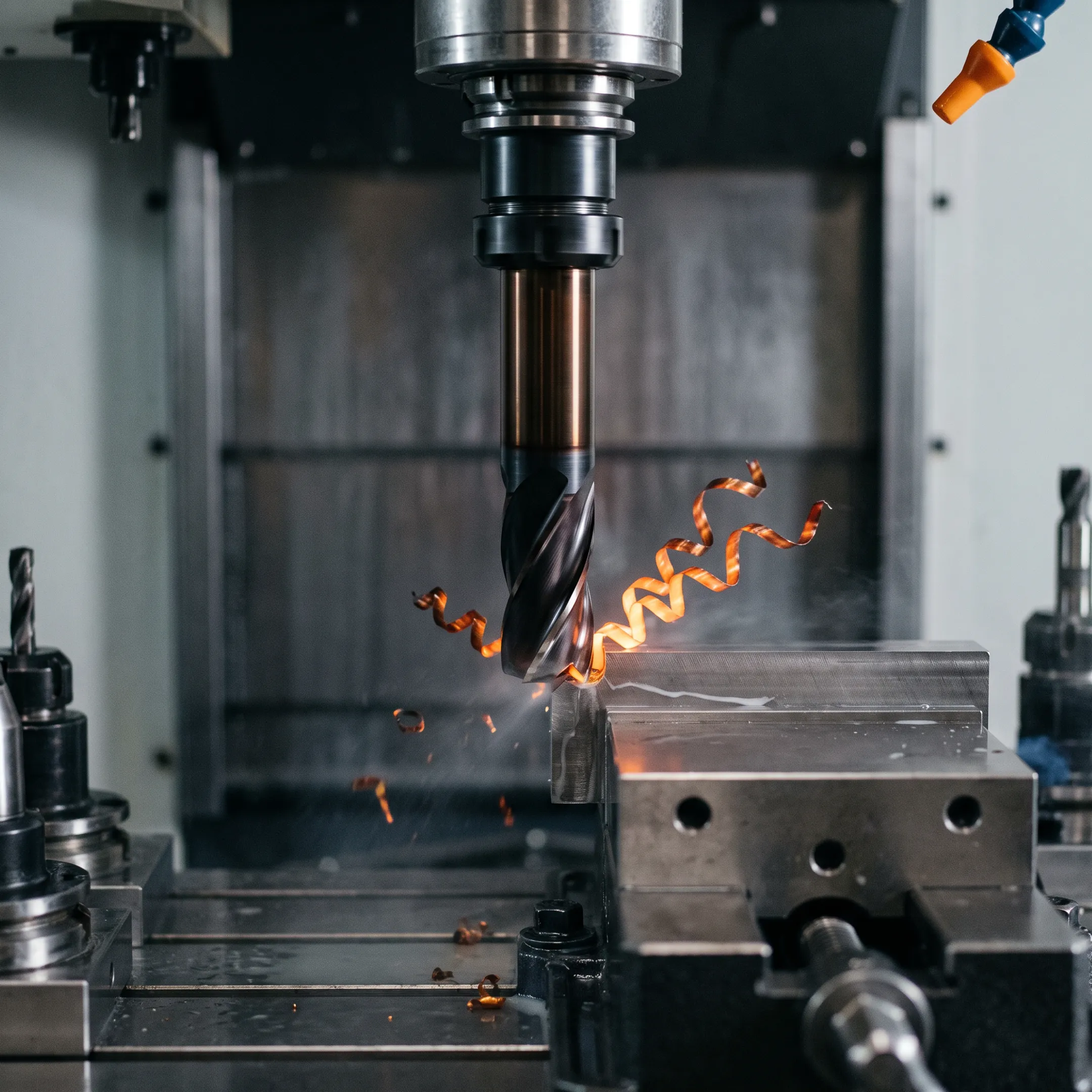

Use TiAlN-coated end mills when machining generates substantial heat, particularly in alloy steels, tool steels, stainless steels, and many cast irons. The coating is well suited to high-speed and dry machining strategies where thermal resistance is important. It is less appropriate for aluminum-focused work. Tool geometry, spindle capability, chip evacuation, and coolant delivery should all be reviewed before finalizing the coating selection.

Yes. A properly applied TiAlN PVD coating can reduce abrasive wear, protect the cutting edge from heat, and delay premature edge breakdown. Actual life improvement depends on the substrate, preparation, machining parameters, workpiece material, and how the tool is used. Coating cannot correct unsuitable geometry or unstable setup, but it can help a well-matched carbide end mill remain productive through longer cutting runs.

Many carbide end mills can be recoated after resharpening when the carbide substrate remains sound and the cutting geometry has been restored correctly. The prior coating must be removed without damaging the tool, followed by thorough cleaning and inspection before a new PVD coating is applied. Recoating can be a cost-conscious way to return qualified tools to service while supporting consistent cutting performance.

TiAlN-coated end mills can be used with coolant, but the machining strategy should be consistent. TiAlN performs especially well in dry or controlled high-temperature cutting because it is designed to manage heat. Intermittent coolant contact can create thermal cycling in some operations, so flood coolant, mist, through-tool delivery, or dry cutting should be selected based on the material, machine, and toolmaker recommendations.

End mills should arrive clean, free of oils, heavy oxidation, adhesive residue, and loose contamination. New tools may need routine preparation, while used tools typically require stripping, inspection, and resharpening before coating. Provide details about carbide grade, tool geometry, workpiece material, coating history, and intended cutting conditions. That information helps determine whether TiAlN or another PVD coating is the better fit.
