That's changing fast. PVD (Physical Vapor Deposition) coatings have become the go-to surface treatment for modern piston rings, offering a harder, slicker, thinner film than older methods can match.
This article breaks down how PVD coatings work, the main coating types available, their real-world benefits, and how PVD stacks up against CVD (Chemical Vapor Deposition) — plus what to consider when choosing a coating partner.
Key Takeaways
- PVD coatings add an ultra-thin, hard, low-friction layer that outlasts uncoated or chrome-plated rings.
- CrN, DLC, and TiN are the main PVD chemistries, each with distinct cost and performance tradeoffs.
- PVD is displacing hexavalent chromium (Cr-VI) plating as environmental rules tighten.
- The right coating depends on engine type, load, and budget — not one-size-fits-all.
What Is PVD Coating and How Does It Work on Piston Rings?
PVD is a vacuum-based deposition process. Ring manufacturers place the part inside a vacuum chamber, vaporize a source material (often through arc evaporation or magnetron sputtering), and let it condense onto the ring's surface as an extremely thin, hard film.
PVD covers a family of related processes. Some ring producers use cathodic arc deposition; others use RF magnetron sputtering with multi-target setups. In each case, the coating bonds chemically to the ring face rather than sitting as a plated-on layer.
Precision Matters

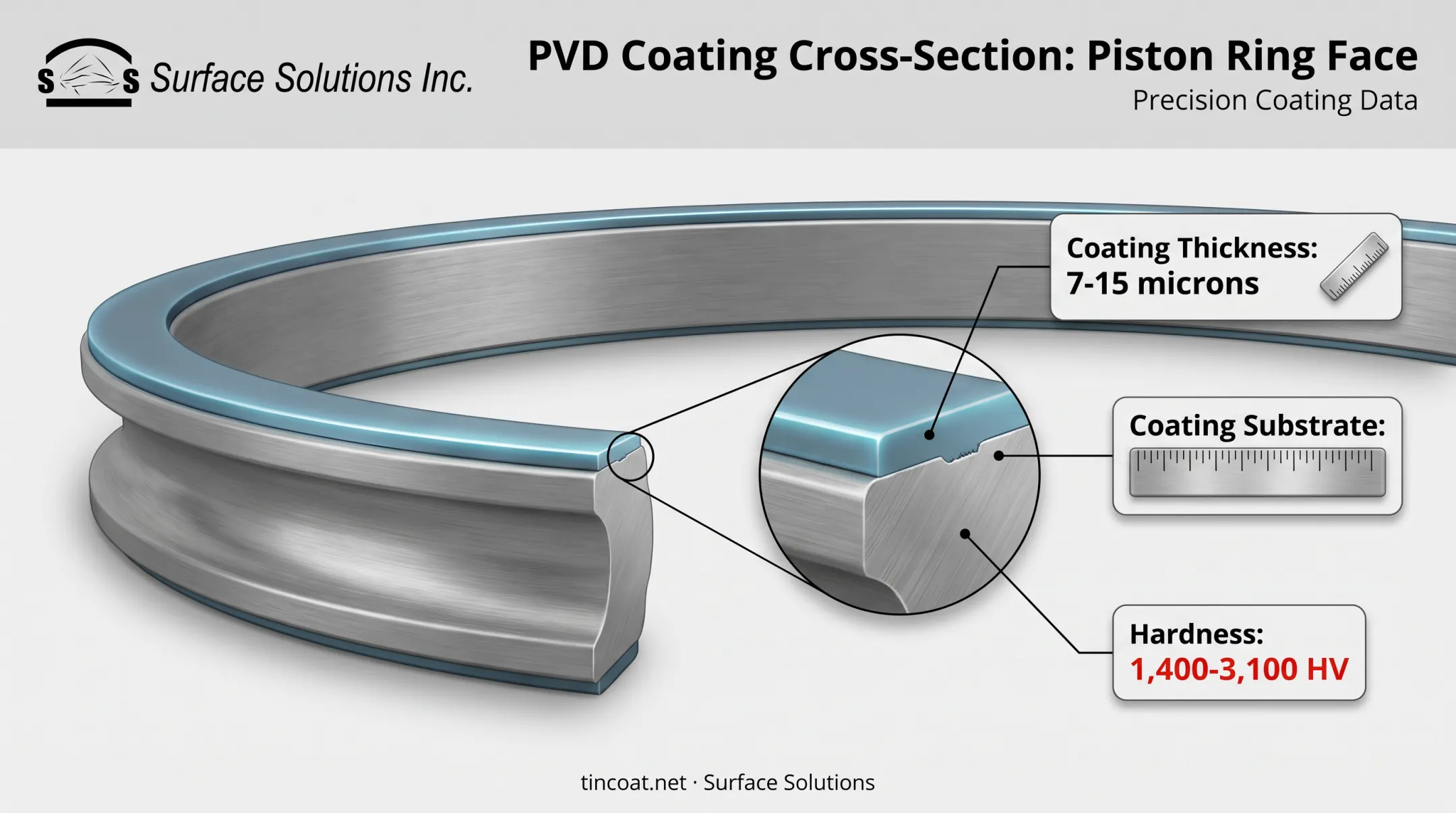

Coating thickness on piston rings typically runs in a tight, specific range:
- Early PVD CrN studies documented roughly 7 microns of coating thickness
- More recent ring studies report coatings closer to 15 microns
- Hardness typically falls between 1,400–2,200 HV, with some products reaching 1,800–3,100 HV
Modern engines run tighter ring-to-bore tolerances than ever, so thickness has to stay consistent. A coating that's too thick or uneven throws off sealing and clearance.
The Shift Away From Chrome and Cast Iron
Cast iron rings and chrome-plated rings were the traditional standard. Steel rings paired with PVD or DLC coatings are now the dominant specification in high-performance and heavy-duty diesel applications, according to ring manufacturer NPR-Riken.
Why the shift? Reduced friction between the ring face and cylinder wall is the biggest driver. Less friction cuts parasitic power loss, which feeds directly into fuel economy gains and easier emissions compliance. Both matter more with every regulatory cycle.
Types of PVD Coatings Used on Piston Rings
Piston-ring PVD coatings fall into a few main chemistries, and each one targets a different balance of wear life, friction, and cost.

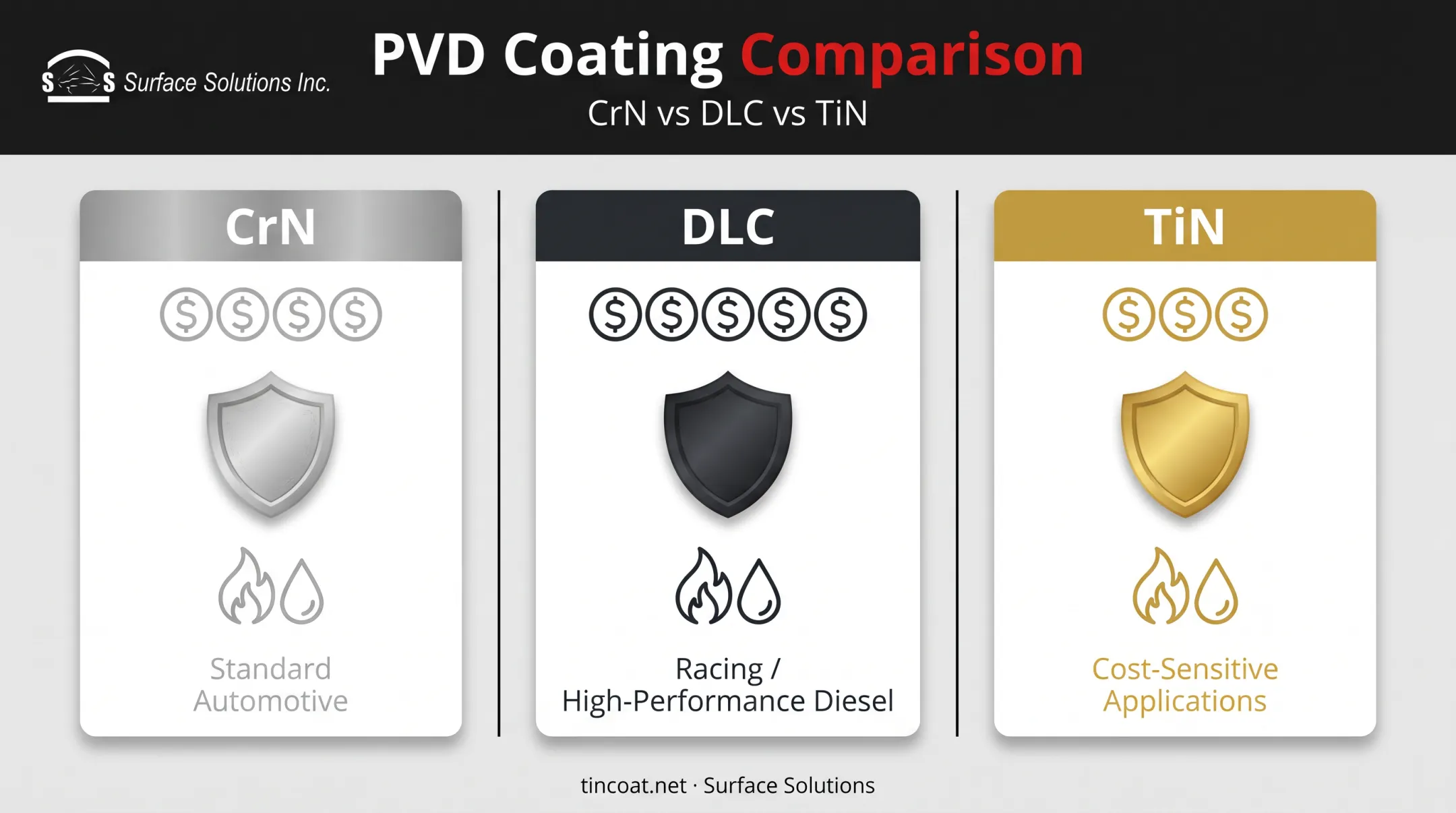

Chromium Nitride (CrN)
CrN was the first PVD coating widely adopted on high-performance piston rings, typically applied by arc deposition. It remains the workhorse for standard automotive and diesel applications because it offers:
- Solid hardness and wear resistance at a moderate cost
- Good corrosion resistance
- A long track record in production engines
Newer CrN variants, including nano-composite formulations developed for heavy-duty diesel, have shown sliding performance comparable to or better than conventional CrN and DLC in SAE-published testing.
Diamond-Like Carbon (DLC) and Amorphous Carbon Coatings
DLC and related tetrahedral amorphous carbon (ta-C) coatings sit at the premium end. They deliver the lowest friction coefficients among common ring coatings and show up often in racing and high-performance diesel applications.
Be cautious with universal friction-percentage claims. Test data shows DLC performing best at lower temperatures (around 150°C) with excellent scuffing resistance, while advanced CrN formulations have shown better heat resistance at higher temperatures (around 240°C). The "better" coating genuinely depends on operating conditions, lubricant, and counterface material — not a fixed percentage improvement.
Titanium Nitride (TiN) and Other Options
TiN offers good wear resistance at a lower relative cost than DLC. Ring studies have tested TiN in multilayer configurations (such as TiN-Ti-CrN-CrN stacks), and it remains a documented option in the ring-coating literature. Its main limitation versus DLC is a higher friction coefficient in some tests—enough to matter in high-RPM applications.
Benefits of PVD-Coated Piston Rings

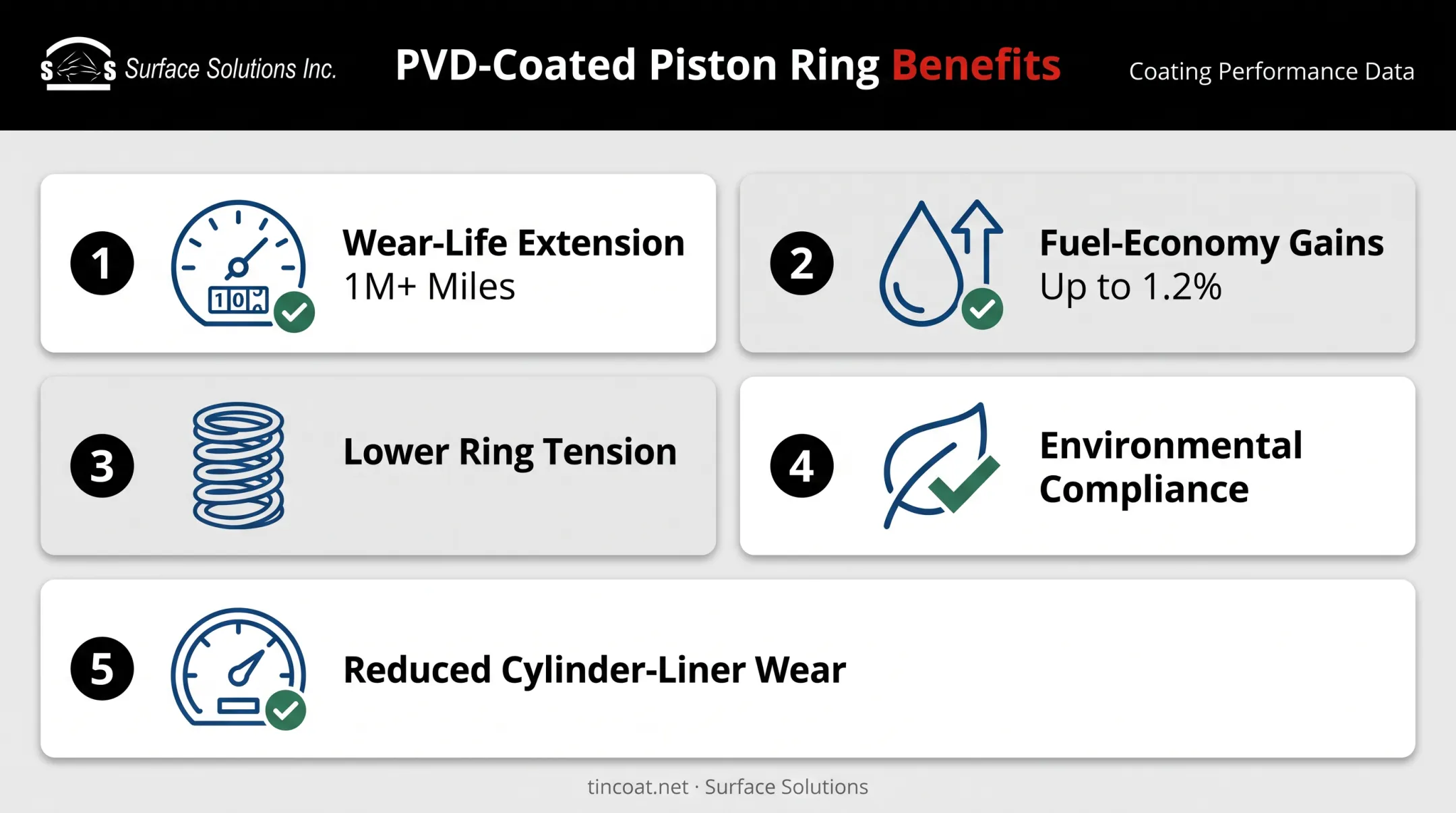

The case for PVD comes down to five measurable advantages.
1. Dramatic wear-life extension. Ring manufacturer NPR reports successful PVD-ring use in commercial vehicles running more than 1 million miles, along with use in highly stressed diesel automobile engines. Lab testing on DLC dual-coated rings has recorded some of the lowest wear rates measured in the segment.
2. Real fuel-economy gains. SAE research on DuroGlide-coated commercial-vehicle rings reported fuel-economy improvements of up to 1.2%. That gain is meaningful at scale: the piston-ring pack alone can account for up to 25% of total mechanical friction loss in an engine.
3. Lower ring tension without sacrificing sealing. Because PVD-coated rings hold their shape longer, engineers can specify reduced oil-control-ring tension while still maintaining sealing performance. Less tension means less friction, a compounding benefit on top of the coating itself.
4. Environmental advantage over Cr-VI plating. Hexavalent chromium is under increasing regulatory pressure. OSHA's 29 CFR 1910.1026 sets strict airborne exposure limits for Cr-VI, and the EU's REACH framework has moved multiple Cr-VI substances into authorization status. PVD avoids these compliance burdens entirely.
5. Better bore life. Testing has shown PVD DLC rings producing the lowest recorded cylinder-liner wear among tested coatings, with performance comparable to nitrided and CrN rings on the ring side. That also supports longer total engine life.
PVD vs. CVD Coatings: Which Is Better for Piston Rings?
Both are vapor deposition methods, but they work very differently.
| Factor | PVD | CVD |
|---|---|---|
| Process | Vacuum evaporation, sputtering, or arc deposition | Gas-phase chemical reaction |
| Temperature | Comparatively low process temperature | Documented ring-coating trials exceeded 800°C |
| Dimensional risk | Fine control, smooth finish, strong adhesion | Higher deformation risk at elevated temperatures |
| Documented ring outcome | Production standard for CrN, DLC, TiN rings | One documented CVD graphite-ring trial lost compression after 75 hours of bench testing |
The core issue is heat. CVD's gas-phase reaction runs much hotter than PVD, which raises deformation risk on thin ring cross-sections. Piston rings can't afford that dimensional drift given how tight modern tolerances are.
PVD's lower-temperature process delivers a thin, adherent, smooth coating without that risk. Those conditions are why PVD is the production standard for CrN, DLC, and TiN rings today: they match ring geometry and keep parts inside the tolerances modern engines demand.
Choosing the Right Coating and Working with a PVD Coating Partner
Selecting a coating depends on more than chemistry alone:
- Engine type — diesel, gasoline, high-performance, or industrial
- Load and RPM range — higher stress may favor advanced CrN-X or DLC formulations
- Budget — CrN and TiN generally cost less than premium DLC systems
- Required service life — commercial fleets need different guarantees than racing applications
Because coating performance depends heavily on chemistry, thickness, hardness, and process control, working with an experienced PVD provider matters as much as picking a coating name off a spec sheet.

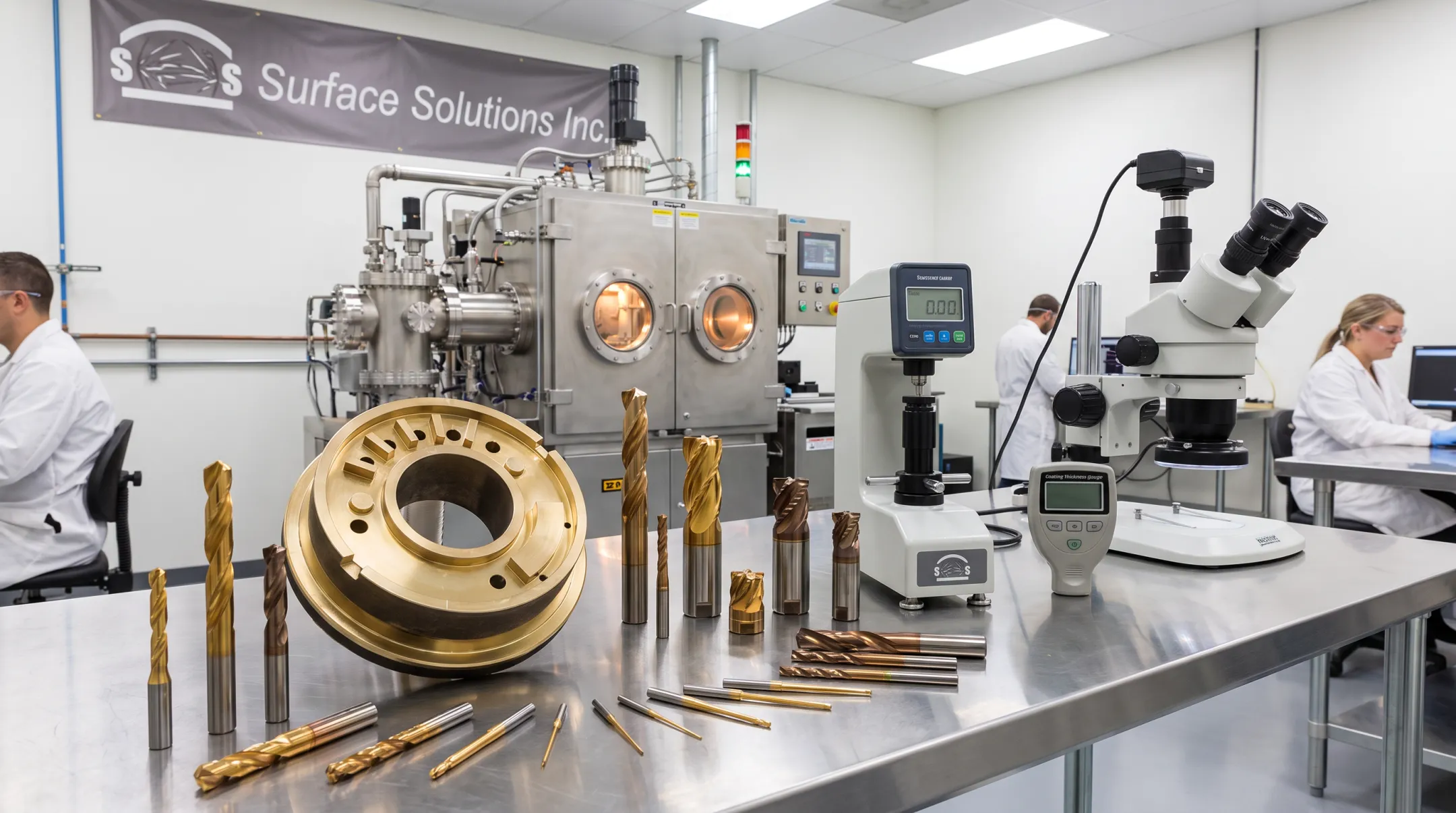

Surface Solutions, based in Fridley, Minnesota, provides PVD coating services, including CrN and TiN, to manufacturers across the United States, Canada, and Mexico. The company's documented work spans cutting tools, dies, medical instruments, and industrial wear components, where customers have reported results like:
- Stainless-steel wear parts lasting four months instead of two to three weeks
- Coated probe tips surviving 500 abrasive scratch-test passes with no visible degradation, versus 100 passes for chrome plating
- Tooling running 60,000 parts before resharpening, compared with a 10,000-part baseline
These results come from tooling and wear-component applications, not piston rings specifically. Component-specific compatibility — substrate, thickness, and process temperature — should be confirmed directly with a coating provider before specifying PVD for any precision automotive part.
Frequently Asked Questions
What is PVD coating on piston rings?
PVD coating is a vacuum-deposited thin, hard film applied to the ring face to reduce friction and improve wear resistance. It replaces older chrome-plating and nitriding treatments in most modern high-performance engines.
Which is better for piston rings: PVD or CVD?
PVD is generally preferred because it runs at lower processing temperatures, avoiding the dimensional deformation risk seen with high-temperature CVD processes. It also allows finer control over thin, precise coating layers.
What is the best material for piston rings?
Steel rings paired with a PVD coating (typically CrN or DLC) are now the industry standard. They combine strength, wear resistance, and low friction better than cast iron or chrome-plated alternatives.
How long do PVD-coated piston rings last?
Manufacturer data cites commercial-vehicle applications exceeding 1 million miles with PVD-coated rings. Actual service life varies by engine type, load, and lubrication, so treat mileage figures as application benchmarks, not guarantees.
Can PVD coatings be applied to old or worn piston rings?
PVD is typically applied to new rings during manufacturing, not as a refurbishment process for worn parts. Surface preparation requirements and dimensional tolerances make new-ring application the standard approach.
Why are automakers moving away from chrome-plated piston rings?
Hexavalent chromium (Cr-VI) plating faces tightening regulation, including OSHA exposure limits and EU REACH restrictions. PVD offers comparable or better performance without those compliance burdens.
