PVD (Physical Vapor Deposition) coatings solve this by lowering the coefficient of friction right at the tool surface. The result: more parts per sharpening cycle, less heat, and fewer press interruptions. With dozens of coating chemistries and providers on the market, though, picking the right low-friction PVD coating means understanding how each one behaves under your specific conditions.
TL;DR
- PVD coatings cut tool friction, wear, heat, and lubricant use by hardening and smoothing the surface
- CrN, DLC, TiCN, and proprietary blends like Alpha™ each suit different materials and operations
- Match coating to substrate, operating temperature, and need for corrosion resistance vs. pure lubricity
- Choose a US coater with the right coating range, reliable turnaround, and nationwide shipping
- The right PVD stack can extend tool life and stretch runs between resharpening on friction-critical jobs
Overview of Low-Friction PVD Coatings in US Manufacturing
PVD coatings apply an ultra-thin hard film, typically 2 to 5 microns, to a tool's surface through vacuum deposition. Surface Solutions applies its AlTiN coating at this thickness with a deposition temperature of 700–800°F. The process changes the surface chemistry, not the part geometry, so tolerances stay intact while friction drops.

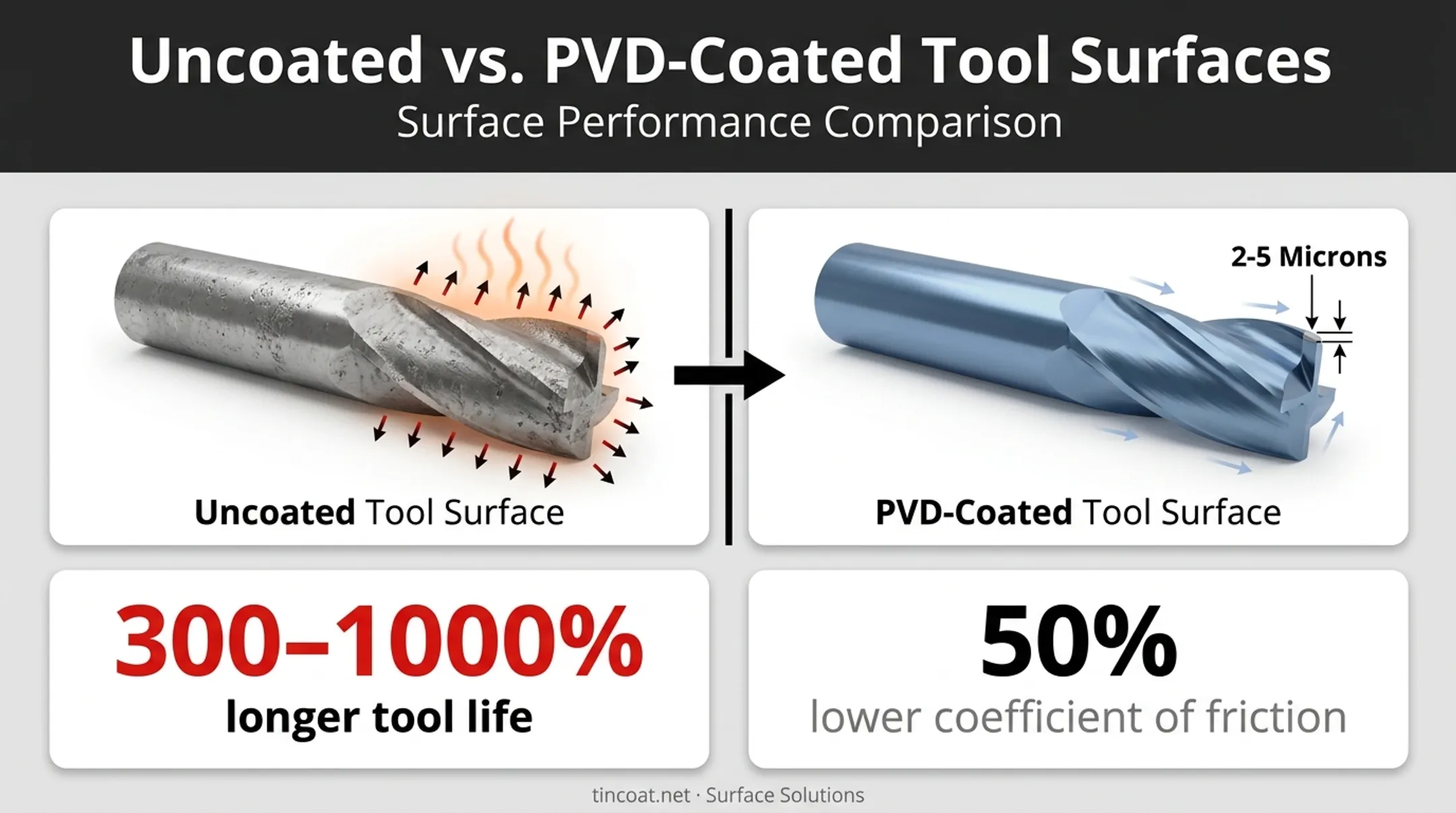

According to PVD America, tool life can increase 300% to 1000% versus uncoated tools, with a coefficient of friction roughly half that of bare metal. That kind of reduction changes how often a die comes off the press.
Industries relying on this technology include:

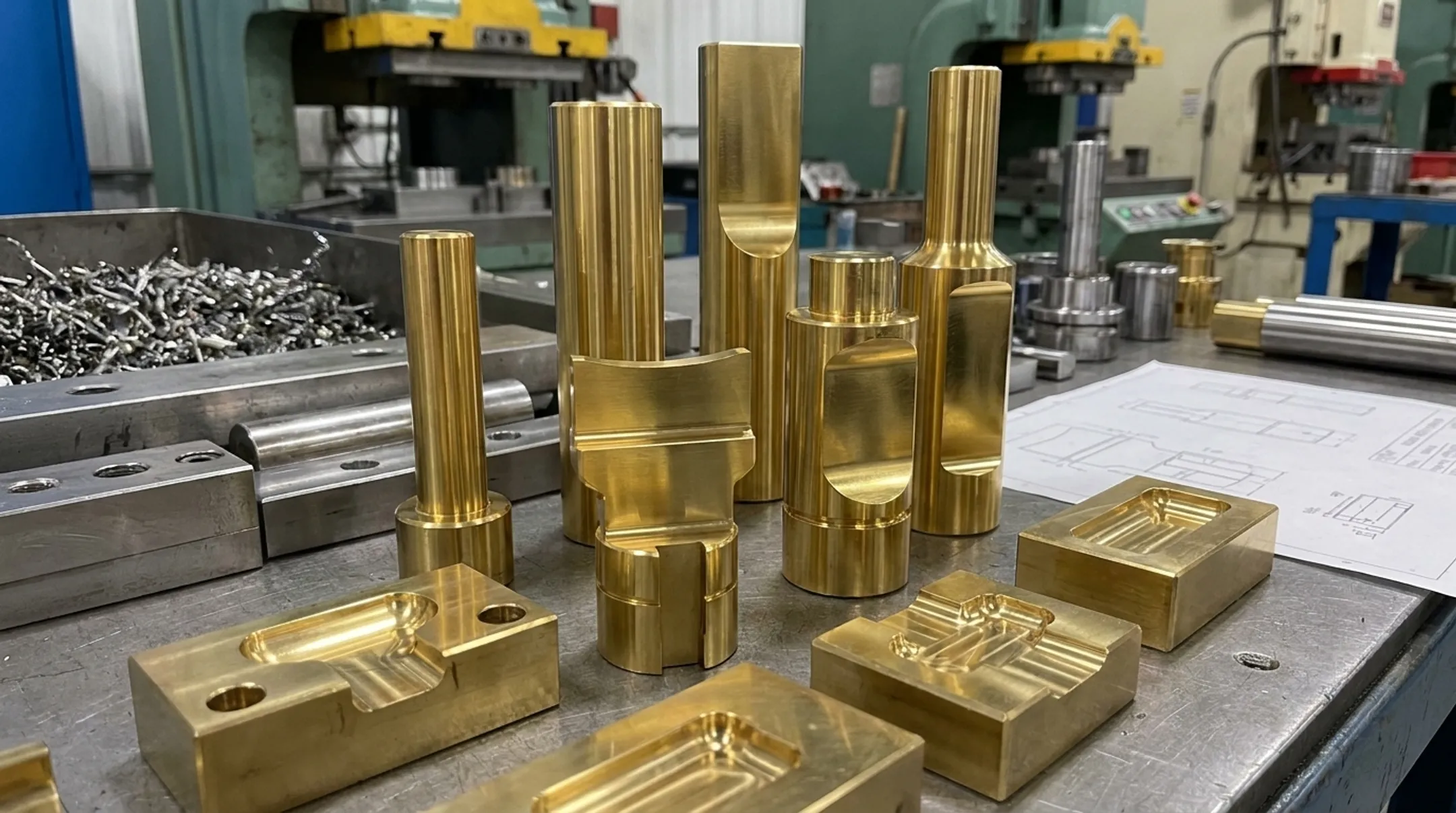

- Metal forming, punching, and stamping
- Sheet metal drawing and deep-draw tooling
- Medical device machining

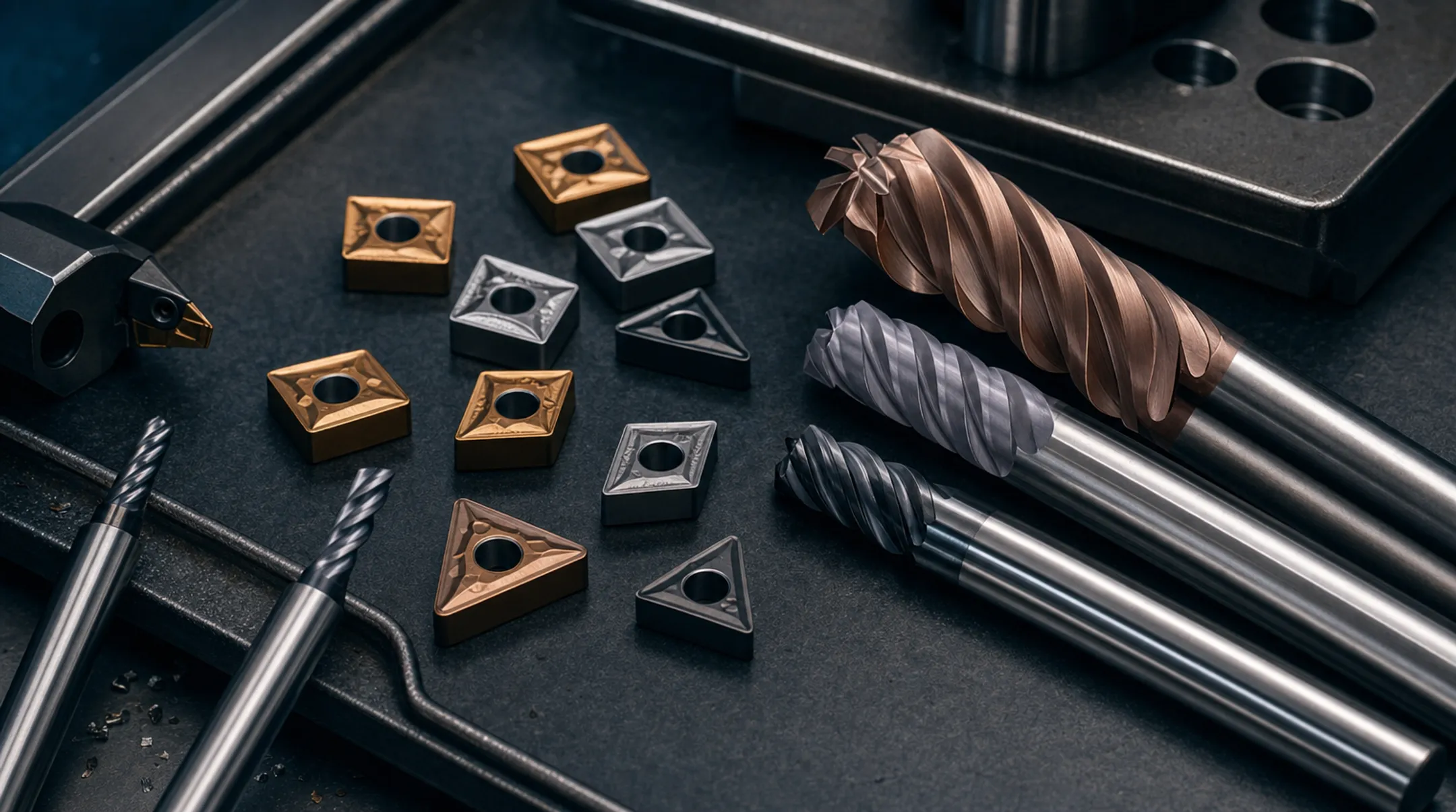

- Cutting tools (end mills, drills, inserts, taps)
- Injection molding and die casting tooling
Lower friction means less heat buildup, reduced lubricant consumption, and longer intervals between resharpening. The providers below rank by coating performance breadth, documented results, and service reliability across the US.
Top PVD Coating Providers for Reducing Tool Friction in the US
This ranking weighs coating performance data, application-specific evidence, and how reliably each provider serves US manufacturers.
Surface Solutions
This Minnesota-based specialist focuses on metal forming, punching, drawing, and tool resharpening, offering its proprietary Alpha™ coating alongside CrN and TiN. Alpha™ shows near-zero galvanized build-up compared to TiN and reduces punch chipping. One customer's Alpha-coated M4 punches ran on 0.057-inch galvanized steel for more than 15 months, producing an estimated 15 million parts. Another testimonial from Don Richardson reported 60,000 parts before resharpening versus a normal 10,000-part interval (6x more parts), saving roughly 48 hours of labor. In stainless-steel drawing applications, CrN-coated tooling produced over 500 parts while staying warm to the touch, compared to just 15 parts that ran too hot with other coatings.
| Attribute | Details |
|---|---|
| Key Coatings | Alpha™, CrN, TiN, TiCN, AlTiN — with documented anti-galling and low-friction performance |
| Best For | Metal forming, punching, sheet metal drawing, tool resharpening |
| Coverage | Nationwide US service, plus Canada and Mexico |
Oerlikon Balzers
A global PVD/DLC leader serving aerospace, automotive, and industrial component markets with friction-reduction coatings for bearings, gears, and rotating parts. Its hydrogen-free DLC (tetrahedral amorphous carbon) coatings use PVD arc evaporation and reach hardness levels up to 60 GPa, according to Oerlikon's published materials. Oerlikon reports that its low-friction coatings reduced oil and fuel consumption in tested engine applications, though a specific percentage figure isn't publicly disclosed.
| Attribute | Details |
|---|---|
| Key Coatings | Hydrogen-free DLC, standard DLC (BALINIT) |
| Best For | High-load bearings, hydraulic components, e-mobility parts |
| Notable Data | Hardness up to 60 GPa; documented fuel/oil savings in engine components |
VaporTech
A US-based manufacturer that builds its own PVD coating systems and applies TiN, CrN, ZrN, ZrOC, and DLC coatings in-house. Its published performance chart gives a clear side-by-side comparison:
| Coating | Hardness | Dry COF vs. steel |
|---|---|---|
| TiN | 20-30 GPa | 0.5 |
| DLC | 15-23 GPa | 0.1-0.2 |
| CrN | 14-25 GPa | 0.5 |
| ZrOC | 17-21 GPa | 0.5 |
| ZrN | 25-30 GPa | 0.2-0.3 |
| Source: VaporTech's 2023 Performance Coatings Chart | ||
| Best for: Cutting tools, dies, molds, and medical devices. Owning its own coating equipment gives VaporTech tighter quality control and cost efficiency. |
Kyocera Hardcoating Technologies
Headquartered in Ohio, Kyocera offers eight branded PVD coatings, each engineered for a specific cutting or forming challenge. Two standouts for friction reduction:
- HTB (TiB2) — COF of just 0.10-0.20, ideal for high-silicon aluminum, titanium, and graphite
- HTC (TiCN) — COF of 0.30-0.45, built for sticky materials like stamping and non-ferrous machining
Kyocera's learning resources note that coated tools generally last 1.5x to 3x longer than uncoated ones, with a punch example moving from 15,000 hits to as many as 40,000 hits after coating.
Attribute Details Key Coatings HTN, HTC, HTA, HTY, HTB, HDT, HAC, HTS Best For End mills, drills, turning inserts, taps Notable Data 1.5x-3x tool life; punch example jumping from 15,000 to 40,000 hits
Richter Precision / IBC Coating Technologies
Both are established US-based providers combining PVD/PACVD coatings with substrate hardening pretreatments for compounded wear and friction benefits. Richter Precision, headquartered in East Petersburg, Pennsylvania, offers PVD turnaround of 2-5 working days depending on coating composition, and vacuum heat-treats steels to required hardness after coating. IBC, based in Lebanon, Indiana, pairs PVD hard coating with vacuum heat treating, including gas quenching up to 12 Bar.
| Attribute | Details |
|---|---|
| Key Coatings | TiN, CrN, DLC variants |
| Best For | Dies, punches, molds needing combined hardening and coating |
| Turnaround / Process | Richter: 2-5 working days for PVD; IBC: PVD plus vacuum heat treating (gas quench up to 12 Bar) |
How We Chose the Best Low-Friction PVD Coatings
The most common mistake manufacturers make? Picking a coating because of brand name recognition rather than matching chemistry to substrate, temperature, and actual failure mode.
Ask first: is the tool failing from wear, corrosion, or galling? Each points to a different coating family.
We selected low-friction PVD coatings based on:
- Documented friction coefficient and hardness data
- Industry-specific field results, not just lab numbers
- Breadth of coating chemistries available for the application
- Turnaround time and US service coverage
Conclusion
There's no single "best" low-friction PVD coating. The right choice depends on aligning coating chemistry with your tool's material, application, and operating conditions — not on chasing the most popular name in the industry.
Before committing to a provider, look past marketing claims. Ask for:
- Tool life data specific to your material
- Evidence of reduced maintenance or resharpening frequency
- Consistent, documented turnaround times
If you're weighing Alpha™, CrN, or TiN for a friction-critical application, Surface Solutions can walk through which coating fits your part, material, and production volume. Reach the team at 763-785-9436 or info@tincoat.net.
Frequently Asked Questions
What is the best PVD coating for reducing friction?
DLC and CrN typically offer the lowest friction coefficients among standard PVD options. Proprietary coatings like Alpha™ are engineered specifically for anti-galling performance in forming and punching applications.
How does PVD coating reduce friction between tool surfaces?
PVD films harden and smooth the tool surface at a microscopic level, altering its surface chemistry. This reduces material adhesion and lowers the coefficient of friction between the tool and workpiece.
Which PVD coating works best for stainless steel or sticky materials?
TiCN and CrN are commonly preferred for reducing built-up edge and galling on stainless steel and aluminum. Alpha™ is also formulated for anti-galling performance on stainless and other sticky materials in forming and punching.
Does reducing friction with PVD coating also extend tool life?
Yes. Lower friction means less heat generation and less abrasive wear, which directly translates to longer intervals between resharpening or replacement. In practice, coated punches and dies often last far longer between sharpenings than uncoated tools.
Can PVD coatings reduce the need for lubricants during manufacturing?
Low-friction coatings like Alpha™ reduce reliance on lubricants by minimizing surface adhesion and heat buildup. One metal-forming customer reported using minimal lubricant while producing a cleaner finished part.
How do I choose between TiN, CrN, and DLC for my application?
Match the coating to your primary failure mode. TiN suits general wear resistance, CrN handles corrosion and moderate friction reduction, and DLC delivers the lowest friction when pure lubricity matters most.
