Many manufacturers select a coating based on hardness numbers alone, then run into adhesion failure, oxidation, or premature wear because the coating couldn't handle the actual heat generated at the cutting edge or forming surface. Deposition temperature determines which substrates you can coat safely. Operating temperature determines how long that coating survives in production.
This article breaks down PVD temperature ranges, the technical properties that drive thermal performance, how temperature gets measured and validated, and what happens when you push a coating past its limits.
TL;DR
- PVD deposition typically runs 200°F-750°F (93°C-400°C), far below CVD’s ~1830°F (1000°C)
- Low-temperature PVD processes allow coating of heat-sensitive substrates
- Temperature tolerance varies by chemistry—TiN, CrN, TiAlN, and AlCrN differ, with some rated above 1500°F
- Exceeding rated temperature limits causes oxidation, adhesion failure, and accelerated wear
- Matching coating chemistry to actual thermal demands directly impacts tool life and production costs
What PVD Coating Temperature Represents
PVD coating temperature isn't one number. It's two separate variables that people constantly confuse.
Deposition temperature is the process variable, meaning the temperature the vacuum chamber reaches while the coating forms on your part. This determines whether you can coat hardened tool steel, carbide, or ceramics without ruining their existing metallurgy.
Operating (in-service) temperature is a performance variable. It's derived from the coating's chemistry and microstructure, and it governs how much heat the finished part can handle once it's back in your press, mold, or cutting operation.
Confusing these two leads to bad coating decisions. A low deposition temperature does not mean low performance in service—and a high-temp process does not guarantee better wear life.
Range of PVD Coating Temperatures
PVD temperature is shaped by two constraints: how hot the process must run to deposit the coating, and how hot the finished part can get before that coating breaks down.
Deposition Temperature Range
Standard PVD deposition typically occurs between 385°F–750°F (196°C–399°C), according to Cutting Tool Engineering. Surface Solutions runs its process at 700°–800°F, at the upper end of that band—well suited to the metal substrates it coats. Specialized low-temperature PVD can go as low as 200°F (93°C). That range matters for heat-sensitive materials such as ceramics, PCD, and silicon carbide, but it is a specialized capability, not a universal standard. What changes at lower deposition temperatures:
- Wider substrate compatibility, including more heat-sensitive materials
- Possible shifts in coating density and adhesion
- A tradeoff you should match to your substrate and end use
Operating (In-Service) Temperature Range
This is where coating chemistry matters most. Manufacturer product data shows a wide spread:

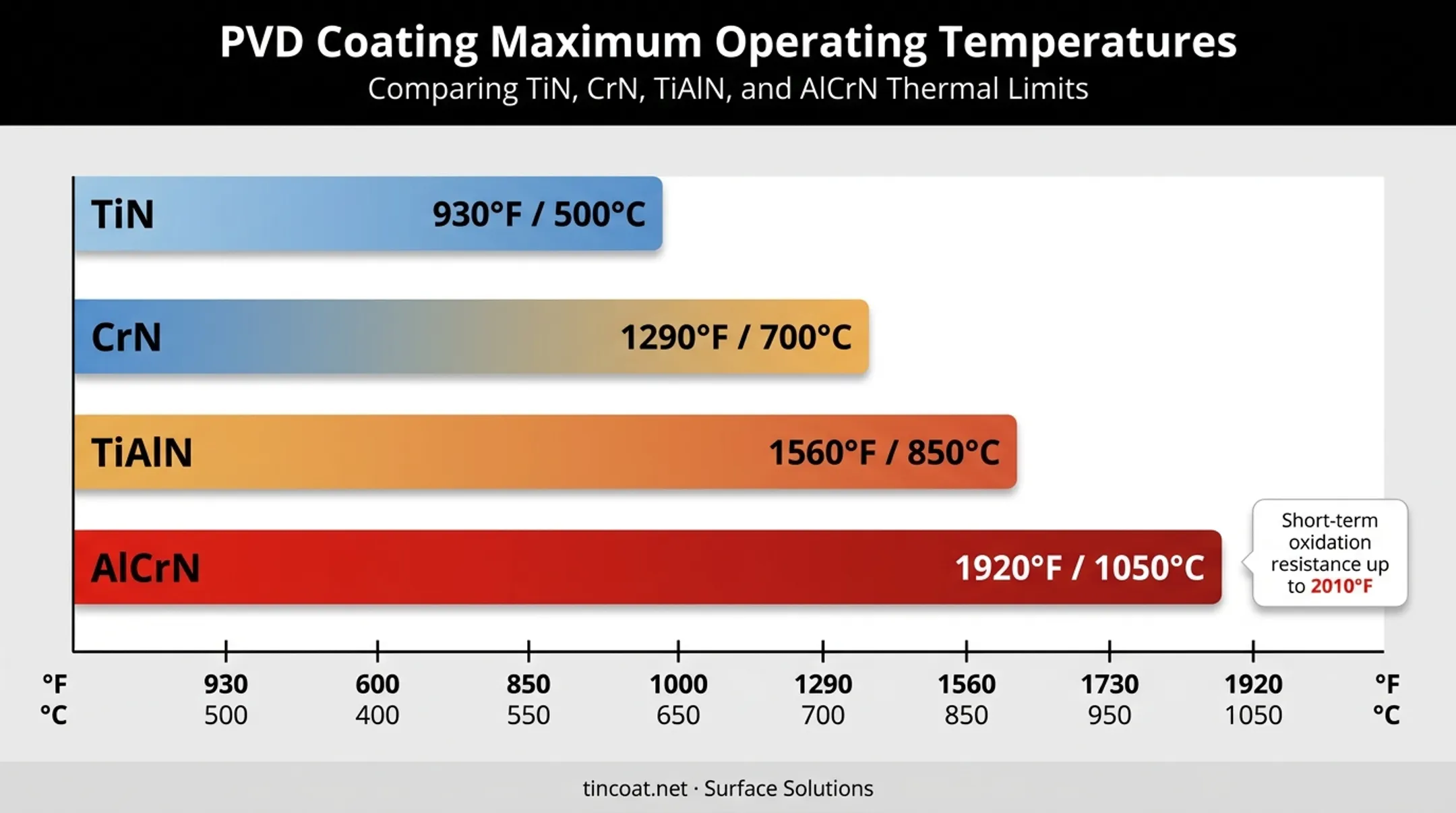

| Coating | Typical Service Rating |
|---|---|
| TiN | Up to ~930°F (500°C) |
| CrN | Up to ~1290°F (700°C) |
| TiAlN | Up to ~1560°F (850°C) |
| AlCrN | Up to ~1920°F (1050°C) |
| High-aluminum AlCrN formulations have shown short-term oxidation resistance up to about 2010°F (1100°C) in lab testing, thanks to protective alumina layers. These are product-specific ratings, not universal chemistry laws—always check the datasheet for the exact formulation you are using. |
Safe Operating Margin
Running a tool at the absolute upper limit of its rated temperature leaves little room for error. Manufacturers and standards bodies do not publish a universal safety margin, but evidence consistently shows failure risk climbs well before the nominal ceiling. A 2014 scratch-adhesion study found that AlCrN's failure load dropped steadily as test temperature climbed toward 930°F (500°C)—adhesion weakened long before oxidation became visible. Stay below the rated limit. Running near the ceiling invites premature oxidation, softening, and coating breakdown, and shortens tool life faster than most shops expect.
Key Technical Properties Influencing Temperature Performance
Temperature tolerance isn't one fixed number stamped on a datasheet. It's a function of chemistry, microstructure, and coating thickness working together.
Thermal Stability and Oxidation Resistance
Coatings like AlCrN form protective oxide layers at high heat, which is why they extend usable temperature range well past standard TiN. The aluminum content forms alumina-containing surface layers that slow oxygen penetration.
Real-world thermal management shows up in production data too. In a stainless-steel drawing application:

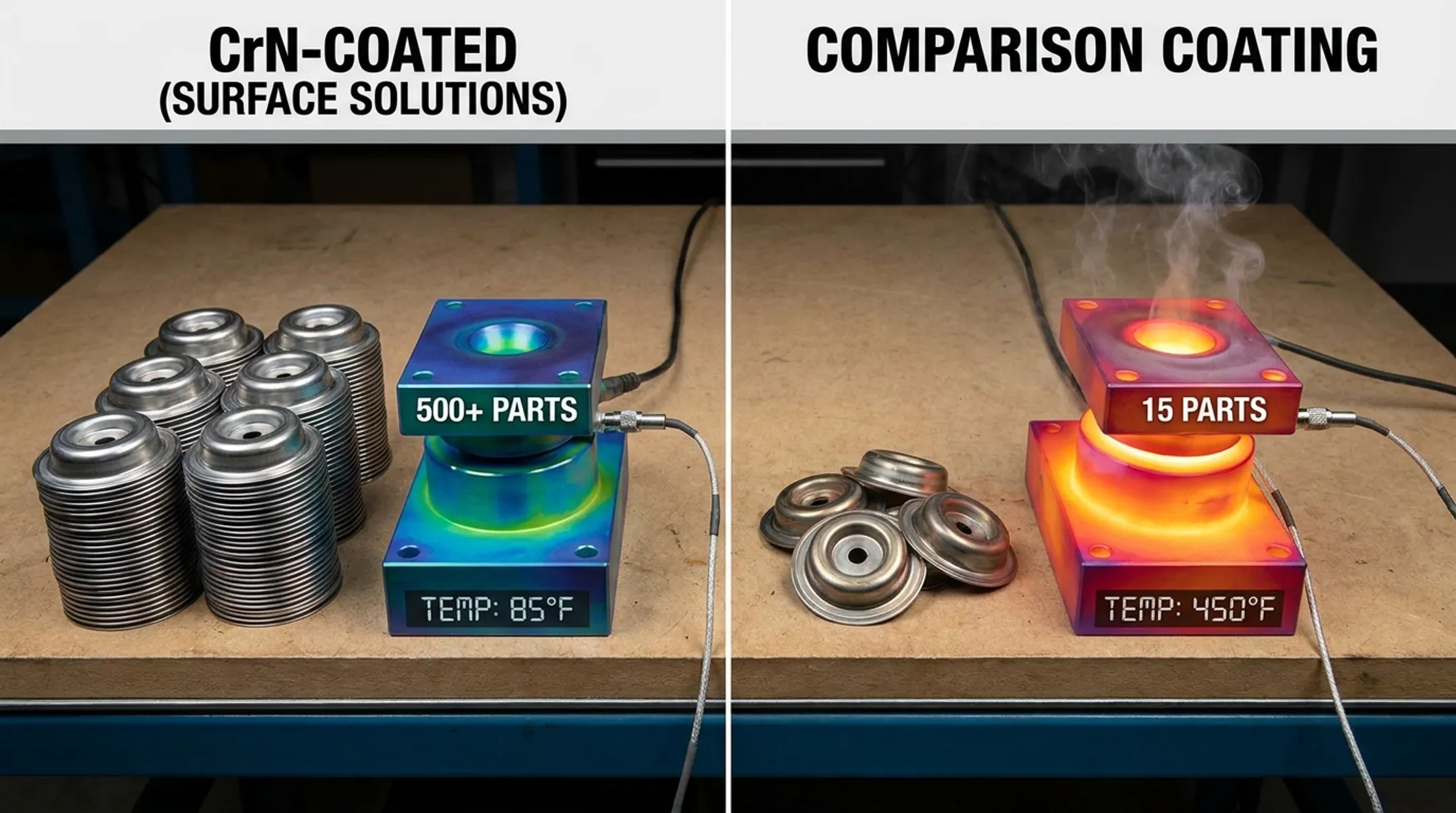

- Surface Solutions' CrN: parts stayed just warm to the touch after 500+ parts
- Alpha™ comparison: only 15 parts before parts became too hot to touch
Same operation, dramatically different heat behavior—chemistry selection matters more than hardness alone.
Substrate-Coating Interdiffusion
Prolonged exposure to elevated temperatures can cause atomic migration between the coating and the substrate underneath. Over time, this interdiffusion degrades the coating's protective properties, sometimes without any visible surface change.
Thermal Expansion Mismatch
Coatings and substrates expand at different rates when heated. That mismatch creates internal stress during thermal cycling, which can trigger:
- Micro-cracking at the coating-substrate interface
- Delamination under repeated heating and cooling
- Increased failure risk in high-speed, high-heat operations
Coupling with Wear Resistance and Lubricity
Heat resistance rarely stands alone—coatings tuned only for high temperature can give up hardness or friction performance. Surface Solutions has seen this firsthand: Alpha™ delivers excellent lubricity and resists galling, and in one forming job it ran with minimal lubricant and a better-looking part. In high-heat stainless drawing, though, its thermal behavior lagged behind CrN.
Pick the coating for the dominant stress in your application, not for one property in isolation.
How PVD Temperature Is Specified, Measured, and Validated
Temperature isn't just a line on a spec sheet. It's something verified during application and confirmed again in production.
Specification and Documentation
Coating suppliers document two separate numbers on technical datasheets: the deposition temperature range used during processing, and the maximum service temperature the finished coating can handle.
Measurement and Verification Methods
- Thermocouples and infrared pyrometers monitor chamber temperature during deposition and hold it within tight tolerance
- Dual-wavelength pyrometry cuts sensitivity to emissivity shifts and improves process control accuracy
- Field validation—tool-life testing plus in-process part temperature checks—confirms the coating stays within thermal limits in production
Lab ratings are a starting point. Real qualification happens on your shop floor, under your actual speeds, feeds, and lubrication.
Implications of Operating Outside the Recommended Temperature Range
Exceeding a coating's rated deposition or service temperature triggers well-documented failure mechanisms.
Excess heat softens the coating matrix and accelerates oxidation. Hardness and wear resistance fall together, and the coating stops protecting the tool.
Research on CrN and AlTiN coatings thermally cycled up to 600°C (1,112°F) showed failure modes that worsen as heat exposure rises:
- Oxide-related wear
- Buckling spallation
- Cohesive cracking

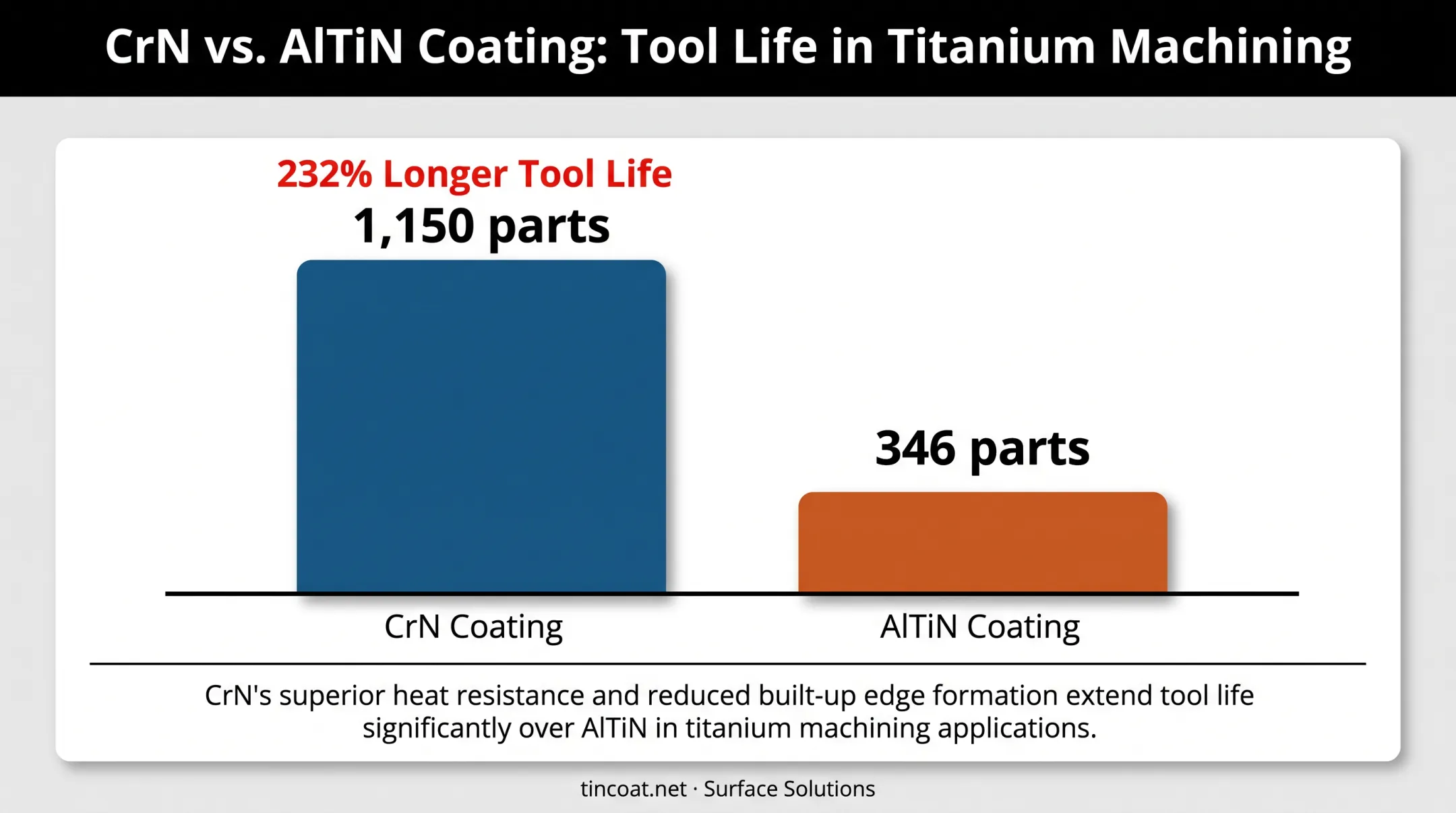

Those same heat-driven differences show up in service. In carbide-tooling tests, CrN outperformed AlTiN by roughly 232% in tool life during titanium machining, largely because of how each coating handled heat and built-up edge.
Manufacturers often treat a lab temperature rating as an absolute ceiling. Real heat at the cutting or forming edge depends on duty cycle, part geometry, and lubrication. A coating rated for 850°C (1,562°F) in a controlled test can still fail early in a poorly lubricated, high-friction application.
Conclusion
PVD coating temperature governs two things at once: what happens during deposition and how the coating performs afterward in service. Treat it as an active process variable, not a one-time check on a datasheet. Matching coating chemistry to your application's real thermal and wear demands—not just a nominal spec—is what extends tool life and cuts downtime. Working with an experienced PVD coating provider like Surface Solutions helps you choose a coating that fits those conditions in practice, so tools last longer and stay in production.
Frequently Asked Questions
What is the typical temperature range for PVD coating deposition?
Standard PVD deposition typically runs 200°F-750°F (93°C-400°C). Low-temperature processes near the bottom of that range matter most for heat-sensitive substrates that must keep their original properties.
How thick is a PVD coating typically?
Most PVD coatings run 0.0001"-0.0002" thick, or roughly 2-5 microns. Thickness works alongside hardness and chemistry to determine durability, so thin doesn't mean weak.
Does PVD coating scratch off?
PVD coatings are extremely hard and adhere tightly to properly prepared substrates, resisting scratching under normal use. Extreme heat, poor surface prep, or improper application can weaken adhesion and lead to premature wear.
Can PVD coating be applied to hardened steel without affecting its hardness?
Yes. PVD temperatures usually stay below the tempering thresholds of most hardened tool steels, so finished parts retain their hardness. Always confirm your steel's tempering temperature against the coater's process temperature before committing.
What happens if a PVD-coated tool exceeds its rated operating temperature?
Excess heat softens the coating matrix and accelerates oxidation, reducing hardness and wear resistance. This leads to increased friction, galling, and premature tool failure well before total coating breakdown is visible.
Which PVD coating is best for high-temperature applications?
AlCrN and CrN generally offer the strongest oxidation resistance among common PVD coatings, forming protective oxide layers at high heat. Surface Solutions' production data shows CrN outperforming other coatings in heat management during demanding forming operations.
