Get it wrong, and the consequences range from device recalls to patient harm. Many manufacturers struggle with a related but separate challenge: the tooling used to produce these components also needs specialized coatings to hit tight tolerances consistently.
This article covers the major coating categories, how antimicrobial and hydrophilic coatings work, the standards that govern approval, and where PVD coatings on manufacturing tools fit into the picture.
Key Takeaways
- Coatings boost biocompatibility, durability, corrosion resistance, and lubricity on medical devices
- Match the job with antimicrobial, hydrophilic, anti-thrombogenic, or PVD-based coating types
- Confirm FDA and ISO compliance, including ASTM F1044/F1160 adhesion and shear testing
- PVD coatings on manufacturing tools raise precision and consistency for medical components
What Is Medical Device Coating?
A medical device coating is a thin functional layer applied to a device's surface to change how it performs, how it interacts with tissue, or how long it lasts. These coatings run just a few microns thick, but that thin layer can still decide clinical performance, tissue response, and service life.
There are two distinct applications:
- Patient-contacting coatings applied directly to implants, catheters, or surgical instruments
- Manufacturing tooling coatings applied to the cutting, forming, and stamping tools that produce those medical components
Both matter, but they're evaluated under different standards.
Substrates commonly coated include stainless steel, titanium, cobalt-chromium alloys, various polymers, and ceramics. On patient-contacting devices, surface interaction is critical because the body responds to whatever touches it. A rough or reactive surface can trigger clotting, inflammation, or bacterial colonization.
The market reflects growing reliance on these technologies. Grand View Research values the medical device coatings market at $16.3 billion in 2025, projecting growth to $30.0 billion by 2033 at a 7.9% CAGR. That growth signals expanding use across implants, diagnostics, and surgical tooling alike.
Main Types of Medical Device Coatings
Device coatings are grouped by the clinical problem they solve—friction, infection, clotting, corrosion, or drug delivery.
Hydrophilic and Lubricious Coatings
Catheters and guidewires need to move through vascular or urinary pathways with minimal friction. Hydrophilic coatings absorb water and create a slick surface that reduces trauma during insertion.

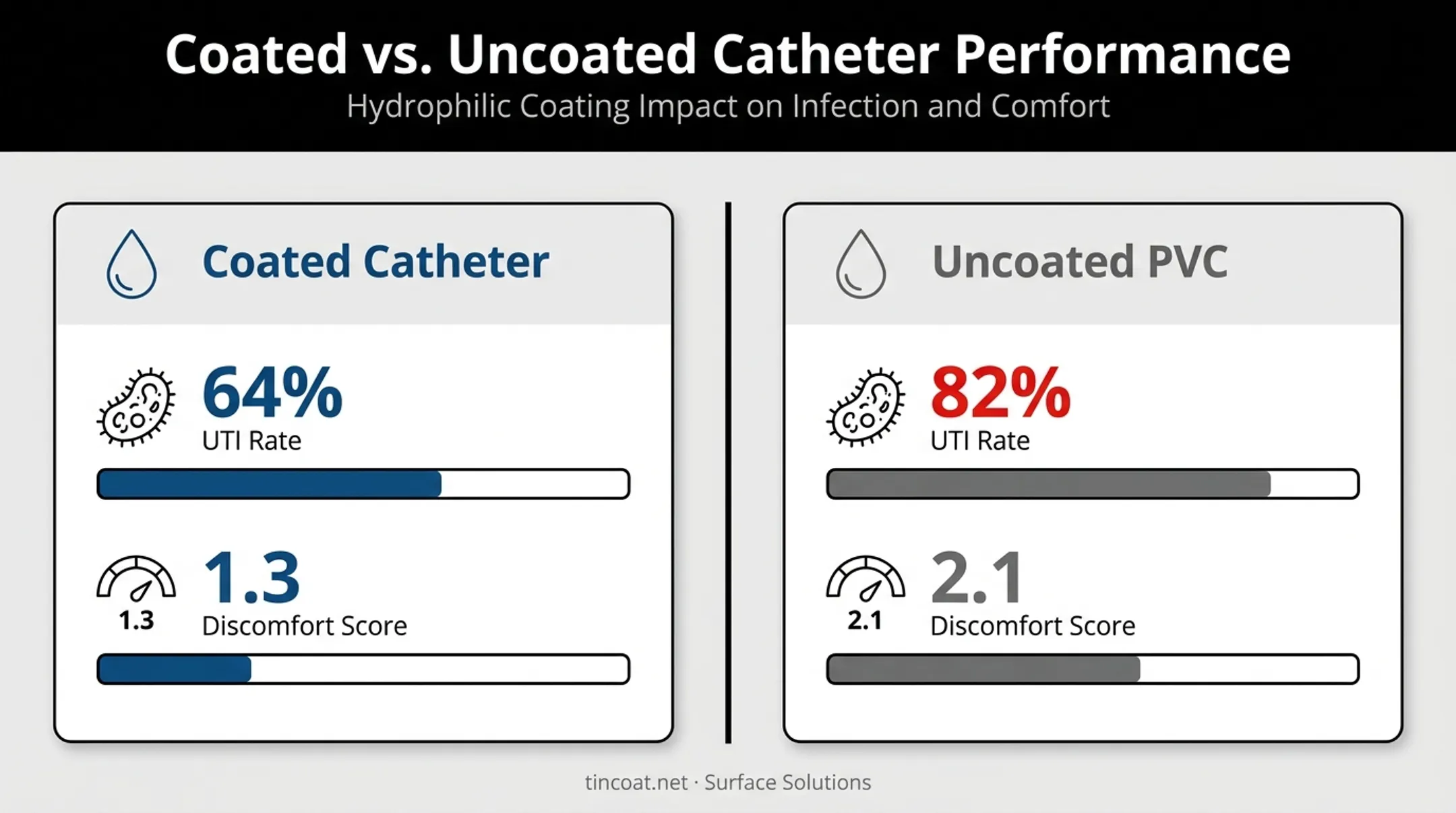

One evidence review found hydrophilic catheters produced a 64% UTI rate versus 82% for uncoated PVC catheters, and patient discomfort scores dropped from 2.1 to 1.3 with the coated version.
Separate lab work found coated polyurethane catheters caused no intimal lesions in test subjects, while uncoated versions caused significant thrombus formation.
Antimicrobial Coatings
Antimicrobial coatings inhibit bacterial colonization on device surfaces. They are used on catheters, implants, and instruments to help lower infection risk.
Anti-Thrombogenic Coatings
Blood-contacting devices like stents and vascular grafts need surfaces that discourage clot formation. These coatings typically modify surface chemistry to reduce platelet activation.
Barrier and Protective Coatings
Parylene and similar conformal coatings protect electronic implants and metal components from moisture and corrosion. They're common on pacemaker components and implantable sensors.
Drug-Eluting and Bioactive Coatings
These deliver therapeutic agents (like anti-restenosis drugs on cardiac stents) or promote tissue integration on orthopedic implants. They add a therapeutic function on top of the mechanical one.
Antimicrobial Medical Device Coatings: Fighting Infection
Antimicrobial coatings work by incorporating agents, most commonly silver ions, antimicrobial peptides, or Parylene-based barriers, directly into or onto the device surface. These agents disrupt bacterial cell membranes or metabolic processes before a colony can establish itself.

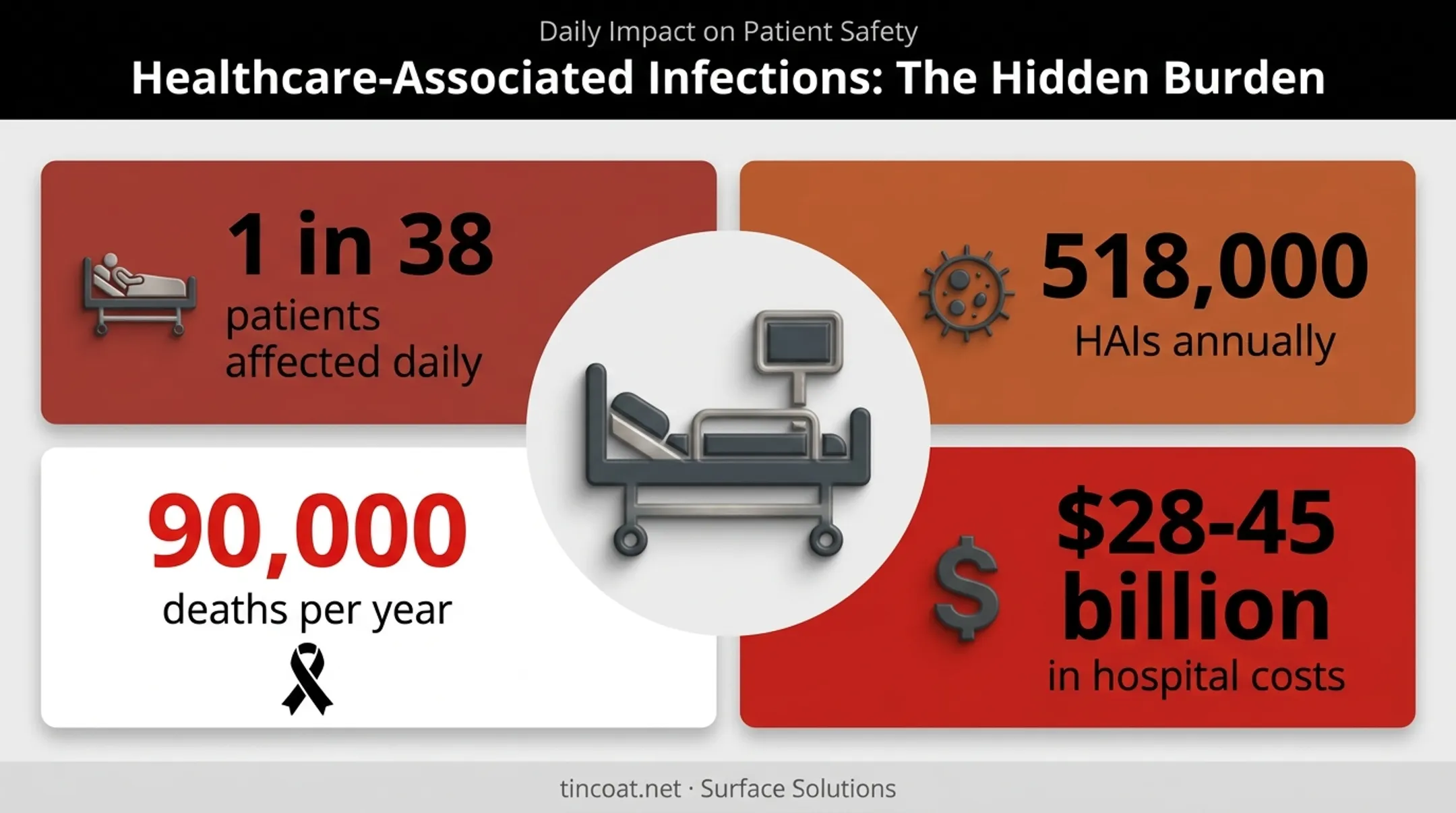

A CDC 2023 survey found roughly 1 in 38 hospital patients had at least one healthcare-associated infection on any given day, translating to an estimated 518,000 HAIs across US acute-care hospitals.
Older but widely cited burden estimates still put the annual toll near 90,000 deaths and $28–45 billion in direct hospital costs.
Devices that commonly carry antimicrobial coatings include:
- Urinary and central-line catheters
- Orthopedic and dental implants
- Surgical instruments and retractors
- Wound-care devices
These coatings do not eliminate infection risk, but they make device surfaces far less hospitable to bacterial colonization.
PVD Coatings: A Critical Layer for Medical Device Manufacturing Tools
Patient-contacting coatings get most of the attention, but there's a second, less visible layer of coating technology that keeps medical manufacturing running: PVD coatings applied to the cutting, forming, and stamping tools that produce device components.
Medical parts often require tolerances measured in microns. Tool wear during production directly threatens that precision. As tools dull, dimensions drift, burrs form, and scrap rates climb.

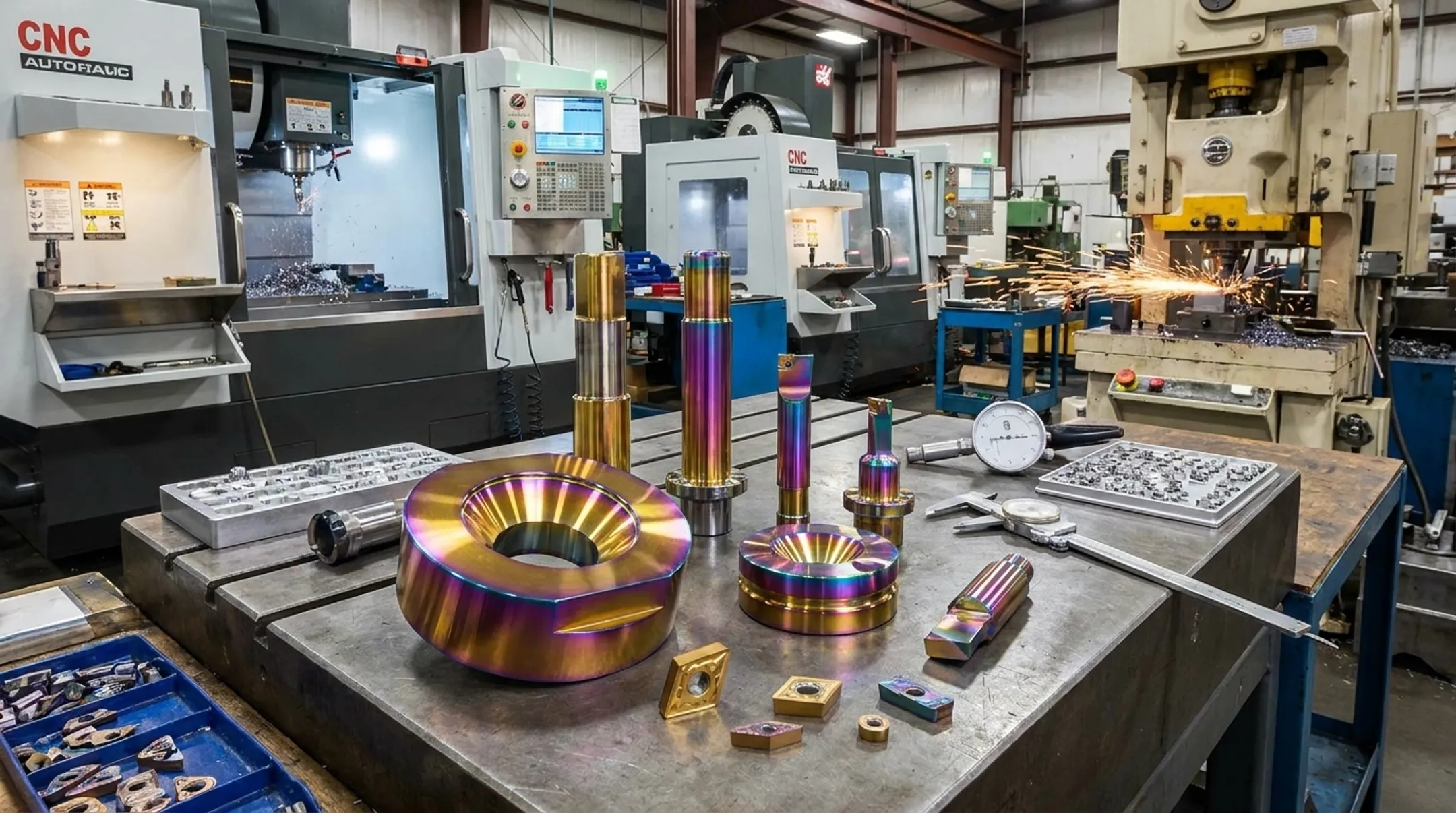

Physical vapor deposition coatings such as TiN, AlTiN, CrN, TiCN, and proprietary formulations like Surface Solutions' Alpha™ add a hard, wear-resistant layer to tooling surfaces that slows this degradation.
Peer-reviewed research backs the mechanism. A study on AlTiSiN-type nanocomposite PVD coating applied to carbide end mills milling 316L stainless steel found that the coating significantly extended tool life and improved wear resistance. Surface quality peaked at 60 minutes of cutting. After 120 minutes, roughness rose by more than 50% as wear progressed—showing coating condition tracks directly with part precision.
Surface Solutions applies these same coating families to tooling used in metal forming, punching, and cutting operations that feed medical device production. Documented benefits from Surface Solutions' general industrial tooling work include:
- Up to 6x more parts produced before resharpening is needed
- 48 hours of labor saved per tool by reducing sharpening frequency
- Reduced galling and build-up compared to uncoated tools
- Better surface finish on finished parts, reducing secondary finishing steps
Note: these figures come from general industrial applications, not medical-specific case studies, but the underlying wear-resistance mechanism applies equally to tooling that produces regulated medical components.
Consistent, contamination-free tool surfaces also support the tighter quality control regulated medical manufacturing demands — fewer dimensional drift issues mean fewer non-conforming parts to investigate.
Is PVD Coating Considered Medical-Grade?
Here's where things get nuanced. PVD coatings can be biocompatible, and some are used directly on implantable devices. But there's no blanket "medical-grade PVD" certification. It depends entirely on the specific alloy, application, and testing performed.
Two distinct scenarios exist:
- PVD on patient-contacting implants: requires full biocompatibility testing under ISO 10993 and FDA review before clinical use
- PVD on manufacturing tooling: doesn't touch the patient and isn't subject to the same biocompatibility requirements, though it must still hold up under manufacturing conditions
The FDA evaluates the whole device, not just individual materials. Its guidance on coated devices such as polymer-coated stents notes that coatings can separate over time. Testing may need to assess the device with and without the coating to capture longer-term performance accurately.
Surface Solutions applies PVD coatings to surgical instruments exposed to bodily fluids and sterilization cycles, and to production tooling. PVD is versatile, but every application still needs its own compliance pathway.
Evaluation Standards and Key Selection Factors
Selecting a coating, whether for a patient-contacting device or the tooling that makes it, comes down to a few key testing considerations:
- Biocompatibility — required for anything touching tissue or blood, evaluated under ISO 10993
- Adhesion — coating must stay bonded to the substrate under mechanical stress
- Corrosion resistance — critical for devices exposed to bodily fluids or repeated sterilization
- Sterilization compatibility — coatings must survive autoclave, gamma, or EtO cycles without degrading

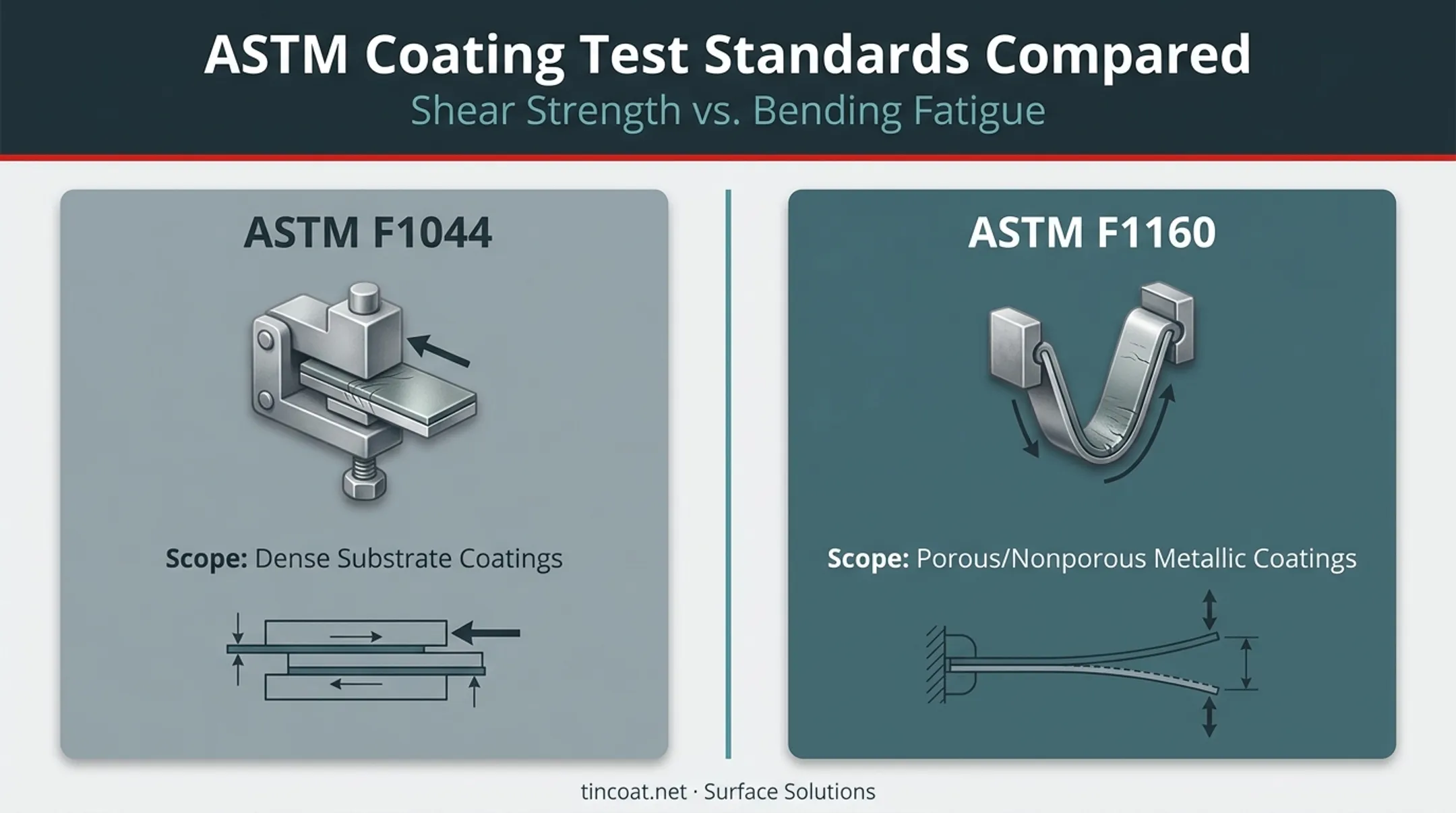

For adhesion and fatigue testing specifically, two ASTM standards come up repeatedly:
| Standard | What It Measures | Scope |
|---|---|---|
| ASTM F1044 | Shear strength of coating-to-substrate bond | Continuous calcium phosphate and metallic coatings on dense substrates |
| ASTM F1160 | Shear and bending fatigue performance | Porous and nonporous metallic coatings, including calcium-phosphate oversprays |
Both standards test in air at ambient temperature and explicitly aren't designed to substitute for full-device fatigue testing.
Substrate, coating chemistry, sterilization method, and patient contact duration all interact. A coating provider that understands both device-level requirements and manufacturing-process constraints matters more than chasing a single "best" coating.
Frequently Asked Questions
What is medical device coating?
A medical device coating is a thin functional layer applied to a device or implant to improve biocompatibility, safety, durability, or performance. It can be applied to patient-contacting devices or to the tooling used to manufacture them.
What are the main types of medical device coatings?
The primary categories are hydrophilic/lubricious, antimicrobial, anti-thrombogenic, and barrier/protective coatings like Parylene. Drug-eluting and bioactive coatings add therapeutic function on top of these.
What are examples of antimicrobial medical device coatings?
Common examples include silver-ion coatings, Parylene-based antimicrobial barriers, and antimicrobial peptide coatings. These are frequently applied to catheters, implants, and surgical tools.
Is PVD coating considered medical-grade for medical devices?
PVD coatings can be biocompatible and are used on some implantable devices, but "medical-grade" status depends on the specific coating chemistry, testing, and FDA/ISO 10993 review. There's no universal PVD medical certification.
How do coatings on manufacturing tools affect medical device quality?
Durable tool coatings like PVD reduce wear during cutting, forming, and stamping, helping maintain tight tolerances across production runs. This consistency supports the quality control required in regulated medical manufacturing.
