This guide walks through the actual application process step by step: surface prep, coating technique, curing, and inspection. We'll also cover the mistakes that cause early failure and when it makes more sense to send tooling out for professional PVD coating rather than handling it in-house.
TL;DR
- Clean, apply, and cure correctly (heat gun or press, by coating type)—skip any of these and the coating fails early
- Room-temperature cure coatings, in-press heat-cured coatings, and PVD/plating processes each demand different handling
- Skipped prep shows up as peel, soft spots, or wear long before the next scheduled maintenance
- Glass-filled resins, PVC, and high-wear cavities need professional PVD—not DIY sprays
How to Apply Injection Mold Coating

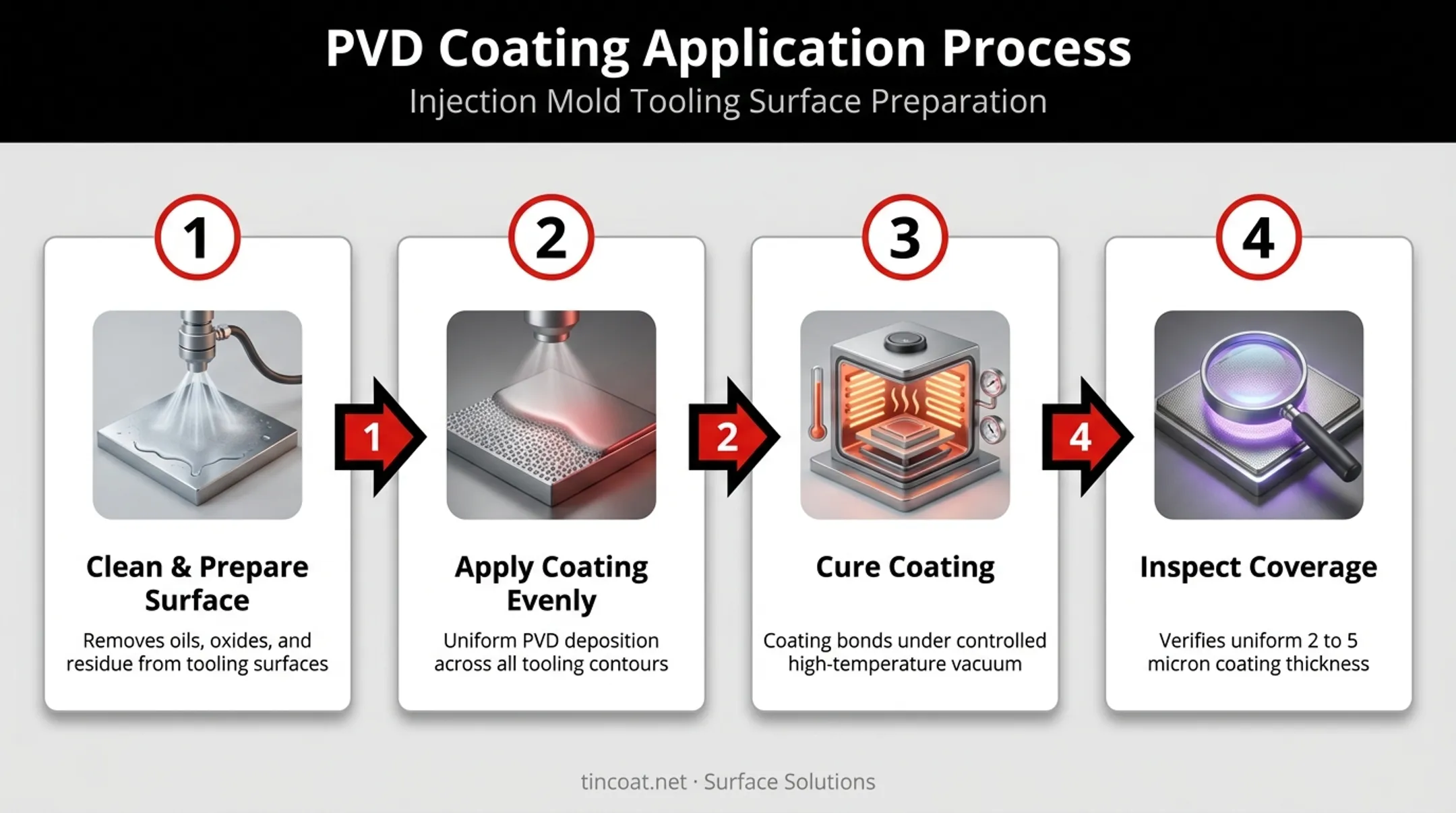

Step 1: Clean and Prepare the Mold Surface
Inadequate cleaning is the single biggest cause of coating failure, and it's not close. Every trace of oil, grease, or rust preventative needs to come off before anything touches the steel.
- Degrease the surface with a lint-free or microfiber cloth (never a shop rag, which redeposits oils and fibers)
- Follow with a solvent wipe (ethanol, acetone, or MEK) to eliminate any remaining residue
- Let the surface dry completely before applying coating
Manufacturer process guides consistently list pretreatment for adhesion as a required step before spray application, not an optional extra (Micro Surface). Skip it, and you're setting the coating up to fail before it's even cured.
Step 2: Apply the Coating Evenly
Apply a thin first coat in one direction using a swab, cloth, or mist, depending on the product. Then apply a second coat perpendicular to the first. This crosshatch pattern is what gets you full, even coverage instead of thin spots.
Watch for streaking or pooling as you go. Correct it immediately. Once it cures, pooled coating turns into sticky residue that's a pain to remove and can affect part release more than no coating at all.
Step 3: Cure the Coating Properly
Curing method depends entirely on the coating type:
- Heat-gun curing (room-temperature-applied coatings): Sweep the heat gun evenly across the surface at the manufacturer-specified temperature and distance, holding for the recommended duration. Don't linger in one spot.
- In-press curing (heat-cured coatings): Applied directly in a heated mold at a set temperature and hold time, per the product's technical data sheet.
A coating can feel dry to the touch within minutes while the bake needed to develop its actual functional properties is still incomplete (Chemours applicator guidance). Dry-to-touch is not the same as cured. Pull the mold too early, and you'll get a coating that looks fine but wears out fast.
PVD coatings work entirely differently. They're not manually cured. They're applied in a controlled vacuum chamber at deposition temperatures around 700-800°F, forming a coating that's chemically bonded to the substrate rather than mechanically adhered on top of it. That's part of why PVD coatings hold up longer on high-wear tooling.
Step 4: Inspect and Verify Coverage
For coatings formulated with UV dye, a black light inspection confirms full, uniform coverage before the mold goes back into production. Give the coating adequate rest time to fully harden. Don't rush this.
Document three things every time:
- Coating type applied
- Application date
- Coating thickness
This record becomes invaluable later when you're trying to figure out why a mold started sticking again, or when it's due for recoating.
When Should You Apply an Injection Mold Coating?
Coating isn't automatic for every mold. Simple, low-wear geometries running short production volumes often don't justify the downtime or cost.
Coating makes sense when you're dealing with:
- Persistent sticking or release problems
- Textured surfaces or zero-draft geometries
- Corrosive resins — PVC or flame-retardant compounds that release corrosive gases during molding
- High-volume production runs where every extra cycle matters
Glass-filled resins deserve special mention. They're a well-documented cause of abrasive wear on tooling surfaces (Ionbond).

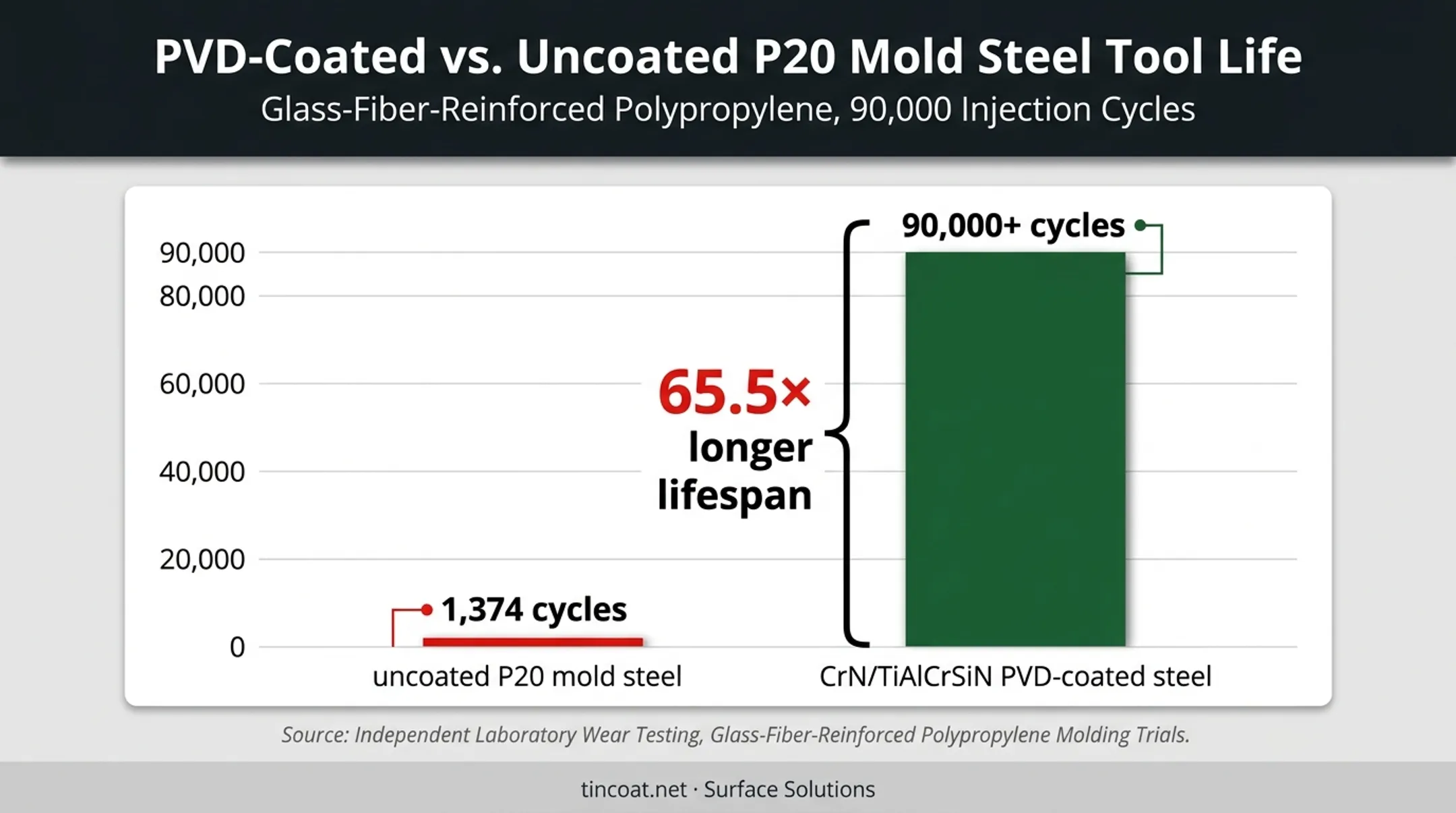

A peer-reviewed 2017 study on P20 mold steel running glass-fiber-reinforced polypropylene found that a CrN/TiAlCrSiN PVD multilayer coating delivered a lifespan 65.5 times longer than uncoated steel over 90,000 injection cycles (Silva et al., 2017).
For severe abrasion, high heat, or long-run tooling, PTFE-style coatings simply wear out faster than the application justifies. That's where professional PVD coating earns its keep.
What You Need Before Applying Injection Mold Coating
Bad prep ruins good coating every time, regardless of material cost.
Equipment checklist:
- Degreaser for mold surface oils and residue
- Lint-free cloths for wipe-down without fiber transfer
- Solvent (ethanol, acetone, or MEK) for final clean
- Applicator (swab, cloth, or sprayer) matched to coating type
- Heat gun or thermolator access for controlled curing
Before you start, verify:
- Base metal type and any existing plating (affects adhesion)
- Resin compatibility with the chosen coating
- Ventilation and PPE for solvent handling and heat-gun use
Operator training matters more than most shops assume. Technicians need exact cure temperatures, not guesses, and must handle solvents and heat sources with the same discipline as the coating step itself.

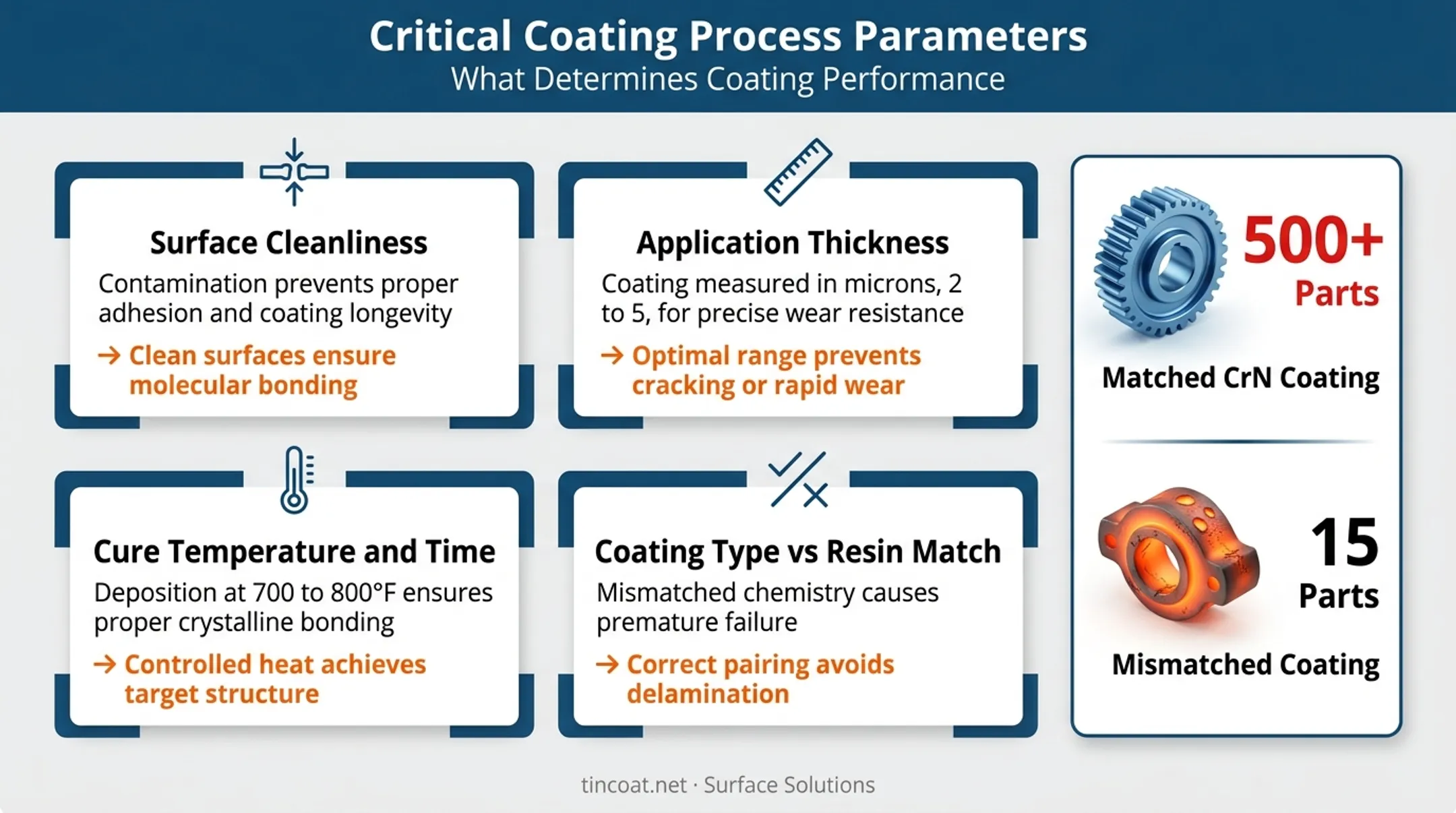

Key Parameters That Affect Coating Results
Outcomes hinge on tightly controlled variables, not just which coating you pick off the shelf.
| Parameter | Why It Matters | Impact on Quality |
|---|---|---|
| Surface cleanliness | Residual oils block proper bonding | Peeling, uneven cure, shortened life |
| Application thickness | Uneven coats cause inconsistent release | Too thick affects dimensions; too thin wears fast |
| Cure temperature/time | Under-curing leaves tacky surfaces | Improperly cured coatings fail early |
| Coating type vs. resin | PTFE suits light-duty release; PVD suits abrasive/corrosive/high-heat work | Mismatched coating means early failure regardless of application quality |
| The coating-type mismatch is where a lot of shops lose money. Surface Solutions' internal testing on a stainless steel drawing application showed CrN-coated tooling producing over 500 parts before wearing out, compared to just 15 parts for a different coating on the same job. Parts stayed just warm to the touch, while the other coating ran too hot to handle. | ||
| That gap is the difference between one shift and a full month of production. |
Common Mistakes and Troubleshooting
Most early coating failures come from prep shortcuts or a mismatch between the coating, resin, and mold surface. Fix the root cause below before you recoat.
Common Mistakes
- Skipping the solvent wipe-down or reusing contaminated shop rags
- Applying coating too thick, or skipping the perpendicular second coat
- Under-curing to save time, which leads to early peeling or chip-out

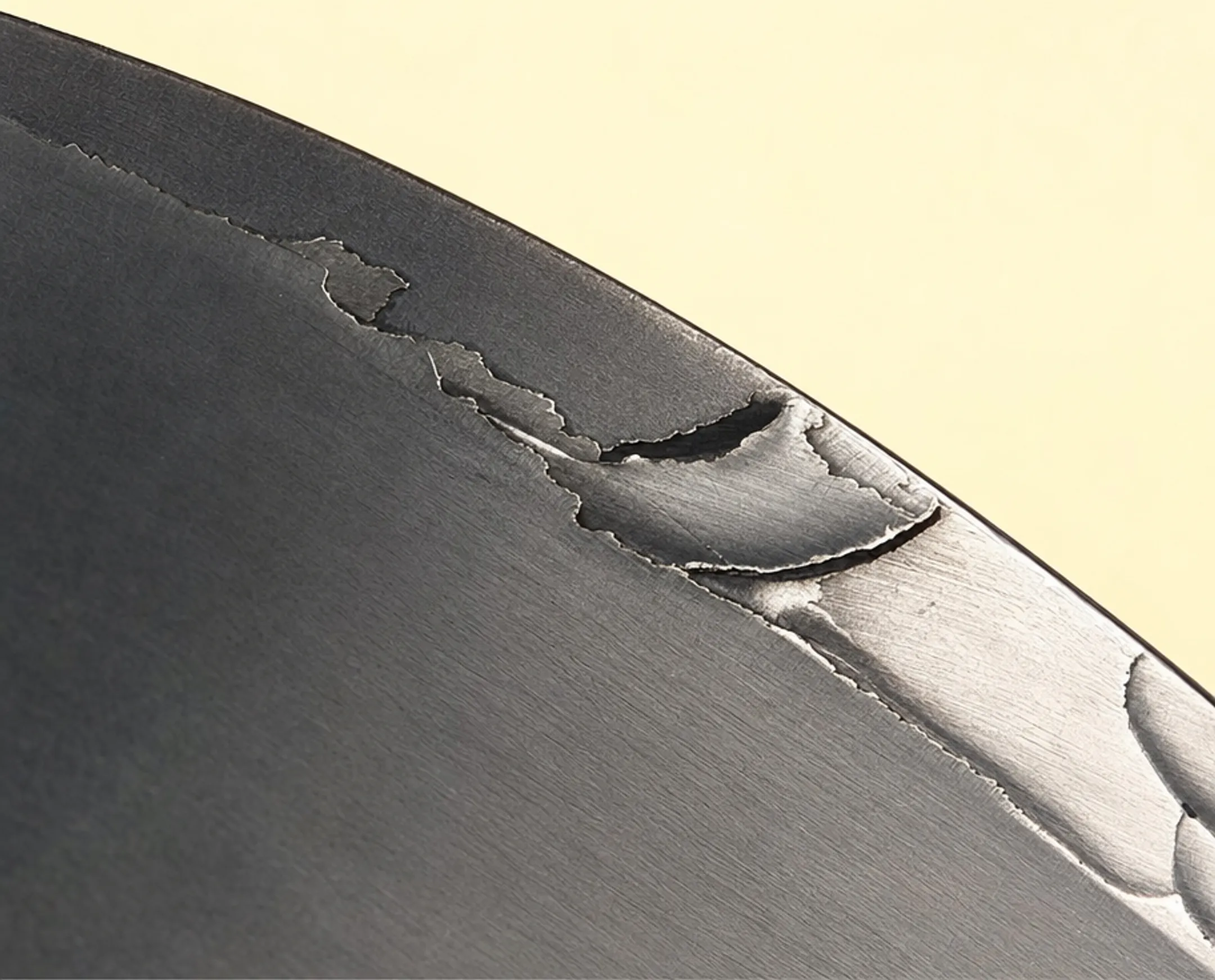

Coating Peels or Chips Early
Likely cause: Incomplete surface prep, or a coating that's mechanically bonded rather than chemically bonded to the substrate.
What to check: Re-clean and re-prep thoroughly. If peeling keeps recurring, switch to a chemically bonded coating like PVD, which bonds at the substrate level instead of sitting on top of it.
Parts Still Sticking After Coating
Likely cause: Uneven application, or a coating that isn't matched to the resin or mold geometry.
What to check: Verify coverage under UV light. Confirm the mold's texture and finish are compatible with the coating you selected.
Frequently Asked Questions
How long does an injection mold last?
Mold life varies widely, from tens of thousands to over a million cycles, depending on steel grade, coating, and maintenance. Proper PVD coating can extend service life well beyond bare or PTFE-coated steel.
How long does mold coating typically last before reapplication?
PTFE-based coatings in high-wear areas often need reapplication every few months. PVD coatings chemically bond to the substrate rather than sitting on top, so they typically last much longer between recoats.
Can I apply mold coating myself, or should I use a professional service?
Light-duty release coatings are reasonable DIY projects with the right prep and equipment. High-wear, high-volume, or corrosive applications benefit from professional PVD coating, which delivers more consistent adhesion and durability.
What's the difference between PTFE and PVD mold coatings?
PTFE coatings generally rely on surface roughening and mechanical adhesion, giving them a shorter working life in demanding applications. PVD coatings form at high temperature in a vacuum chamber, creating a metallurgical bond that holds up far longer under abrasion and heat.
How do I know if my mold needs recoating?
Watch for visible wear, increasing part-to-part cycle times, or sticking that wasn't there before. A thickness-gauge measurement against your coating records will confirm whether you're due for recoating.
Do mold coatings affect part dimensions or tolerances?
Most PVD coatings run 0.0001"–0.0002" thick (a few microns). Applied correctly, that's thin enough to leave tolerances unaffected on the vast majority of parts.
