Many shops treat thickness as an afterthought, assuming more coating always means more protection. That's a costly assumption. Too thin, and you sacrifice wear resistance. Too thick, and you risk chipping, edge rounding, and adhesion failure.
This article breaks down the thickness ranges that matter, what drives the right choice for your application, how to measure it accurately, and how Surface Solutions applies this thinking to real tooling every day.
TL;DR
- Typical PVD thickness: under 1 micron for precision work, 8+ microns for heavy-wear forming
- More coating isn't automatically better — excess thickness raises residual stress and delamination risk
- Thickness depends on substrate hardness, application type, and wear profile
- Calibrated measurement (calotest, XRF, cross-sectional SEM) confirms your coating matches spec
- Surface Solutions matches coating thickness to your specific tool geometry
What PVD Coating Thickness Represents in Tool Performance
Coating thickness is the depth of the deposited layer, typically measured in microns, applied via sputtering or arc evaporation inside a vacuum chamber. That depth is an engineering choice based on substrate hardness, expected application stress, and how long the coating needs to last.
Thickness works alongside coating chemistry (TiN, CrN, AlTiN, Alpha-series) to determine wear resistance, friction behavior, and how well parts release from tooling. A thin, hard coating on the right substrate can outperform a thick coating poorly matched to its application.
For reference, Surface Solutions applies AlTiN coatings at 0.0001–0.0002 inches (roughly 2–5 microns) for demanding cutting-tool work. That range tracks broader industry practice, where general PVD guidance and supplier data (such as Ionbond's 2–4 micron TiN) cluster around similar bands.
Factors That Influence Coating Thickness Selection in Real-World Operation

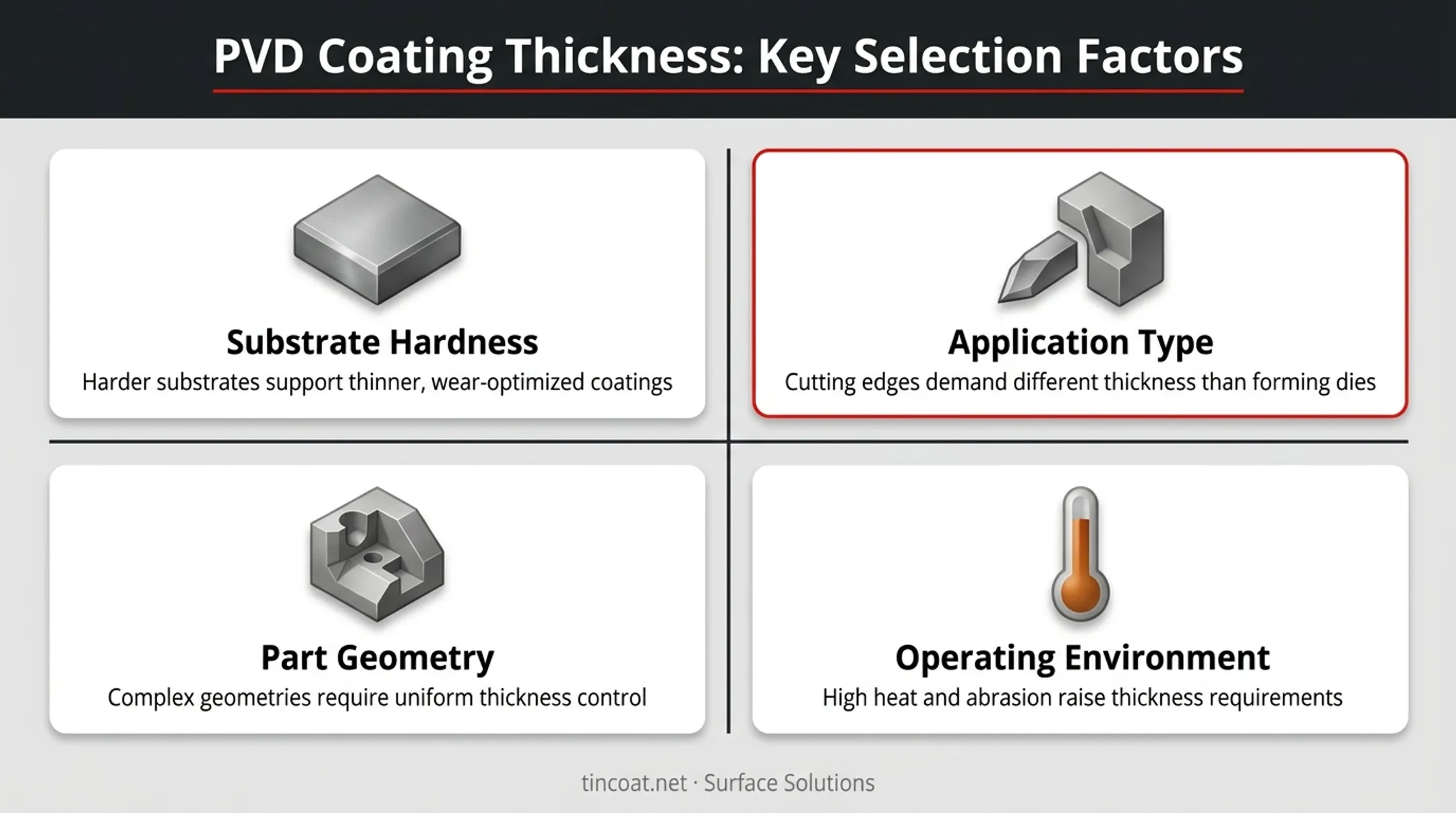

Ideal lab thickness specs often need adjustment once a tool hits the shop floor. These variables usually decide the right range:
- Substrate hardness: Harder tool steels support thicker coatings without deflection risk under load
- Application type: Cutting edges need thinner, sharper coatings; forming and drawing dies benefit from thicker abrasion-resistant layers
- Part geometry: PVD is line-of-sight, so complex shapes and sharp edges limit how evenly thickness builds
- Operating environment: High-heat stamping and punching jobs need thickness tuned for heat dissipation, not just wear resistance
A computational modeling study on PVD deposition confirms the geometry challenge. Complex three-dimensional workpieces need specific thickness modeling because coating does not build evenly on shadowed faces or recesses (ScienceDirect, 2005).
The Right Range: Nominal, Tolerance, and Safe Operating Margins
PVD thickness is governed by two factors: what the coating material can structurally support, and what the tool's mechanical demands require.
Nominal Operating Range

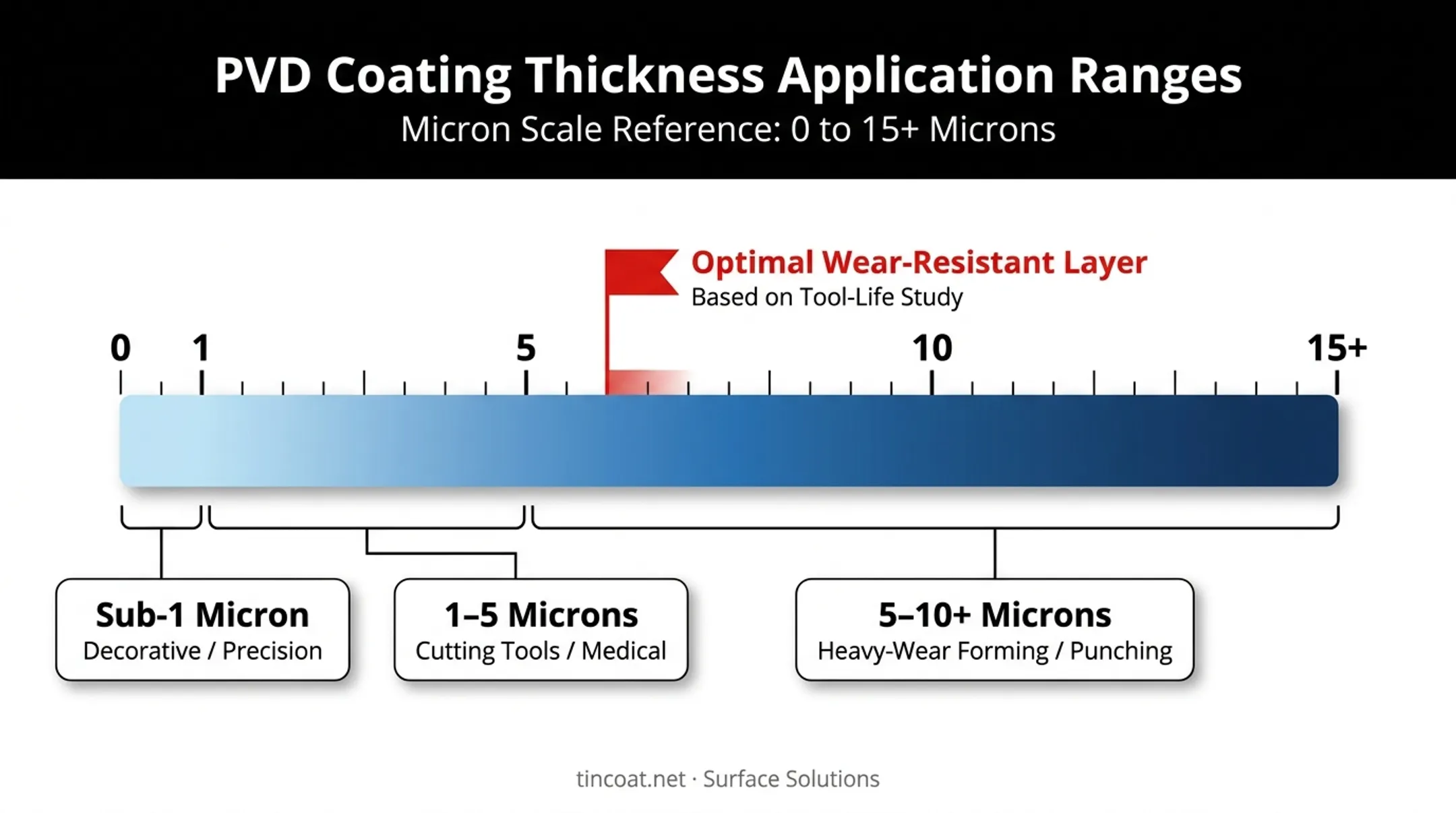

Industry-cited bands generally fall into these buckets:
- Sub-1 micron for decorative or precision parts
- 1–5 microns for standard cutting tools and medical instruments
- 5–10+ microns for heavy-wear forming and punching applications
Kyocera's guidance on medical PVD coatings confirms the 1-5 micron range for surgical and dental instruments, while The Fabricator reports stamping and forming tools generally need a 4-5 micron minimum with verification before shipment. These ranges only hold when substrate hardness and adhesion prep match the coating. Skip the prep, and even a well-specified thickness will underperform.
For many cutting tools and industrial wear components, production PVD services commonly target about 2–5 microns (roughly 0.0001"–0.0002"), which sits inside the standard working band above.
Allowable Tolerance and Boundary Limits
Push thickness too high, and residual stress plus delamination risk rise sharply. Push it too low, and wear protection becomes negligible almost immediately.
A 2019 study on multilayer nano-structured coatings tested thicknesses from 2.0 to 15.0 microns on cemented-carbide inserts. The longest tool life occurred at 5–7 microns for the wear-resistant layer.
At higher cutting speeds, the 15-micron coating performed almost like an uncoated tool. Researchers linked that drop to internal delamination and amplified microcracks (MDPI Coatings, 2019).
Short exposure to abrasive conditions doesn't require the same thickness as continuous, high-cycle production. A punch running a short batch job can get away with less coating than one running 24/7 for months.
Safe Operating Margin
Manufacturers build in margin below the maximum thickness for good reason:
- Measurement variance: no deposition process is perfectly uniform across every surface
- Normal coating non-uniformity: thicker on flats, thinner on edges
- Brittleness risk: thickness near the upper boundary raises chipping risk on punches and cutting edges
That margin is insurance against the failure modes that appear when a coating spec is pushed too hard.
Key Technical Properties Affected by Coating Thickness
Thickness doesn't act alone. It interacts with hardness, adhesion, and residual stress to define how a coating actually performs in service.
Stability and Wear-Life Trade-offs
An older but still-cited 1989 study on TiN-coated high-speed steel found that thickness significantly affected tool life, with 2-3 microns producing the longest life in planing operations. Thicker coatings extended life further in turning applications, but only up to the point where adhesion held.
Those lab findings show up in production too. One Surface Solutions customer running M4 punches with Alpha™ coating on 0.057-inch galvanized steel operated for more than 15 months, producing an estimated 15 million parts. Their previous uncoated D2 punches needed sharpening every three weeks.
Adhesion and Residual Stress
Increasing thickness generally raises internal stress within the coating, which can weaken the bond to the substrate. That relationship is not simply linear, and published results are mixed.
One study found compressive residual stress actually improved tribological performance in some systems, while another found stress decreased as nitride coating thickness increased on steel. The takeaway: residual stress behavior is coating-system specific, not a universal rule you can apply blindly across every material combination.
Coupling With Coating Material and Application

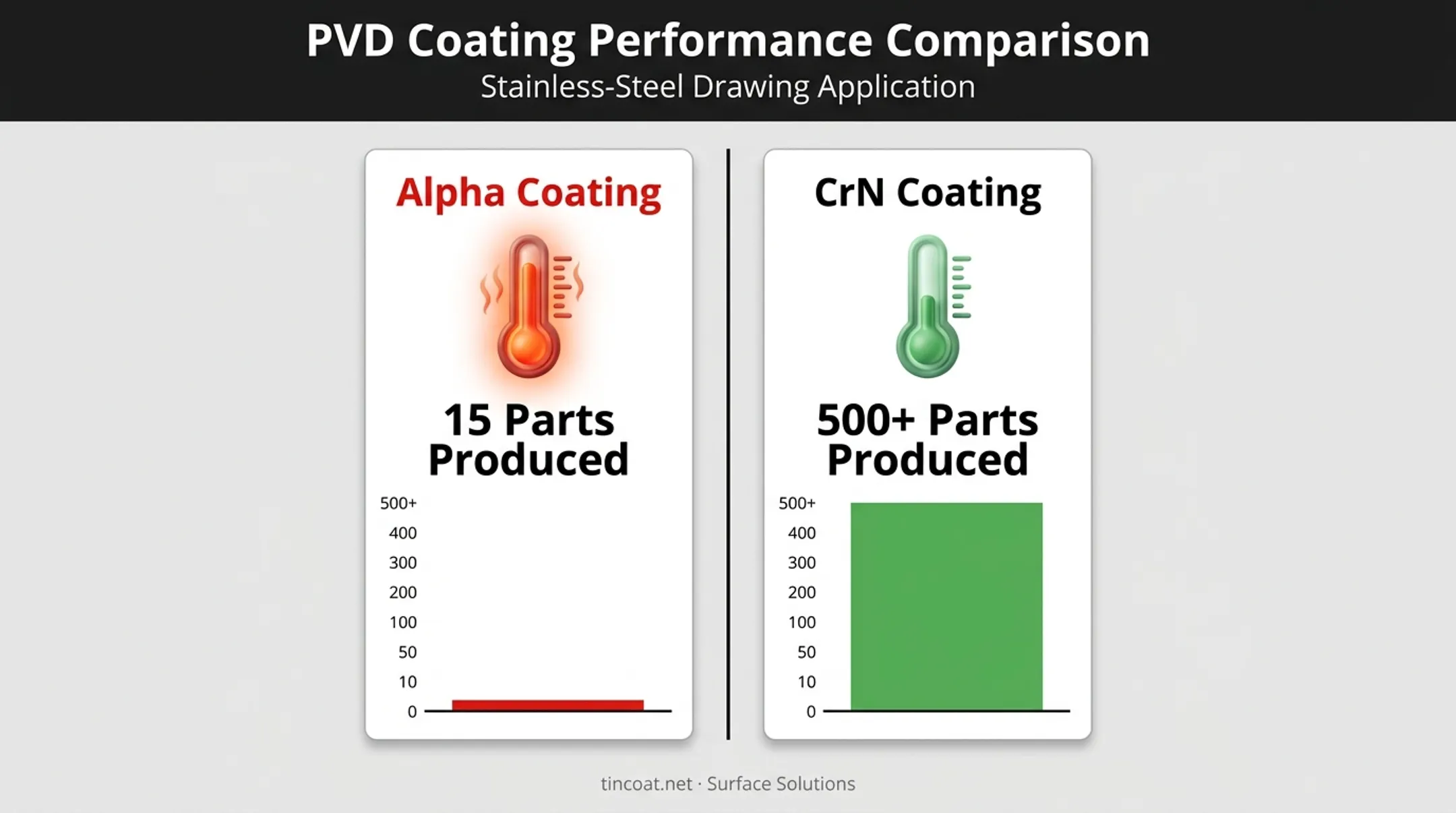

Some coatings deliver strong results without extra thickness. In one Surface Solutions stainless-steel drawing job, coating choice mattered more than bulk:
| Coating | Parts Produced | Part Condition |
|---|---|---|
| Alpha™ | 15 parts | Too hot to touch |
| CrN | 500+ parts | Just warm to touch |
CrN's toughness and lower friction let it outperform without relying on added bulk.
Precision cutting tools face a related trade-off. Thicker layers can dull edge sharpness retention, so cutting edges typically favor thinner, harder formulations over sheer coating volume.
Specifying, Measuring, and Validating PVD Coating Thickness
Thickness is both a design spec and a quality-control checkpoint. It needs to be verified, not assumed.
Reference standards: AMS2444B is the current SAE standard covering TiN PVD on metal parts. Earlier AMS2444A classifications outlined three TiN thickness bands: roughly 1.3-3.8, 2.5-6.1, and 6.4-12.7 microns. Treat those bands as historical context; specify and inspect to the active AMS2444B standard.
Common measurement methods:

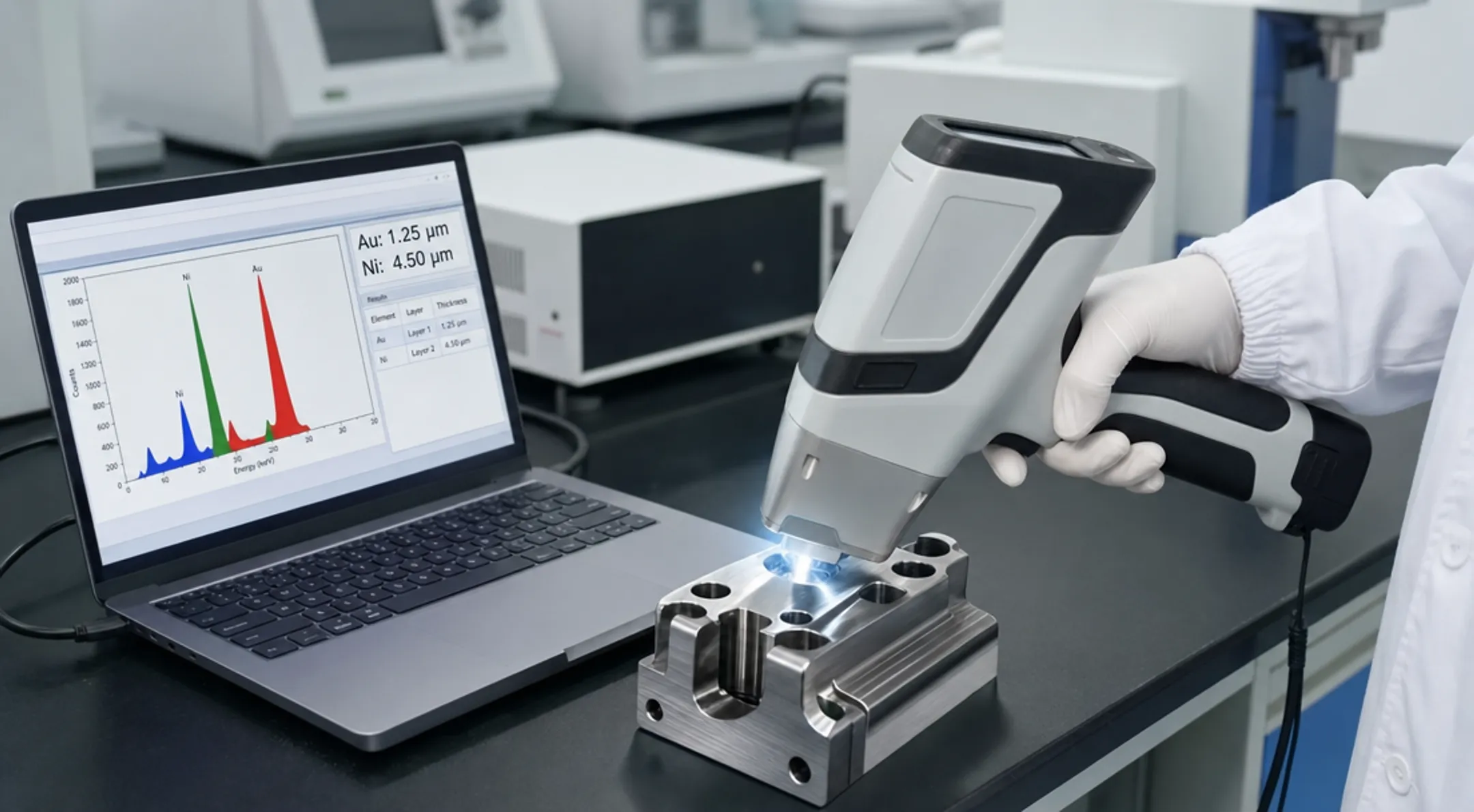

- XRF (X-ray fluorescence): Fast, non-destructive production checks per ASTM B568
- Calotest (ball crater): Local destructive method covering roughly 0.1-50 microns
- Cross-sectional SEM microscopy: High-resolution measurement per ASTM B748 when sectioning is acceptable
Field verification on a finished tool can differ from lab-tested nominal values. Geometry and fixture placement during coating both affect where material builds up thickest and thinnest, so edges and flats often need separate scrutiny.
Risks of Incorrect Thickness and Common Misconceptions
Under-thickness leads to accelerated wear, part sticking, and shortened tool life. Over-thickness causes chipping and flaking.
The biggest misconception: thicker always means better. It doesn't. CrN coatings, for example, achieve excellent results at moderate thickness by managing heat buildup and friction rather than relying on raw bulk. Surface Solutions' CrN case data shows tools producing 500+ parts that stayed just warm to the touch, versus about 15 parts that ran too hot with other coatings.
Other common specification errors:
- Ignoring geometry-specific thickness variation between edges and flat faces
- Applying a single thickness spec across an entire tool without accounting for line-of-sight deposition limits
- Assuming a coating that worked on one substrate will behave identically on another
Consulting a coating specialist before finalizing a spec avoids these traps. Surface Solutions works with manufacturers to match thickness to actual tool design and application demands, not a generic number pulled from a data sheet.
Conclusion
PVD coating thickness is a performance variable you match to the job, not a number to maximize. Get it right for substrate, application, and coating chemistry, and you'll see real gains in tool life and shop productivity.
Work with a partner who engineers thickness around how your tool actually runs in production, not ranges pulled from a chart. Surface Solutions helps manufacturers specify coating thickness that holds up on the production floor.
Frequently Asked Questions
How durable is PVD coating?
Durability depends on coating material, thickness, substrate hardness, and application demands. Well-matched coatings, like Alpha™ on properly hardened tool steel, can deliver years of reliable wear resistance in continuous production.
How long does PVD coating typically last?
Lifespan varies widely by use case. Surface Solutions customers running Alpha™-coated punches have seen 15+ months of continuous service where uncoated tools needed sharpening every three weeks.
What is the ideal PVD coating thickness for cutting tools?
Surface Solutions applies AlTiN coatings at 0.0001–0.0002 inches (2-5 microns) for cutting tools. Thinner coatings preserve edge sharpness better than thicker ones, which is critical for precision cutting applications.
Can PVD coating be too thick?
Yes. Excessive thickness increases brittleness, chipping risk, and delamination potential, especially near sharp edges and high-stress zones on punches and cutting tools.
How is PVD coating thickness measured?
Common methods include XRF (fast, non-destructive), calotest ball-crater testing, and cross-sectional SEM microscopy. Each offers different trade-offs between speed, accuracy, and whether the sample is destroyed.
Does thicker PVD coating always mean better wear resistance?
No. Coating material and adhesion quality often matter more than raw thickness. Surface Solutions' CrN data shows over 500 parts produced at moderate thickness, outperforming a thicker Alpha™ application in the same drawing task.
