ZRN Coating for Aluminum: Benefits and Applications

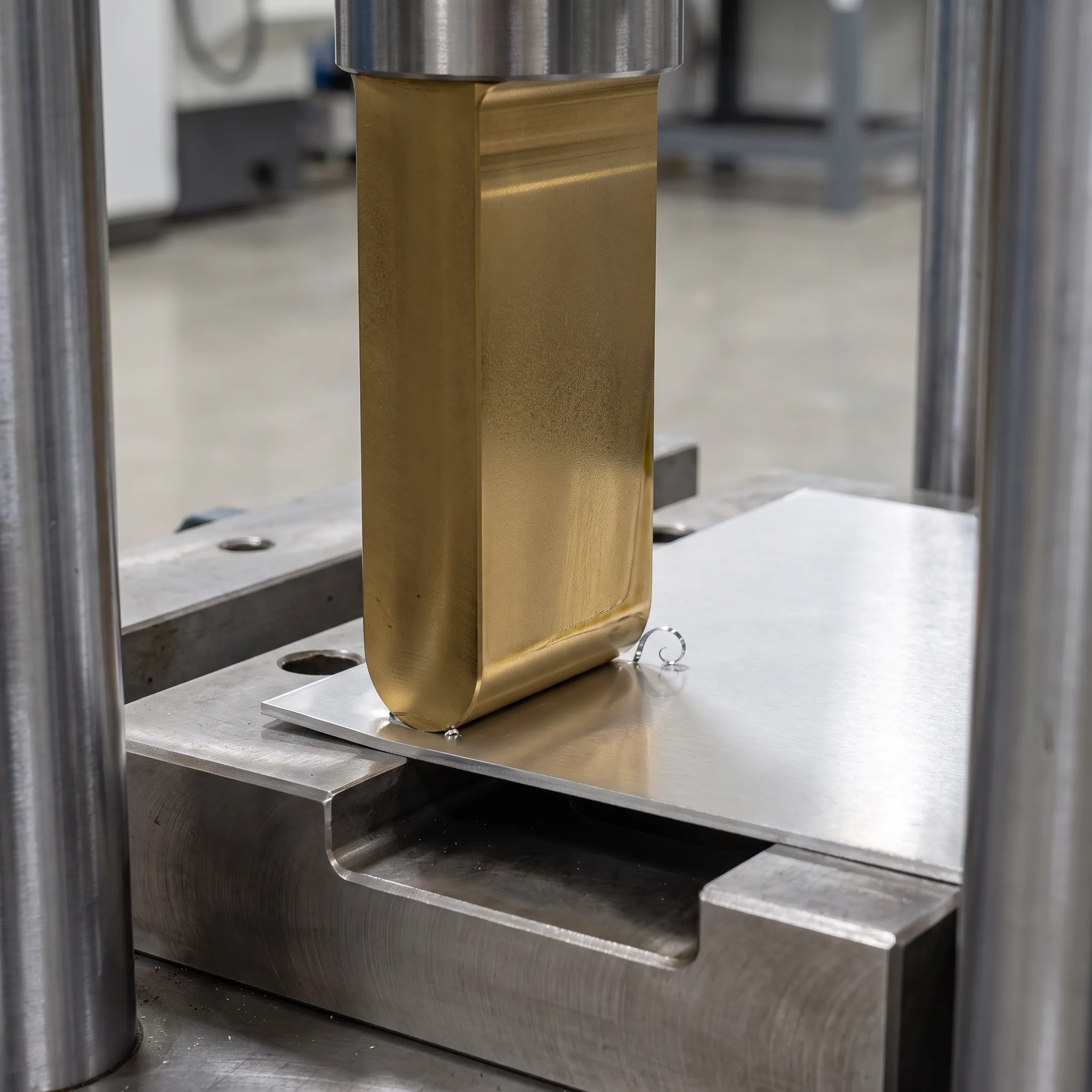

ZrN stands for zirconium nitride, a ceramic-like coating commonly deposited through physical vapor deposition (PVD). It has a distinctive gold color and is valued for hardness, wear resistance, and a relatively low-friction surface. On suitable production tools, ZrN can help limit material adhesion and surface damage, particularly where aluminum or other nonferrous materials tend to gall or build up on tool faces.

ZrN coating is useful for tools that need better wear resistance and reduced friction, including certain cutting, forming, punching, and molding applications. It is often considered for aluminum processing because its surface can help reduce material pickup and improve release. Final suitability depends on the tool substrate, geometry, aluminum alloy, lubrication, operating temperature, contact pressure, and the specific failure mode being addressed.

TiAlN and AlTiN are both aluminum-titanium nitride PVD coatings, but their naming generally reflects different aluminum-to-titanium ratios. AlTiN typically contains more aluminum and is often selected for higher-temperature cutting conditions because of its oxidation-resistant aluminum oxide layer. TiAlN can provide a balanced combination of hardness and heat resistance. The best choice depends on the workpiece, cutting speed, coolant strategy, and tool material.

Aluminum can adhere to tool surfaces under pressure and heat, creating built-up material known as galling. Rough tool surfaces, insufficient lubrication, poor clearance, high contact pressure, and unsuitable tool materials can accelerate it. A properly selected PVD coating can create a smoother, lower-friction barrier that helps reduce adhesion. However, coating works best alongside sound tool geometry, surface preparation, and process settings.

A low-friction ZrN surface may reduce the amount of lubricant needed in some aluminum-processing operations by helping material move across the tool more easily. It does not automatically eliminate lubrication, especially in high-pressure forming or complex geometries. Lubricant selection, application consistency, tool finish, and production speed still matter. Trialing the coating under actual operating conditions is the most reliable way to confirm results.

ZrN may be applied to many properly prepared tools used for aluminum cutting, punching, forming, and related manufacturing work. Common candidates include punches, dies, forming inserts, blades, and cutting tools, depending on their substrate and operating conditions. The tool must tolerate the PVD process and have a suitable surface condition. Existing wear, cracks, rounded edges, or contamination should be addressed before coating.

Tooling should be clean, dimensionally stable, and free of oils, corrosion, loose material, and significant damage before PVD coating. Regrinding or polishing may be needed to restore the working edge or surface, because a coating follows the underlying finish rather than hiding defects. Clearly identify critical tolerances, masked areas, and application details. Good preparation helps promote coating adhesion and repeatable performance.

Choose a PVD coating by starting with the actual production problem: galling, abrasive wear, heat, chipping, corrosion, or poor release. ZrN is often evaluated for aluminum-related adhesion concerns, while TiN, TiCN, CrN, TiAlN, AlTiN, and specialized coatings can suit other conditions. Consider the workpiece, tool steel or carbide grade, lubrication, temperature, cycle time, and required finish before making a selection.
